221V06F27-22-1400CMM: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, M2, Receptacle; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerNICOMATIC

Download Datasheet Parametric View All

221V06F27-22-1400CMM Overview

Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, M2, Receptacle

221V06F27-22-1400CMM Parametric

Parameter Name	Attribute value
Maker	NICOMATIC
Reach Compliance Code	compli
Other features	NONE
Board mount options	PEG
body width	0.236 inch
subject depth	0.315 inch
body length	1.26 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Durability	500 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	221
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	M2
Installation option 2	JACKSCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

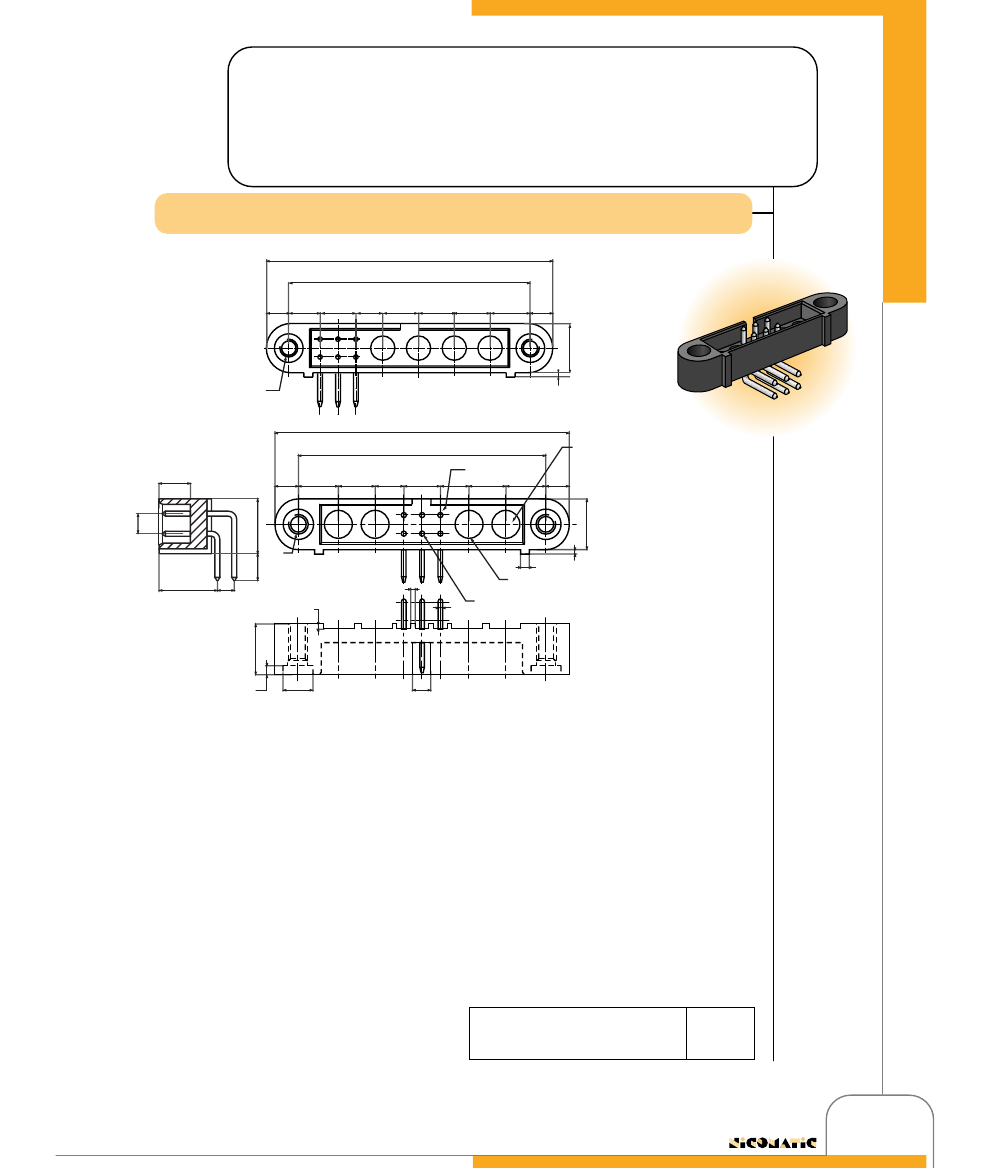

Micro-connector CMM 220

series with cavities for

special contacts

MALE 90° PCB

C

B

2.5

3.5

A

3

4

4.5

2.5

1

5.5

M2

0.5

C

B

contact n 1

3,5

Cavity n 1

2.5

4.5

4

3

A

1

3

4

4.5

2.5

2

6

1

5.5

M2

0.5

1

From 0 to 12 cavities max.

divided on both extremities

2 signal contacts minimum

6

2

L

0.5

ø 0.5

Contact

5.5

•

Length L

3 mm

4.5 mm

V

VL

ø 3.2

2

1

Dimensions in mm

Part number

221

•

nn Fxx

-

sv

-

x

nn : number of contacts

xx : fixing, refer to page 25.

s

:

Number of cavities for special contacts (Pin 1 side of L.F. contacts).

v

:

Number of cavities for special contacts (other end).

x

:

Special contacts PN˚ when all cavities loaded, please refer to pages 40 and 44.

For special contacts and pcb lay out : please refer to pages 40 and 44.

Concerning items including only cavities for special contacts, please refer to page 18.

Other sizes are available upon request, please consult us.

Dimensions

A = 2 mm x (number of contacts per row - 1)

B = A + (number of cavities x 4) + 7 mm

C = B + 5 mm

A = 2 x (3 - 1)

B = 4 + (4 x 4) + 7

C = 27 + 5 mm

Example

221V 06 F23 - 22 - 1400 CMM

A=4

B = 27

C = 32
