REVISIONS
REV.
D E S C R IP T IO N
DATE
BY
Marking
Add White Dot for Pin 1
Classification
MIL-PRF-27 Grade:
MIL-PRF-27 Class:
Maximum Ambient Temperature:
6
S (130° C)
105° C
MIL-STD-981 Quality Assurance Provisions
Class Description
Drawing Number
1
C
Commercial Parts
32087-30
B
Group A Inspection 32087-31B
E
Group A Inspection 32087-31S
S
Group A Inspection 32087-31S and
Group B Inspection 32087-85
1
The germane data will ship with the hardware.
Electrical Characteristics
DC Resistance: (1 - 2) = 391 m
S
Maximum
(3 - 4) = 441m
S
Maximum
(5 - 6) = 441m
S
Maximum
(7 - 8) = 240 m
S
Maximum
Inductance (measured at 0.1 V, 10 KHz):
(1 - 2) = 32 µH, ± 10%, I
DC
= 0 mA
(1 - 2) = 26 µH Minimum, I
DC
= 75 mA
LOAD CONDITIONS
Pri Volt. and Freq. = 10 V
RMS
, 200KHz
Sec 1 Rated Power = 0.3 W
Sec 2 Rated Power = 0.3 W
Sec 3 Rated Power = 0.1 W
P
TOTAL
= 0.7W
Ratio and Polarity:
(3 - 4)/(1 - 2) = 1.267 ± 2%
(5 - 6)/(1 - 2) = 1.267 ± 2%
(7 - 8)/(1 - 2) = 0.600 ± 2%
These Parts Are Manufactured in Strict Compliance to MIL-STD-981.
The “X” in the part number
refers to the Quality Level
(C, B , E, or S ), see Qu ality
Assurance Provisions
above.
UNLESS OTHERW ISE SPECIFIED:
Dimensions are in inches, and
tolerances are:
TITLE
Fractions
De cim als
Angles
±1/64
.X = ±0.1
.XX = ±0.02
.XXX=±0.010
±1/2°
COAST/ACM

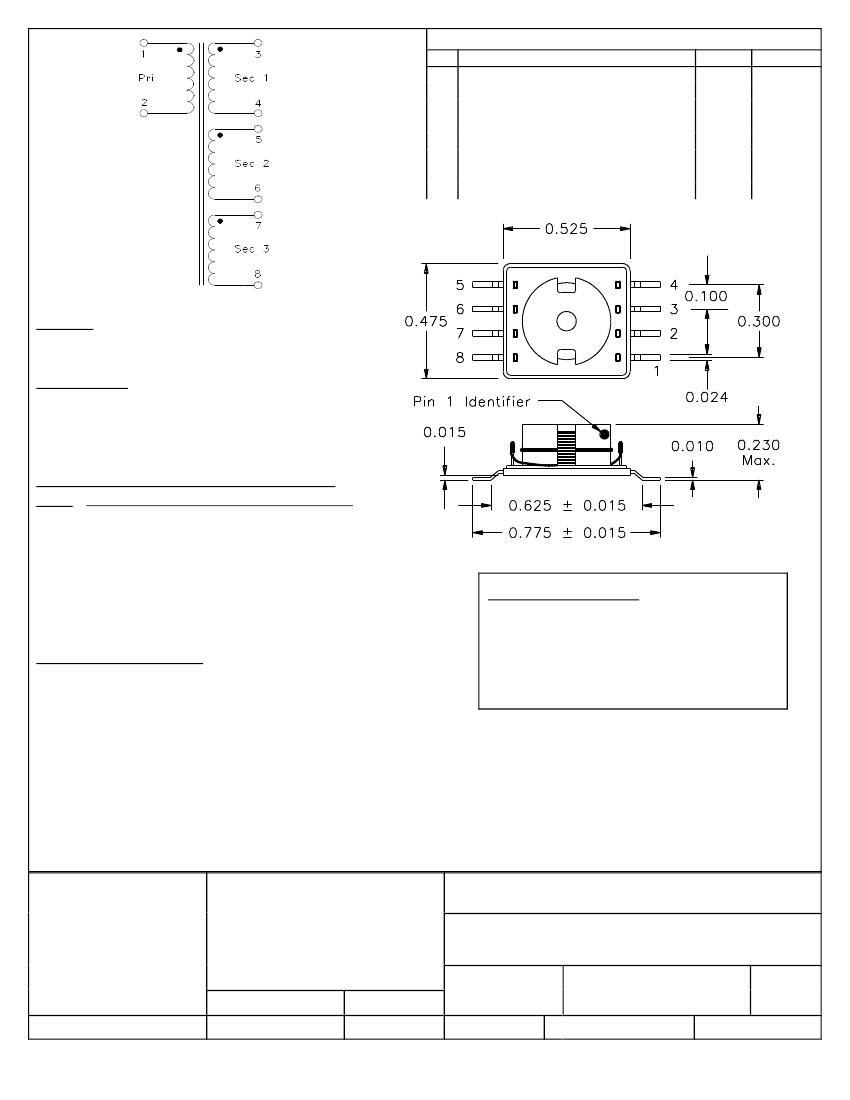

Transformer, Power
DW G. NO
REV.
FSCM
DATE
06/12/02
DRAW N BY
DO NOT SCALE DRAWING
Jim Allen
22558
SCALE: none
MA X. W T.:
32087X
5 grams
SHEET 1 OF 1
