40 Years of LED Experience

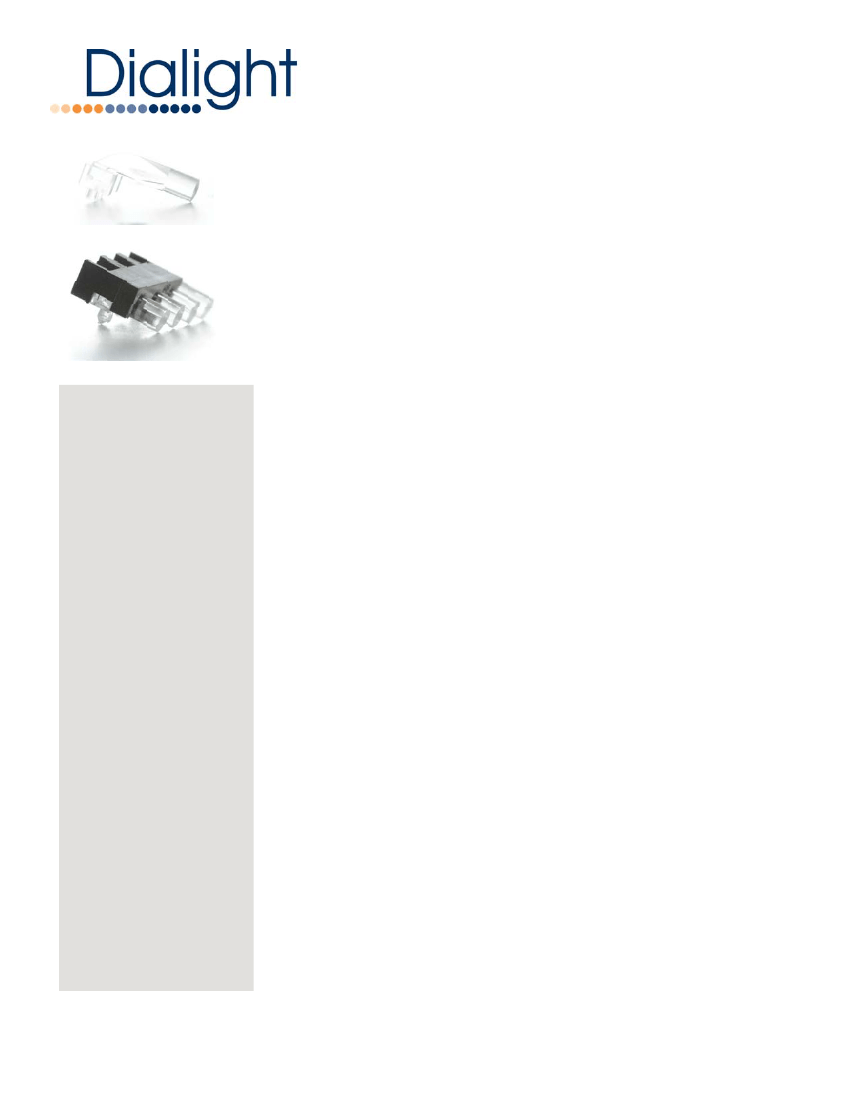

Why Light Pipes?
Visual status indication provides for safe and reliable operation of electrical equipment, instruments, and
electronic devices and also serves diagnostic purposes as well. While lamp holders, which utilize sepa-
rate incandescent or neon bulbs and lens caps, dominated the market in the majority of the 20th cen-
tury, LED-based light sources are predominantly used today to provide visual indication.
Technical Solutions
Light-pipes provide front-panel indication where:
•
Traditional indicators are too large or other space constraints exist
•
Indication is required over, around, or beneath front-panel components
•
EMI/RFI concerns require location of the light source away from the front-panel
Index
02
Product Overview
Optopipe
®
Lightpipes
04

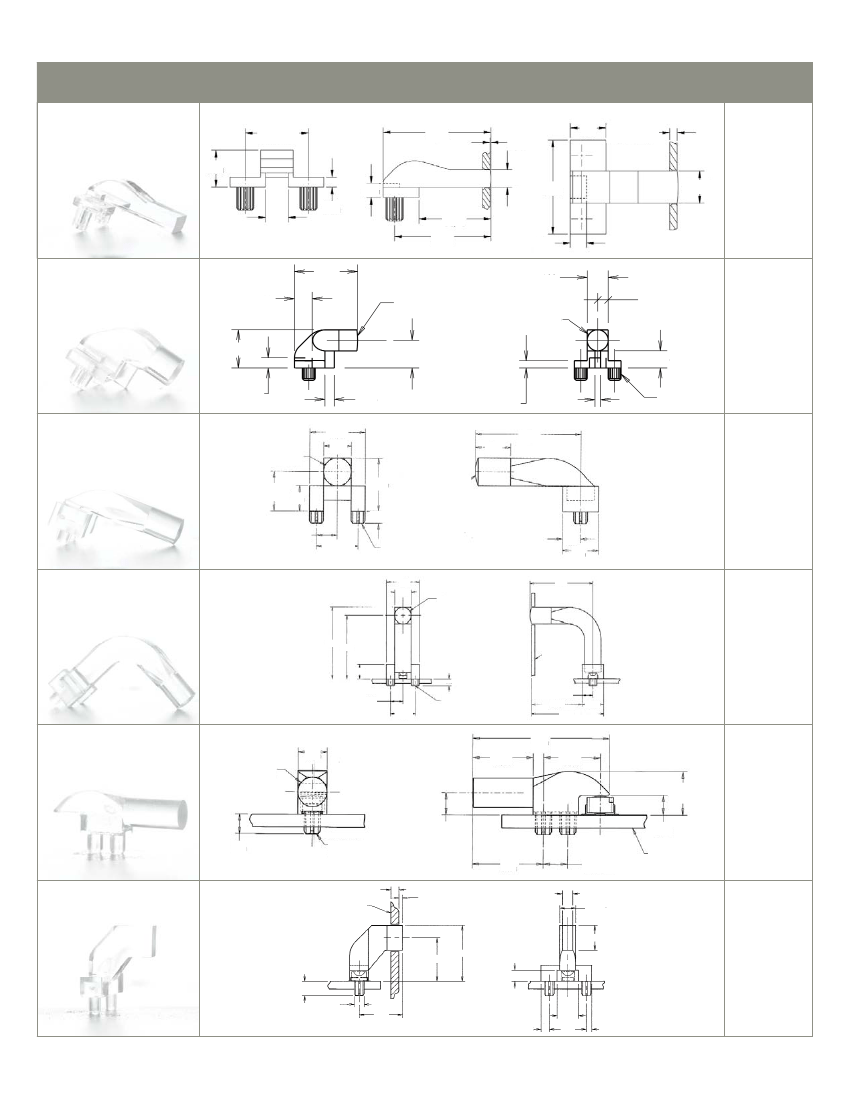

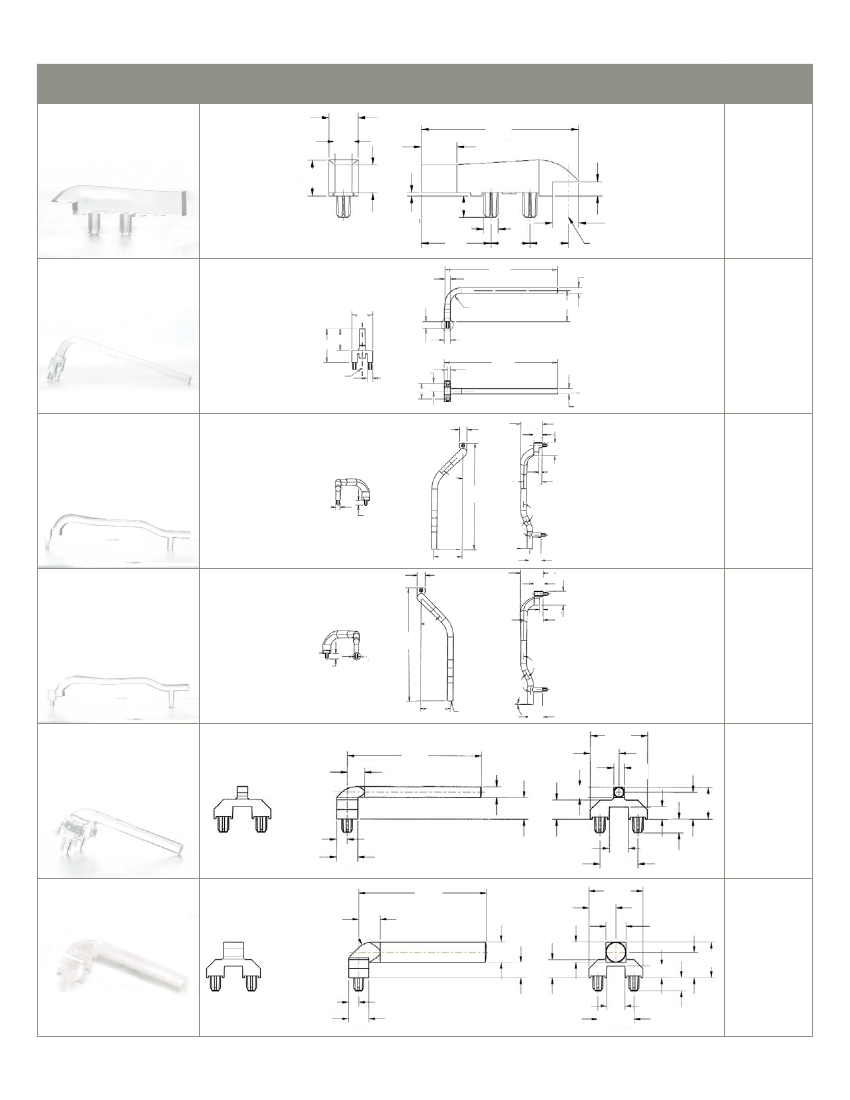

PCB Mount Single
Position Horizontal
06
PCB Mount Multiple
Position Vertical
08
PCB Mount Multiple
Position Horizontal
14
Panel Mount Single
Position
15
Panel Mount Multiple
position
Micro LED
®
LEDs
16
Recommended
Micro LED® Surface
Mount LEDs
New Products
18
Optopipe® Light pipe
Actuator Extensions
•
Indication is desired after all mechanical design considerations were made
We also design light-pipes for non-diagnostic applications, including lighted company logos.
Light loss between the LED and light-pipe interface must be considered and there is also additional
transmission loss through the pipe or wherever there is a bend. The shape of the light-pipe also influences
the output. Dialight’s design engineers will recommend the best LED for use with each light-pipe.
Configuration and features
Almost any configuration or size can be accommodated and we currently offer standard solutions in:
Single Element
Multiple Element
Single Row
Multiple Row
Round Lens
Square Lens
Rectangular Lens
Illuminated Corner
Vertical
Horizontal
Vertical Right Angle
Horizontal Right Angle
Shielded
Textured Lens
Polished Lens
Over RS-232
Over SFP Cage
Under PCB Mount
Mounting Consideration
Most light-pipes are mounted to a PCB by pressing into holes drilled into the PCB. Depending on the appli-
cation, epoxy is also indicated for additional support. Some light-pipes are designed to press into the
front-panel and rest on the PCB, just above the LED(s). Heat-staking is another process that is used to mount
light-pipes in specific applications.
The following pages are organized as a product overview. Additional information including detailed specs, are available at: www.dialight.com.
The most recent version of this selector guide can be found at:
www.dialight.com/assets/brochures_and_catalogs/indication/lightpipe_selector_guide.pdf
2
Dialight Optopipes®
Dialight’s expertise in LED indication and lighting is apparent in our line of engineered light-pipes. Dialight has been a
leading manufacturer of lightpipes for network communication and electronic equipment for more than 10 years. Our
200 standard and custom solutions are complemented by new designs resulting from customer requirements or market
developments. Dialight’s optical and mechanical engineers use the latest modeling tools to develop mechanical and
optical simulations that ensure expected performance of the design. SLAs are available to represent the physical and
optical characteristics of the design. Dialight also has an extensive optics lab for post-design measurement and analysis.
With various single and multiple position products for either Panel Mount or PCB Mount oriented lightpipes already in
production, we also have the added capability to manufacture custom solutions to meet your specific requirements.
Features and Benefits
•
Impervious to failure due to shock and vibration
•
•
•
•
Up to 90% more efficient than traditional light sources when delivering monochromatic light
Low-voltage and minimal power consumption
Light is produced through photonic emission, not as a by-product of a radiating heat source
Molded from RoHS compliant UL94-V0 Water Clear Polycarbonate with an oxygen index of 35%.
Typical Applications
•
Data center Infrastructure
•
Servers - Rack mount; blade; tower
•
Storage – High-performance storage subsystems for high- end enterprise
•
Networking Equipment for enterprise data centers and telecom communication centers
•
Switches, routers, and network control equipment interconnected using fiber optic and
high speed wiring
•
Storage Networking Hardware
•
Fiber channel host bus adapter cards (HBAs); converged network adapter cards (CNAs);\ISCSi adapter cards;
InfiniBand adapter cards
•
Next-Gen Wireless
•
Wireless Infrastructure
•
Electronic Test & Measurement Instruments
•
Communications Testing Equipment
•
Process controls
•
Automation
•
Medical
•
Handheld devices
To compliment our wide range of Lightpipes, Dialight is also the worldwide leader in applied LED technology including
Circuit Board and Panel Mount Indicators, Surface Mount LEDs, LED signaling products for the transportation industry
and LED lighting fixtures for industrial users. Dialight’s Lightpipes are available through our extensive line of Sales Repre-
sentatives and Distributors world-wide. For a complete listing that includes the ability to check stock status at our
Distribution partners, please visit our website at www.dialight.com. The most current version of this catalog will always
be availble at: www.dialight.com/assets/brochures_and_catalogs/indication/lightpipe_selector_guide.pdf
