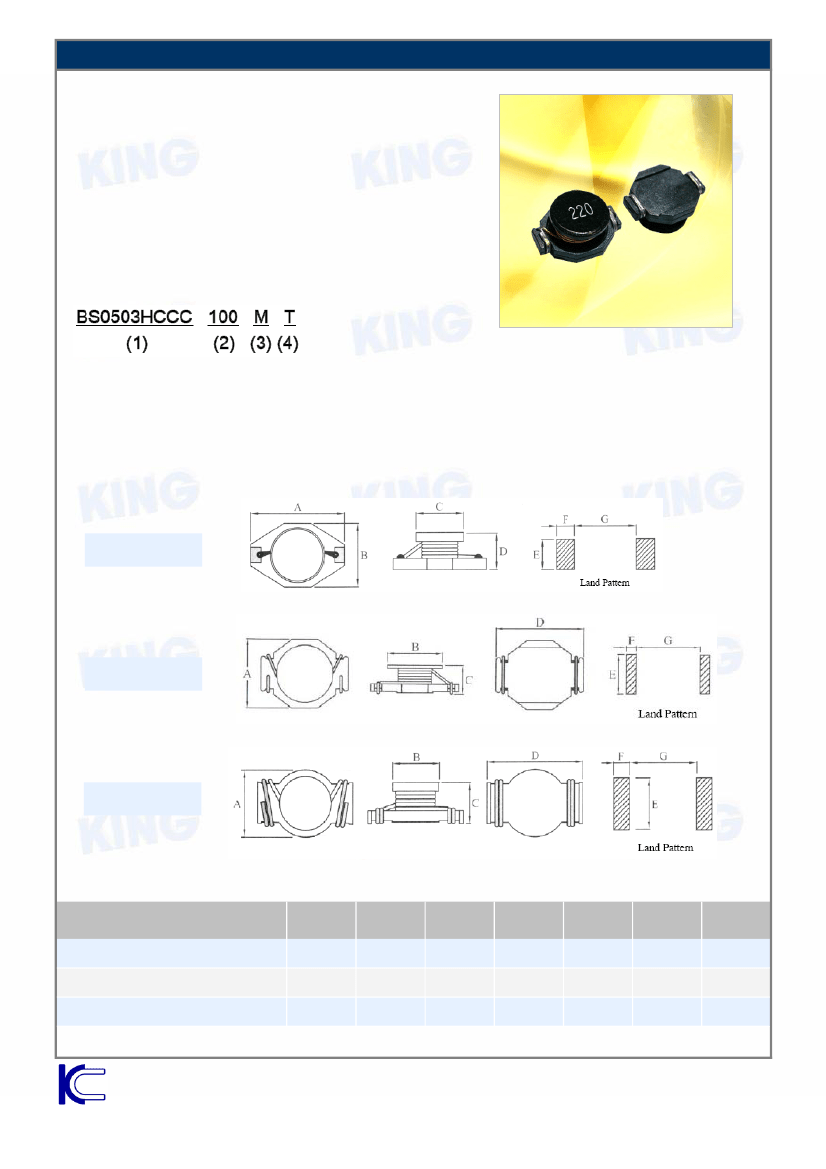

SMD POWER INDUCTORS
→
BS□□□□HCCC SERIES

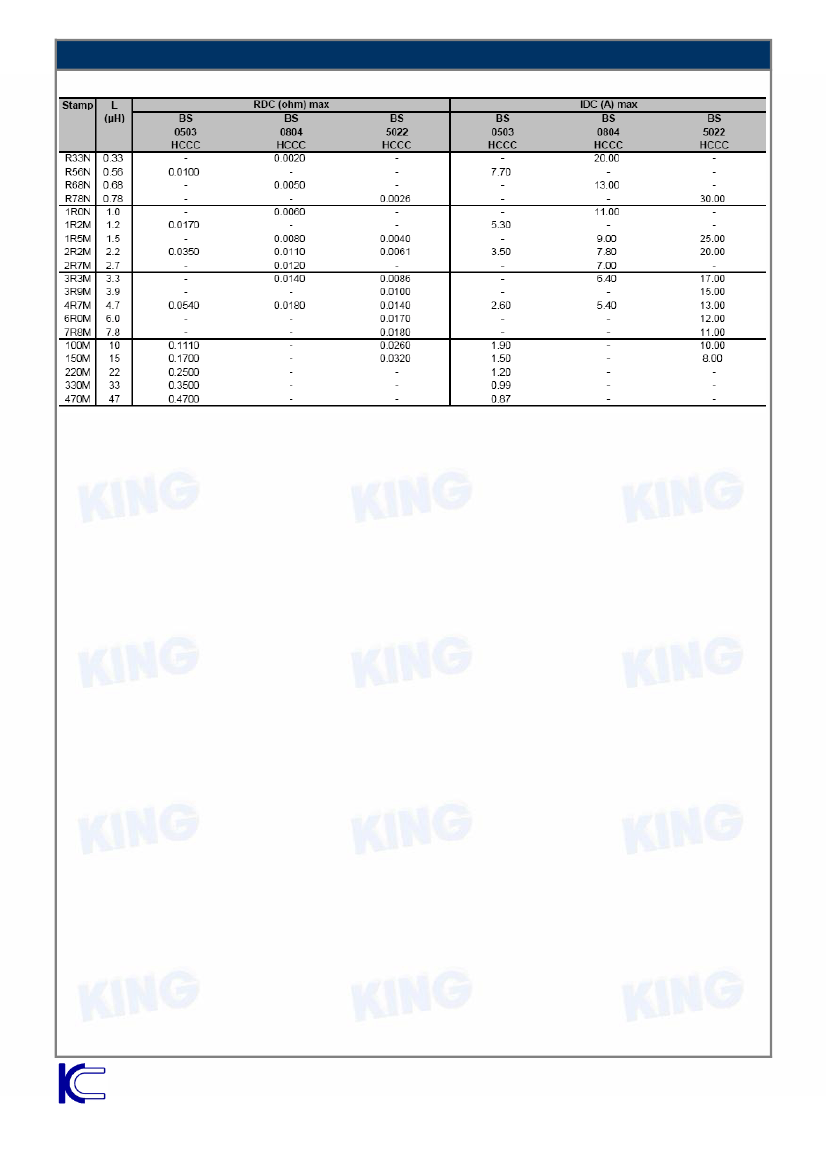

ELECTRICAL CHARACTERISTIC
Test Freq. :
BS0503HCCC
BS0804HCCC
BS5022HCCC
(100KHz / 0.25V)
(100KHz / 0.1V)
(100KHz / 0.1V)
Tolerance : M± 20% ,N± 30%
※All
the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan
E-mail:kc@mail.kingcore.com.tw
Web Site:http://www.kingcore.com.tw
2
BS-HCCC.A01
SMD POWER INDUCTORS
→
BS0503HCCC SERIES
ELECTRICAL CHARACTERISTIC
ORDERING CODE
BS0503HCCCR56NT
BS0503HCCC1R2MT
BS0503HCCC2R2MT
BS0503HCCC4R7MT
BS0503HCCC100MT
BS0503HCCC150MT
BS0503HCCC220MT
BS0503HCCC330MT
BS0503HCCC470MT
Test Freq.:100KHz/0.25V
Tolerance: M±20%,N±30%
Inductance
(μH)
0.56
1.20
2.20
4.70
10.00
15.00
22.00
33.00
47.00
Test Frequency
(KHz)
100
100
100
100
100
100
100
100
100
DC Resistance
(Ω)max
0.0100
0.0170
0.0350
0.0540
0.1110
0.1700
0.2500
0.3500
0.4700
IDC
(A)max
7.70
5.30
3.50
2.60
1.90
1.50
1.20
0.99
0.87
※All
the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan
E-mail:kc@mail.kingcore.com.tw
Web Site:http://www.kingcore.com.tw
3
BS-HCCC.A01
SMD POWER INDUCTORS
→
BS0804HCCC SERIES
ELECTRICAL CHARACTERISTIC
ORDERING CODE
BS0804HCCCR33NT
BS0804HCCCR68NT
BS0804HCCC1R0NT
BS0804HCCC1R5MT
BS0804HCCC2R2MT
BS0804HCCC2R7MT
BS0804HCCC3R3MT
BS0804HCCC4R7MT
Test Freq.:100KHz/0.1V
Tolerance: M±20%,N±30%
Inductance
(μH)
0.33
0.68
1.00
1.50
2.20
2.70
3.30
4.70
Test Frequency
(KHz)
100
100
100
100
100
100
100
100
DC Resistance
(Ω)max
0.0020
0.0050
0.0060
0.0080
0.0110
0.0120
0.0140
0.0180
IDC
(A)max
20.00
13.00
11.00
9.00
7.80
7.00
6.40
5.40
※All
the data listed in this catalogue are for reference only, King Core reserves the right to alter or revise the specifications without prior notification.
KING CORE ELECTRONICS INC.
Tel:886-3-4698855
Fax:886-3-4691395
No.269,Nanfong Rd.,Pingjhen City,Taoyuan County, Taiwan
E-mail:kc@mail.kingcore.com.tw
Web Site:http://www.kingcore.com.tw
4
BS-HCCC.A01
SMD POWER INDUCTORS
→
BS5022HCCC SERIES
ELECTRICAL CHARACTERISTIC
ORDERING CODE
BS5022HCCCR78NT
BS5022HCCC1R5MT
BS5022HCCC2R2MT
BS5022HCCC3R3MT
BS5022HCCC3R9MT
BS5022HCCC4R7MT
BS5022HCCC6R0MT
BS5022HCCC7R8MT
BS5022HCCC100MT
BS5022HCCC150MT
Test Freq.:100KHz/0.1V
Tolerance: M±20%,N±30%
Inductance
(μH)
0.78
1.50
2.20
3.30
3.90
4.70
6.00
7.80
10.00
15.00
Test Frequency
(KHz)
100
100
100
100
100
100
100
100
100
100
DC Resistance
(Ω)max
0.0026
0.0040
0.0061
0.0086
0.0100
0.0140
0.0170
0.0180
0.0260
0.0320
IDC
(A)max
30.00
25.00
20.00
17.00
15.00
13.00
12.00
11.00
10.00
8.00
※All
