Part Number

Search

5289-3A

Description
2 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector
File Size53KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

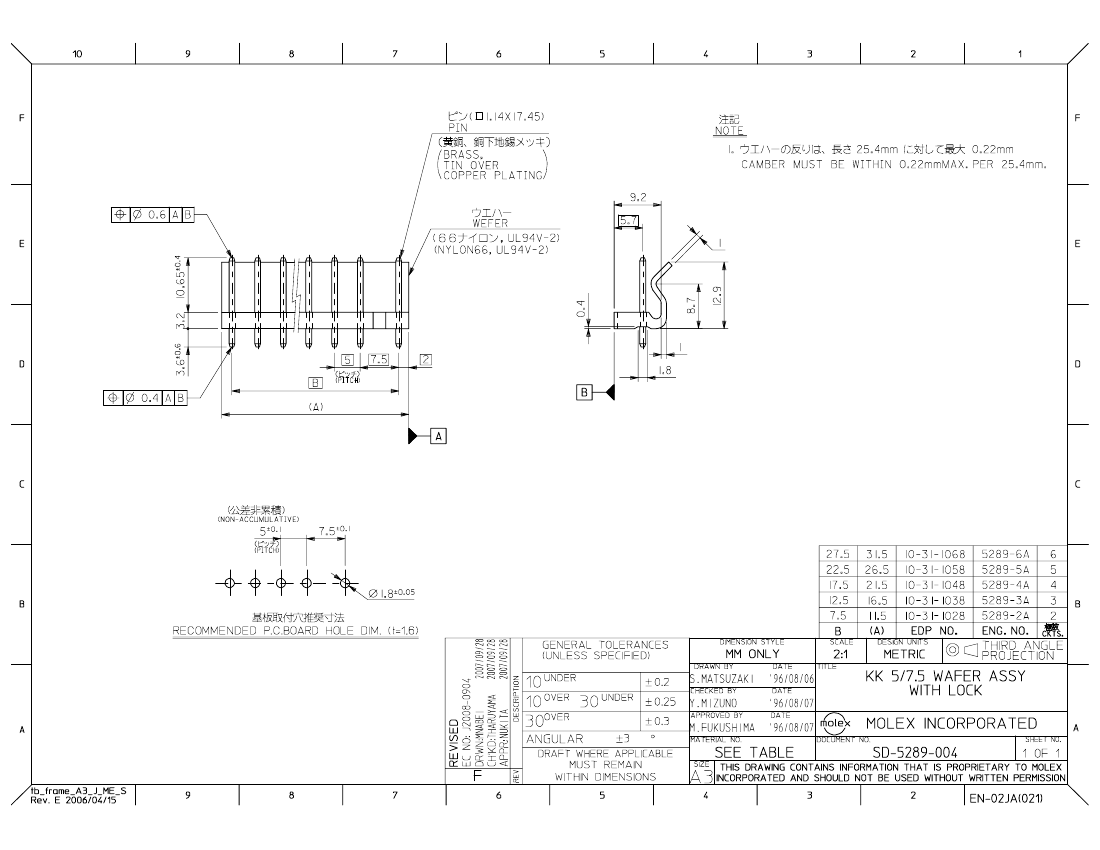

5289-3A Overview

2 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

5289-3A Parametric

Parameter NameAttribute value
Connector typeBOARD CONNECTOR
Contact materialsBRASS
Terminal spacing5 mm
Total number of contacts2
EU RoHS regulationsYes
stateActive
width0.4490 inch
body_depth0.5080 inch
body_diamete0.4530 inch
Shell styleRECEPTACLE
Contact surface matchingSN
Contact coated terminalsTIN
Connector male and femaleMALE
contact_patteRECTANGULAR
contact_resistance10 mohm
contact_styleSQ PIN-SKT
dielectric_withstanding_voltage__v_1500VAC
According to DINNO
Filter characteristicsNO
Comply with IECNO
insulation_resistance1.00E9 ohm
insulator_materialNYLON
Manufacturer Series5289
mating_contact_pitch__inch_0.295
collocation information10-63-3024
Meet MILNO
hybrid connectionNO
mounting_option_1LOCKING
mounting_option_2FRICTION LOCK
Installation methodSTRAIGHT
Installation typeBOARD
umber_of_connectorsONE
umber_of_pcb_rows1
Number of load rows1
Minimum operating temperature-40 Cel
erating_temperature_max__cel_105
OptionsGENERAL PURPOSE
cb_contact_patteRECTANGULAR
ed_current__signal_7 A
eference_standardUL, CSA
eliabilityCOMMERCIAL
sub_categoryHeaders and Edge Type Connectors
erminal_length0.1420 inch
Terminal typeSOLDER
UL flammability code94V-2
dditional_featureSPOX, POLARIZED
