164031 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 164031

164031: DescriptionD Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Surface Mount Terminal, #4-40, Plug, LEAD FREE; CategoryThe connector The connector; File Size110KB，1 Pages; ManufacturerProvertha Connectors Cables & Solutions GmbH; Environmental Compliance

Download Datasheet Parametric View All

164031 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	164031	-	-	View	Buy Now

164031 Overview

D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, Surface Mount Terminal, #4-40, Plug, LEAD FREE

164031 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Provertha Connectors Cables & Solutions GmbH
package instruction	LEAD FREE
Reach Compliance Code	compli
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch
subject depth	0.248 inch
body length	2.087 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.109 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
Guideline	UL,VDE,CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Terminal pitch	2.7686 mm
Termination type	SURFACE MOUNT
Total number of contacts	25
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

Verpackt in Tray

Verpackungseinheit 30 St.

6,3

-0,25

5 x 18 = 90

max. 138

tray packaging

packaging unit 30 pcs

14,8

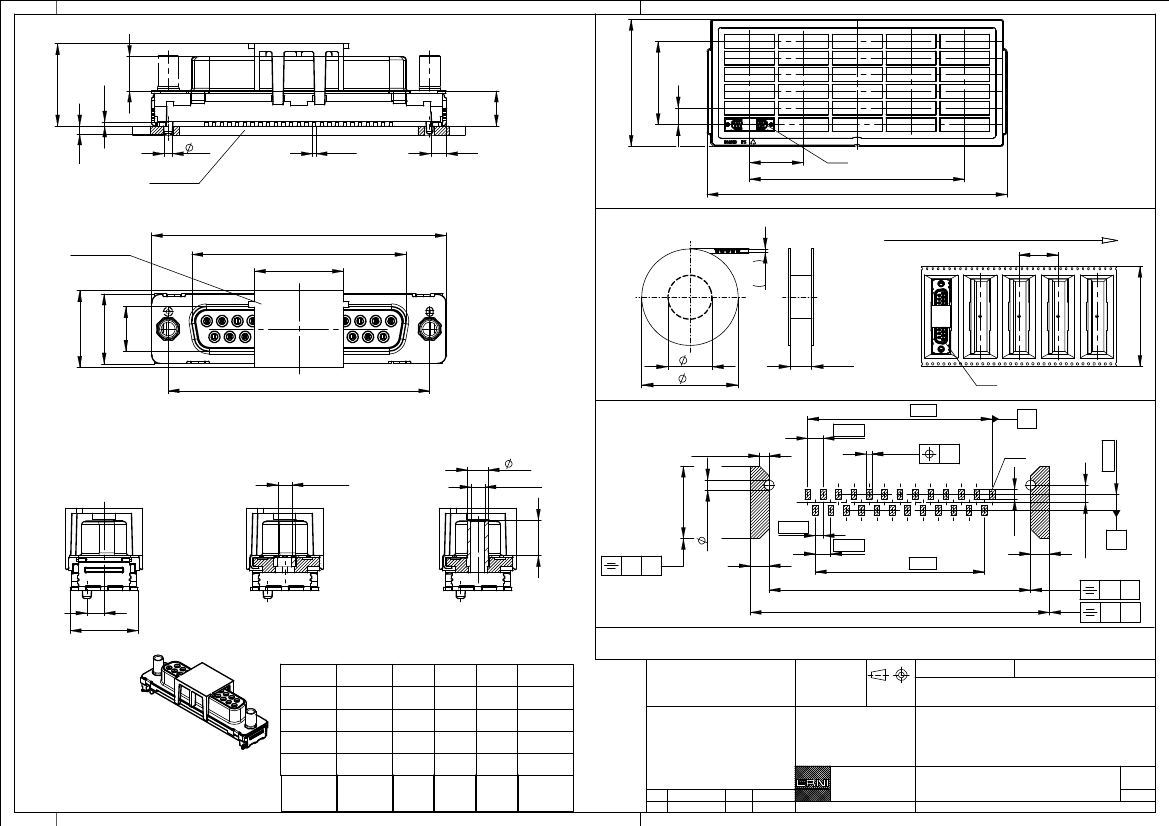

0,7

6,3

1,4

1,5

Leiterplatte

0,6

2,8

Pin 1

4 x 58 = 232

max. 325

pcb

-0,4

+0,2

Sonstige Angaben siehe Zeichnung 204628 /

Additional indications according to drawing 204628

Verpackt in Gurtverpackung

Tape on Reel Packaging

Verpackungseinheit: 120 Stück -

Packaging unit: 120 pcs

Abspulrichtung -

Reel

off Direction

17,1

hood

Ansaughaube

38,5

-0,2

12,6

±0,3

-0,2

13,8

150

±0,1

72,5

ohne /

without

3,7

Gewinde

/ thread

/ #4-40

Gewinde

/ thread

/ #4-40

0,1

Bohrung

/ hole

1,8

±0,05

3,1

±0,05

6,4

1,38

2,76

3,4

11 x 2,76 = 30,36

±0,05

1,8

3,4

0,1

2,84

0,1

thread depth max. 5,0 mm

max. Einschraubtiefe 5,0 mm

Mutter /

nut

max. Einschraubtiefe 5,5 mm

Bolzen /

bolt

330

Pin 1

Sonstige Angaben siehe Zeichnung 204654 /

Additional indications according to drawing 204654

12 x 2,76 = 33,12

Layoutvorschlag:

recommended layout:

1,7 x 45° (4x)

2,76

(25x)

Pin 1

thread depth max. 5,5 mm

3,1

12,2

Beschriftung nach Bedruckungsvorschrift 174538

M 1:1

53,8

±0,2

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications please see the production documentation

Proprietary notice pursuant to ISO 16016 to be observed.

Part marking according to specification 174538

194280

Anschlussbereich verzinnt

174391

164031

164027

164023

164019

Ident.-Nr.

#4-40

ohne

without

Mutter

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

194281

194282

194283

194284

Ident-Nr.

part-no.

tape &reel

terminal area tin plating

coplanarity area of termination

≤

0,1 mm

Anforderungsstufe: 2

Koplanarität der Anschlüsse

≤

0,1 mm

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

19.04.2010

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-S 25-SMD-6,3-BA8

TMC-S 25-SMD-6,3-type 8

class: 2

part-no.

tray

thread

Bolzen Bemerkung

www.ERNI.com

Class

bolt

remark

144895

TMCS
