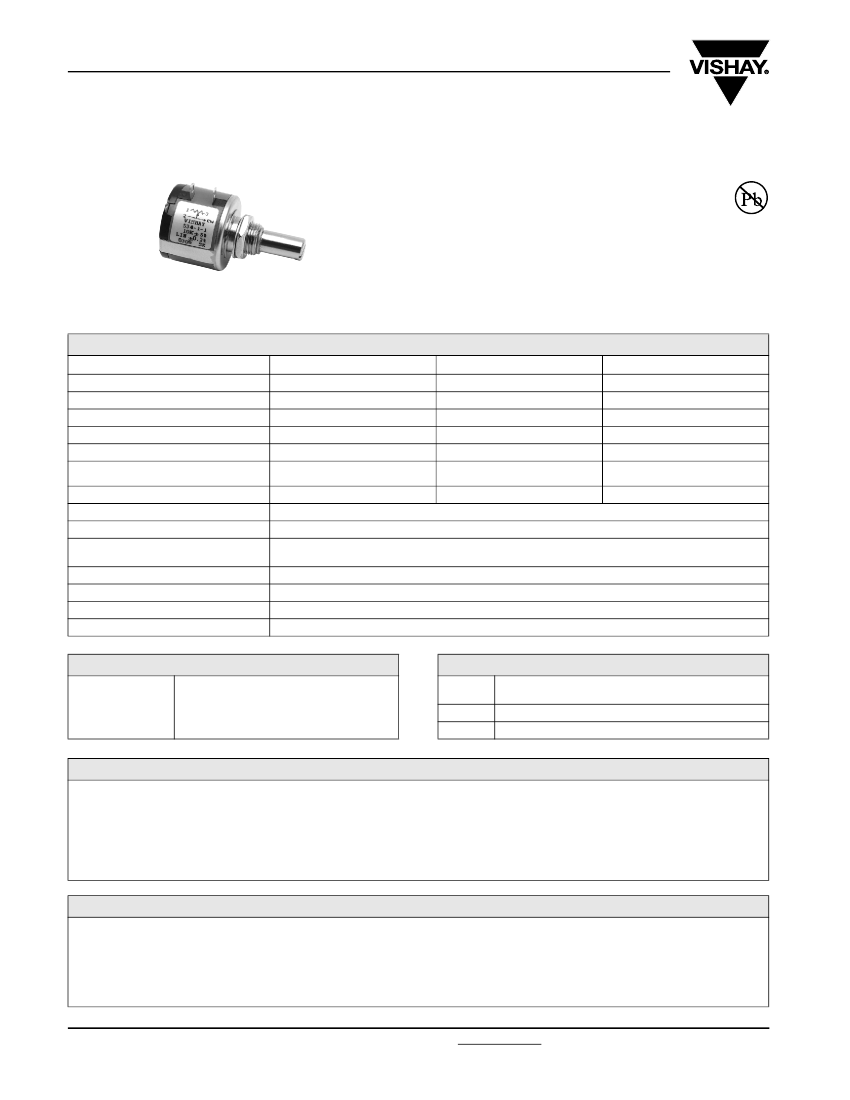

Model 533, 534, 535
Vishay Spectrol
7/8" (22 mm) Multiturn Wirewound
533: 3 Turns/534: 10 Turns/535: 5 Turns
FEATURES
•
•
•
•
•
•
•
Bushing and servo mount designs available
Special resistance tolerances to 1 %
RoHS
Rear shaft extensions and support bearing
COMPLIANT
Metric shaft available
Dual gang configuration and concentric shafts
High torque, center tap, slipping clutch on request
Special markings and front shaft extensions
Note
• The color of this product may either be black (US market) or Blue
(other regions)
ELECTRICAL SPECIFICATIONS
PARAMETER
Resistance Range - Standard Values
Capability Range
Standard Tolerance
Linearity (Independent)
Noise
Rotation (Electrical & Mechanical)
Power Rating (at 70 °C)
Insulation Resistance
Dielectric Strength
Absolute Minimum Resistance
Temperature Coefficient
End Voltage
Phasing
Taps
MODEL 533
50
Ω
to 20 kΩ
5
Ω
to 60 kΩ
±5%
± 0.25 %
100
Ω
ENR
1080°
+- 10°
0°
1.0 W
MODEL 534
100
Ω
to 100 kΩ
10
Ω
to 200 kΩ
±5%
± 0.20 %
100
Ω
ENR
3600°
+- 10°
0°
2.0 W
1000 MΩ minimum 500 V
DC
1000 V
RMS
minimum 60 Hz
Not to exceed linearity x total resistance or 1
Ω,
whichever is greater
20 ppm/°C (standard values, wire only)
0.25 % of total applied voltage, maximum
CCW end points - section 2 phased to section 1 within ± 2°
Center tap only
MODEL 535
50
Ω
to 50 kΩ
5
Ω
to 100 kΩ
±5%
± 0.25 %
100
Ω
ENR
1800°
+- 10°
0°
1.5 W
MARKING
Unit
Identification
Manufacturer’s name and model number,
resistance value and tolerance, linearity
specification date code and terminal
identification
RESISTANCE VALUES
Ohms
533:
534:
535:
50R, 100R, 200R, 500R, 1K, 2K, 5K, 10K, 20K
100R, 200R, 500R, 1K, 2K, 5K, 10K, 20K, 50K, 100K
50R, 100R, 200R, 500R, 1K, 2K, 5K, 10K, 20K, 50K
ORDERING INFORMATION/DESCRIPTION
The Models 533 (3 turns), 534 (10 turns) and 535 (5 turns) can be ordered by stating
534
MODEL
B
MOUNTING
B:
Bushing
S:
Servo
2
NUMBER OF
SECTIONS
10K
OHMIC
VALUE
SECTION
N
o
1
20K
OHMIC
VALUE
SECTION
N
o
2
5%
TOLERANCE
ON OHMIC
VALUE
L
LINEARITY
± 0.20 %
BO10
e4
PACKAGING LEAD FINISH
Box of
10 pieces
SAP PART NUMBERING GUIDELINES
534
MODEL
B
STYLE
B:
Bushing
S:
Servo
2
NUMBER OF
SECTIONS
103
OHMIC VALUE
SECTION N
o
1
103 = 10K
203
OHMIC VALUE
SECTION N
o
2
203 = 20K
J
TOLERANCE ON
OHMIC VALUE
J:
± 5 %
F:
± 1 %
L
LINEARITY
L: ± 0.20 %
C: ± 0.25 %
D: ± 0.10 %
B10
PACKAGING
Box of
10 pieces
www.vishay.com
1
For technical questions, contact: sfer@vishay.com
Document Number: 57065
Revision: 02-Jul-07
Model 533, 534, 535
7/8" (22 mm) Multiturn Wirewound
533: 3 Turns/534: 10 Turns/535: 5 Turns

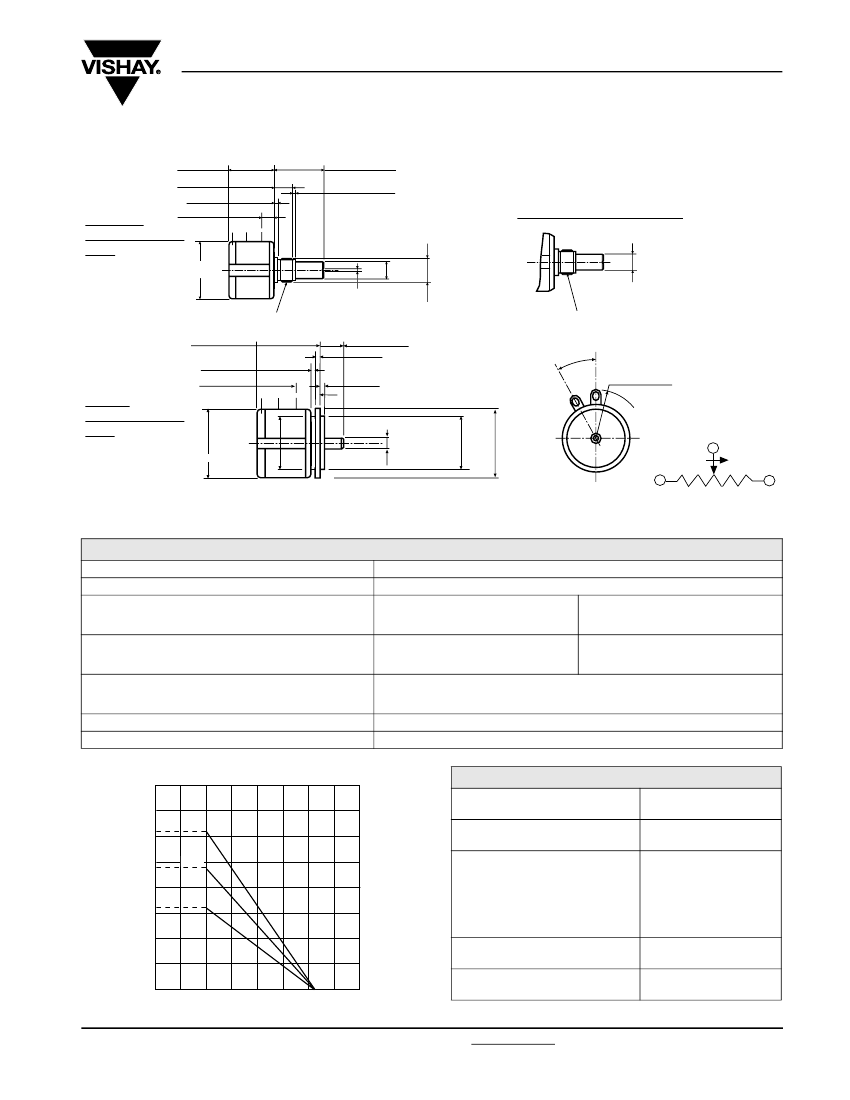

SINGLE SECTION DIMENSIONS
in millimeters
0.750 (19.05) ± 0.015
0.312 (7.92) ± 0.015
0.062 (1.57)
0.812 (20.62) ± 0.031
0.030 MAX (0.76)
Vishay Spectrol
BUSHING
MOUNT MODEL:
534B
0.200 MIN (5.08)
2
1 3
0.0000
Ø 0.2497 (6.34) - 0.0003
METRIC SHAFT: 534B...8872
Ø 0.875 (22.22) ± 0.015
0.032 (0.81) X 0.032 (0.81) DP ± 0.010
3/8 - 32UNEF - 2A
SCREWDRIVER SLOT
0.850 (21.59)
±
0.015
0.375 (9.52)
±
0.031
0.062 (1.57)
0.057 (1.45) MIN
0.300 (7.62) MIN
0.062 (1.57)
2
1
3
Ø 0.7500 (19.05) 0.0000
- 0.0005
Ø 0.1248 (3.17)
0.0000
- 0.0003
R 0.625 (15.88) MAX
30° TYP
0.0000
- 0.0020
Ø 0.4062 (10.32)
Ø 6.00mm 0.000
- 0.007
9mm x 0.75 P
SERVO
MOUNT MODEL:
534S
Ø 0.875 (22.22)
±
0.015
2
CW
Ø 0.875 (22.22)
1
3
Ø 0.750 (19.05) MAX
SCHEMATIC
Mounting hardware, washer and panel nut, nickel plated
MECHANICAL SPECIFICATIONS
PARAMETER
Bearing Type
Torque (maximums): starting
Section 1
Section 2
Torque (maximums): running
Section 1
Section 2
Weight (maximums)
Section1
Section 2
Stop Strength
Ganging
Bushing: Sleeve bearing
534
0.5 oz - in (36 g - cm)
0.9 oz - in (65 g - cm)
534
0.4 oz - in (28.80 g - cm)
0.7 oz - in (50.40 g - cm)
Servo: Ball bearing
533/535
0.7 oz - in (50 g - cm)
1.1 oz - in (79 g - cm)
533/535
0.6 oz - in (43.20 g - cm)
0.9 oz - in (64.8 g - cm)
0.75 oz (21.26 g)
1.25 oz (35.44 g)
75 oz - in (static) (5.4 kg - cm)
2 sections maximum
POWER RATING CHART
4
ENVIRONMENTAL SPECIFICATIONS
Vibration
15 g thru 2000 Hz
50 g
RATED POWER IN (WATTS)
534
3
535
2
533
Shock
Rotational Life (Shaft Revolution)
533
534
534 (Servo)
535
Load Life
300 000
1 000 000
> 1 000 000
500 000
900 hours
- 55 °C to + 125 °C
1
0
0
20
40
60
80
100
120
140
160
AMBIENT TEMPERATURE IN (
°
C)
Temperature Range
Document Number: 57065
Revision: 02-Jul-07
For technical questions, contact: sfer@vishay.com
www.vishay.com
2
Model 533, 534, 535
Vishay Spectrol
7/8" (22 mm) Multiturn Wirewound
533: 3 Turns/534: 10 Turns/535: 5 Turns
RESISTANCE ELEMENT DATA
RESISTANCE VALUE
(Ω)
533
534
535
533
RESOLUTION
%
534
535
OHMS PER TURN
MAX CURRENT AT 70 °C MAX VOLTAGE ACROSS
COIL
AMBIENT
(V)
(mA)
533
534
535
533
534
535
533
534
535
50
100
200
500
1K
2K
5K
10K
20K
-
-
-
-
-
100
200
500
1K
2K
5K
10K
20K
50K
100K
-
-
50
100
200
500
1K
2K
5K
10K
20K
50K
-
-
-
0.149
0.111
0.097
0.069
0.063
0.041
0.044
0.034
0.031
-
-
-
-
-
0.060
0.037
0.031
0.025
0.021
0.016
0.017
0.015
0.009
0.007
-
-
0.120
0.075
0.061
0.049
0.041
0.031
0.034
0.030
0.020
0.015
-
-
-
0.0746
0.1114
0.1954
0.3424
0.6331
0.8206
2.2330
3.4510
6.1790
-
-
-
-
-
0.0603
0.0746
0.1520
0.2459
0.4113
0.8206
1.7230
3.0160
4.6690
7.4560
-
-
0.0603
0.0746
0.1220
0.2459
0.4113
0.6331
1.7230
3.0160
3.9910
7.4560
-
-
-
141.0
100.0
70.7
44.7
31.6
22.4
14.1
10.0
7.07
-
-
-
-
-
141.0
100.0
63.2
44.7
31.6
20.0
14.1
10.0
6.32
4.47
-
-
173.0
122.0
86.6
54.7
38.7
27.4
17.3
12.2
8.66
5.47
-
-
-
7.07
10.0
14.1
22.4
31.6
44.7
70.7
100.0
141.0
-
-
-
-
-
14.1
20.0
31.6
44.7
63.2
100.0
141.0
200.0
316.0
447.0
-
-
8.66
12.2
17.3
27.4
38.7
54.8
86.6
122.0
173.0
274.0
-
-
-
