30W
DC/DC
BIM-MODUL
2"x1"
BIM30 - 2x1
BIM30 - 2x1

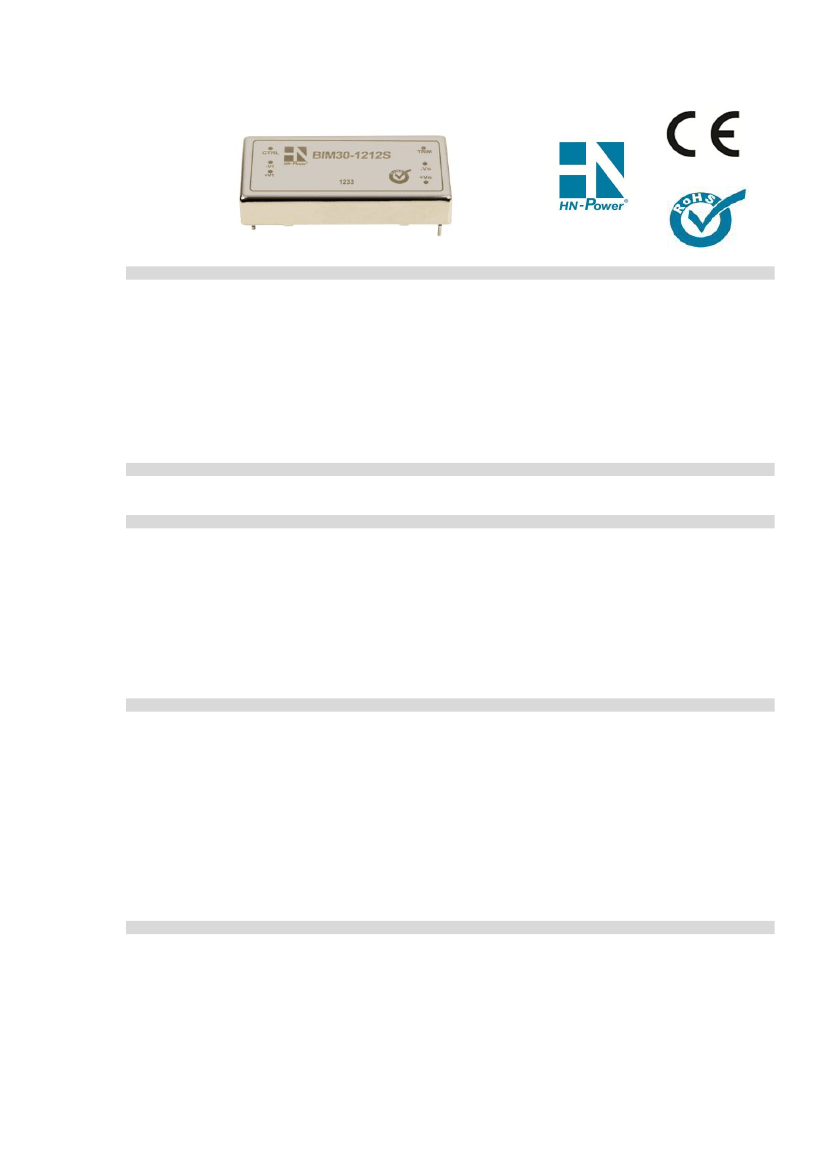

30W, 2:1 Regulated Single & Dual output Converter, High Power Density
HN-POWER
Besondere Merkmale
Weiter 2:1 Eingangsspannungsbereich
komplett in SMD Technologie
Isolationsspannung 1.6KVdc
hoher Wirkungsgrad (bis zu 92%)
dauerhaft Kurzschlußfest
Überspannungsschutz
Strombegrenzung
Übertemperaturschutz
Kontroll-Pin Ein/Aus
regelbare Ausgangsspannung (Trim)
Soft Start
RoHS 2002/95/EC konform
Flaches 2"x1" Metall-Gehäuse
Technische Daten
(bei 25°C Umgebungstemperatur,
Nennspannung und Volllast)
Eingangsdaten
Nennspannungen
Spannungsbereiche
Verriegelung bei Unterspannung Ein/Aus
Features
Wide 2:1 Input Range
Full SMD Technology
1.6KVdc Isolation
high Efficiency (up to 92%)
Continuous Short Circuit Protection
Over Voltage Protection
(9)
Over Current Protection
(10)
Over Temperature Protection (11)
Remote On/Off Control
(6)
Adjustable Output Voltage (Trim)
(12)
Soft Start
RoHS 2002/95/EC conform
2"x1" Low Profile Metal Package
Specification
(at 25°C ambient temperatur,
nominal input voltage and full load)
Input Specifications
Input voltages
Voltage ranges
Under Voltage Lockout On/Off
Anlaufzeit
Eingangsfilter
Eingangsstrom (o./m. Last)
reflektierter Eingangs-Ripple-Strom
Kontroll-Pin Ein/Aus (Positive Logik)
Start up Time
Input filter
Input Current (w.o./full Load)
Input Reflected Ripple Current
(5)
Remote On/Off (Positive logic)
(6)
12 / 24 / 48
9-18 / 18-36 / 36-75
12V models: typ. 8.6V / 7.9V
24V models: typ. 17.8V / 16.0V
48V models: typ. 33.5V / 30.5V
typ. 30ms
(nominal Vin & const. resist. load)
Pi type
siehe Tabelle / see table
typ. 20mA pk-pk
ON: 3.0 … 12.0Vdc or open
OFF: 0 … 1.2Vdc or short circuit Pin 2/3
OFF: idle current 5mA, typ.
Ausgangsdaten
Regelabweichung
Regelbereich Ausgangsspannung (Trim)
Eingangsregelung
Lastregelung (Io = 0-100% Last)
Regelgenauigkeit von Dual-Ausgängen
Restwelligkeit
Überspannungsschutz
Überstromschutz
Kurzschlußfestigkeit
Temperaturkoeffizient
Kapazitive Last, max.
Ausregelzeit von Transienten
Regelabweichung bei Transienten
Allgemeine Daten
Leistung
Wirkungsgrad
Isolationsspannung
(über 3 Sek. getestet)
Isoaltions- Widerstand/-Kapazität
Schaltfrequenz
Luftfeuchtigkeit
kalkulierte Zuverlässigkeit MTBF
Fortsetzung auf Seite 2
Output Specifications
Voltage accuracy
Output Voltage Adjustability (Trim)
Line regulation
Load regulation (Io = 0-100% load)
Cross regulation at dual outputs
(1)
Ripple & Noise
(2)
Over Voltage Protection
(9)
Output [V]: 3.3 / 5 / 12 / 15 / ±5 / ±12/ ±15
±1%
(Single & Dual)
±10%, max.
(single output only)
±0.5%, max.
(Single & Dual)
Single ±0.5%, max.
Dual ±1.0%, max.
(balanced load)
±5%, max.
100mV p-p, max.
(Single & Dual)
by Zener diode clamp
3.9 / 6.2 / 15 / 18 / ±6.2 / ±15 / ±18 [V]
Over Current Protection
(10)
Short Circuit Protection
Temperature Coefficient
Capacitive Load max.
(3)
Transient Recovery Time
(4)
Transient Response Deviation
(4)
General Specifications
Power
Efficiency
Isolation voltage
(tested over 3 Sec.)
Isolation Resistance/Capacitance
Switching frequency
Humidity
Calculated reliability MTBF
to be continued on page 2
typ. ±150% of full Load
dauerhaft / continuous
(auto recovery)
±0.02%/°C
siehe Tabelle / see table
typ. 250µs
±3%, max.
30 Watt
92% max.
(see table)
1600Vdc
(Input/Output)
1600Vdc
(Case/Input & Output)
1000 MΩ,
min. / 1500 pF, typ.
330kHz, typ.
95% rel.
> 435 Khrs
(MIL-HDBK-217 F)
HN Electronic Components GmbH & Co. KG
● Birkenweiherstraße 16 ● D-63505 Langenselbold
Tel. (06184) 92780
● Fax (06184) 62316 ● www.hn-electronic.de
1
30W
DC/DC
BIM-MODUL
2"x1"
Allgemeine Daten
Fortsetzung von Seite 1
Betriebstemperatur
Maximale Gehäusetemperatur
Übertemperaturschutz (Gehäuse)
Kühlung
Lagertemperatur
Löttemperatur
Gehäusematerial
Abmaße
[mm]
/ Gewicht
[g]
General Specifications
to be continued from page 1
Operating Temperature
Maximum Case Temperature
Over Temerature Protection (Case)
Cooling
Storage Temperature
Soldering Temperature
Case material
Dimension
[mm]
/ Weight
[g]
Safety Standard
EMC Specifications
-40°C ... +75°C
(see derating curve)
-40°C ... +50°C at 100% Load
105°C
typ. 115°C
Luftkühlung / Air Convection
-40°C ... +125°C
260°C max.
(1.5mm from case, 10 sec. max.)
Nickel-coated Copper
50.8*25.4*10.16
(2.0"x1.0"x0.4")
/ 31
erfüllt / comply EN 60950-1
EN 55022 Class B
(7)
EN 61000-4-2/3/4/5/6/8 Criteria A
EN 61000-4-4/5 Criteria A
(8)
MEMO:
Sicherheitsstandard
EMV-Eigenschaften
Aufbau Artikel-Nr. / Part Number Structure
BIM 30 - XX YY
Z
-
2x1
Serie Watt
Input Output
voltage
Z=S Single
Z=D Dual
Case
style
Beispiel:
Example:
BIM30-2405S-2x1
BIM30-2405S-2x1
Bestell-Informationen / Order Information
Input voltage
Input Current
Voltage Range No Load
Full Load
[Vdc]
[mA]
[mA]
9-18
9-18
9-18
9-18
18-36
18-36
18-36
18-36
36-75
36-75
36-75
36-75
9-18
9-18
9-18
18-36
18-36
18-36
36-75
36-75
36-75
80
180
30
30
70
100
20
40
50
70
30
30
180
50
50
100
40
50
70
50
40
2426
2874
2809
2809
1185
1420
1436
1420
593
702
718
710
2874
2874
2874
1437
1453
1437
710
718
718
Output
Voltage
[Vdc]
3.3
5
12
15
3.3
5
12
15
3.3
5
12
15
±5
±12
±15
±5
±12
±15
±5
±12
±15
Output Current
Min. Load
Full Load
[mA]
[mA]
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
8000
6000
2500
2000
8000
6000
2500
2000
8000
6000
2500
2000
±3000
±1250
±1000
±3000
±1250
±1000
±3000
±1250
±1000
Efficiency
@ Full Load
[%]
89
91
91
92
91
92
92
92
90
91
91
91
89
90
91
91
90
91
90
90
90
Capacitive
Load
(4)
[µF]
20000
14000
2000
2000
20000
14000
2000
2000
20000
14000
2000
2000
±3000
±1300
±1300
±3000
±1300
±1300
±3000
±1300
±1300
Model No.
BIM30-1203S-2x1
BIM30-1205S-2x1
BIM30-1212S-2x1
BIM30-1215S-2x1
BIM30-2403S-2x1
BIM30-2405S-2x1
BIM30-2412S-2x1
BIM30-2415S-2x1
BIM30-4803S-2x1
BIM30-4805S-2x1
BIM30-4812S-2x1
BIM30-4815S-2x1
BIM30-1205D-2x1
BIM30-1212D-2x1
BIM30-1215D-2x1
BIM30-2405D-2x1
BIM30-2412D-2x1
BIM30-2415D-2x1
BIM30-4805D-2x1
BIM30-4812D-2x1
BIM30-4815D-2x1
Bemerkungen / Remarks
1 . Wird ein Ausgang mit 25% bis 100% belastet und der andere mit 100%, dann beträgt die Regelgenauigkeit beider Ausgangs-
spannungen ± 5%.
2 . Ripple/Noise gemessen mit 20MHz Bandbreite und einem 1.0µF Keramikkondensator.
3. Geprüft bei minimaler Vin und konstanter ohmscher Belastung.
4. Geprüft bei normaler Vin und 25%-igem Lastwechsel (75%-50%-25% des Io).
5. Reflektierter Eingangs-Ripple-Strom gemessen mit einer simulierten Quell-Induktivität von 12µH.
6. Die Remote on/off-Steuerung ist bezogen auf -Vin ( Pin2).
7. BIM30-Wandler können die EN 55022 Klasse B mit einem externen Filter parallel zu den Eingangs-Pins einhalten.
8. Soll der Wandler die EN61000-4-4 und EN61000-4-5 erfüllen, ist ein externer Siebkondensator erforderlich.
Vorgeschlagener Filterkondensator: Nippon Chemi-Con KY Serie 220µF/100V .
1.
2.
3.
4.
5.
6.
7.
8.
One load is 25% to 100% load, the other load is 100% load, the output voltage variable rate is within ±5%.
Ripple/Noise measured with 20MHz bandwidth and 1.0µF ceramic capacitor.
Tested by minimal Vin and constant resistive load.
Tested by normal Vin and 25% load step change ( 75%-50%-25% of Io ).
Measured Input reflected ripple current with a simulated source inductance of 12µH.
The remote on/off control pin is refered to -Vin (Pin2)
The BIM30 can meet EN 55022 Class B with an external filter in parallel with the input pins.
An external filter capacitor is required if the module has to meet EN61000-4-5 and EN61000-4-5.
Suggested filter capacitor: Nippon chemi-con KY series, 220µF/100V.
HN Electronic Components GmbH & Co. KG
● Birkenweiherstraße 16 ● D-63505 Langenselbold
Tel. (06184) 92780
● Fax (06184) 62316 ● www.hn-electronic.de
2
30W
DC/DC
BIM-MODUL
2"x1"

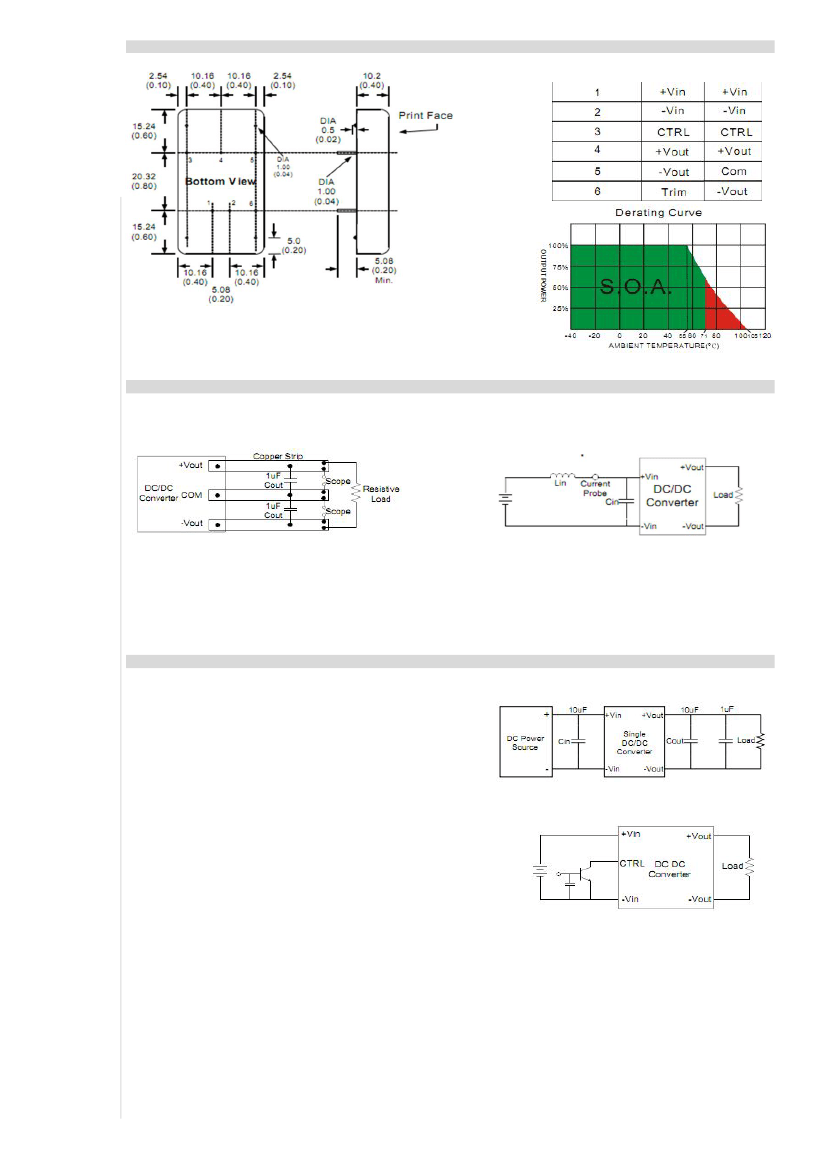

Gehäuse-Form / Package Style
Pinbelegung / PinConnections
Pin
Single
Dual
MEMO:
Meßbedingungen / Test configurations
Ripple/Noise Messung /
Ripple/Noise measurement
(2)
Messung Reflektierter Eingangs-Ripple-Strom /
Input reflected ripple current measurement
(5)
Ripple/Noise gemessen mit 20MHz Bandbreite und einem
1.0µF Keramikkondensator über die Ausgangspins.
Ripple/Noise measured with 20MHz bandwidth and 1.0µF
ceramic capacitor across output rails.
Reflektierter Eingangs-Ripple-Strom gemessen nach einer
Induktionsspule Lin (12µH) an +Vin und einer Kapazität
Cin (47µF) an den Vin's.
Measured Input reflected ripple current with a simulated
source inductance Lin of 12µH on +Vin and a source
capacitor Cin (47µF) across the input.
Entwurfs- & Eigenschaften Konfiguration / Design & Feature configurations
Reduzierung von Ripple & Noise am Ausgang / Output Ripple & Noise Reduction
(2)
Um Ripple und Noise zu reduzieren, empfiehlt es sich, an den Wandler-
Ausgang einen Elektrolytkondensator (10µF) und einen Keramik-
scheibenkondensator (1µF) anzuschließen.
To reduce ripple and noise, it is recommended to use a 1.0µF ceramic
disk capacitor and a 10µF electrolytic.
6. Wandler per CTRL ein-/ausschalten / CTRL Module On/Off
(6)
Der Wandler kann durch einen externen Stromkreis zwischen den Pins CTRL
und -Vin dynamisch ein- und ausgeschaltet werden. Hohe Logikpegel
schalten ihn ein, niedrige Logikpegel schalten ihn aus. Als Schalter eignen
sich mechanische Relais oder open-collector/open-drain Ansteuerungen.
Wird die CTRL -Funktion nicht genutzt, sollte das CTRL-Pin offen bleiben.
The converter can be switched on and off dynamically by an external electric
circuit between the pins CTRL and - Vin. A high logic level switches it on; a low
logic level switches it off. As switches are suitable mechanical relays or open
collector/open drain control circuits. If the CTRL function is not used, the
CTRL pin should remain open.
Prinzipschaltbild / Circuit diagram example
HN Electronic Components GmbH & Co. KG
● Birkenweiherstraße 16 ● D-63505 Langenselbold
Tel. (06184) 92780
● Fax (06184) 62316 ● www.hn-electronic.de
3
30W
DC/DC
BIM-MODUL
2"x1"

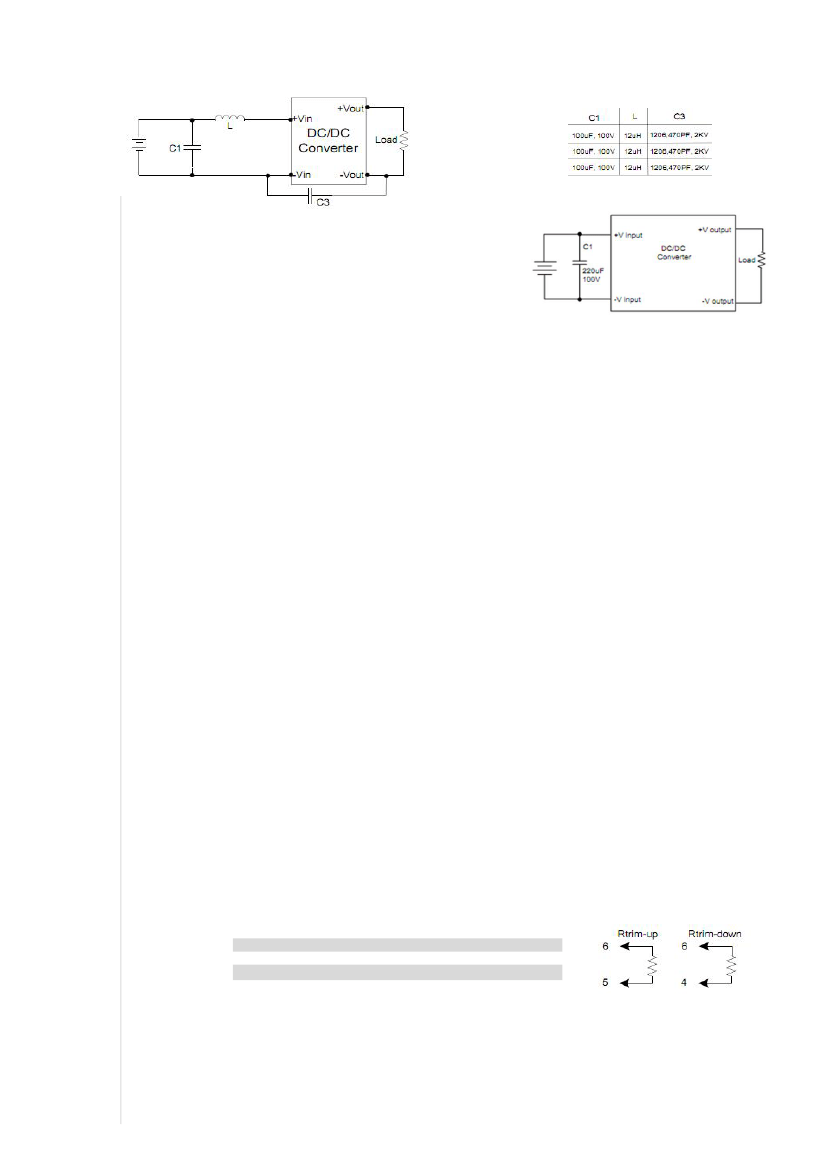

Eingangsfilter / Input filter components
(7 & 8)
Die Eingangsfilter (C1, L, C3) dienen zur Einhaltung der Emissionensanforderungen an den Wandler.
(7)
The input filter components (C1, L, C3) are used to help meet conducted emissions requirement for the module.
(7)
Vin = 12V
Vin = 24V
Vin = 48V
MEMO:
Soll der Wandler die EN61000-4-4 und EN61000-4-5 erfüllen, ist ein externer
Siebkondensator erforderlich. Vorgeschlagener Filterkondensator:
Nippon Chemi-Con KY Serie 220µF/100V.
(6)
If the module has to meet EN61000-4-5 and EN61000-4-5 an external input filter
capacitor is required. Suggested filter capacitor:
Nippon chemi-con KY series, 220µF/100V.
(6)
EFT/Surge (6)
Alle Filterkomponenten sollten so dicht wie möglich am Wandler platziert werden; um die Störstrahlung zu verringern sollten alle
Leiterbahnen möglichst kurz sein.
All these filter components should be mounted as close as possible to the module; and all leads should be minimized to decrease
radiated noise.
Überspannungsschutz / Over Voltage Protection
(9)
Der Wandler enthält eine interne Überspannungsschutzschaltung für den Ausgang, die die Spannung an den Ausgangspins überwacht.
Übersteigt die Spannung den Überspannungssollwert, dann aktiviert der Wandler den Regelkreis der internen Schaltung, um die
Ausgangsspannung abzuschalten.
The module includes an internal output over voltage protection circuit, which monitors the voltage on the output terminals. If this voltage
exceeds the over voltage set point, the module will activate the control loop of internal circuit to clamp the output voltage.
Überlastschutz / Over Current Protection
(10)
Der Wandler verfügt über eine interne Überlastschutzschaltung, die für eine unbegrenzte Dauer eines Überlastzustand am Ausgang den
Strom begrenzt. Wenn der Ausgangsstrom den OCP-Sollwert übersteigt, wird der Wandler automatisch heruntergefahren (hiccup).
Der Wandler versucht, neu zu starten, nachdem er heruntergefahren ist. Liegt die Überlast noch vor, wird der Wandler wieder
ausgeschaltet.
The module includes an internal over current protection circuit, which will endure current limiting for an unlimited duration during output over
load condition. If the output current exceeds the OCP set point, the module will shut down automatically (hiccup). The module will try to
restart after shut down. If the over load condition still exists, the module will shut down again.
Schutz vor Übertemperatur / Over Temperature Protection
(11)
Das Modul verfügt über eine interne Übertemperaturschutz-Schaltung, die den Wandler abschaltet, sobald die Gehäusetemparature den
definierten Wert überschreitet, um den Wandler und nachfolgende Komponenten zu schützen. Übermäßige Hitze sollte durch eine
ausreichendeKühlung vermieden werden, um eine zuverlässige Funktion des Wandlers zu gewährleisten.
The module includes an internal over temperature protection circuit, which turn off the module as soon as the case temparature
exceeds the specified value to protect the module and subsequent components. Excessive heat should be avoided by sufficient
cooling to ensure reliable operation of the unit.
Ausgangsspannung extern ändern / External Output Trimming
(12)
Die TRIM-Funktion erlaubt es, die Nenn-Ausgangsspannung mittels eines externen Widerstands zwischen dem Pin Trim und dem
Pin +Vout bzw. -Vout um ±10% auf eine Nicht-Standard-Ausgangsspannung zu verändern. Ein externer Widerstand zwischen
dem Pin Trimund -Vout erhöht die Ausgangsspannung, ein externer Widerstand zwischen dem Pin Trim und +Vout verringert sie.
Anstelle fester Widerstände kann auch ein Potentiometer an -Vout und +Vout angeschlossen werden, wobei der Regelanschluß
mit Trim verbunden wird.
The TRIM function allows to change the nominal output voltage about ±10% by an external resistor between the TRIM pin and the
pins +Vout or -Vout to a non-standard output voltage value. An external resistor between the pins Trim and -Vout increases the
output voltage, an external resistor between the pins Trim and +Vout decrease the output voltage. Instead of fixed resistors may
also a potentiometer can be connected to -Vout and + Vout , wherein the control port is connected with Trim.
Richtwerte für Trim-Widerstände / approximate values for Trim resistors [kΩ]
nominal output voltage:
Trim up:
Trim down:
+5%
+10%
-5%
-10%
3.3
6.8
0.75
8.2
0.62
5
5.1
0.75
6.2
0.82
12
43,1
4,3
56.0
5.6
15
47.0
1.8
56.0
2.2
Single output models only
Single output models only
Technische Änderungen vorbehalten
Technical specifications are subject to change without notice
HN Electronic Components GmbH & Co. KG
● Birkenweiherstraße 16 ● D-63505 Langenselbold
Tel. (06184) 92780
● Fax (06184) 62316 ● www.hn-electronic.de
4
