MP7685KD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> MP7685KD

MP7685KD: DescriptionADC, Flash Method, 11-Bit, 1 Func, Parallel, Word Access, CMOS, CDIP40,; CategoryAnalog mixed-signal IC converter; File Size259KB，8 Pages; ManufacturerMicro Power Systems

Download Datasheet Parametric Compare View All

MP7685KD Overview

ADC, Flash Method, 11-Bit, 1 Func, Parallel, Word Access, CMOS, CDIP40,

MP7685KD Parametric

Parameter Name	Attribute value
Maker	Micro Power Systems
package instruction	,
Reach Compliance Code	unknow
Maximum analog input voltage	5 V
Minimum analog input voltage
Maximum conversion time	1000 µs
Converter type	ADC, FLASH METHOD
JESD-30 code	R-GDIP-T40
Maximum linear error (EL)	0.0011%
Number of digits	11
Number of functions	1
Number of terminals	40
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output bit code	OFFSET BINARY
Output format	PARALLEL, WORD
Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Sampling rate	1 MHz
Maximum slew rate	20 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL

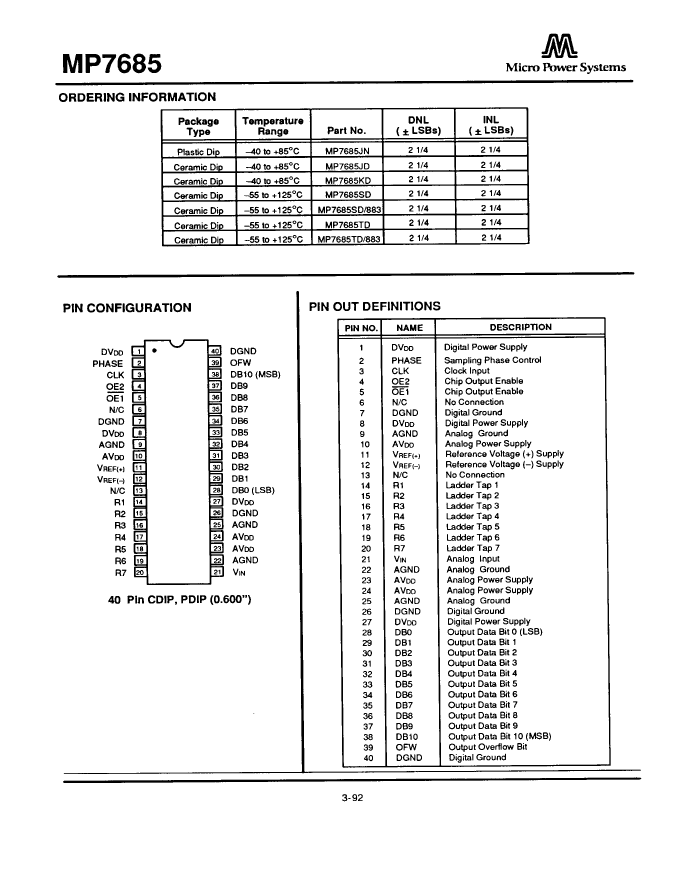

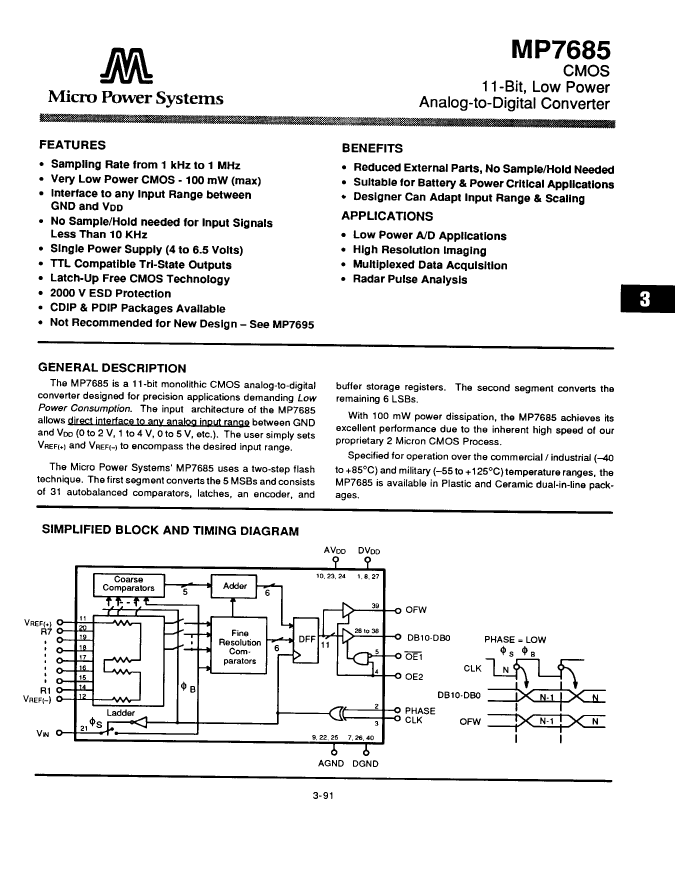

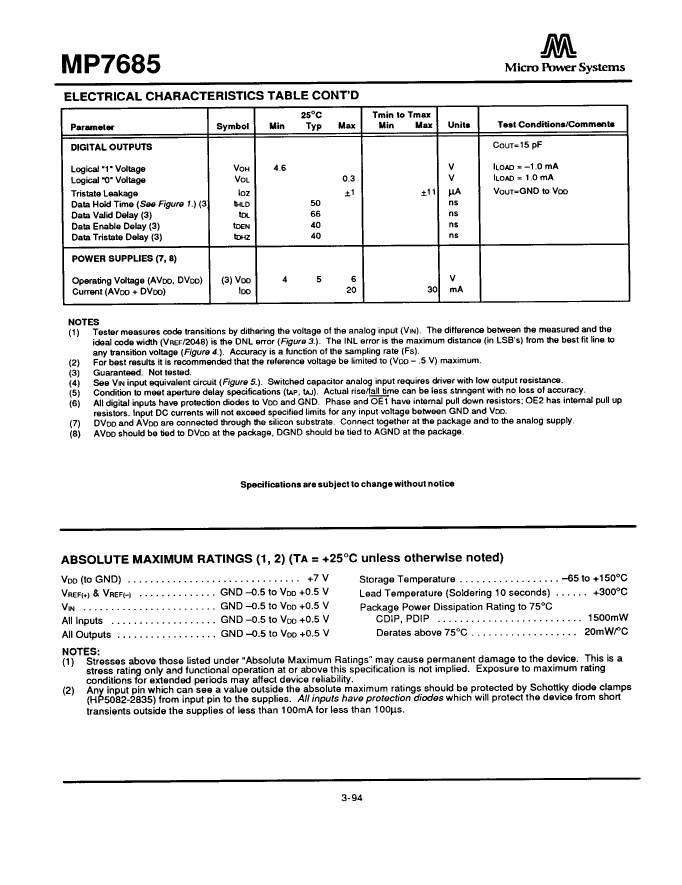

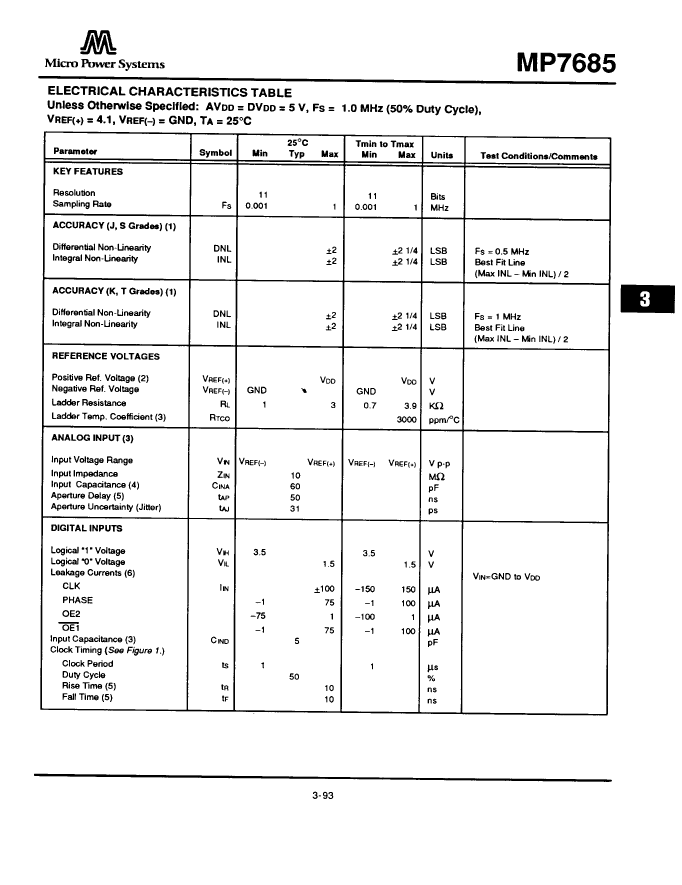

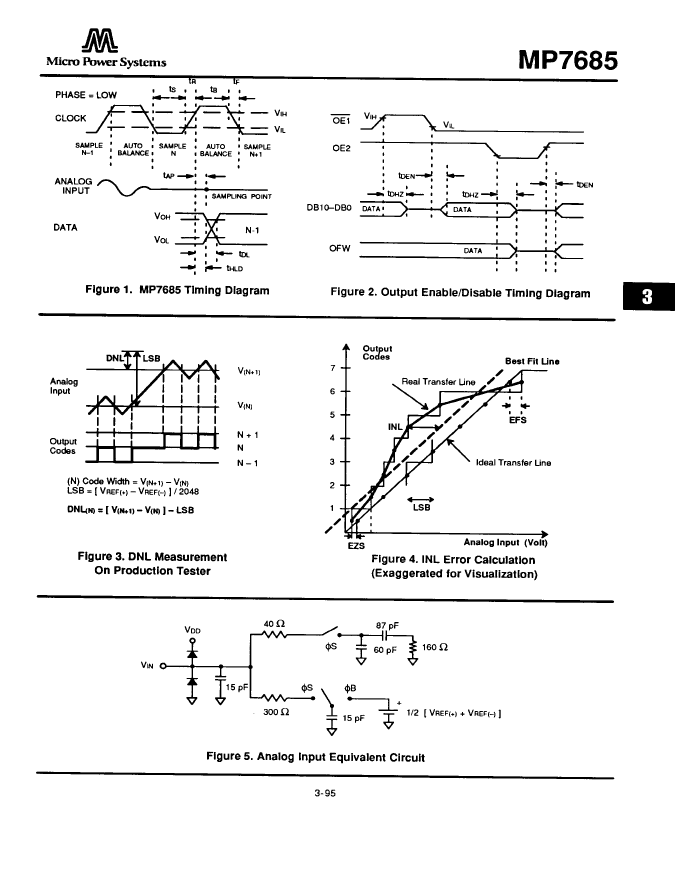

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

MP7685KD Related Products

	MP7685KD	MP7685TD/883	MP7685JD	MP7685JN	MP7685TD	MP7685SD/883
Description	ADC, Flash Method, 11-Bit, 1 Func, Parallel, Word Access, CMOS, CDIP40,	ADC, Flash Method, 11-Bit, 1 Func, Parallel, Word Access, CMOS, CDIP40,	ADC, Flash Method, 11-Bit, 1 Func, Parallel, Word Access, CMOS, CDIP40,	ADC, Flash Method, 11-Bit, 1 Func, Parallel, Word Access, CMOS, PDIP40,	ADC, Flash Method, 11-Bit, 1 Func, Parallel, Word Access, CMOS, CDIP40,	ADC, Flash Method, 11-Bit, 1 Func, Parallel, Word Access, CMOS, CDIP40,
Maker	Micro Power Systems	Micro Power Systems	Micro Power Systems	Micro Power Systems	Micro Power Systems	Micro Power Systems
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown
Maximum analog input voltage	5 V	5 V	5 V	5 V	5 V	5 V
Maximum conversion time	1000 µs	1000 µs	1000 µs	1000 µs	1000 µs	1000 µs
Converter type	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD
JESD-30 code	R-GDIP-T40	R-GDIP-T40	R-GDIP-T40	R-PDIP-T40	R-GDIP-T40	R-GDIP-T40
Maximum linear error (EL)	0.0011%	0.0011%	0.001%	0.001%	0.0011%	0.001%
Number of digits	11	11	11	11	11	11
Number of functions	1	1	1	1	1	1
Number of terminals	40	40	40	40	40	40
Maximum operating temperature	85 °C	125 °C	85 °C	85 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-55 °C	-40 °C	-40 °C	-55 °C	-55 °C
Output bit code	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY
Output format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Sampling rate	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz
Maximum slew rate	20 mA	20 mA	20 mA	20 mA	20 mA	20 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
