BLC12-05S120 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BLC12-05S120

BLC12-05S120: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 6W, Hybrid, ROHS COMPLIANT, METAL, SMD-7; CategoryPower/power management The power supply circuit; File Size294KB，11 Pages; ManufacturerBellnix Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

BLC12-05S120 Overview

DC-DC Regulated Power Supply Module, 2 Output, 6W, Hybrid, ROHS COMPLIANT, METAL, SMD-7

BLC12-05S120 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Bellnix Co., Ltd.
package instruction	,
Reach Compliance Code	unknow
Other features	ADDITIONAL -12, -15, 15V OUTPUTS ALSO AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	18 V
Minimum input voltage	9 V
Nominal input voltage	12 V
JESD-30 code	R-MDMA-X7
length	23.2 mm
Number of functions	1
Output times	2
Number of terminals	7
Maximum operating temperature	50 °C
Minimum operating temperature	-40 °C
Maximum output voltage	15 V
Minimum output voltage	11.4 V
Nominal output voltage	12 V
Package body material	METAL
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum seat height	10 mm
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	UNSPECIFIED
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	6 W
Fine-tuning/adjustable output	YES
width	21.1 mm

Preview

Download Datasheet

View All

Ultra Low Noise, Ultra Compact, Isolated type DC-DC Converter

The BLC series isolated-type DC-DC converters feature a small package

(23.2x21.1x9.7mm) and light weight (5.4g) capable of 6W output.

As ultralow noise and extremely high efficiency are made possible by a new circuit,

it is ideal for an analog circuit as well as an analog and digital hybrid circuit.

6Watt BLC12 Series

■

Features

■Model/Rating

Table 1

Ripple

- Ultra low noise

Models

Input V

Output V

Output I

Line Reg. Load Reg.

Efficiency

Noise

- Adjustable Output Voltage

BLC Series

Vdc

mV(max.) mV(max.)

%(typ.)

mVpp(typ.)

- ON/OFF Control

- Dual power supply usable

BLC12-05S120

0 to 1200

as single power supply

BLC12-12S50

9 to 18

12(15)

0 to 500(400)

100

- Withstand voltage AC500V

±12(±15) 0 to 250(200)

600

- Over Current Protection Circuit

BLC12-12W25

- No tantalum capacitor or

Note 1: Output voltage in parentheses is when Vadj and –Vout are short-circuited.

electrolytic capacitor

Note 2: Output current in parentheses is at the maximum output voltage.

- Covered with a metal shield

Note 3: Ripple noise and efficiency are at 12V input voltage and load rating.

- Surface Mount Package

Note 4: Ripple noise is measured at 20MHz bandwidth, with a multi layered ceramic capacitor with 10μF at

- No heat sink needed

input and 0.47μF at output

- Operating Temp Range

-40°C to +85°C

(Temperature derating

required)

- RoHS Compliant

■

Specifications

Input voltage range

Rated output voltage

Adjustable output voltage range

Line regulation

Load regulation

Temperature regulation

Ripple noise

Efficiency

Over current protection

Over voltage protection

Under Voltage Lock Out

Input over current protection

Remote ON/OFF control

Standby current

Withstand voltage

Insulation resistance

Capacitance between P and S

Operating temp range

Storage temp range

Humidity range

Storage conditions

Cooling conditions

Vibration

Impact

Weight

Outer dimensions

Table 2

Refer to Table 1

5.0V±3%, 12V±3% , ±12V±5% (When Vadj terminal is open)

4.75 to 6.0V (5.0V model), 11.4 to 15V (12V model), ±11.4 to ±15V (±12V model)

Refer to Table 1 (Rated output, Input voltage varying in the range of Table 1)

Refer to Table 1 (Rated input/output, Load varying from 0 to 100%, ±output is upon loaded evenly)

40mV typ.(5.0V model), 100mV typ. (12V model), 150mV typ. (±12V model)

(Rated input/output, for within ambient temperature range with 100% load at temperature derating)

Refer to Table 1 (Rated input/output, common temp, measurement frequency bandwidth 20MHz)

80% to 83% typ. (Rated input/output, Common temp., Refer to Table 1)

Operate at 105% or above of rated load current. Auto restart type.

None

Yes (Refer page 9)

Input circuit has a built-in fuse (Refer page 9)

Between 2Pin (-Vin) and 3Pin (ON/OFF): Output is ON when open, output is OFF when short.

4mA max.

Between input and output, input and case, output and case: AC500V/per minute.

Between input and output, input and case, output and case: 50MΩ or more (at DC500V)

Approx. 40 to 90pF (depending on the model)

Operating temperatures

−40°C

to +85°C (Refer to temp derating of page4)

Storage temperatures -40°C to +85°C

20 to 95%R.H. (Max. wet bulb temp 35°C with no condensation)

Below 30°C/60% R.H. before mounting the converter

Natural cooling (install in a well-ventilated place)

10 to 55Hz Total amplitude 1.52mmp-p (2H for each of three directions) Sweep time 15 min

Acceleration 100G (3 times for each of three directions, total 18 times) Duration 6ms

5.4g typ.

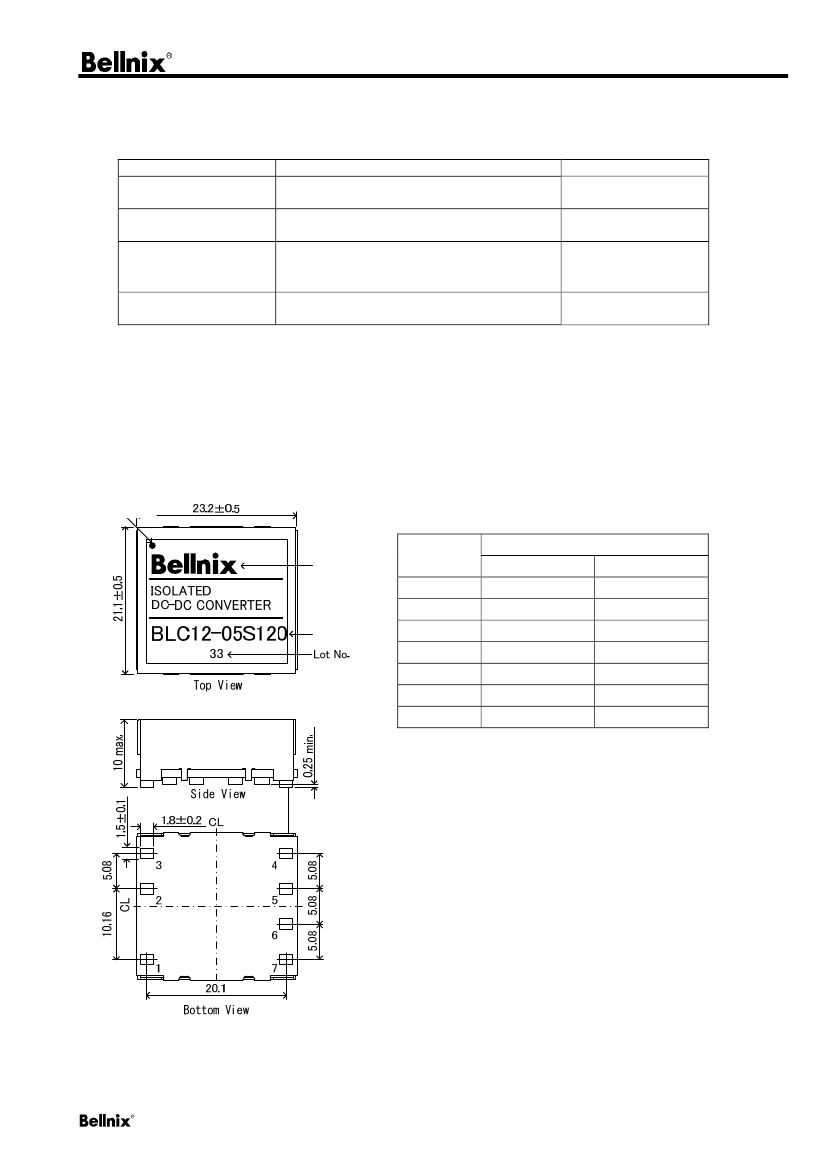

W=23.2 L=21.1 H=9.7 typ.(mm)(For dimensional details, refer to the shape and dimensions in the

datasheet)

＊The

above specifications are provided with rated input/output and ambient temperature 25°C±5°C, unless otherwise specified.

＊The

contents provided in this datasheet may be changed at any time without prior notice.

DC-DC Converter

BDD20140320

BLC12-05S120 Related Products

	BLC12-05S120	BLC12-12S50
Description	DC-DC Regulated Power Supply Module, 2 Output, 6W, Hybrid, ROHS COMPLIANT, METAL, SMD-7	DC-DC Regulated Power Supply Module, 1 Output, 6W, Hybrid, ROHS COMPLIANT, METAL, SMD-7
Is it Rohs certified?	conform to	conform to
Maker	Bellnix Co., Ltd.	Bellnix Co., Ltd.
Reach Compliance Code	unknow	unknow
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	18 V	18 V
Minimum input voltage	9 V	9 V
Nominal input voltage	12 V	12 V
JESD-30 code	R-MDMA-X7	R-MDMA-X7
Number of functions	1	1
Output times	2	1
Number of terminals	7	7
Maximum operating temperature	50 °C	50 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum output voltage	15 V	6 V
Minimum output voltage	11.4 V	4.75 V
Nominal output voltage	12 V	5 V
Package body material	METAL	METAL
Package shape	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
surface mount	NO	NO
technology	HYBRID	HYBRID
Temperature level	OTHER	OTHER
Terminal form	UNSPECIFIED	UNSPECIFIED
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Maximum total power output	6 W	6 W
Fine-tuning/adjustable output	YES	YES
