556-1909-304F

Description
SINGLE COLOR LED, RED
CategoryLED optoelectronic/LED    photoelectric
File Size111KB,2 Pages
ManufacturerDIALIGHT
Websitehttps://www.dialight.com
Environmental Compliance
Download Datasheet Parametric View All

556-1909-304F Online Shopping

Suppliers Part Number Price MOQ In stock
556-1909-304F - - View Buy Now

556-1909-304F Overview

SINGLE COLOR LED, RED

556-1909-304F Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerDIALIGHT
package instructionROHS COMPLIANT PACKAGE-2
Reach Compliance Codecompli
Other featuresUL RECOGNIZED
colorORANGE
ConfigurationSINGLE
Maximum forward current0.007 A
Installation featuresPANEL MOUNT
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
Optoelectronic device typesSINGLE COLOR LED
total height8.13 mm
method of packingBULK
shapeROUND
surface mountNO
Base Number Matches1
FEATURES / BENEFITS
p
Daylight viewable
556 Series
High Intensity LED
Panel Mount Indicators
for 1” Mounting Hole
Watertight - NEMA4X IP66
p
Safety standards - UL and NEMA
p
Tamperproof / Designed for high durability
p
Long life, lasting up to 100k hours
p
Uniform illumination - multi-LED construction
p
Lens options:
Low profile flat
Wide angle domed
APPLICATIONS
The 556 Series LED Panel Mount Indicators incorporate both InGaN
and AlInGaP technologies to offer higher intensities. This is a highly
durable package, designed to withstand outdoor applications
susceptible to rain, dust and sunlight.
• Instrument panels
• Lane control
• Safety applications
• Display lighting
• Vending, gaming
• Transportation - rail, bus, airline
... and many more!
SPECIFICATIONS
p
Available in red, yellow, green, blue, white, orange and cyan
p
Voltage range of 12 to 125 VDC, 125 and 230 VAC
p
Watertight seal from front of panel meets NEMA 4X IP66
Maximum Mounting Torque - 40 in./lb.
p
Housing material: Nickel plated brass
p
Lens material: Polycarbonate 94 - VO
FLAT LENS
p
p
p
p
UL recognized - File #E156890
Front mounting in 1” clearance hole
Operating temperature: -30
o
C to +85
o
C
Storage temperature: -40
o
C to +100
o
C

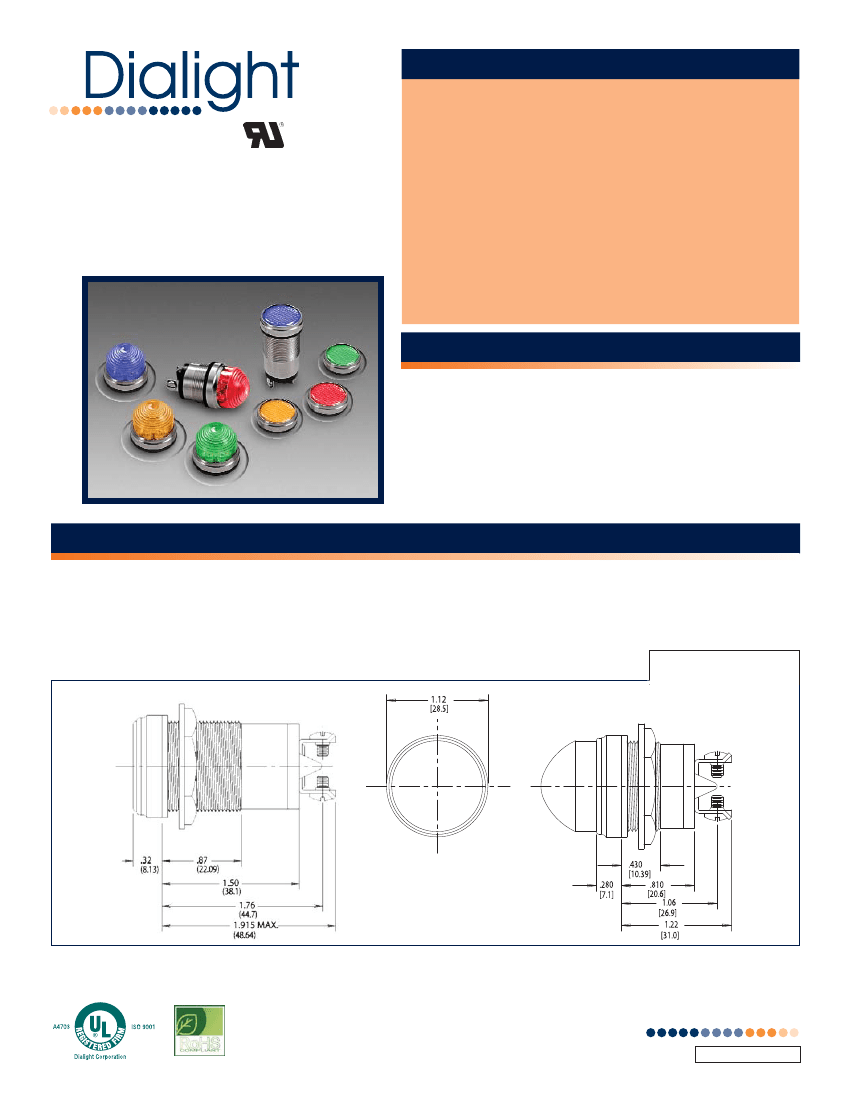

Dimensions in inches [mm]
All measurements are typical
Polarity marking indicated on housing
near positive supply terminal
DOMED LENS
Max. panel thickness:
Flat .600”
Dome .187”
Please see back of page for part numbers and additional specifications.
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
