23-20VTX-12-XP-00 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 23-20VTX-12-XP-00

23-20VTX-12-XP-00: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size233KB，1 Pages; ManufacturerGSN Electronics

Download Datasheet Parametric Compare View All

23-20VTX-12-XP-00 Overview

Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle

23-20VTX-12-XP-00 Parametric

Parameter Name	Attribute value
Maker	GSN Electronics
Reach Compliance Code	unknow
body width	0.217 inch
subject depth	0.22 inch
body length	0.756 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	500000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	23-20VT
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	12

Preview

Download Datasheet

View All

GSN

Total Process Quality

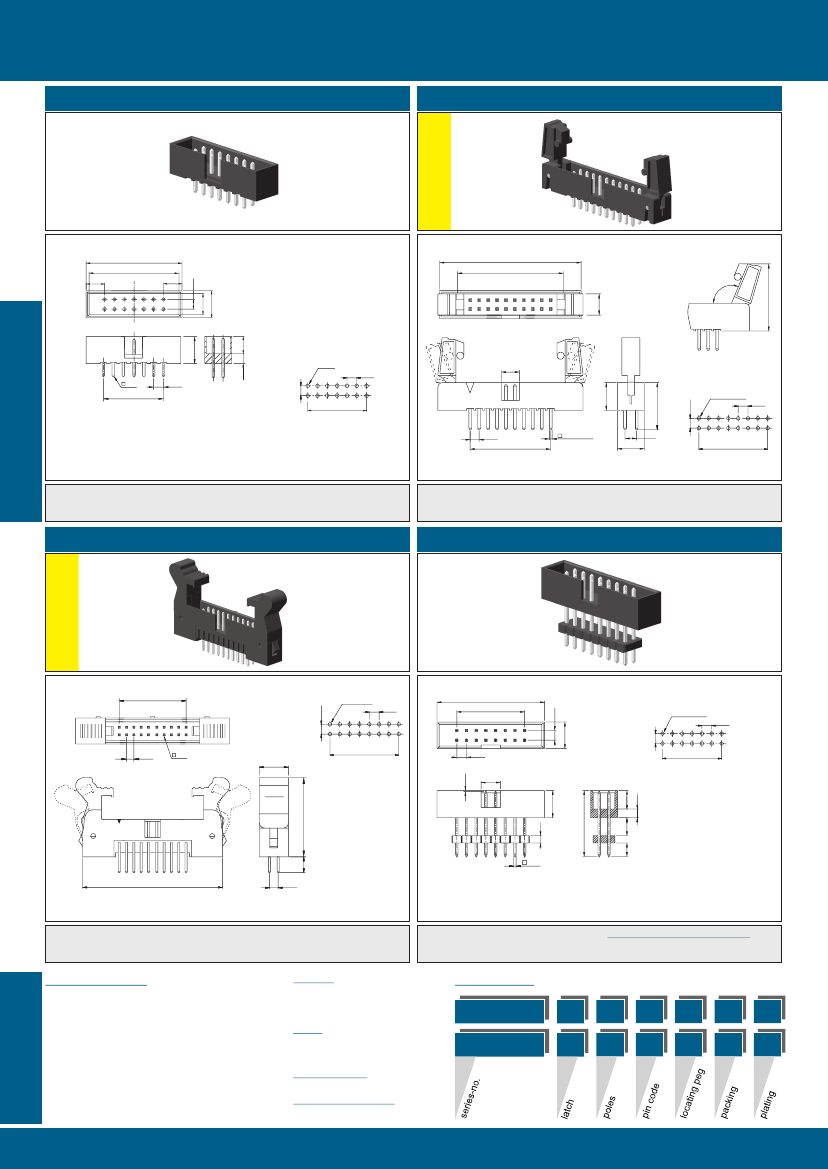

23-20VTX

short latch

box header vertical THT 2.00

23-20VTS

2.0 x (n/2) +7.2 ±0.2

2.0 x (n/2) +6.1 ±0.2

2.0

4.60

2.0 x (n/2) +14.0 ±0.30

2.0 x (n/2) +6.3 ±0.30

4.50

5.50

3°

IDC + box header

5.60

3.90

1.70

Ø0.85

2.00

4.00

0.5

2.0 x (n/2-1) ±0.1

2.00

4.40

5.80

Ø0.85±0.05

8.50

2.00

2.0 x (n/2-1)

2.00

2.0 x (n/2 -1)

0.50±0.02

5.50

2.00

2.0 x (n/2-1)

available pole no.:

06, 08, 10, 12, 14, 16,

20, 22, 24, 26, 30, 32, 34,

36, 40, 44, 50, 60, 64, 68

available pole no.:

20, 26, 40,

44, 50, 68

23-20VTL

long latch

23-20VTXS

2.0 x (n/2 -1)

2.00

Ø0.85±0.05

2.00

2.0 x (n/2) +7.2

2.00

2.0 x (n/2-1)

Ø0.85±0.05

2.00±0.05

2.00

5.50

2.00

0.5

2.0 x (n/2-1)

6.00

2.00

0.20

2.0 x (n/2-1)

4.00±0.05

3.90

1.70

17.1

5.60

1.50

2.0 x (n/2) +15.7

2.00

available pole no.:

10, 12, 14, 16, 20,

22, 24, 26, 30, 32,

34, 40, 44, 50, 68

Shown fotos may differ to final product

Currently valid drawings are only on www.gsn.sg

In case of any doubt, please contact GSN

3.0

0.50

available pole no.:

06 to 68

pin code

-A-

13.60

13.80

-C-

2.80

-D-

3.70

3.90

electrical data

contact material

insulator

flammability

dielectric strength

current rating

insulation resistance

operating temperature

soldering temperature

copper alloy

0.50 x 0.50 mm

thermoplastic

UL 94V-0

plating

00= flash gold

60= selective flash gold

order code

23-20VT

23-20VTXS-

X-

10-

P-

latch

: 500V AC

: 1A

: 500 Meg Ohm min

: -40°C to +105°C

: 260°C max / 10 sec

X= without

S= short

L= long

X=without

locating peg

possible packing

P=tray, T=tube

E05

support@gsn.sg

14.2

23-20VTX-12-XP-00 Related Products

	23-20VTX-12-XP-00	23-20VTX-08-XP-00	23-20VTX-06-XP-00	23-20VTX-14-XP-00	23-20VTX-16-XP-00	23-20VTX-20-XP-00	23-20VTX-22-XP-00	23-20VTX-24-XP-00	23-20VTX-26-XP-00
Description	Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 24 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle	Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle
Reach Compliance Code	unknow	unknown	unknow	unknow	unknow	unknow	unknow	unknow	unknow
body width	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch
subject depth	0.22 inch	0.22 inch	0.22 inch	0.22 inch	0.22 inch	0.22 inch	0.22 inch	0.22 inch	0.22 inch
body length	0.756 inch	0.598 inch	0.52 inch	0.835 inch	0.913 inch	1.071 inch	1.15 inch	1.228 inch	1.307 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU	AU	AU
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	23-20VT	23-20VT	23-20VT	23-20VT	23-20VT	23-20VT	23-20VT	23-20VT	23-20VT
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	12	8	6	14	16	20	22	24	26
Maker	GSN Electronics	-	GSN Electronics	GSN Electronics	GSN Electronics	GSN Electronics	GSN Electronics	GSN Electronics	GSN Electronics
