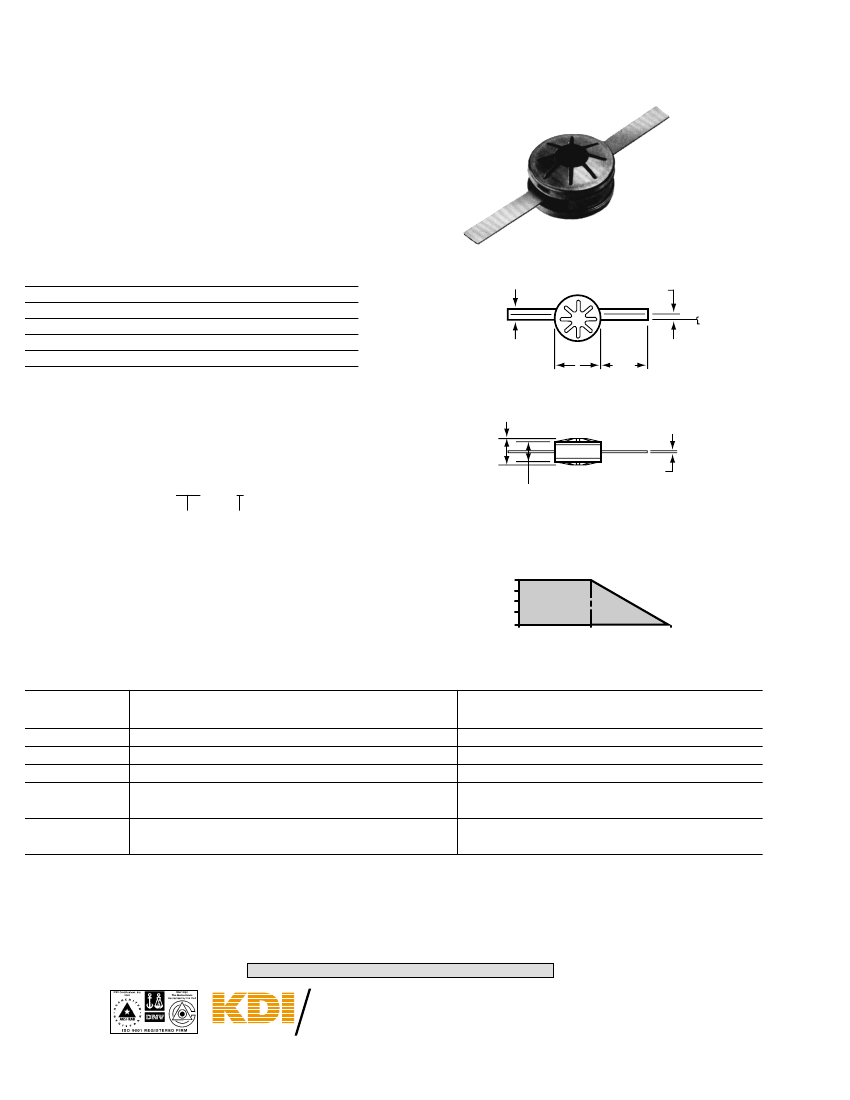

ATTENUATORS, PILL, DROP-IN
DC-12.4 GHz
FEATURES
• Laser Trimmed
• Temperature Stable
• 100% Tested
• Fixtures Available
SERIES PSA
GENERAL INFORMATION
The PSA Series attenuators are “pill” devices designed for installation in
stripline circuits. The element is a thin film laser trimmed chip, en-
capsulated in an epoxy. The resilient spring configuration provides
positive ground plane contact, regardless of variations in ground plane
spacing tolerances. The PSA Series attenuators are ideal for high-rel
applications.
GENERAL SPECIFICATIONS
Impedance:
Operating Temperature:
Substrate:
Resistive Element:
Case, Cap & Tabs:
50 ohms
-55°C to +150°C
96% Alumina
Proprietary Thin Film
Copper, Gold Plated per MIL-G-45204
+.005[0,13]
–.002[0,05]
.250[6,4]
.060[15,2]
.250[6,4]
MIN
.020[0,51] OFFSET
ORDERING INFORMATION
The attenuators are available in 1 dB increments from 1 through 20 dB.
Specify desired attenuation value by adding the attenuation value to the
basic series designation.
MINIMUM EXPANDED HEIGHT .140[3,56]
.003±.001[0,08±0,03]
EXAMPLE:
PSA
Basic
Series
—
X
dB
Value
MAXIMUM COMPRESSED HEIGHT .121[3,07]
PSA
RESILIENT HOUSING
Notes:
% OF RATED POWER
1. Performance of other dB values vary dependent on attenuation.
Contact factory for specifications for fractional dB values.
2. Performance is based on device mounted in matched 50 ohm line.
3. Rated power 1.5 watts input, 200 watts peak.
4. Standard values 1, 2, 3, 4, 5, 6, 10, 20 dB.
Non-std values available as special order.
POWER DERATING
100
75
50
25
0
25
85
CASE TEMPERATURE
(SEE NOTE 3)
150
°C
PERFORMANCE SPECIFICATIONS
Attenuation
Increment (dB)
Notes 1,4
1 -3
4-6
7 - 10
11 - 15
16 - 20
Attenuation Accuracy (dB) Note 2
DC - 4 GHz
±0.5
±0.5
±0.5
±0.75
±1.0
4 - 8 GHz
±0.5
±0.5
±0.5
+0.5
–3.0
+0.5
–4.0
—
8 - 12.4 GHz
±0.5
±0.5
±0.75
+0.5
–4.0
DC - 4 GHz
1.25
1.25
1.25
1.25
1.25
1.25
VSWR (Maximum) Note 2
4 - 8 GHz
1.35
1.35
1.35
1.35
1.35
1.35
8 - 12.4 GHz
1.50
1.50
1.50
1.50
1.50
1.50
KEY:
Inches[Millimeters] .XX ±.03 .XXX ±.010 [.X ±0.8 .XX ±0.25]
An MCE Company
CORPORATION
TRIANGLE
60 South Jefferson Road, Whippany, NJ 07981
Tel: 973-887-8100 • Fax: 973-884-0445
E-Mail: sales@kditriangle.com
See us on the web @ www.kditriangle.com
