PDM4M4060S15AM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> PDM4M4060S15AM

PDM4M4060S15AM: DescriptionSRAM Module, 1MX8, 15ns, CMOS, PSMA72; Categorystorage storage; File Size222KB，10 Pages; ManufacturerParadigm Technology Inc

Download Datasheet Parametric Compare View All

PDM4M4060S15AM Overview

SRAM Module, 1MX8, 15ns, CMOS, PSMA72

PDM4M4060S15AM Parametric

Parameter Name	Attribute value
Maker	Paradigm Technology Inc
Reach Compliance Code	unknow
ECCN code	3A991.B.2.A
Maximum access time	15 ns
Other features	USER CONFIGURABLE AS 256K X 32
JESD-30 code	R-PSMA-N72
memory density	8388608 bi
Memory IC Type	SRAM MODULE
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	72
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX8
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	SINGLE

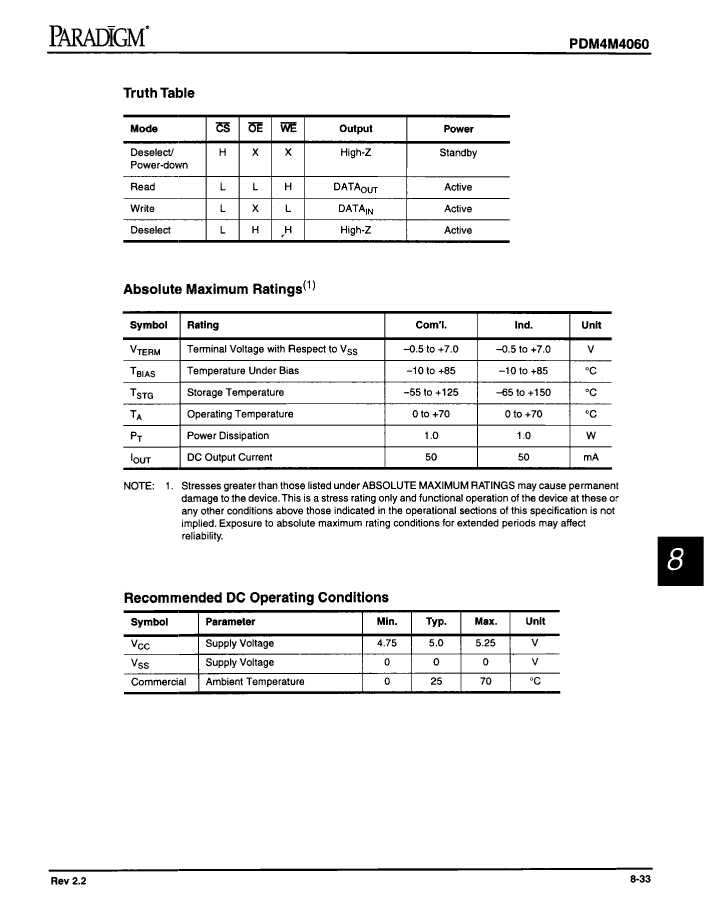

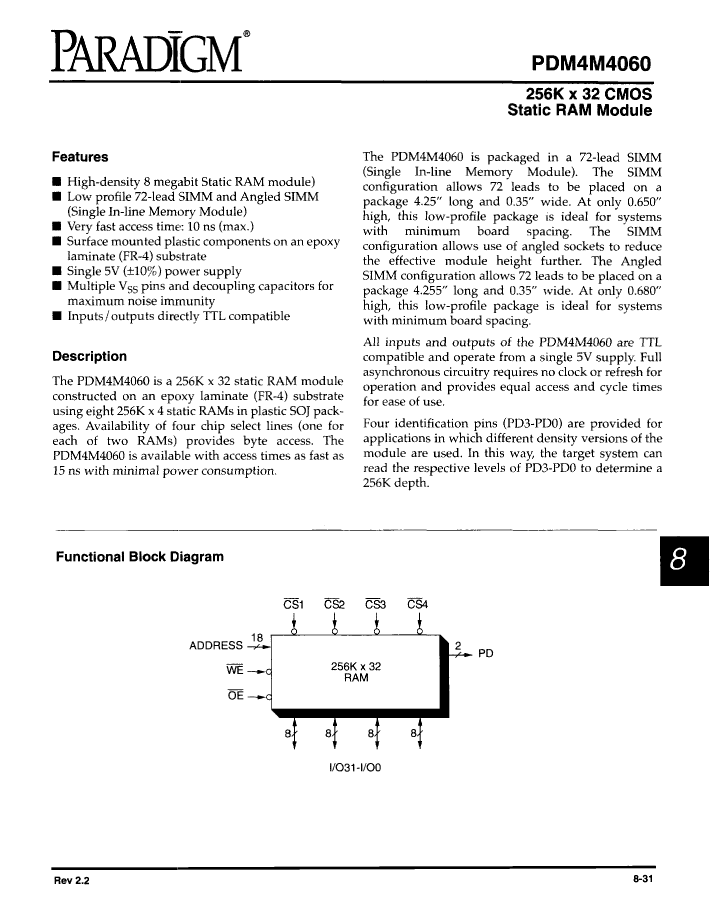

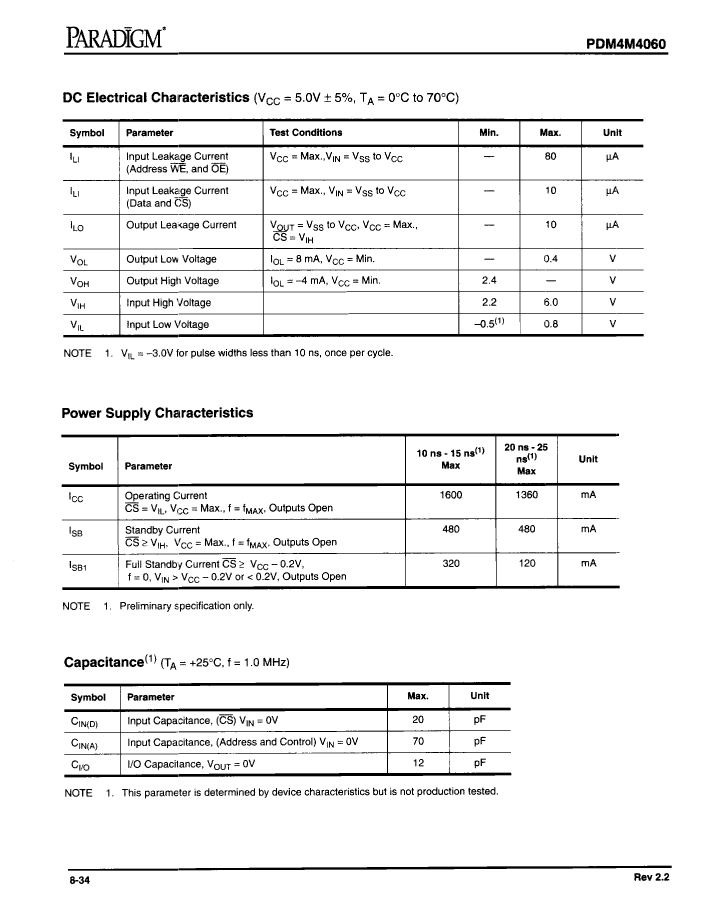

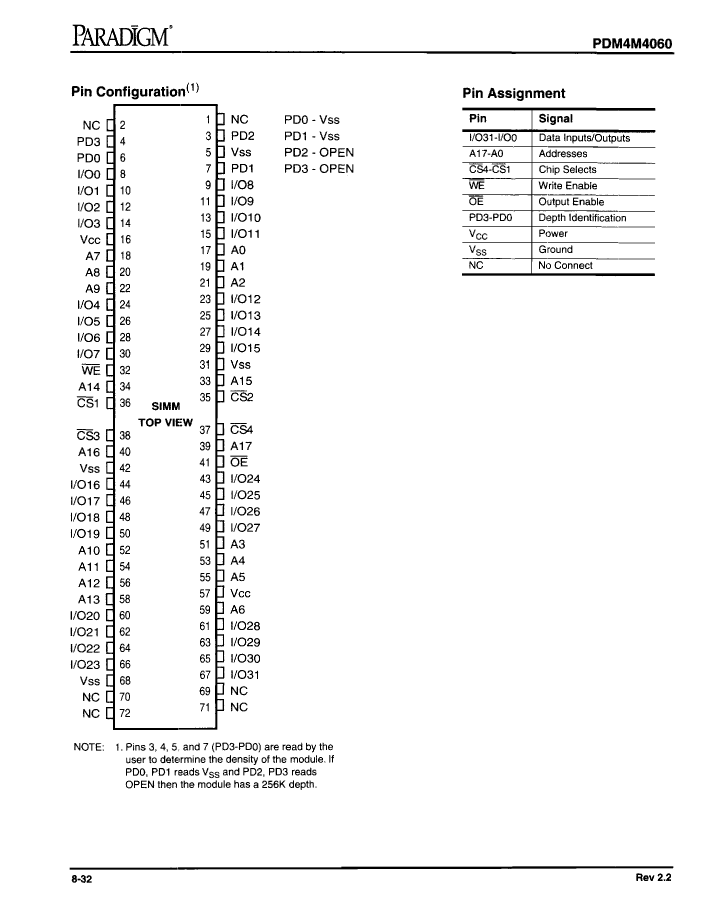

Preview

Download Datasheet

View All

PDM4M4060S15AM Related Products

	PDM4M4060S15AM	PDM4M4060S12AM	PDM4M4060S25AM	PDM4M4060S10M	PDM4M4060S20M	PDM4M4060S20AM	PDM4M4060S25M	PDM4M4060S12M	PDM4M4060S10AM	PDM4M4060S15M
Description	SRAM Module, 1MX8, 15ns, CMOS, PSMA72	SRAM Module, 1MX8, 12ns, CMOS, PSMA72	SRAM Module, 1MX8, 25ns, CMOS, PSMA72	SRAM Module, 1MX8, 10ns, CMOS, PSMA72	SRAM Module, 1MX8, 20ns, CMOS, PSMA72	SRAM Module, 1MX8, 20ns, CMOS, PSMA72	SRAM Module, 1MX8, 25ns, CMOS, PSMA72	SRAM Module, 1MX8, 12ns, CMOS, PSMA72	SRAM Module, 1MX8, 10ns, CMOS, PSMA72	SRAM Module, 1MX8, 15ns, CMOS, PSMA72
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	15 ns	12 ns	25 ns	10 ns	20 ns	20 ns	25 ns	12 ns	10 ns	15 ns
Other features	USER CONFIGURABLE AS 256K X 32	USER CONFIGURABLE AS 256K X 32	USER CONFIGURABLE AS 256K X 32	USER CONFIGURABLE AS 256K X 32	USER CONFIGURABLE AS 256K X 32	USER CONFIGURABLE AS 256K X 32	USER CONFIGURABLE AS 256K X 32	USER CONFIGURABLE AS 256K X 32	USER CONFIGURABLE AS 256K X 32	USER CONFIGURABLE AS 256K X 32
JESD-30 code	R-PSMA-N72	R-PSMA-N72	R-PSMA-N72	R-PSMA-N72	R-PSMA-N72	R-PSMA-N72	R-PSMA-N72	R-PSMA-N72	R-PSMA-N72	R-PSMA-N72
memory density	8388608 bi	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bi
Memory IC Type	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE
memory width	8	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1	1	1
Number of terminals	72	72	72	72	72	72	72	72	72	72
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1MX8	1MX8	1MX8	1MX8	1MX8	1MX8	1MX8	1MX8	1MX8	1MX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maker	Paradigm Technology Inc	-	-	-	-	Paradigm Technology Inc	Paradigm Technology Inc	Paradigm Technology Inc	Paradigm Technology Inc	Paradigm Technology Inc
