PDM4M6140S10M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> PDM4M6140S10M

PDM4M6140S10M: DescriptionCache SRAM Module, 64KX36, 10ns, CMOS; Categorystorage storage; File Size163KB，6 Pages; ManufacturerParadigm Technology Inc

Download Datasheet Parametric Compare View All

PDM4M6140S10M Overview

Cache SRAM Module, 64KX36, 10ns, CMOS

PDM4M6140S10M Parametric

Parameter Name	Attribute value
Maker	Paradigm Technology Inc
package instruction	DIMM, DIMM136
Reach Compliance Code	unknow
ECCN code	3A991.B.2.A
Maximum access time	10 ns
Spare memory width	72
I/O type	COMMON
JESD-30 code	R-XDMA-N160
memory density	2359296 bi
Memory IC Type	CACHE SRAM MODULE
memory width	36
Number of functions	1
Number of ports	1
Number of terminals	160
word count	65536 words
character code	64000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64KX36
Output characteristics	3-STATE
Exportable	YES
Package body material	UNSPECIFIED
encapsulated code	DIMM
Encapsulate equivalent code	DIMM136
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.12 A
Minimum standby current	4.75 V
Maximum slew rate	1 mA
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	DUAL

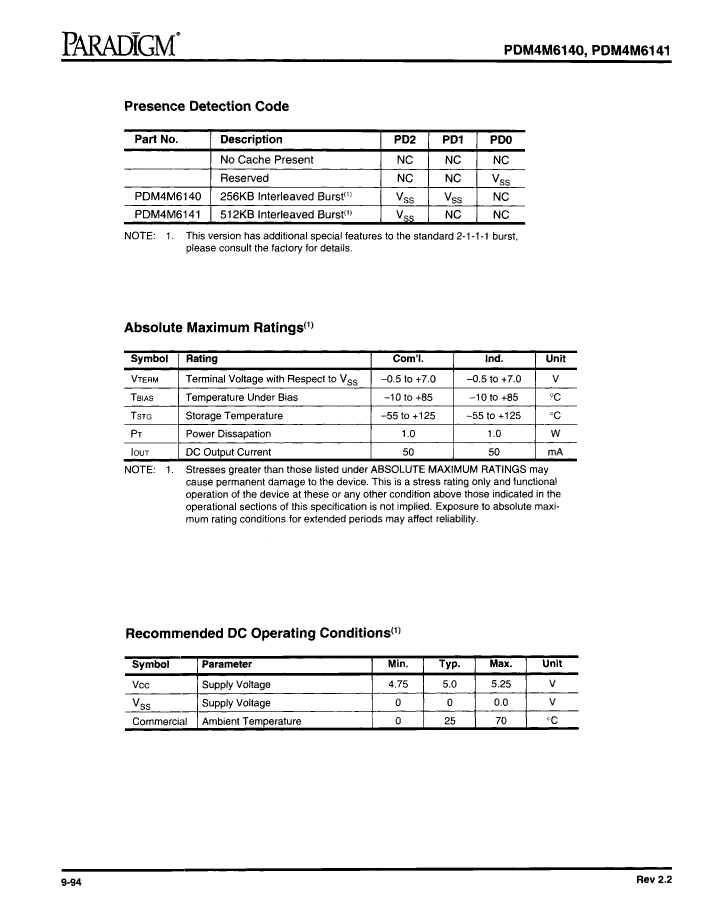

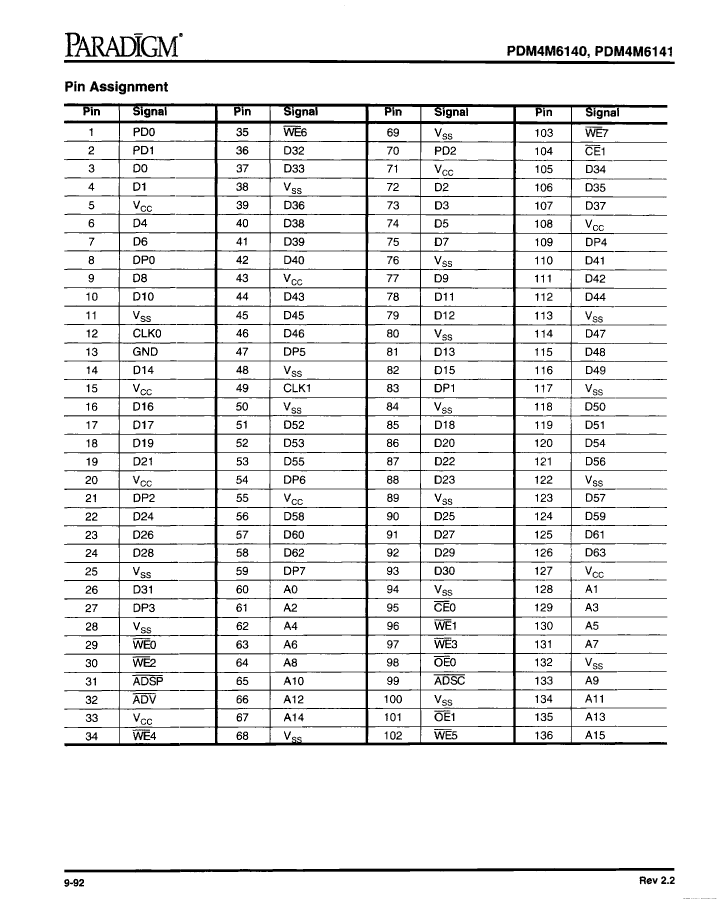

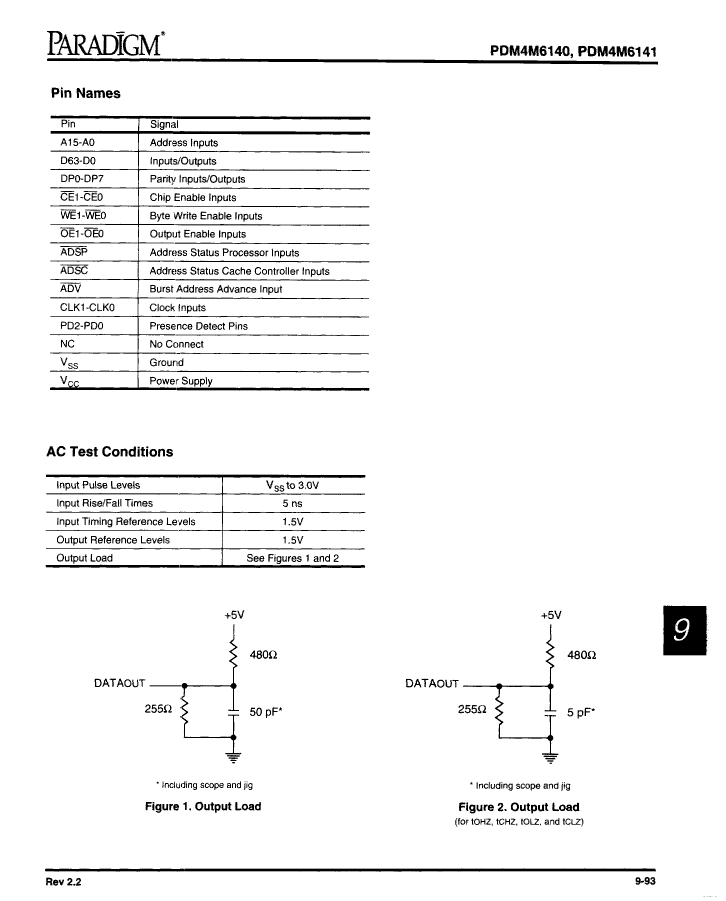

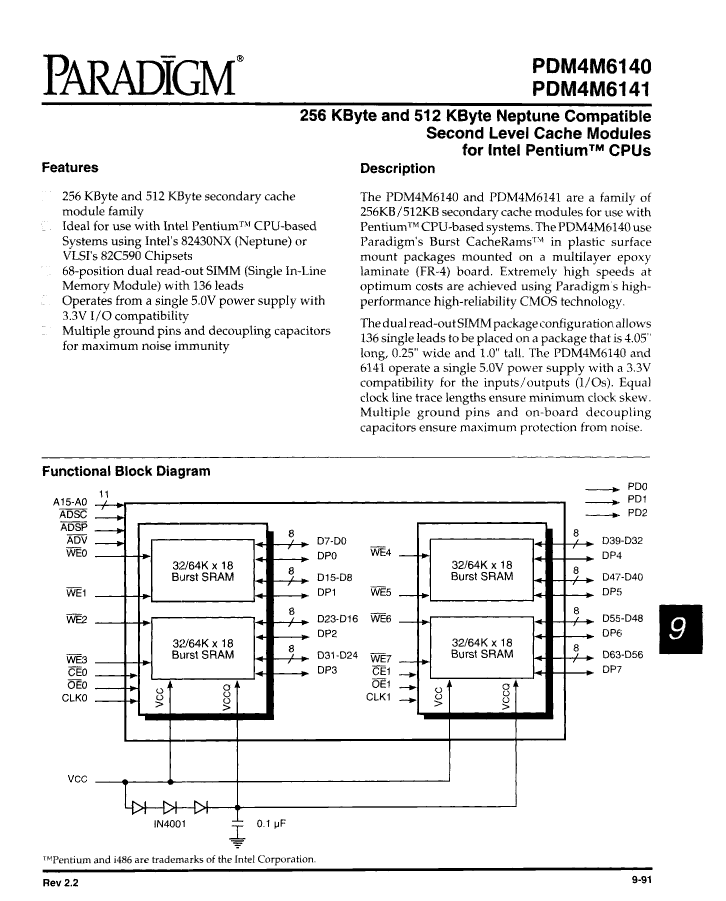

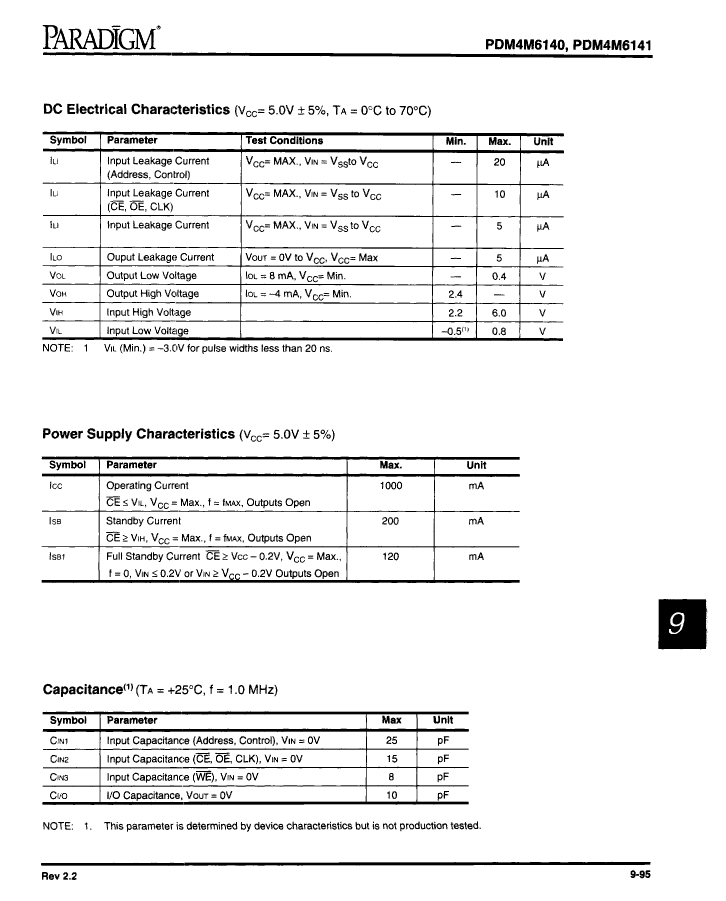

Preview

Download Datasheet

View All

PDM4M6140S10M Related Products

	PDM4M6140S10M	PDM4M6140S9M	PDM4M6141S9M	PDM4M6140S8M	PDM4M6141S8M	PDM4M6141S10M
Description	Cache SRAM Module, 64KX36, 10ns, CMOS	Cache SRAM Module, 64KX36, 9ns, CMOS	Cache SRAM Module, 128KX36, 9ns, CMOS	Cache SRAM Module, 64KX36, 8ns, CMOS	Cache SRAM Module, 128KX36, 8ns, CMOS	Cache SRAM Module, 128KX36, 10ns, CMOS
package instruction	DIMM, DIMM136	DIMM, DIMM136	DIMM, DIMM136	DIMM, DIMM136	DIMM, DIMM136	DIMM, DIMM136
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknow
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	10 ns	9 ns	9 ns	8 ns	8 ns	10 ns
Spare memory width	72	72	72	72	72	72
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XDMA-N160	R-XDMA-N160	R-XDMA-N160	R-XDMA-N160	R-XDMA-N160	R-XDMA-N160
memory density	2359296 bi	2359296 bit	4718592 bit	2359296 bit	4718592 bit	4718592 bi
Memory IC Type	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE
memory width	36	36	36	36	36	36
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	160	160	160	160	160	160
word count	65536 words	65536 words	131072 words	65536 words	131072 words	131072 words
character code	64000	64000	128000	64000	128000	128000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	64KX36	64KX36	128KX36	64KX36	128KX36	128KX36
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES	YES	YES
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIMM	DIMM	DIMM	DIMM	DIMM	DIMM
Encapsulate equivalent code	DIMM136	DIMM136	DIMM136	DIMM136	DIMM136	DIMM136
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.12 A	0.12 A	0.12 A	0.12 A	0.12 A	0.12 A
Minimum standby current	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Maximum slew rate	1 mA	1 mA	1 mA	1 mA	1 mA	1 mA
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Paradigm Technology Inc	-	Paradigm Technology Inc	Paradigm Technology Inc	Paradigm Technology Inc	Paradigm Technology Inc
