BZW04-8V5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BZW04-8V5

BZW04-8V5: DescriptionTrans Voltage Suppressor Diode, 400W, Unidirectional, 1 Element, Silicon, DO-41, 2 PIN; CategoryDiscrete semiconductor diode; File Size47KB，1 Pages; ManufacturerPromax-Johnton Electronic Corporation

Download Datasheet Parametric Compare View All

BZW04-8V5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BZW04-8V5	-	-	View	Buy Now

BZW04-8V5 Overview

Trans Voltage Suppressor Diode, 400W, Unidirectional, 1 Element, Silicon, DO-41, 2 PIN

BZW04-8V5 Parametric

Parameter Name	Attribute value
Maker	Promax-Johnton Electronic Corporation
Parts packaging code	DO-41
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	TEMPERATURE COEFFICIENT IS DERIVED FROM MINIMUM BREAK-DOWN VOLTAGE
Maximum breakdown voltage	10.5 V
Minimum breakdown voltage	9.5 V
Shell connection	ISOLATED
Maximum clamping voltage	14.5 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	O-PALF-W2
Maximum non-repetitive peak reverse power dissipation	400 W
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Certification status	Not Qualified
Maximum reverse current	10 µA
surface mount	NO
technology	AVALANCHE
Terminal form	WIRE
Terminal location	AXIAL

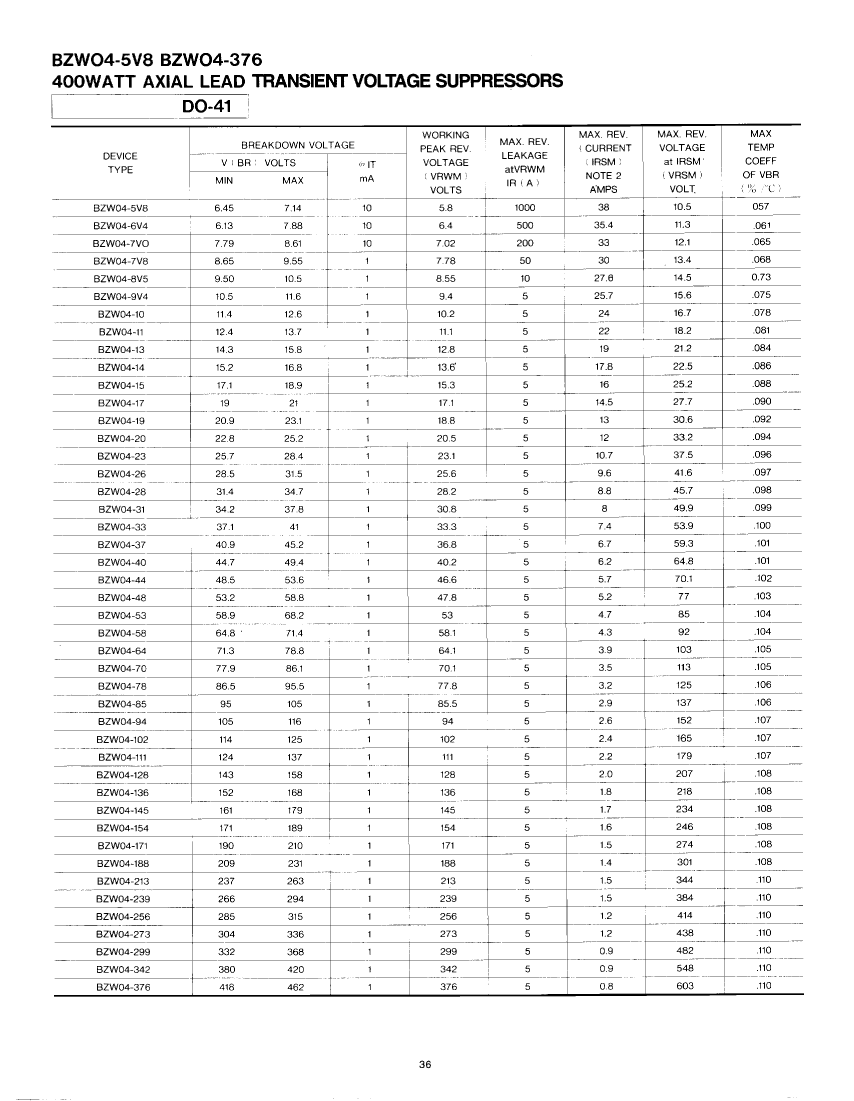

Preview

Download Datasheet

View All

BZW04-8V5 Related Products

	BZW04-8V5	BZW04-111	BZW04-70	BZW04-213	BZW04-40	BZW04-53	BZW04-78	BZW04-299	BZW04-94
Description	Trans Voltage Suppressor Diode, 400W, Unidirectional, 1 Element, Silicon, DO-41, 2 PIN	Trans Voltage Suppressor Diode, 400W, 111V V(RWM), Unidirectional, 1 Element, Silicon, DO-41, 2 PIN	Trans Voltage Suppressor Diode, 400W, Unidirectional, 1 Element, Silicon, DO-41, 2 PIN	Trans Voltage Suppressor Diode, 400W, 213V V(RWM), Unidirectional, 1 Element, Silicon, DO-41, 2 PIN	Trans Voltage Suppressor Diode, 400W, Unidirectional, 1 Element, Silicon, DO-41, 2 PIN	Trans Voltage Suppressor Diode, 400W, Unidirectional, 1 Element, Silicon, DO-41, 2 PIN	Trans Voltage Suppressor Diode, 400W, Unidirectional, 1 Element, Silicon, DO-41, 2 PIN	Trans Voltage Suppressor Diode, 400W, Unidirectional, 1 Element, Silicon, DO-41, 2 PIN	Trans Voltage Suppressor Diode, 400W, Unidirectional, 1 Element, Silicon, DO-41, 2 PIN
Maker	Promax-Johnton Electronic Corporation	Promax-Johnton Electronic Corporation	Promax-Johnton Electronic Corporation	Promax-Johnton Electronic Corporation	Promax-Johnton Electronic Corporation	Promax-Johnton Electronic Corporation	Promax-Johnton Electronic Corporation	Promax-Johnton Electronic Corporation	Promax-Johnton Electronic Corporation
Parts packaging code	DO-41	DO-41	DO-41	DO-41	DO-41	DO-41	DO-41	DO-41	DO-41
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Contacts	2	2	2	2	2	2	2	2	2
Reach Compliance Code	unknow	unknown	unknown	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	TEMPERATURE COEFFICIENT IS DERIVED FROM MINIMUM BREAK-DOWN VOLTAGE	TEMPERATURE COEFFICIENT IS DERIVED FROM MINIMUM BREAK-DOWN VOLTAGE	-	TEMPERATURE COEFFICIENT IS DERIVED FROM MINIMUM BREAK-DOWN VOLTAGE	TEMPERATURE COEFFICIENT IS DERIVED FROM MINIMUM BREAK-DOWN VOLTAGE	TEMPERATURE COEFFICIENT IS DERIVED FROM MINIMUM BREAK-DOWN VOLTAGE	TEMPERATURE COEFFICIENT IS DERIVED FROM MINIMUM BREAK-DOWN VOLTAGE	TEMPERATURE COEFFICIENT IS DERIVED FROM MINIMUM BREAK-DOWN VOLTAGE	TEMPERATURE COEFFICIENT IS DERIVED FROM MINIMUM BREAK-DOWN VOLTAGE
Maximum breakdown voltage	10.5 V	137 V	-	263 V	49.4 V	68.2 V	95.5 V	368 V	116 V
Minimum breakdown voltage	9.5 V	124 V	-	237 V	44.7 V	58.9 V	86.5 V	332 V	105 V
Shell connection	ISOLATED	ISOLATED	-	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Maximum clamping voltage	14.5 V	179 V	-	344 V	64.8 V	85 V	125 V	482 V	152 V
Configuration	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	-	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	-	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	O-PALF-W2	O-PALF-W2	-	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak reverse power dissipation	400 W	400 W	-	400 W	400 W	400 W	400 W	400 W	400 W
Number of components	1	1	-	1	1	1	1	1	1
Number of terminals	2	2	-	2	2	2	2	2	2
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	-	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	-	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	-	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	10 µA	5 µA	-	5 µA	5 µA	5 µA	5 µA	5 µA	5 µA
surface mount	NO	NO	-	NO	NO	NO	NO	NO	NO
technology	AVALANCHE	AVALANCHE	-	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal form	WIRE	WIRE	-	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	-	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
