426-2-004-0-T-KS0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 426-2-004-0-T-KS0

Preview

426-2-004-0-T-KS0: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size997KB，1 Pages; ManufacturerMPE-Garry GmbH

Download Datasheet Parametric Compare View All

426-2-004-0-T-KS0 Overview

Board Connector, 4 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Solder Terminal, Locking

426-2-004-0-T-KS0 Parametric

Parameter Name	Attribute value
Maker	MPE-Garry GmbH
Reach Compliance Code	compli
body width	0.138 inch
subject depth	0.185 inch
body length	0.266 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	424VAC V
insulator material	THERMOPLASTIC
Manufacturer's serial number	426
Plug contact pitch	0.049 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.091 inch
Terminal pitch	1.2446 mm
Termination type	SOLDER
Total number of contacts	4

Preview

Download Datasheet

View All

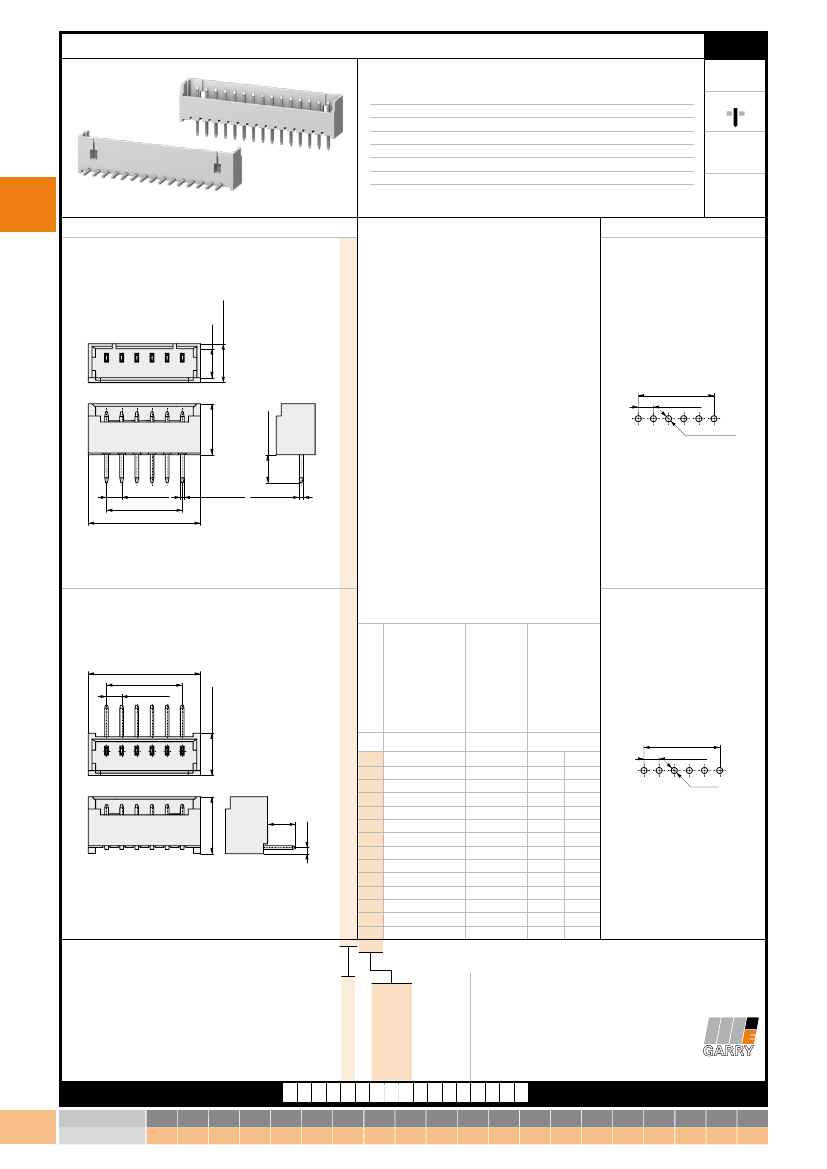

Pin Header Shrouded 1,25 mm

Rated current

1,0 A

Rated voltage

100 V

RMS

/ V

DC

Withstand voltage

300 V

RMS

for one minute

Material contact

Copper alloy

Material insulator

Thermoplast UL94V-0

Operating temperature -40°C to +85°C

Max. processing temper. 230°C for 5 seconds

All dimensions in mm.

Series

426

pitch

termination

1,25

Product

group

3

max.

pincount

Variation

PCB Layout

015

1,25x(n-1) ±0,20

1,25 ±0,10

4,20 ±0,25

3,20 ±0,20

1

Ø 0,50 ±0,25

1,25 ±0,10

B ±0,20

A ±0,25

0,30 ±0,05

0,34 ±0,05

3,50 ±0,25

A ±0,25

B ±0,20

1,25 ±0,10

2

4,70 ±0,25

2,30

002

003

004

005

006

007

008

009

010

011

012

013

014

015

n

4,25

5,50

6,75

8,00

9,25

10,50

11,75

13,00

14,25

15,50

16,75

18,00

19,25

20,50

A

1,25

2,50

3,75

5,00

6,25

7,50

8,75

10,00

11,25

12,50

13,75

15,00

16,25

17,50

B

1

2

1,25x(n-1) ±0,20

1,25 ±0,10

Ø 0,50

Plating:

T = Sn

No. of contacts

Plating contact

www.mpe-connector.de

Order code:

426-?-???-0-T-KS0

425

6-3

3-10

Mating series

see page

MPE-Garry GmbH • Schäfflerstraße 13 • 87629 Füssen • Germany • Phone: +49 (0) 83 62 / 91 56-0 • Fax: +49 (0) 83 62 / 91 56-500 • Email: vk@mpe-connector.de • www.mpe-connector.de

2,40

3,20 ±0,25

0,50

CS180113_V3

Variation (1,2)

available in variation

no. of contacts

see figure left
