Additional Resources:
Product Page
|
3D Model
|
PCB Footprint
date
page
12/02/2019
1 of 5

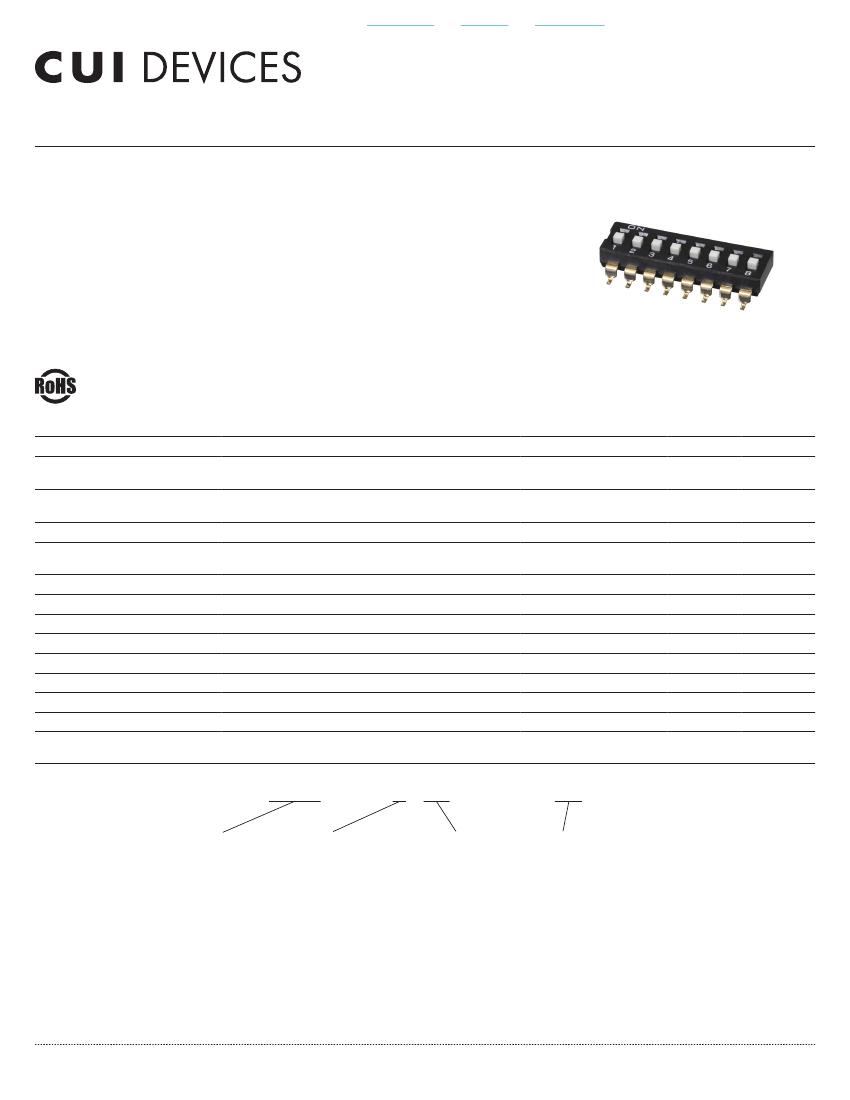

SERIES:
DS04-254-SMT
│
DESCRIPTION:
DIP SWITCH
FEATURES
• 2.54 mm pitch
• 1~12 pole options
• raised or flat actuator option
• surface mount
• tube or tape & reel packaging
SPECIFICATIONS
parameter
rated voltage (per pole)
rated current (per pole)
withstanding voltage
contact resistance
insulation resistance
operating force
switch travel
operating temperature
storage temperature
life
flammability rating
RoHS
UL94V-0
yes
-40
-40
2000
conditions/description
switching
non-switching
switching
non-switching
for 1 minute
initial
after life test
at 500 Vdc
100
1000
0.9
85
85
500
50
100
min
typ
max
24
50
25
100
units
Vdc
Vdc
mA
mA
Vac
mΩ
mΩ
MΩ
g
mm
°C
°C
cycles
PART NUMBER KEY
DS04 - 254 -
X
-
XX
BK - SMT -
XX
Base Number
Actuator:
1 = Raised
2 = Flat
No. of Poles:
01
07
02
08
03
10
04
12
05
06
Packaging:
“blank” = Tube
TR
1
= Tape and Reel
Notes:
1. Tape and Reel packaging only available on flat actuator options.
cuidevices.com
Additional Resources:
Product Page
|
3D Model
|
PCB Footprint
CUI Devices
│
SERIES:
DS04-254-SMT
│
DESCRIPTION:
DIP SWITCH
date
12/02/2019│
page
2 of 5

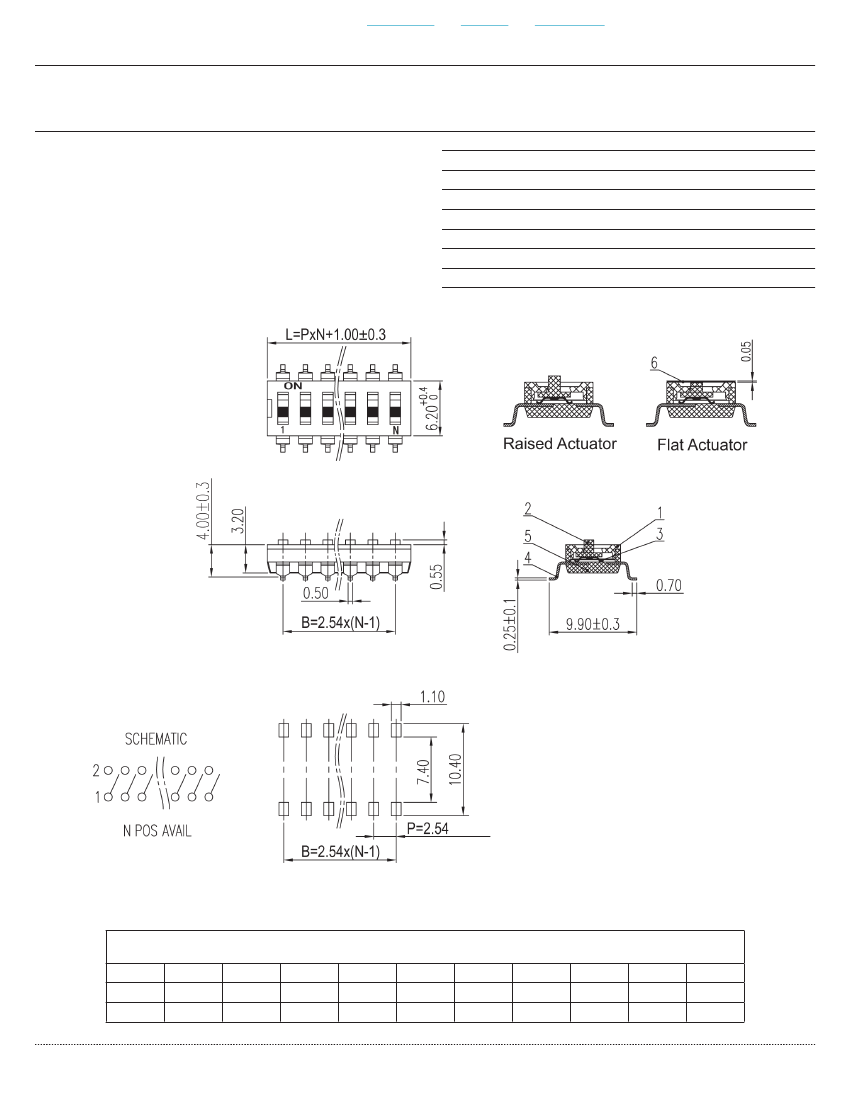

MECHANICAL DRAWING
units: mm
tolerance:
0.5<X≤3.0: ±0.15 mm
3.0<X≤6.0: ±0.20 mm
6.0<X≤30.0: ±0.25 mm
30.0<X≤120.0: ±0.30 mm
120.0<X≤400.0: ±0.50 mm
X>400.0: ±0.80 mm
unless otherwise noted
ITEM
1
2
3
4
5
6
DESCRIPTION
housing
actuator
contact
pins 1,2
base
tape
MATERIAL
PBT (UL94V-0)
PBT (UL94V-0)
copper alloy
copper alloy
PBT (UL94V-0)
polyimide
PLATING/COLOR
black
white
gold
gold
black
Recommended PCB Layout
Top View
This series is constructed of single piece modules where L is the total length, P is the pitch, and N is the number
of poles.
N
L
B
01
3.54
--
02
6.08
2.54
03
8.62
5.08
04
11.16
7.62
05
13.70
10.16
06
16.24
12.70
07
18.78
15.24
08
21.32
17.78
10
26.40
22.86
12
31.48
27.94
cuidevices.com
Additional Resources:
Product Page
|
3D Model
|
PCB Footprint
CUI Devices
│
SERIES:
DS04-254-SMT
│
DESCRIPTION:
DIP SWITCH
date
12/02/2019│
page
3 of 5

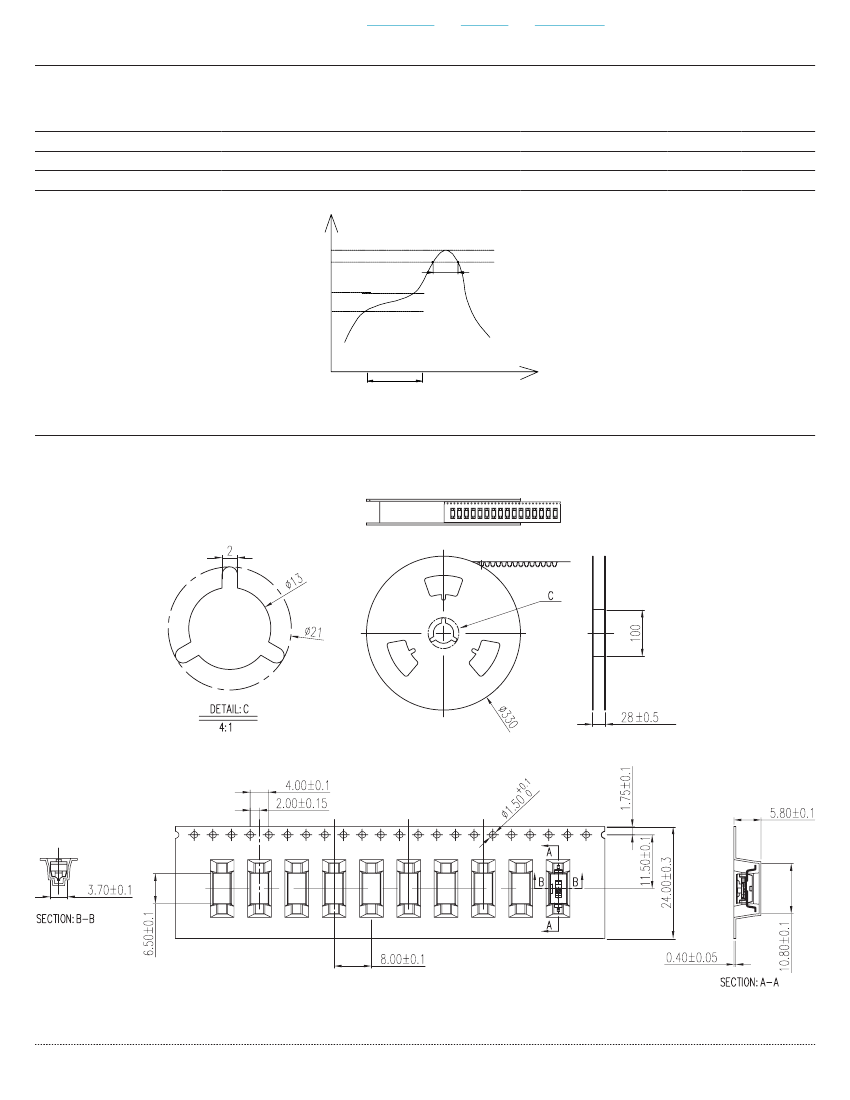

SOLDERABILITY
parameter
hand soldering
2
reflow soldering
2
Notes:
conditions/description
for maximum 3 seconds
240~260 °C (20 seconds max)
min
315
typ
320
max
325
260
units
°C
°C
2. Keep in “off” position during soldering.
Temperature (°C)
260
240
260°C max
240°C for 20 sec max
200
180
150
100
50
120 to 150 s
Time (sec)

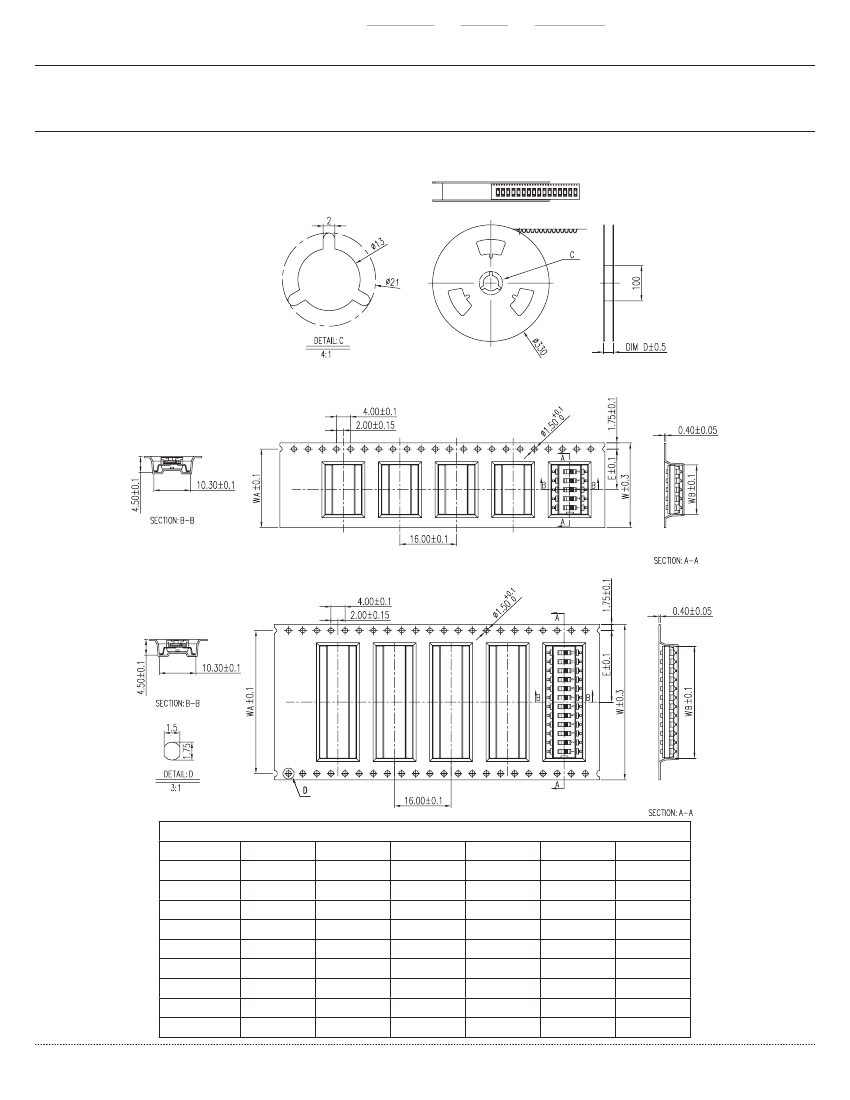

PACKAGING (TAPE & REEL, 1 POLE MODELS)
units: mm
Reel Size: Ø330 mm
Reel QTY: 1500 pcs
cuidevices.com
Additional Resources:
Product Page
|
3D Model
|
PCB Footprint
CUI Devices
│
SERIES:
DS04-254-SMT
│
DESCRIPTION:
DIP SWITCH
date
12/02/2019│
page
5 of 5
REVISION HISTORY
rev.
1.0
description
initial release
The revision history provided is for informational purposes only and is believed to be accurate.
date
12/02/2019
CUI Devices offers a one (1) year limited warranty. Complete warranty information is listed on our website.
CUI Devices reserves the right to make changes to the product at any time without notice. Information provided by CUI Devices is believed to be accurate and reliable. However, no
responsibility is assumed by CUI Devices for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
CUI Devices products are not authorized or warranted for use as critical components in equipment that requires an extremely high level of reliability. A critical component is any
component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or
effectiveness.
cuidevices.com
