LP2981M-3.0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LP2981M-3.0

LP2981M-3.0: DescriptionRegulator, 1 Output, BIPolar, PDSO5,; CategoryPower/power management The power supply circuit; File Size472KB，6 Pages; ManufacturerAlpha Semiconductor

Download Datasheet Parametric Compare View All

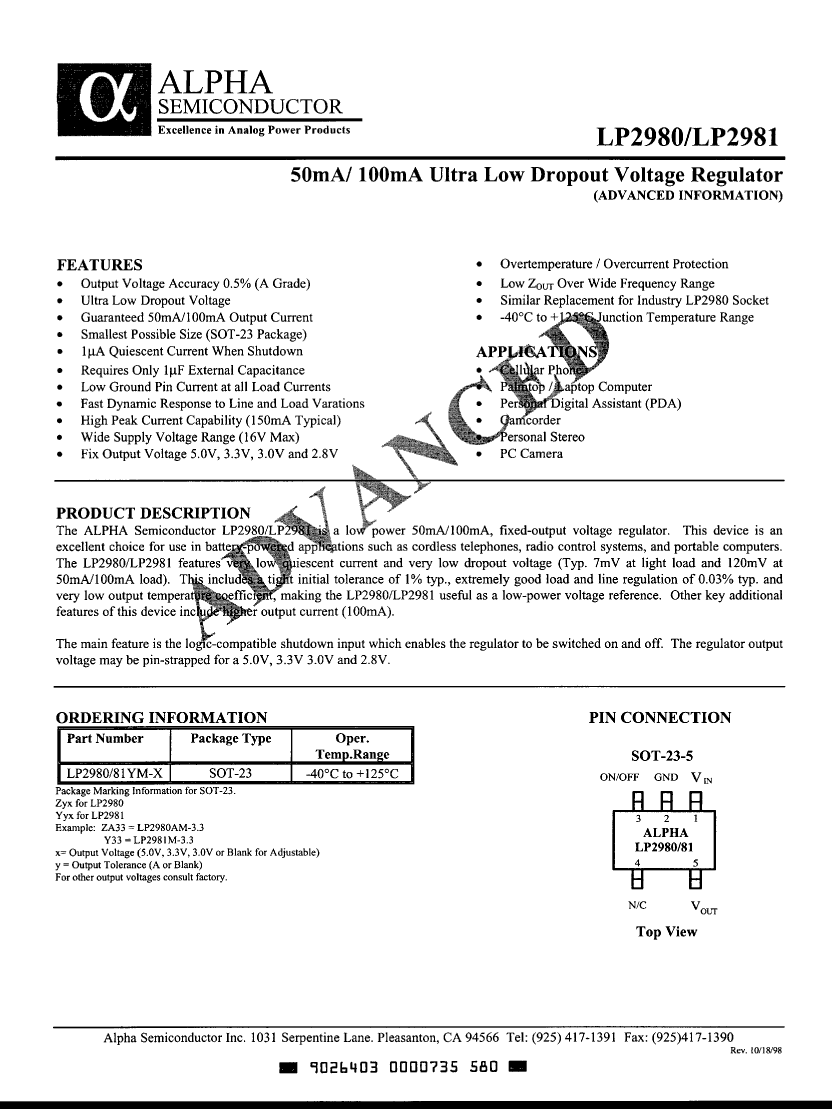

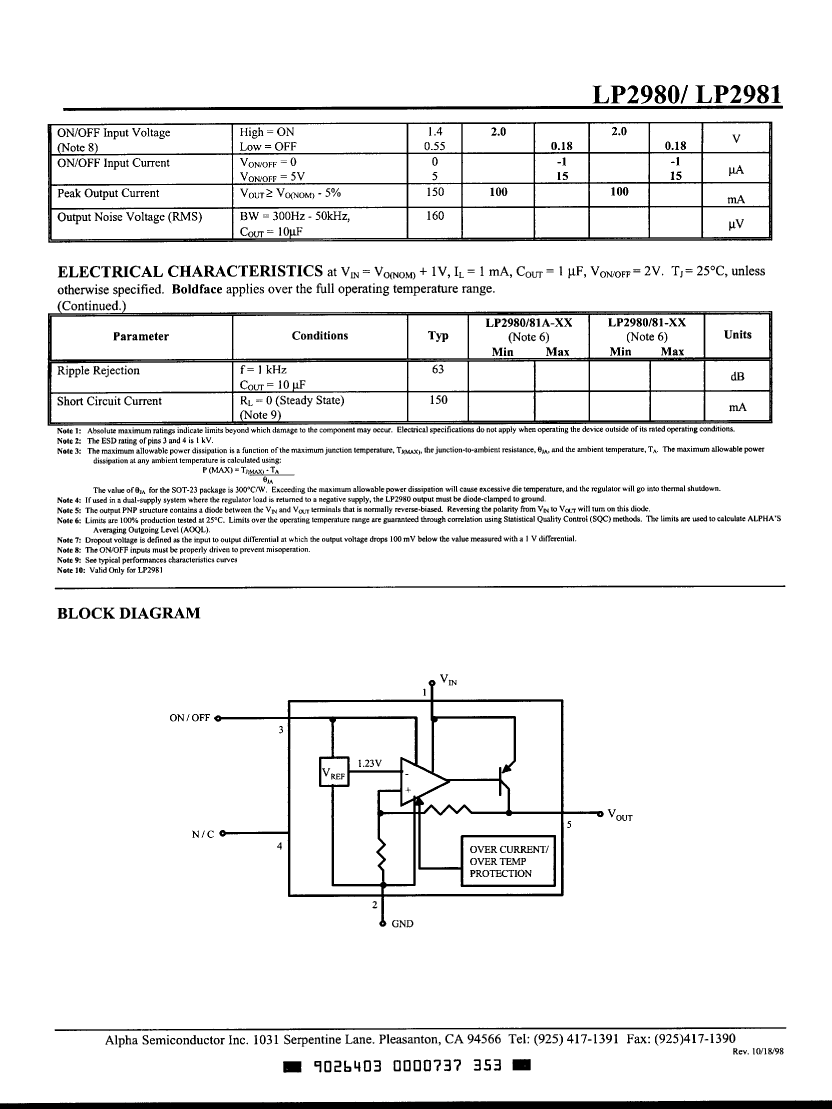

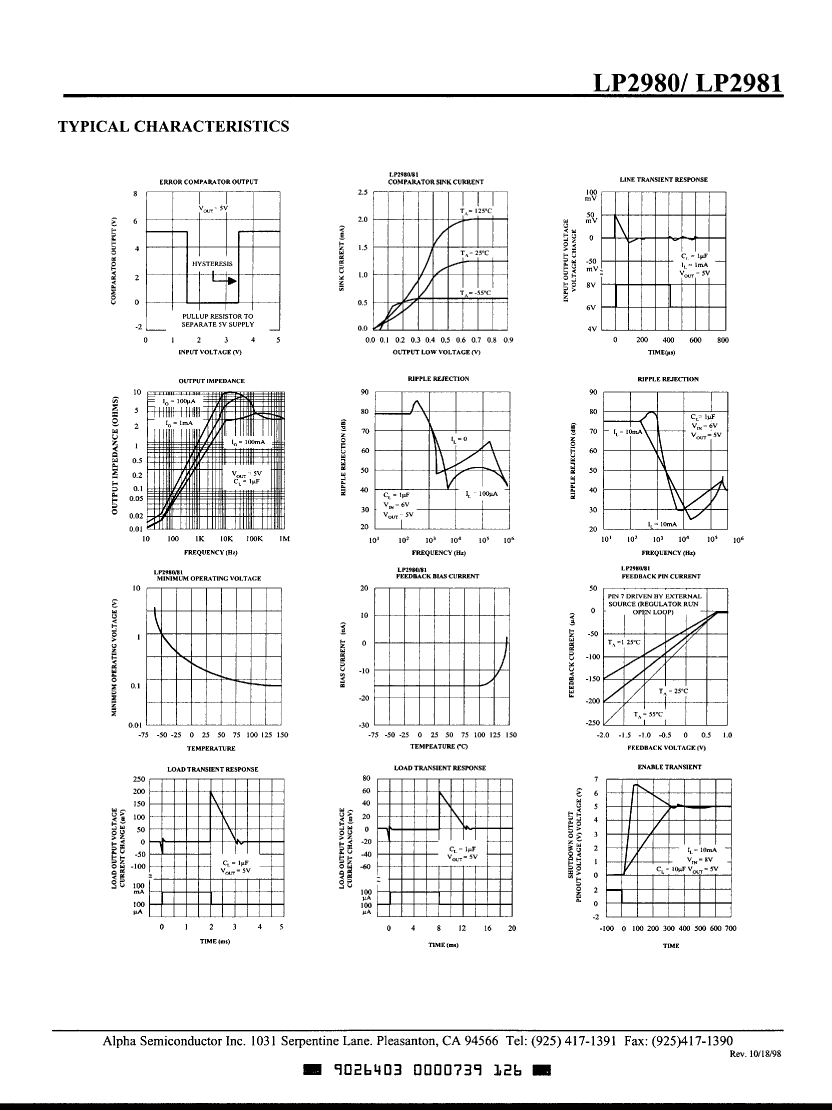

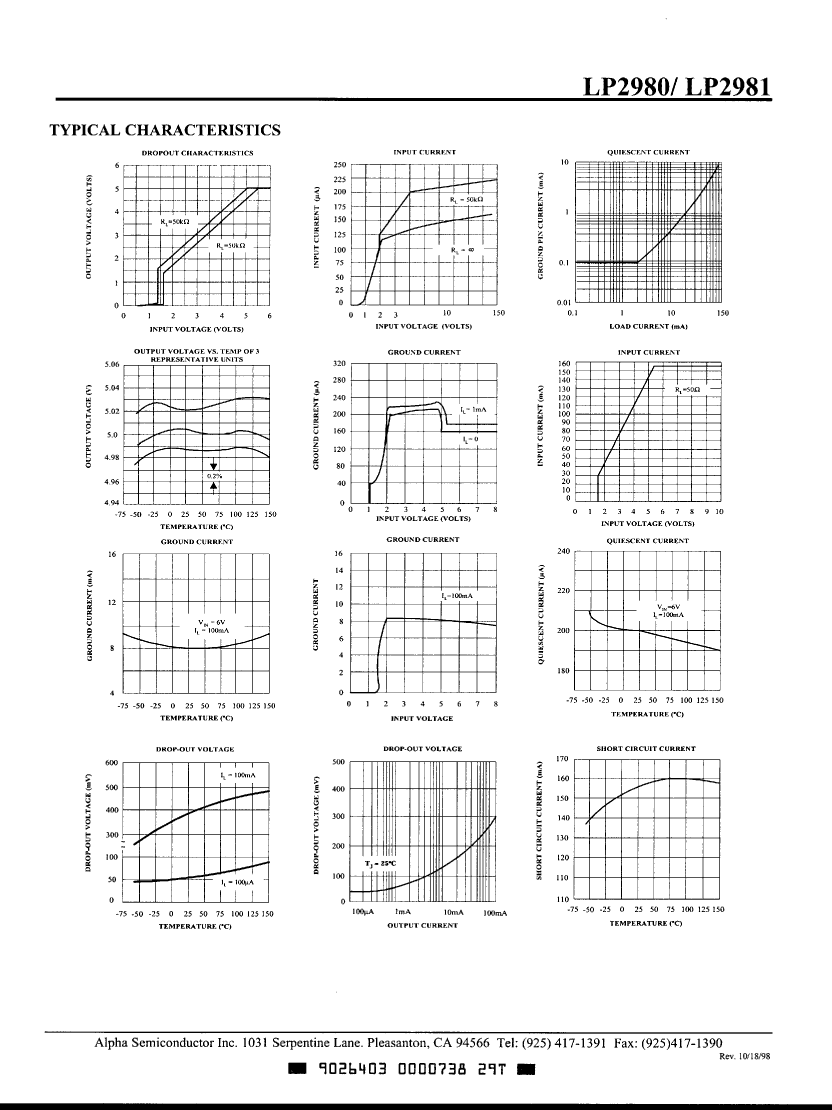

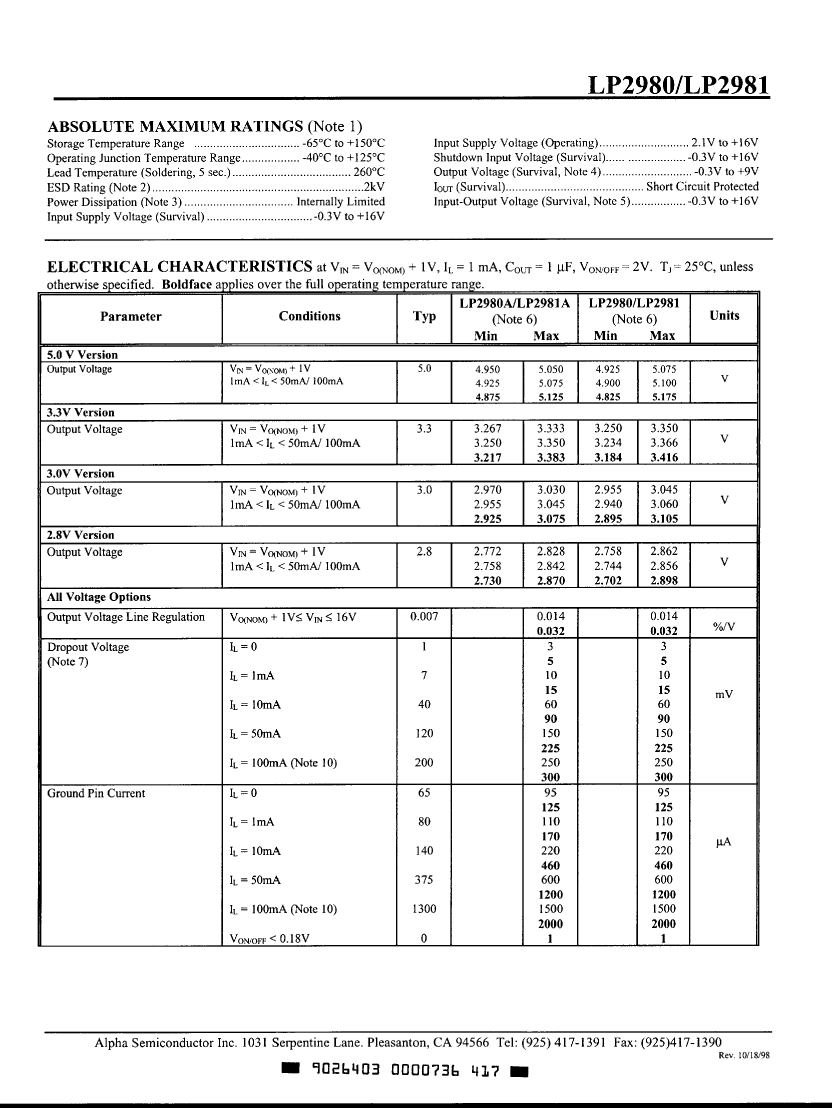

LP2981M-3.0 Overview

Regulator, 1 Output, BIPolar, PDSO5,

LP2981M-3.0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Alpha Semiconductor
package instruction	TSOP, TSOP5/6,.11,37
Reach Compliance Code	unknow
Adjustability	FIXED
Nominal dropback voltage 1	0.2 V
Maximum absolute input voltage	16 V
JESD-30 code	R-PDSO-G5
JESD-609 code	e0
Maximum grid adjustment rate	0.0115%
Output times	1
Number of terminals	5
Working temperatureTJ-Max	125 °C
Operating temperatureTJ-Mi	-40 °C
Maximum output current 1	0.1 A
Nominal output voltage 1	3 V
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP
Encapsulate equivalent code	TSOP5/6,.11,37
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified
surface mount	YES
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum voltage tolerance	3.5%

LP2981M-3.0 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

LP2981M-3.0 Related Products

	LP2981M-3.0	LP2980AM-3.0	LP2980AM-5.0	LP2981AM-3.0	LP2981AM-3.3	LP2981AM-5.0	LP2981M-5.0	LP2981M-3.3	LP2980AM-3.3
Description	Regulator, 1 Output, BIPolar, PDSO5,	Regulator, 1 Output, BIPolar, PDSO5,	Regulator, 1 Output, BIPolar, PDSO5,	Regulator, 1 Output, BIPolar, PDSO5,	Regulator, 1 Output, BIPolar, PDSO5,	Regulator, 1 Output, BIPolar, PDSO5,	Regulator, 1 Output, BIPolar, PDSO5,	Regulator, 1 Output, BIPolar, PDSO5,	Regulator, 1 Output, BIPolar, PDSO5,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Alpha Semiconductor	Alpha Semiconductor	Alpha Semiconductor	Alpha Semiconductor	Alpha Semiconductor	Alpha Semiconductor	Alpha Semiconductor	Alpha Semiconductor	Alpha Semiconductor
package instruction	TSOP, TSOP5/6,.11,37	TSOP, TSOP5/6,.11,37	TSOP, TSOP5/6,.11,37	TSOP, TSOP5/6,.11,37	TSOP, TSOP5/6,.11,37	TSOP, TSOP5/6,.11,37	TSOP, TSOP5/6,.11,37	TSOP, TSOP5/6,.11,37	TSOP, TSOP5/6,.11,37
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknow	unknow	unknow
Adjustability	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED
Nominal dropback voltage 1	0.2 V	0.2 V	0.2 V	0.2 V	0.2 V	0.2 V	0.2 V	0.2 V	0.2 V
Maximum absolute input voltage	16 V	16 V	16 V	16 V	16 V	16 V	16 V	16 V	16 V
JESD-30 code	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Maximum grid adjustment rate	0.0115%	0.0115%	0.016%	0.0115%	0.0124%	0.016%	0.016%	0.0124%	0.0123%
Output times	1	1	1	1	1	1	1	1	1
Number of terminals	5	5	5	5	5	5	5	5	5
Working temperatureTJ-Max	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current 1	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Nominal output voltage 1	3 V	3 V	5 V	3 V	3.3 V	5 V	5 V	3.3 V	3.3 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP	TSOP	TSOP	TSOP	TSOP	TSOP	TSOP	TSOP	TSOP
Encapsulate equivalent code	TSOP5/6,.11,37	TSOP5/6,.11,37	TSOP5/6,.11,37	TSOP5/6,.11,37	TSOP5/6,.11,37	TSOP5/6,.11,37	TSOP5/6,.11,37	TSOP5/6,.11,37	TSOP5/6,.11,37
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.95 mm	0.95 mm	0.95 mm	0.95 mm	0.95 mm	0.95 mm	0.95 mm	0.95 mm	0.95 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum voltage tolerance	3.5%	2.5%	2.5%	2.5%	2.5%	2.5%	3.5%	3.5%	2.5%
Working temperature TJ-Min	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-	-	-
