EB14E2H1H-27.000M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EB14E2H1H-27.000M

EB14E2H1H-27.000M: DescriptionCRYSTAL OSCILLATOR, CLOCK, 27 MHz, LVHCMOS OUTPUT; CategoryPassive components oscillator; File Size150KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EB14E2H1H-27.000M Overview

CRYSTAL OSCILLATOR, CLOCK, 27 MHz, LVHCMOS OUTPUT

EB14E2H1H-27.000M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ECLIPTEK
Reach Compliance Code	compli
Other features	BULK
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e4
Manufacturer's serial number	EB14E2
Installation features	SURFACE MOUNT
Nominal operating frequency	27 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVHCMOS
Output load	15 pF
physical size	3.2mm x 2.5mm x 0.9mm
longest rise time	10 ns
Nominal supply voltage	3 V
surface mount	YES
maximum symmetry	60/40 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

EB14E2

Series

• RoHS Compliant (Pb-Free)

• Ceramic SMD package

• 3.0V supply voltage

• LVHCMOS

• Stability to 25ppm

• Standby Function

• Available in tape and reel

NOTES

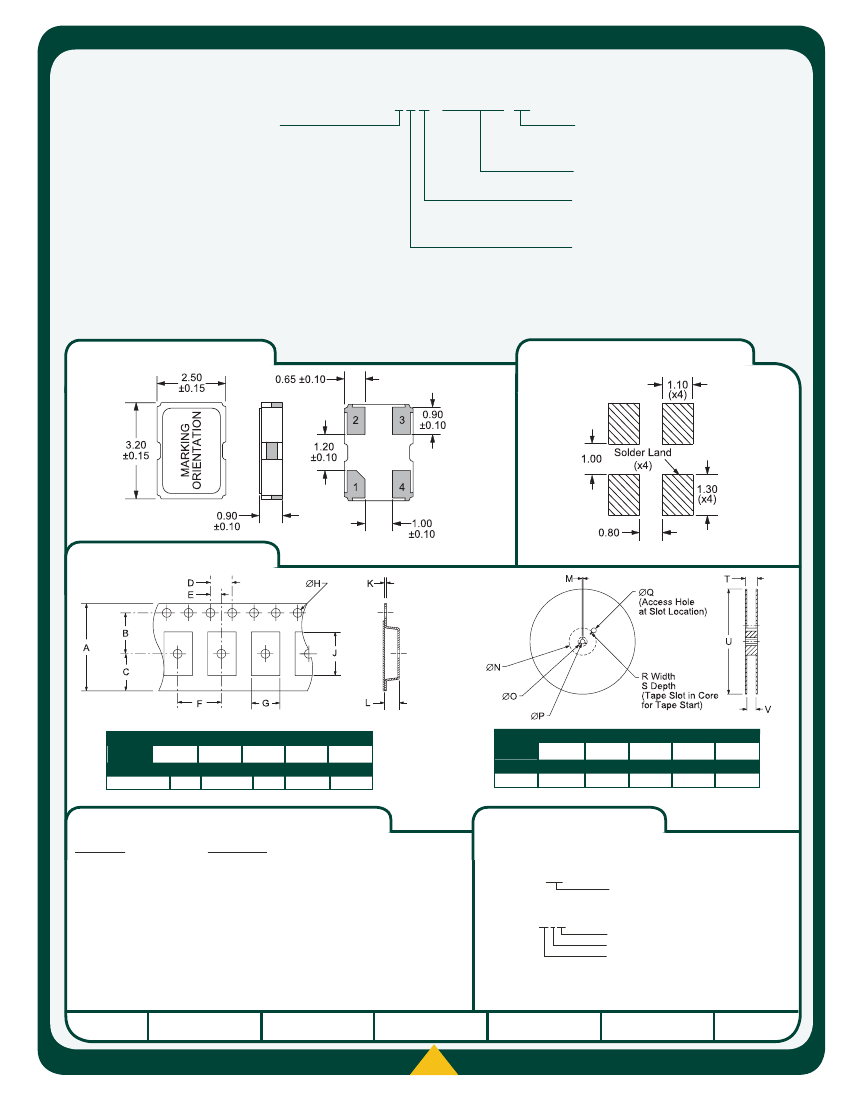

EB14E2

H 0.9

L 3.2

W 2.5

OSCILLATOR

__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

ELECTRICAL SPECIFICATIONS

16.000MHz, 20.000MHz, 24.000MHz, 24.576MHz, 25.000MHz, 27.000MHz, 30.000MHz, 32.000MHz, 40.000MHz,

48.000MHz, 54.000MHz

Operating Temperature Range

-20°C to 70°C

-40°C to 85°C

Storage Temperature Range

-55°C to 125°C

Supply Voltage (V

)

3.0V

±5%

Input Current

6mA Maximum

16.000MHz to 20.000MHz

11mA Maximum

20.001MHz to 40.000MHz

16mA Maximum

40.001MHz to 54.000MHz

Frequency Tolerance / Stability

Inclusive of all conditions: Calibration Tolerance at 25°C,

±100ppm, ±50ppm, or ±25ppm

Maximum

Frequency Stability over the Operating Temperature Range,

Supply Voltage Change, Output Load Change, First Year Aging

at 25°C, Shock, and Vibration

Output Voltage Logic High (V

)

90% of V

Min. I

= -4mA

Output Voltage Logic Low (V

)

10% of V

Max. I

= +4mA

Rise / Fall Time

10 nSec Maximum

20% to 80% of Waveform

Duty Cycle

50 ±10(%)

at 50% of Waveform

50 ±5(%)

Load Drive Capability

15pF HCMOS Load Maximum

Tri-State Input Voltage

Enables Output

No Connection

Enables Output

:≥80% of V

Disables Output: High Impedance

:≤20% of V

Standby Current

10µA Maximum

Disabled Output: High Impedance

Start Up Time

10 mSec Maximum

RMS Phase Jitter

1 pSec Maximum

= 12kHz to 20MHz

MANUFACTURER
