EB15E2G2H-3.072MTR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EB15E2G2H-3.072MTR

EB15E2G2H-3.072MTR: DescriptionCRYSTAL OSCILLATOR, CLOCK, 3.072MHz, LVHCMOS OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components oscillator; File Size122KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EB15E2G2H-3.072MTR Overview

CRYSTAL OSCILLATOR, CLOCK, 3.072MHz, LVHCMOS OUTPUT, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

EB15E2G2H-3.072MTR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ECLIPTEK
Reach Compliance Code	compli
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Manufacturer's serial number	EB15E2
Installation features	SURFACE MOUNT
Nominal operating frequency	3.072 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVHCMOS
Output load	15 pF
physical size	3.2mm x 2.5mm x 0.9mm
longest rise time	5 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

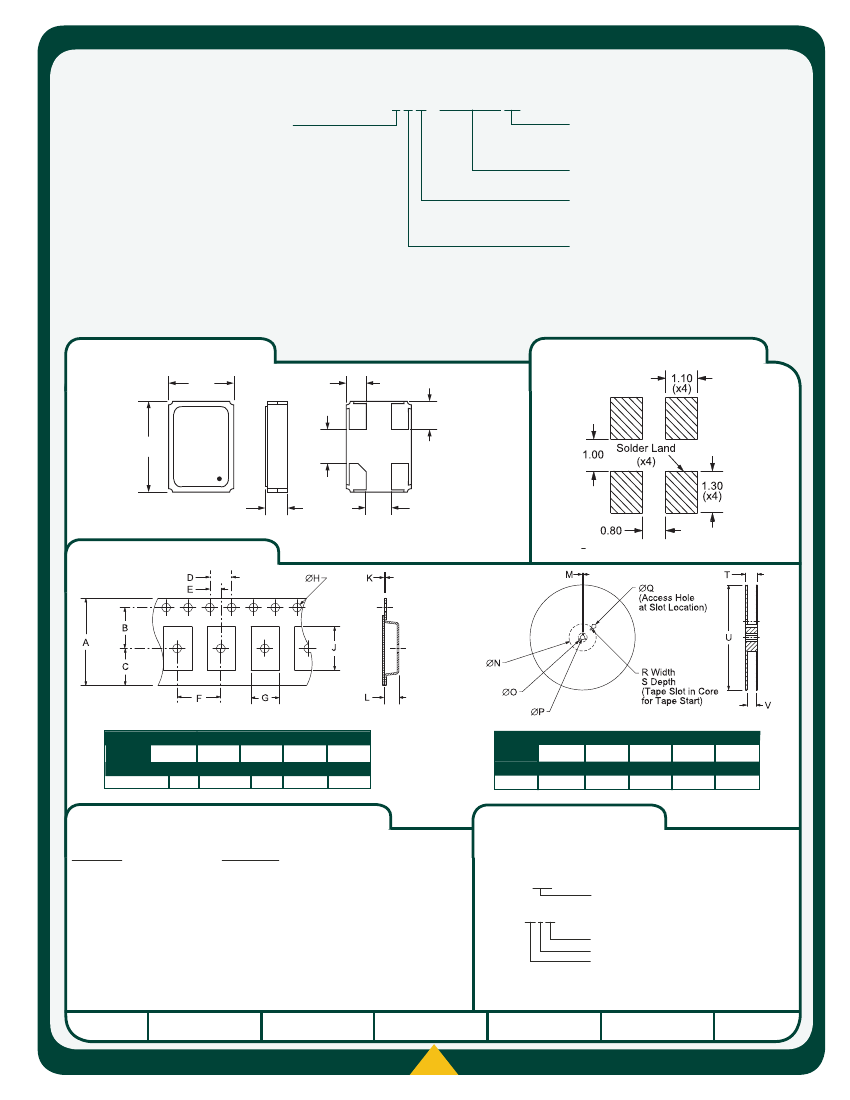

EB15E2

Series

• RoHS Compliant (Pb-Free)

• Ceramic SMD package

• 2.5V Supply Voltage

• LVHCMOS output

• Stability to ±25ppm

• Standby Function

• Available on Tape and Reel

NOTES

EB15E2

H 0.9

L 3.2

W 2.5

OSCILLATOR

__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

ELECTRICAL SPECIFICATIONS

Frequency Range (F

)

2MHz, 2.048MHz, 2.5MHz, 3MHz, 3.072MHz, 3.125MHz, 3.25MHz, 3.579545MHz, 3.75MHz,

4MHz, 4.096MHz, 4.125MHz, 4.5MHz, 5MHz, 6MHz, 6.144MHz, 6.25MHz, 6.5MHz, 6.75MHz,

7.159MHz, 8MHz, 8.192MHz, 8.25MHz, 9MHz, 10MHz, 12MHz, 12.288MHz, 12.5MHz , 13MHz,

13.5MHz, 14.3181MHz, 14.31818MHz, 15MHz, 16MHz, 16.384MHz, 16.6666MHz, 16.66667MHz,

16.6667MHz, 16.9344MHz, 18MHz, 18.432MHz, 20MHz, 24MHz, 24.576MHz, 25MHz, 26MHz, 27MHz,

28.636363MHz, 30MHz, 32MHz, 32.768MHz, 33MHz, 33.33MHz, 33.333MHz, 33.3333MHz, 36MHz,

38.4MHz, 40MHz, 48MHz, and 50MHz

-20°C to 70°C

-40°C to 85°C

-55°C to 125°C

2.5V

±5%

3mA Maximum

2.000MHz to 9.999MHz

4mA Maximum

10.000MHz to 19.999MHz

5mA Maximum

20.000MHz to 39.999MHz

6mA Maximum

40.000MHz to 50.000MHz

±100ppm, ±50ppm, or ±25ppm

Inclusive of all conditions: Calibration Tolerance at 25°C,

Frequency Stability over the Operating Temperature Range, Maximum

Supply Voltage Change, Output Load Change, First Year

Aging at 25°C, Shock, and Vibration

90% of V

Minimum (I

= -4mA)

10% of V

Maximum (I

= +4mA)

5nSeconds Maximum

20% to 80% of Waveform, 2MHz to 24MHz

4nSeconds Maximum

20% to 80% of Waveform, 24.001MHz to 50MHz

50 ±5(%)

at 50% of Waveform

15pF HCMOS Load Maximum

Enables Output

No Connection

Enables Output

: >80% of V

Disables Output: High Impedance

: <20% of V

10µA Maximum

Disabled Output: High Impedance

10 mSeconds Maximum

1 pSeconds Maximum

= 12kHz to 20MHz

SERIES

PACKAGE

VOLTAGE

CLASS

REV

DATE

Operating Temperature Range (OTR)

Storage Temperature Range (STR)

Supply Voltage (V

)

Input Current (I

)

Frequency Tolerance/Stability

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Rise Time / Fall Time (T

)

Duty Cycle (SYM)

Load Drive Capability (C

LOAD

)

Tri-State Input Voltage

Standby Current

Start Up Time (T

)

RMS Phase Jitter

MANUFACTURER

Recommended Resources
