EB71F61
Series
• Oven Controlled Crystal Oscillators (OCXO)
• HCMOS Output
• +5.0V Supply Voltage
• AT-Cut Crystal Used
• External Voltage Control Function
• 5 pin DIP Metal Package
EB71F61
H 10.5
L 20.2
W 20.2
OSCILLATOR
ELECTRICAL SPECIFICATIONS
Frequency Range
Operating Temperature Range (OTR)
Storage Temperature Range
Supply Voltage (V
DD
)
Frequency Tolerance / Stability
vs. Initial Tolerance
vs. Temperature Stability
vs. Vdd
vs. Load
vs. Aging (1 Day)
vs. Aging (1 Year)
vs. Aging (10 Years)
Crystal Cut
Warm Up Time
Power Consumption
10.000MHz, 12.288MHz, 12.800MHz, 16.000MHz, 19.440MHz, or 20.000MHz
0°C to 50°C, 0°C to 70°C, or -20°C to 70°C
-55°C to 125°C
5.0V
DC
±5%
at Nominal V
DD
and V
C
, at 25°C
at Nominal V
DD
and V
C
V
DD
±5%
Vload ±5%
after 72 Hours of Operation
after 72 Hours of Operation
after 72 Hours of Operation
to ±500ppb of Final Frequency at 1 Hour at 25°C
at Steady State, at 25°C
During Warm Up, at 25°C
I
OH
= -8mA
I
OL
= +8mA
Measured at 20% to 80% of Waveform
Measured at 50% of Waveform
±1.0ppm or ±500ppb Maximum
±50ppb, ±80ppb, ±100ppb, ±200ppb, ±280ppb,
or ±500ppb Maximum
±20ppb Maximum
±20ppb Maximum
±3.0ppb Maximum
±500ppb Maximum
±3.0ppm Maximum
AT-Cut
3 Minutes Maximum
1.2 Watts Maximum
3.6 Watts Maximum
V
DD
-0.5V
DC
Minimum
0.5V
DC
Maximum
6nSec Maximum
50 ±5(%)
15pF Maximum
±5ppm Minimum
0.0V
DC
to V
DD
2.5V
DC
±2.5V
DC
Positive Transfer Characteristic
4.5V
DC
±0.3V
DC
(Pin 5)
±10% Maximum
10kOhms Typical
-75dBc/Hz
-100dBc/Hz
-130dBc/Hz
-140dBc/Hz
-150dBc/Hz
VOLTAGE
CLASS
REV
.
DATE
Output Voltage Logic High (V
OH
)
Output Voltage Logic Low (V
OL
)
Rise Time / Fall Time
Duty Cycle
Load Drive Capability
Referenced to F
O
at V
C
= 2.5V
DC
; V
DD
=5.0V
DC
over OTR
Frequency Deviation
Control Voltage Range
Control Voltage (V
C
)
Transfer Function
Reference Voltage Output
Linearity
Input Impedance
Typical Phase Noise (at 12.800MHz)
1Hz Offset
10Hz Offset
100Hz Offset
1kHz Offset
10kHz Offset
MANUFACTURER
CATEGORY
SERIES
PACKAGE
ECLIPTEK CORP.
OSCILLATOR
EB71F61
5 pin DIP
5.0V
OS2B
05/07
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.

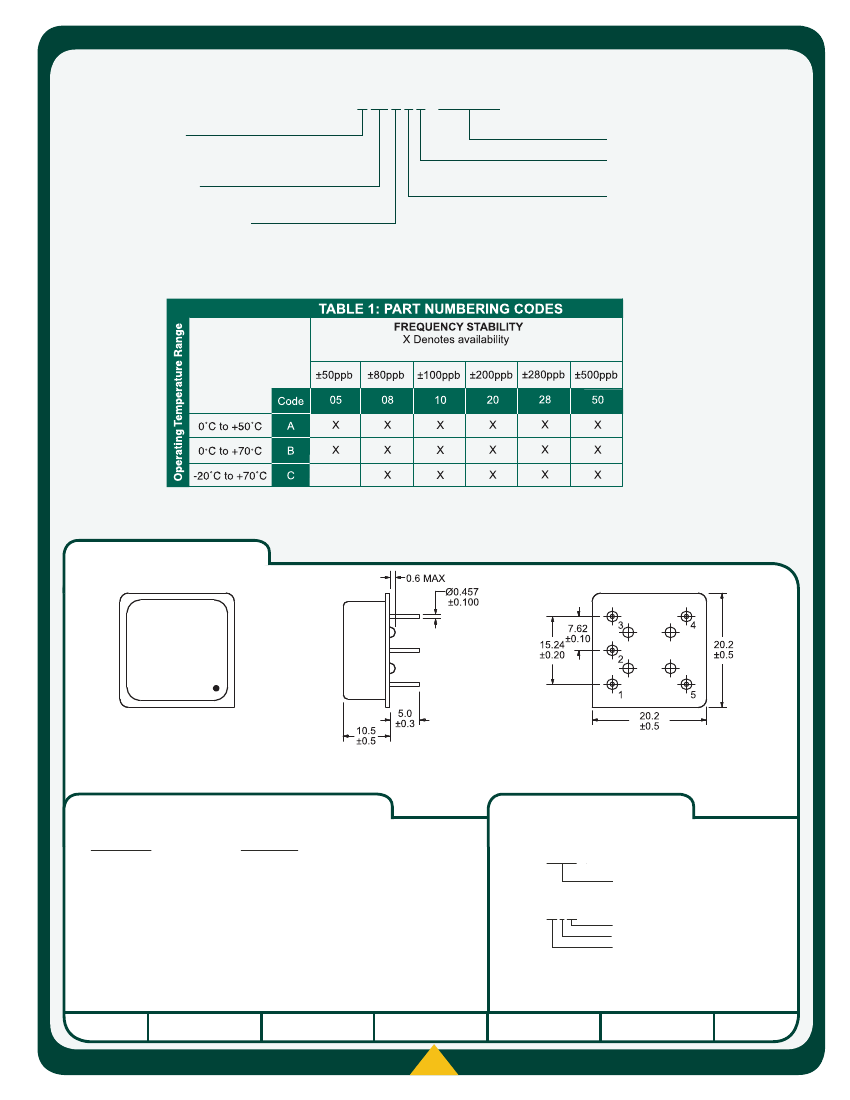

PART NUMBERING GUIDE
EB71F61 D 10 B V 2 - 20.000M
INITIAL TOLERANCE
C=±1.0ppm
D=±500ppb
FREQUENCY STABILITY
2 Digit Code Per Table 1
OPERATING TEMPERATURE RANGE
1 Letter Code Per Table 1
FREQUENCY
DUTY CYCLE
2=50% ±5%
VOLTAGE CONTROL OPTION
V=Voltage Control on Pin 4 and Reference
Voltage Output on Pin 5
MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
Pin 1: Supply Voltage
Pin 2: Output
Pin 3: Case/Ground
Pin 4: Voltage Control
Pin 5: Reference Voltage Output
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
MARKING SPECIFICATIONS
Line 1: ECLIPTEK
Characteristic
Gross Leak Test
Mechanical Shock
Vibration
Lead Integrity
Solderability
Temperature Cycling
Resistance to Soldering Heat
Resistance to Solvents
Specification
MIL-STD-883, Method 1014, Condition C
MIL-STD-202, Method 213, Condition C
MIL-STD-883, Method 2007, Condition A
MIL-STD-883, Method 2004
MIL-STD-883, Method 2002
MIL-STD-883, Method 1010
MIL-STD-883, Method 210
MIL-STD-883, Method 215
Line 2: XX.XXX M
Frequency in MHz
(5 Digits Maximum + Decimal)
Line 3: XX Y ZZ
Week of Year
Last Digit of Year
Ecliptek Manufacturing Identifier
Note: Pin 1 shall be designated with a dot
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
EB71F61
5 pin DIP
5.0V
OS2B
05/07
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
