CPW-8098-10-TNC-05 datasheet, PDF

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> CPW-8098-10-TNC-05

CPW-8098-10-TNC-05: DescriptionDirectional Coupler, 800MHz Min, 980MHz Max, 0.25dB Insertion Loss-Max; CategoryWireless rf/communication Radio frequency and microwave; File Size67KB，1 Pages; ManufacturerMidwest Microwave

Download Datasheet Parametric View All

CPW-8098-10-TNC-05 Overview

Directional Coupler, 800MHz Min, 980MHz Max, 0.25dB Insertion Loss-Max

CPW-8098-10-TNC-05 Parametric

Parameter Name	Attribute value
Maker	Midwest Microwave
Reach Compliance Code	unknow
Other features	TNC-F, I/P POWER-MAX(PEAK)=5000WATT
structure	COAXIAL
Maximum input power (CW)	51.76 dBm
Maximum insertion loss	0.25 dB
Maximum operating frequency	980 MHz
Minimum operating frequency	800 MHz
RF/Microwave Device Types	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.1

Preview

Download Datasheet

View All

Wireless - Cellular Products

Medium Power - 150 Watts

•

Wireless Frequency Bands

Type N & TNC Connector Interfaces

PCS, Cellular, IEEE 802.11, & HiperLAN

High Performance

Couplers

Midwest Microwave offers this complete series of high

performance Directional Couplers using Type N and TNC

connector interfaces. They are ruggedly constructed using

stripline circuits that exhibit excellent VSWR and directivity

performance in the medium power category. They are

offered inmostof the popular wireless and cellular frequency

bandwidths.

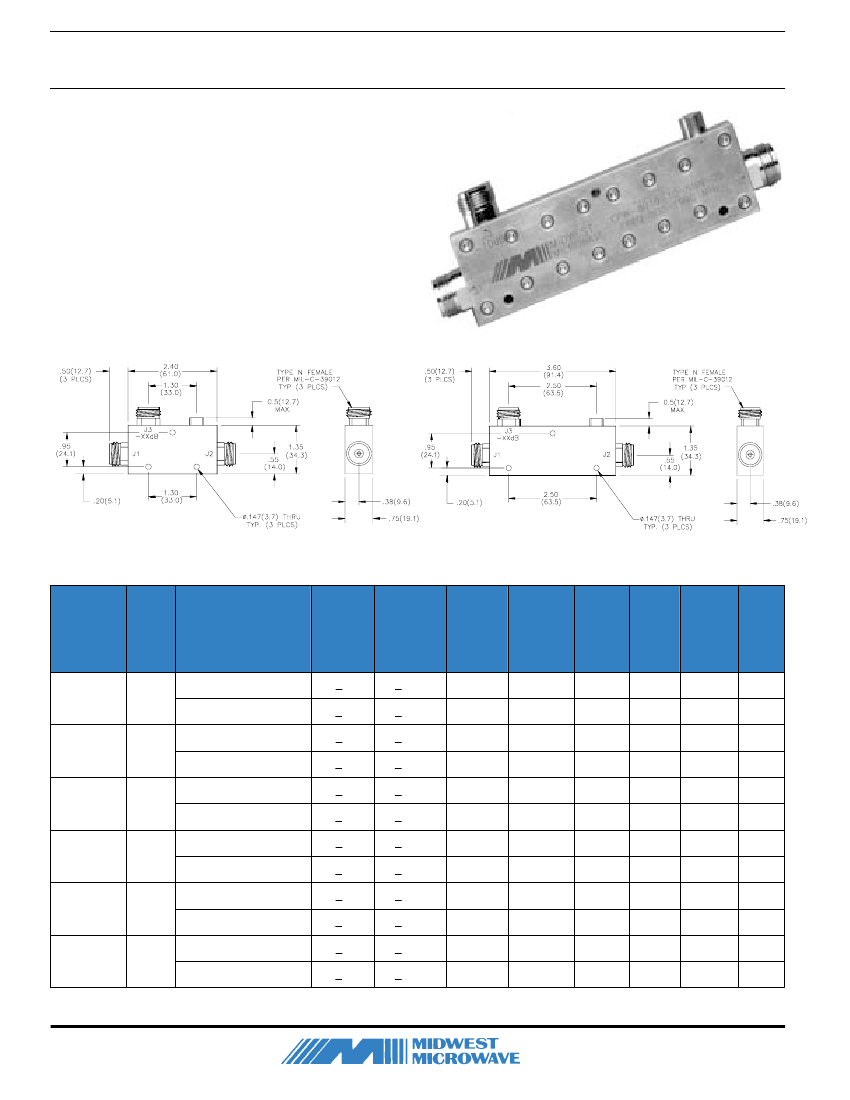

Case Style 1

Case Style 2

Electrical Specifications

Frequency

R an g e

(MHz )

C ase

Style

Frequency

Sensitivity

Insertion

Directivity

L o ss

(dB)

0.20

0.15

0.25

0.20

0.25

0.20

0.15

0.20

0.15

0.25

0.20

VSWR

(max)

Input

Avg

(W)

150

P o w er

Refl

Avg

(W)

150

P eak

(kW)

Model Number

Coupling

CPW-8090-10-NNN-05

800 - 900

CPW-8090-20-NNN-05

CPW-8096-10-NNN-05

800 - 960

CPW-8096-20-NNN-05

CPW-8098-10-NNN-05

800 - 980

CPW-8098-20-NNN-05

CPW-8186-10-NNN-05

810 - 860

CPW-8186-20-NNN-05

CPW-8892-10-NNN-05

880 - 920

CPW-8892-20-NNN-05

CPW-8996-10-NNN-05

890 - 960

CPW-8996-20-NNN-05

10 + 0.50

20 + 0.50

10 + 1.00

20 + 1.00

10 + 0.75

20 + 0.75

10 + 0.50

20 + 0.50

10 + 0.50

20 + 0.50

10 + 0.60

20 + 0.60

+ 0.15

+ 0.50

+ 0.30

+ 0.10

+ 0.20

1.15

1.10

1.15

Note:

For "TNC" connector interface, substitute "TNC" for "NNN" in Model Number.
