MP504 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MP504

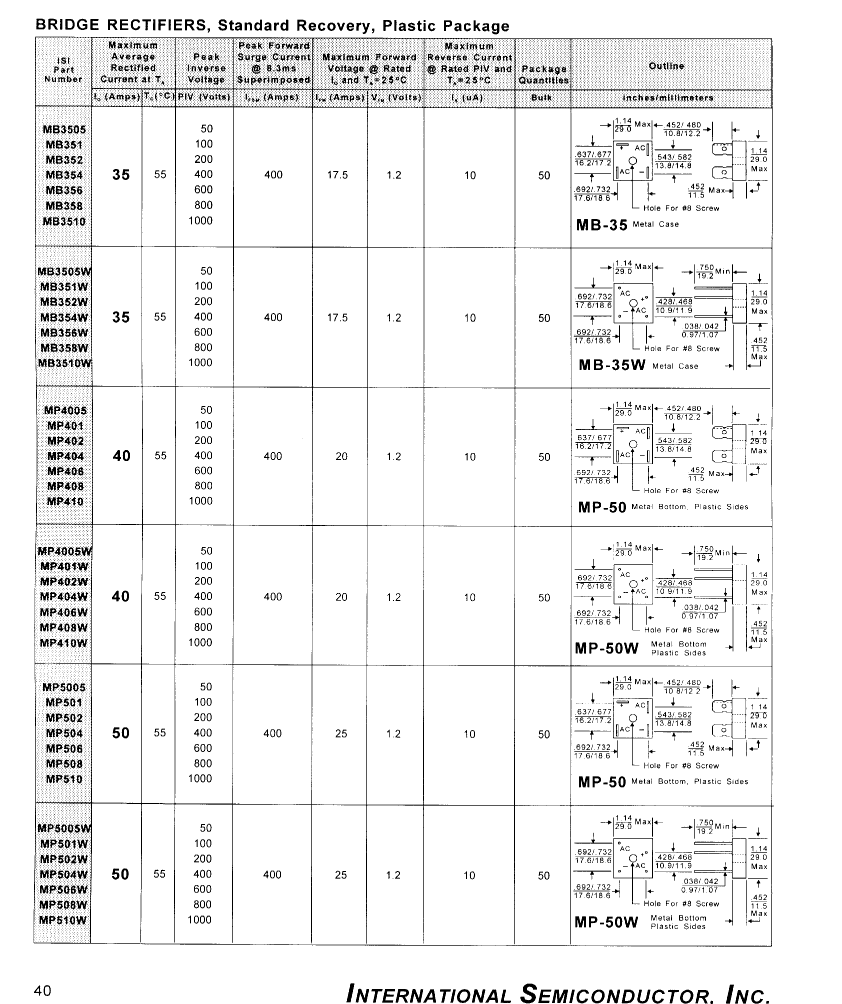

MP504: DescriptionBridge Rectifier Diode, 1 Phase, 50A, Silicon; CategoryDiscrete semiconductor diode; File Size107KB，1 Pages; ManufacturerInternational Semiconductor Inc

Download Datasheet Parametric Compare View All

MP504 Overview

Bridge Rectifier Diode, 1 Phase, 50A, Silicon

MP504 Parametric

Parameter Name	Attribute value
Maker	International Semiconductor Inc
package instruction	S-XUFM-D4
Reach Compliance Code	unknow
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	S-XUFM-D4
Maximum non-repetitive peak forward current	400 A
Number of components	4
Phase	1
Number of terminals	4
Maximum output current	50 A
Package body material	UNSPECIFIED
Package shape	SQUARE
Package form	FLANGE MOUNT
Certification status	Not Qualified
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER

Preview

Download Datasheet

View All

MP504 Related Products

	MP504	MP401	MP404	MP406W	MP504W	MP506	MP506W	MP406
Description	Bridge Rectifier Diode, 1 Phase, 50A, Silicon	Bridge Rectifier Diode, 1 Phase, 40A, Silicon	Bridge Rectifier Diode, 1 Phase, 40A, Silicon	Bridge Rectifier Diode, 1 Phase, 40A, Silicon	Bridge Rectifier Diode, 1 Phase, 50A, Silicon	Bridge Rectifier Diode, 1 Phase, 50A, Silicon	Bridge Rectifier Diode, 1 Phase, 50A, Silicon	Bridge Rectifier Diode, 1 Phase, 40A, Silicon
Maker	International Semiconductor Inc	International Semiconductor Inc	International Semiconductor Inc	International Semiconductor Inc	International Semiconductor Inc	International Semiconductor Inc	International Semiconductor Inc	International Semiconductor Inc
package instruction	S-XUFM-D4	S-XUFM-D4	S-XUFM-D4	S-XUFM-W4	S-XUFM-W4	S-XUFM-D4	S-XUFM-W4	S-XUFM-D4
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
JESD-30 code	S-XUFM-D4	S-XUFM-D4	S-XUFM-D4	S-XUFM-W4	S-XUFM-W4	S-XUFM-D4	S-XUFM-W4	S-XUFM-D4
Maximum non-repetitive peak forward current	400 A	400 A	400 A	400 A	400 A	400 A	400 A	400 A
Number of components	4	4	4	4	4	4	4	4
Phase	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4	4
Maximum output current	50 A	40 A	40 A	40 A	50 A	50 A	50 A	40 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	WIRE	WIRE	SOLDER LUG	WIRE	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
