052-0204-0001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 052-0204-0001

052-0204-0001: DescriptionRF Connector, Male, Cable Mount, Solder Terminal, Plug; CategoryThe connector The connector; File Size363KB，5 Pages; ManufacturerMalco Microdot Uk Ltd

Download Datasheet Parametric Compare View All

052-0204-0001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	052-0204-0001	-	-	View	Buy Now

052-0204-0001 Overview

RF Connector, Male, Cable Mount, Solder Terminal, Plug

052-0204-0001 Parametric

Parameter Name	Attribute value
Maker	Malco Microdot Uk Ltd
Reach Compliance Code	unknow
Other features	CAPTIVE CONTACTS
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	TEFLON
MIL compliance	NO
Manufacturer's serial number	S-50
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	RIGHT ANGLE
Installation type	CABLE
Maximum operating frequency	2 GHz
Panel mounting	NO
Termination type	SOLDER
voltage standing wave ratio	1.2

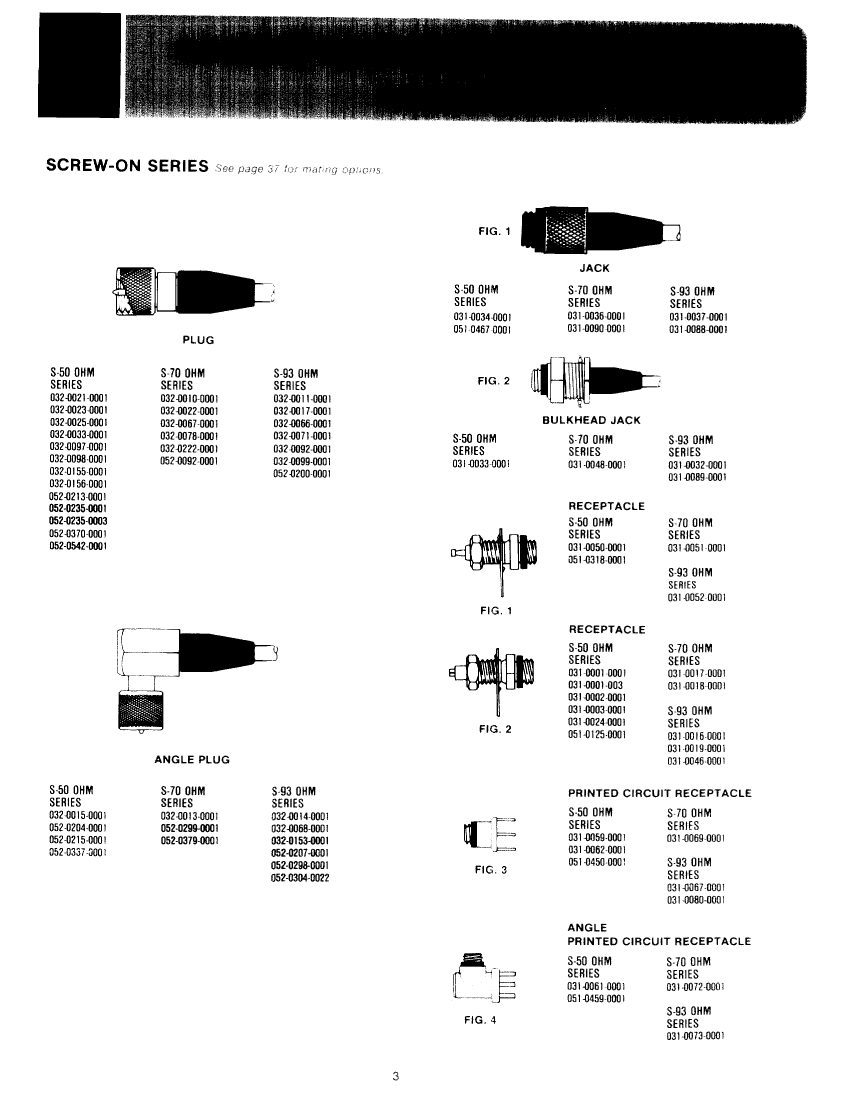

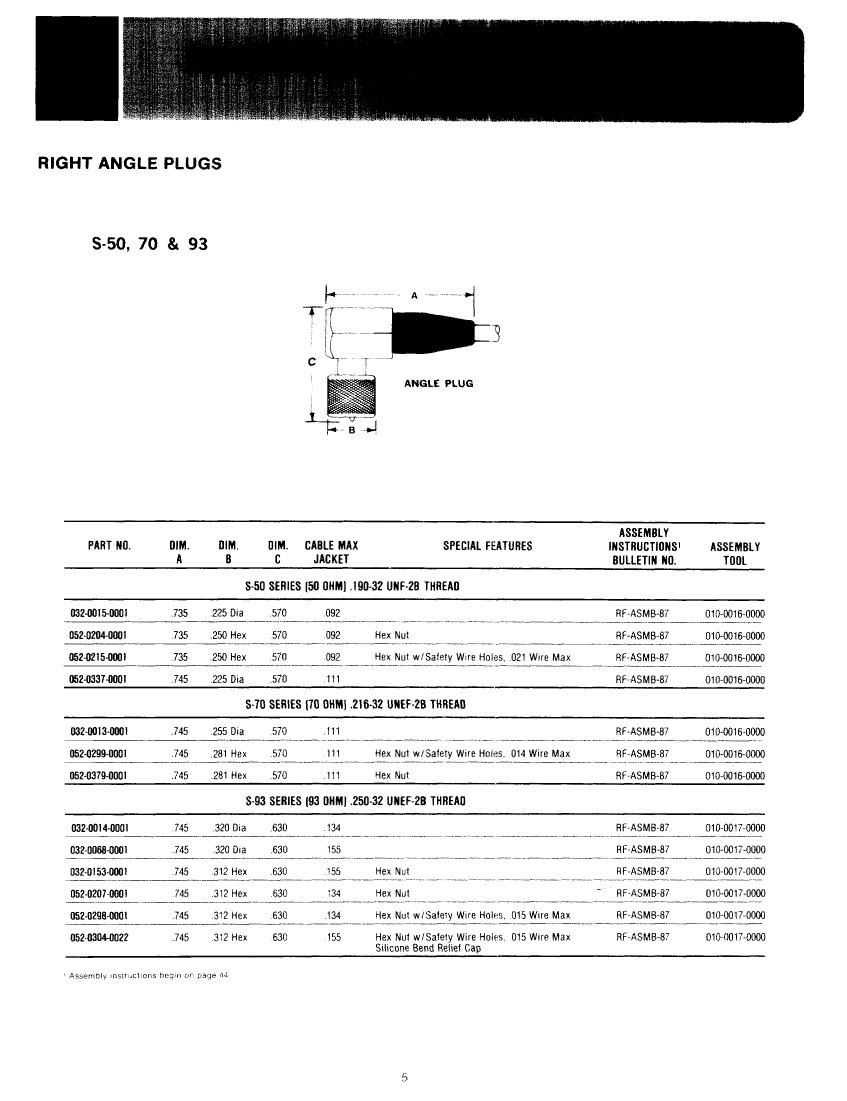

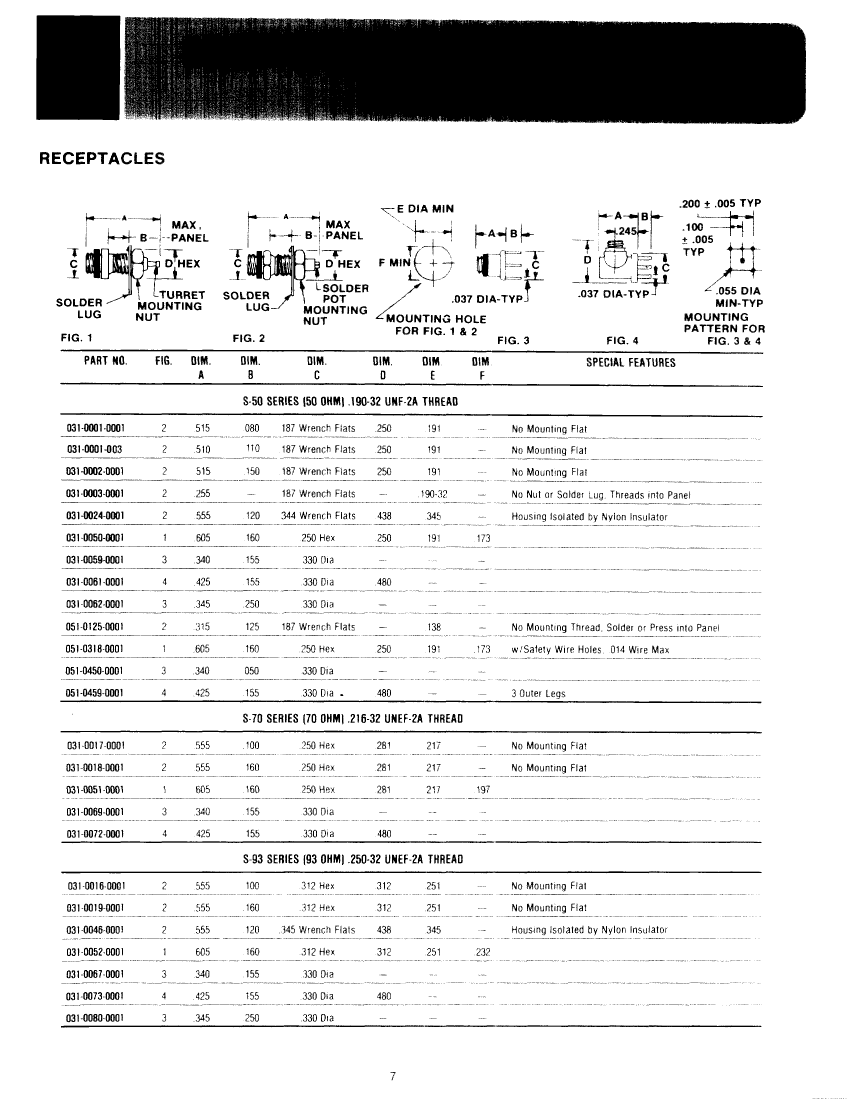

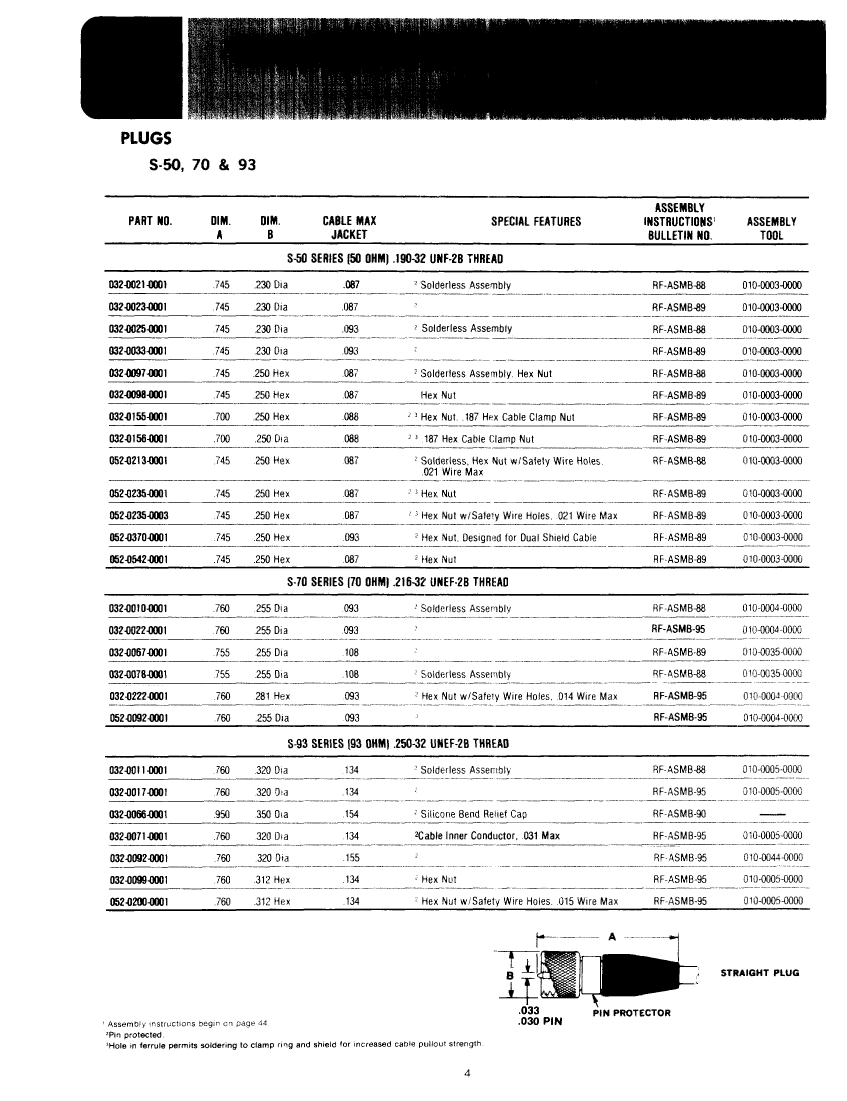

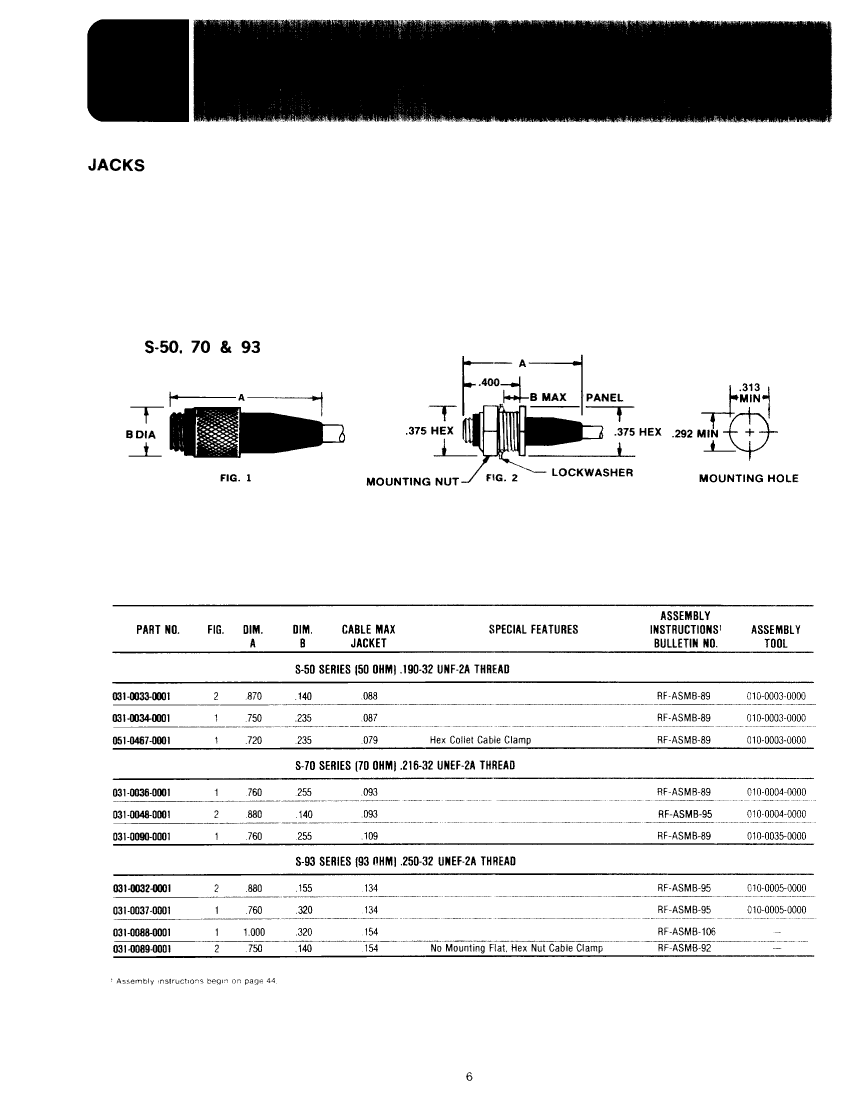

Preview

Download Datasheet

View All

052-0204-0001 Related Products

	052-0204-0001	052-0207-0001	031-0033-0001	032-0011-0001	032-0021-0001	052-0299-0001	052-0215-0001
Description	RF Connector, Male, Cable Mount, Solder Terminal, Plug	RF Connector, Male, Cable Mount, Solder Terminal, Plug	RF Connector, Female, Panel Mount, Cable Mount, Crimp Solder Terminal, Jack	RF Connector, Male, Cable Mount, Crimp Solder Terminal, Plug	RF Connector, Male, Cable Mount, Crimp Solder Terminal, Plug	RF Connector, Male, Cable Mount, Solder Terminal, Plug	RF Connector, Male, Cable Mount, Solder Terminal, Plug
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknown
Other features	CAPTIVE CONTACTS	CAPTIVE CONTACTS	CAPTIVE CONTACTS	CAPTIVE CONTACTS	CAPTIVE CONTACTS	CAPTIVE CONTACTS	CAPTIVE CONTACTS
Body/casing type	PLUG	PLUG	JACK	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	93 Ω	50 Ω	93 Ω	50 Ω	70 Ω	50 Ω
Connector type	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR
Contact point gender	MALE	MALE	FEMALE	MALE	MALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
insulator material	TEFLON	TEFLON	TEFLON	TEFLON	TEFLON	TEFLON	TEFLON
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	S-50	S-93	S-50	S-93	S-50	S-70	S-50
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation method	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	2 GHz	2 GHz	2 GHz	2 GHz	2 GHz	2 GHz	2 GHz
Panel mounting	NO	NO	YES	NO	NO	NO	NO
Termination type	SOLDER	SOLDER	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER	SOLDER	SOLDER
voltage standing wave ratio	1.2	1.2	1.2	1.2	1.2	1.2	1.2
Maker	Malco Microdot Uk Ltd	Malco Microdot Uk Ltd	Malco Microdot Uk Ltd	Malco Microdot Uk Ltd	Malco Microdot Uk Ltd	Malco Microdot Uk Ltd	-
ECCN code	-	-	EAR99	EAR99	EAR99	EAR99	EAR99
