ECS-040-20-35-R-T-Y-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-040-20-35-R-T-Y-TR

ECS-040-20-35-R-T-Y-TR: DescriptionParallel - Fundamental Quartz Crystal, 4MHz Nom, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size339KB，2 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-040-20-35-R-T-Y-TR Overview

Parallel - Fundamental Quartz Crystal, 4MHz Nom, SMD, 2 PIN

ECS-040-20-35-R-T-Y-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ECS
package instruction	SMD, 2 PIN
Reach Compliance Code	compliant
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.002%
frequency tolerance	15 ppm
JESD-609 code	e4
load capacitance	20 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	4 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
physical size	8mm X 4.5mm X 1.8mm
Series resistance	300 Ω
surface mount	YES
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

CSM-9

SMD Crystal

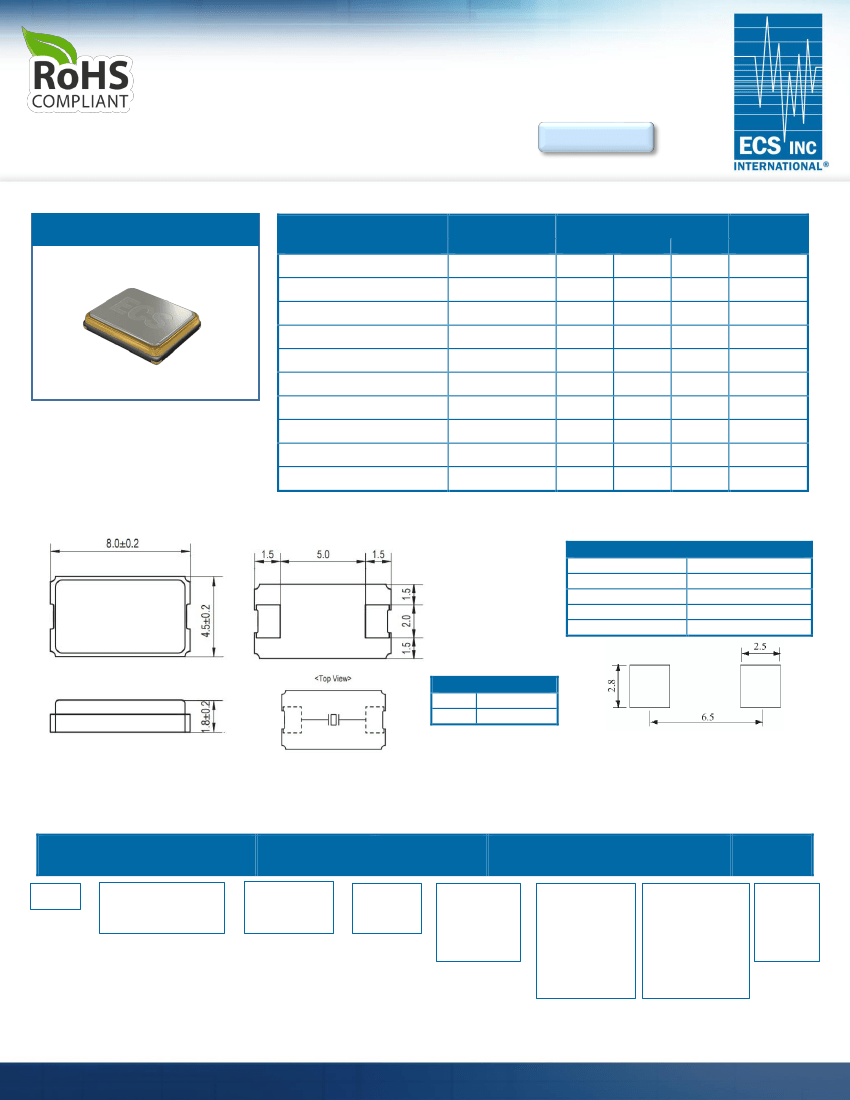

The CSM-9 is a compact SMD Crystal. The 8.0 x 4.5 x 1.8 mm ceramic

package is ideal for PCMIA ethernet applications.

Request a Sample

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

CSM-9 SMD CRYSTAL

PARAMETERS

Frequency

Mode of Oscillation

Frequency Tolerance*

Frequency Stability*

Shunt Capacitance

Load Capacitance

•

Low Profile

8.0 x 4.5 mm Footprint

Extended Temp. Range Option

RoHS Compliant

Drive Level

Operating Temperature*

Storage Temperature

Aging (First Year)

Fundamental

@ +25°C

-20 ~ +70°C

Specify in P/N

Topr

Tstg

@ +25°C ±3°C

-10

-55

± 30

Series

100

+70

+125

±5

ppm

μW

°C

ppm

CONDITIONS

MIN

4.000

CSM-9

TYP

MAX

50.000

MHz

UNITS

DIMENSIONS (mm)

Frequency (MHz)

4.000 ~ 7.999

8.000 ~ 9.999

10.000 ~ 11.999

12.000 ~ 12.999

13.000 ~ 50.000

ESR Ω Max.

300

200

100

Pad Connections

In/Out

Out/In

Figure 2)

Suggested land pattern

Figure 1)

Top, Side, and Bottom

Crystal is symmetrical, pad 1 & 2 are interchangeable.

Chamfer on the bottom pad has no electrical significance.

PART NUMBERING GUIDE: Example ECS-200-20-35-TR

ECS - FREQUENCY ABBREVIATION

LOAD

CAPACITANCE

20 = 20 pF

S = Series

PACKAGE

Tolerance

Range

35 =

CSM-9

Blank = Std

A = ± 25 ppm

J = ± 20 ppm

R = ± 15 ppm

C = ± 10 ppm

AVAILABLE OPTIONS

Stability

Temp

PACKAGING

ECS

200 = 20.000 MHz

See P/N Guide

Blank= Std

D= ±100 ppm

E = ± 50 ppm

G = ± 30 ppm

H = ± 25 ppm

T = ± 20 ppm †

W = ±15 ppm †

K = ± 10 ppm †

Blank= Std

L = -10 ~ +70°C

M = -20 ~ +70°C

Y = -30 ~ +85°C

N = -40 ~ +85°C

P = -40 ~ +105°C

S = -40 ~ +125°C

U = -55 ~ +125°C

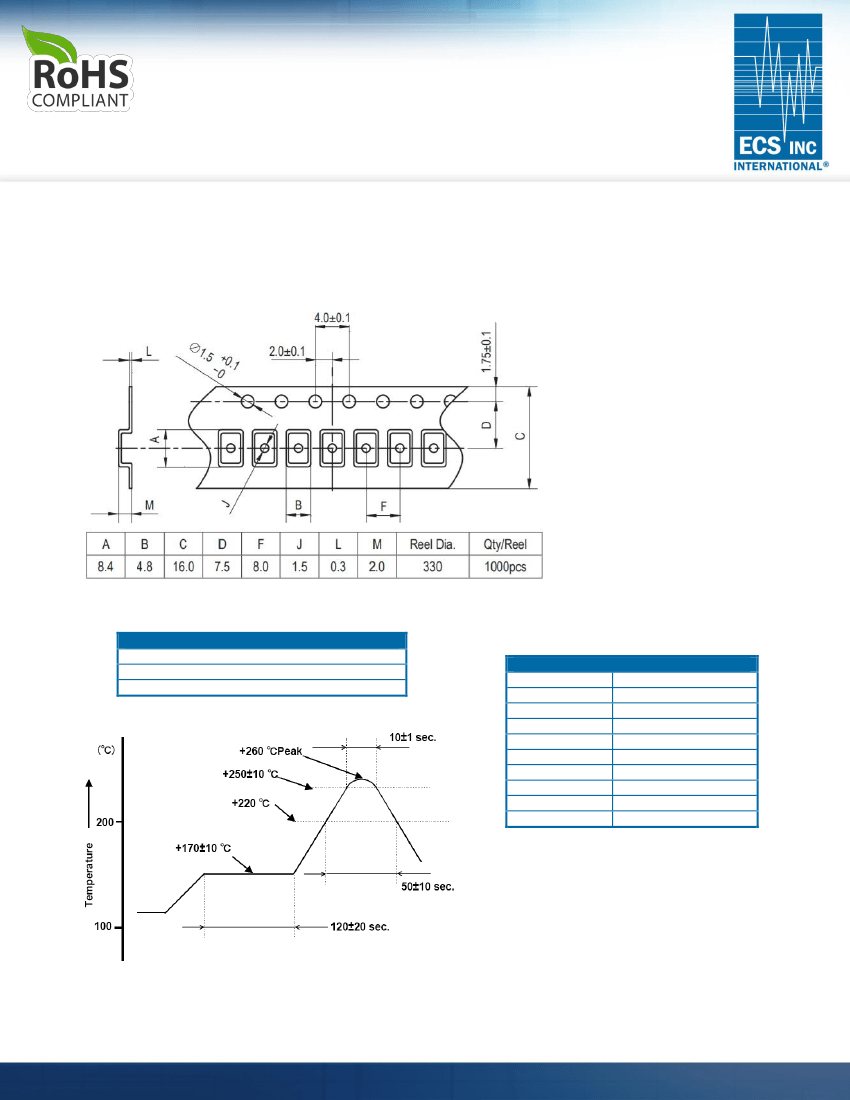

TR =

Tape

& Reel

1K/Reel

* Specify available options in P/N.

† Contact ECS for availability over extended temp range.

Rev.2017

15351 West 109

Street

Lenexa, KS 66219

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com
