AT34C02N-10SC-2.7

Description
256 X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8
Categorystorage    storage
File Size131KB,12 Pages
ManufacturerAtmel (Microchip)
Download Datasheet Parametric View All

AT34C02N-10SC-2.7 Overview

256 X 8 I2C/2-WIRE SERIAL EEPROM, PDSO8

AT34C02N-10SC-2.7 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerAtmel (Microchip)
Parts packaging codeSOIC
package instructionSOP, SOP8,.25
Contacts8
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresHARDWARE WRITE PROTECTION, DATA RETENTION 100 YEARS, ENDURANCE: 1 MILLION WRITE CYCLES
Maximum clock frequency (fCLK)0.1 MHz
Data retention time - minimum100
Durability1000000 Write/Erase Cycles
I2C control byte1010DDDR
JESD-30 codeR-PDSO-G8
JESD-609 codee0
length4.9 mm
memory density2048 bi
Memory IC TypeEEPROM
memory width8
Number of functions1
Number of terminals8
word count256 words
character code256
Operating modeSYNCHRONOUS
Maximum operating temperature70 °C
Minimum operating temperature
organize256X8
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP8,.25
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Parallel/SerialSERIAL
power supply3/5 V
Certification statusNot Qualified
Maximum seat height1.75 mm
Serial bus typeI2C
Maximum standby current0.000004 A
Maximum slew rate0.003 mA
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)2.7 V
Nominal supply voltage (Vsup)3.3 V
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
width3.9 mm
Maximum write cycle time (tWC)10 ms
write protectHARDWARE/SOFTWARE
Features
Permanent Software Write Protection for the First-Half of the Array
– Software Procedure to Verify Write Protect Status
Hardware Write Protection for the Entire Array
Low Voltage and Standard Voltage Operation
– 5.0 (V
CC
= 4.5V to 5.5V)
– 2.7 (V
CC
= 2.7V to 5.5V)
– 1.8 (V
CC
= 1.8V to 5.5V)
Internally Organized 256 x 8

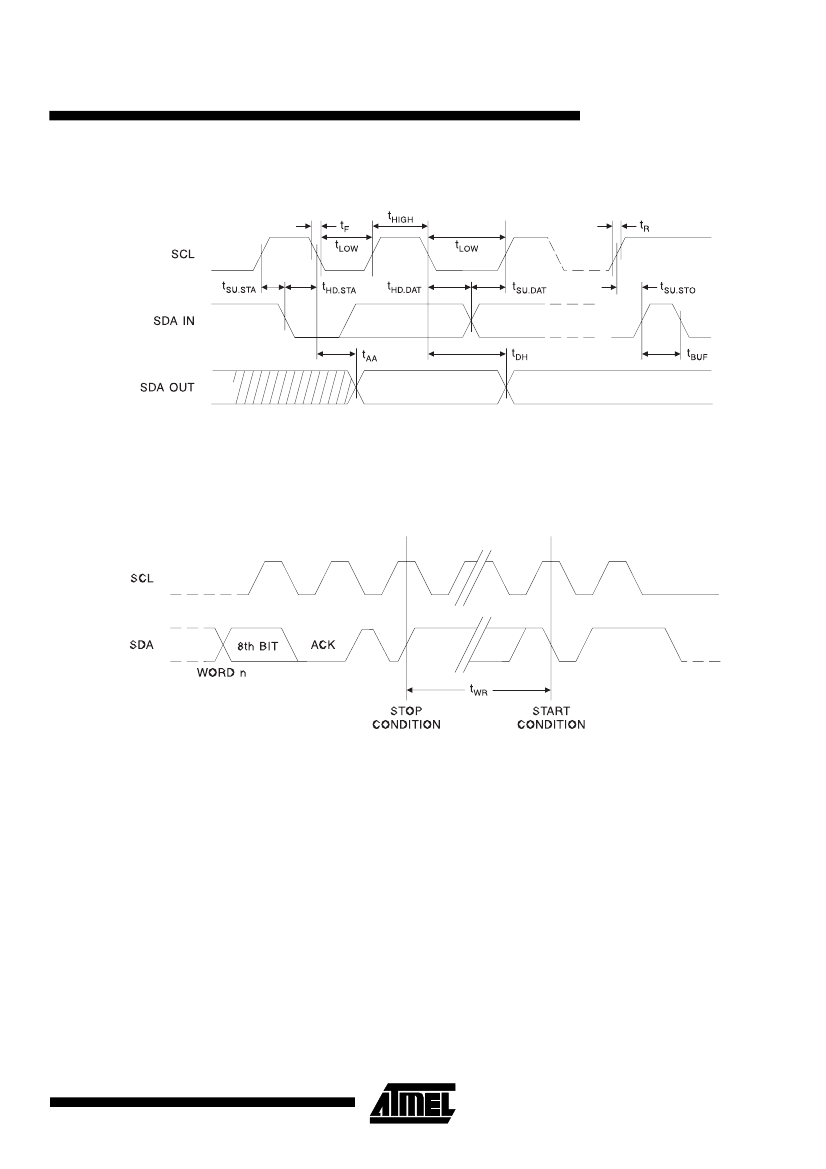

2-Wire Serial Interface
Schmitt Trigger, Filtered Inputs for Noise Suppression
Bidirectional Data Transfer Protocol
100 KHz (1.8V and 2.7V) and 400 KHz (5.0V) Compatibility
16-Byte Page Write Modes
Partial Page Writes Are Allowed
Self-Timed Write Cycle (10 ms max)
High Reliability
– Endurance: 1 Million Write Cycles
– Data Retention: 100 Years
– ESD Protection: >3,000V
Automotive Grade and Extended Temperature Devices Available
8-Pin PDIP, 8-Pin JEDEC SOIC and 8-Pin TSSOP Packages
2-Wire Serial
EEPROM
with Permanent
Software Write
Protect
2K (256 x 8)
Description
The AT34C02 provides 2048 bits of serial electrically erasable and programmable
read only memory (EEPROM) organized as 256 words of 8 bits each. The first-half of
the device incorporates a software write protection feature while hardware write pro-
tection for the entire array is available via an external pin as well. Once the software
write protection is enabled, by sending a special command to the device, it cannot be
reversed. The hardware write protection is controlled with the WP pin and can be used
to protect the entire array, whether or not the software write protection has been
enabled. This allows the user to protect none, first-half, or all of the array depending
on the application. The device is optimized for use in many industrial and commercial
applications where low power and low voltage operations are essential. The AT34C02
is available in space saving 8-pin PDIP, 8-pin JEDEC SOIC, and 8-pin TSSOP pack-
ages and is accessed via a 2-wire serial interface. In addition, it is available in 5.0V
(4.5V to 5.5V), 2.7V (2.7V to 5.5V), and 1.8V (1.8V to 5.5V) versions.
AT34C02
Pin Configurations
Pin Name
A0 to A2
SDA
SCL
WP
Function
Address Inputs
Serial Data
Serial Clock Input
Write Protect
8-Pin TSSOP
A0
A1
A2
GND
1
2
3
4
8
7
6
5
VCC
WP
SCL
SDA
A0
A1
A2
GND
A0
A1
A2
GND
8-Pin SOIC
1
2
3
4
8
7
6
5
VCC
WP
SCL
SDA
2-Wire Serial
EEPROM with
Permanent
Software Write
Protec
8-Pin PDIP
1
2
3
4
8
7
6
5
VCC
WP
SCL
SDA
Rev. 0958D–07/98
1
