MK21790G: DescriptionBoard Connector, 90 Contact(s), 2 Row(s), Female, Straight, Solder Terminal; CategoryThe connector The connector; File Size155KB，1 Pages; ManufacturerFischer Elektronik; Environmental Compliance

Download Datasheet Parametric View All

MK21790G Overview

Board Connector, 90 Contact(s), 2 Row(s), Female, Straight, Solder Terminal

MK21790G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Fischer Elektronik
Reach Compliance Code	compli
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	MK
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	90

Preview

Download Datasheet

View All

A

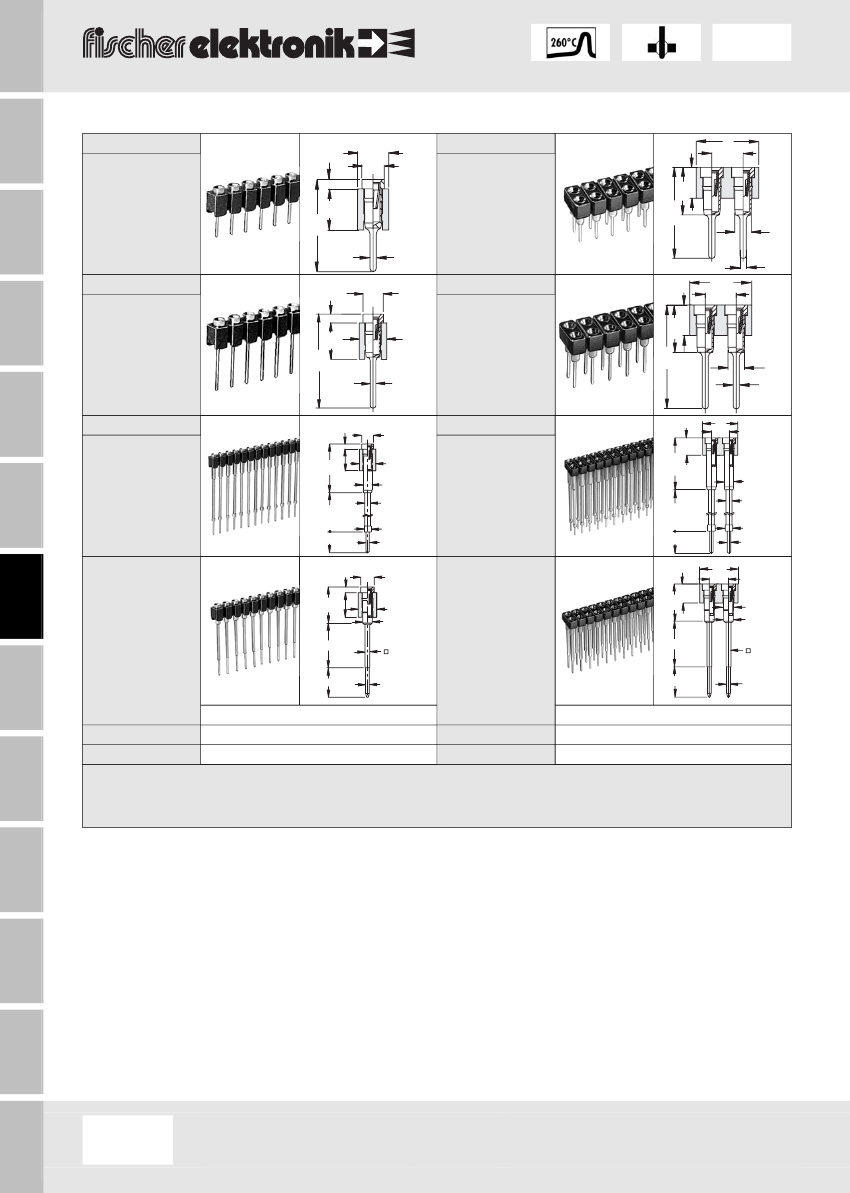

High-precision female headers soldering technique

for Ø 0.5 mm

0,8

2.54

B

art. no.

2,5

Ø 1,8

art. no.

3,9

2,5

5

2,54

3,3

C

MK 01 ...

art. no.

7,4

Ø 1,37

Ø 0,5

0,8

Ø 1,8

MK 201 ...

art. no.

3,9

2,5

8,5

Ø 0,5

5

2,54

3,3

D

8,5

2,5

Ø 0,5

Ø 1,37

Ø 0,5

0,8

E

MK 17 ...

art. no.

7,5

3,3

2,5

Ø 1,35

7,5

2,5

Ø 1,8

MK 217 ...

art. no.

5

2,54

Ø 1,35

3,2 13,1

Ø 0,86

Ø 1,1

Ø 0,5

5

2,54

4,9

2,5

Ø 1,35

Ø 1,31

0,6

4

3,2 13,1

F

MK 12 X 2 ...

Ø0,86

Ø 1,1

Ø 0,5

0,8

MK 212 X 2 ...

Ø 1,8

2,5

Ø 1,31

4,9

3,3

G

X

0,6

H

art. no.

MK 13 X 1 ...

MK 13 X 2 ...

4

X

Ø 0,5

X

5.9

8.9

... no. of contacts

one row 1-50

two rows 2-100

art. no.

MK 213 X 1 ...

MK 213 X 2 ...

... surface

G=gold-plated

Z =tin-plated

X

5.9

8.9

I

please indicate:

K

contact spring:

gold-plated

L

M

Special male & female headers

Single precision contacts

High-precision female headers

Jump. links 2.00 & 2.54 solder

N

G 21

➔

G 19

F2-3

G3-5

G 20

Peel-off terminal strips

Single contacts metal strip

Technical data

➔

G 25

G 26

G 75 - 80

Recommended Resources

Toy electronic keyboard circuit

Precision waveform generator

Protector circuit diagram of rectified power supply

Low cost high power factor electronic ballast circuit diagram

Suitable for DC converter circuit diagram in multimeter b

Adjustable timer circuit diagram
