821-31.999999MHZ-CCF9991 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> 821-31.999999MHZ-CCF9991

821-31.999999MHZ-CCF9991: DescriptionParallel - Fundamental Quartz Crystal, 31.999999MHz Nom, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size64KB，1 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

821-31.999999MHZ-CCF9991 Overview

Parallel - Fundamental Quartz Crystal, 31.999999MHz Nom, SMD, 4 PIN

821-31.999999MHZ-CCF9991 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
package instruction	SMD, 4 PIN
Reach Compliance Code	compli
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.003%
frequency tolerance	30 ppm
JESD-609 code	e4
load capacitance	4 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	31.999999 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L1.6XB1.2XH0.3 (mm)/L0.063XB0.047XH0.012 (inch)
Series resistance	120 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrie

Preview

Download Datasheet

View All

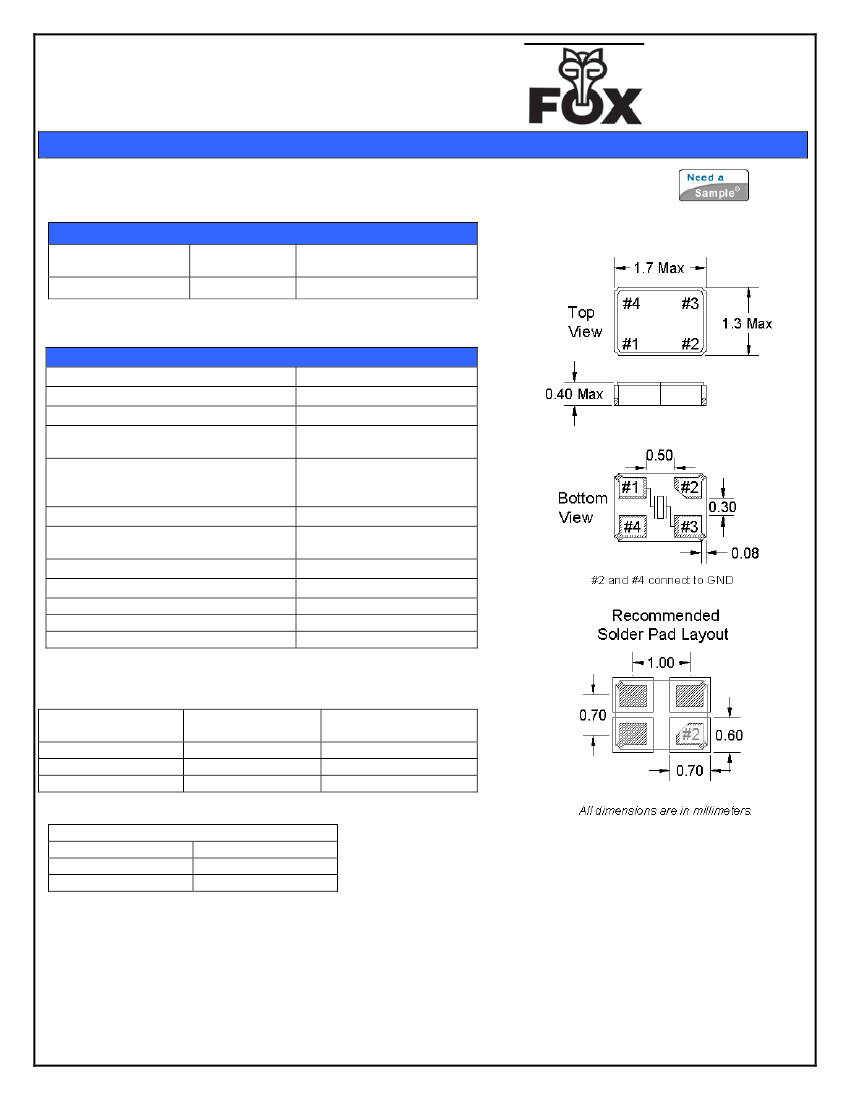

Ceramic SMD Crystal

Model: FX1612B Series

RoHS/REACH Compliant / Pb Free

Rev. 11/16/2013

Part Number Selection

Part Number

821-Frequency-xxxx

Model

Number

FX1612B

Frequency Range (MHz)

24.000 ~ 80.000

Specifications

Parameters

Frequency Range

Frequency Tolerance @ 25°C

Frequency Stability, ref @ 25°C

Over Operating Temp. Range

Temperature Range

Operating (T

OPR

)

Storage

STG

)

Shunt Capacitance (C

)

Load Capacitance (C

)

Drive Level

Aging per year

Maximum Soldering Temp / Time

Moisture Sensitivity Level (MSL)

Termination Finish:

24.000 ~ 80.000 MHz

±30 PPM Max

-20°C ~ +70°C

-40°C ~ +85°C

3pF Max

4Pf ~ Series

(Customer Specified)

100uW Max

±3 PPM Typ

260°C / 10 Seconds

Au over Ni

Tolerances and stabilities to ±10 PPM, operating temps to -40°C ~ +85°C available.

Frequency Range

(MHz)

24.000 ~ 29.999999

30.000 ~ 31.999999

32.000 ~ 80.000

Operating Mode

Fundamental

Max ESR

Ω

150

120

100

Developed Frequencies (MHz)

24.000

26.000

27.000

32.000

38.400

40.000

Does not imply a stocked part.

Note: Dimensional drawing is for reference to critical specifications defined by size measurements.

Certain non-critical visual attributes, such as side castellations, etc. may vary.

All specifications subject to change without notice.

FOXElectronics 5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554 www.foxonline.comEMEA Tel: +44 .1283.568153 | Canada +1.888.438.2369 |
