MBM29F016-12PFTR datasheet, PDF

Datasheet> All Categories > storage> storage> MBM29F016-12PFTR

MBM29F016-12PFTR: DescriptionFlash, 2MX8, 120ns, PDSO48, PLASTIC, REVERSE, TSOP-48; Categorystorage storage; File Size2MB，46 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric Compare View All

MBM29F016-12PFTR Overview

Flash, 2MX8, 120ns, PDSO48, PLASTIC, REVERSE, TSOP-48

MBM29F016-12PFTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	FUJITSU
package instruction	PLASTIC, REVERSE, TSOP-48
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum access time	120 ns
Other features	MINIMUM 100000 WRITE/ERASE CYCLES
command user interface	YES
Data polling	YES
JESD-30 code	R-PDSO-G48
JESD-609 code	e0
length	18.4 mm
memory density	16777216 bi
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of departments/size	32
Number of terminals	48
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
organize	2MX8
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1-R
Encapsulate equivalent code	TSSOP48,.8,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programming voltage	5 V
Certification status	Not Qualified
ready/busy	YES
reverse pinout	YES
Maximum seat height	1.2 mm
Department size	64K
Maximum standby current	0.000005 A
Maximum slew rate	0.06 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
switch bit	YES
type	NOR TYPE
width	12 mm

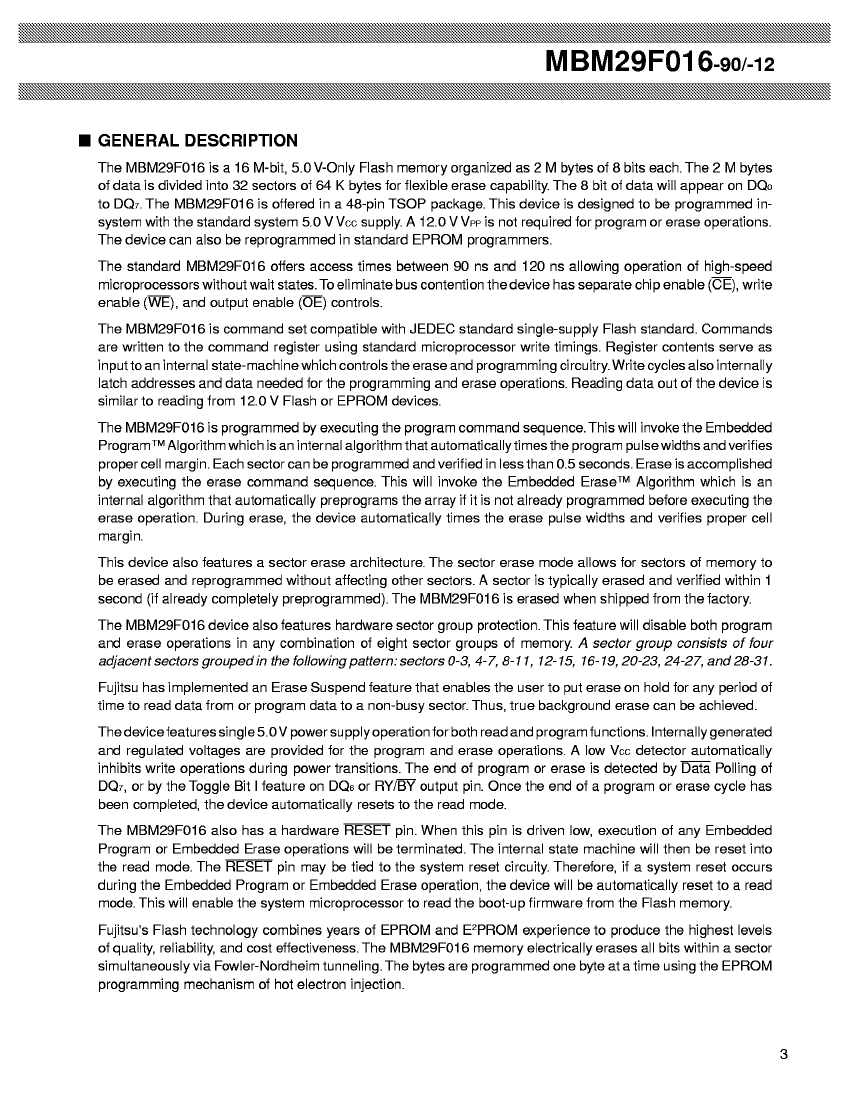

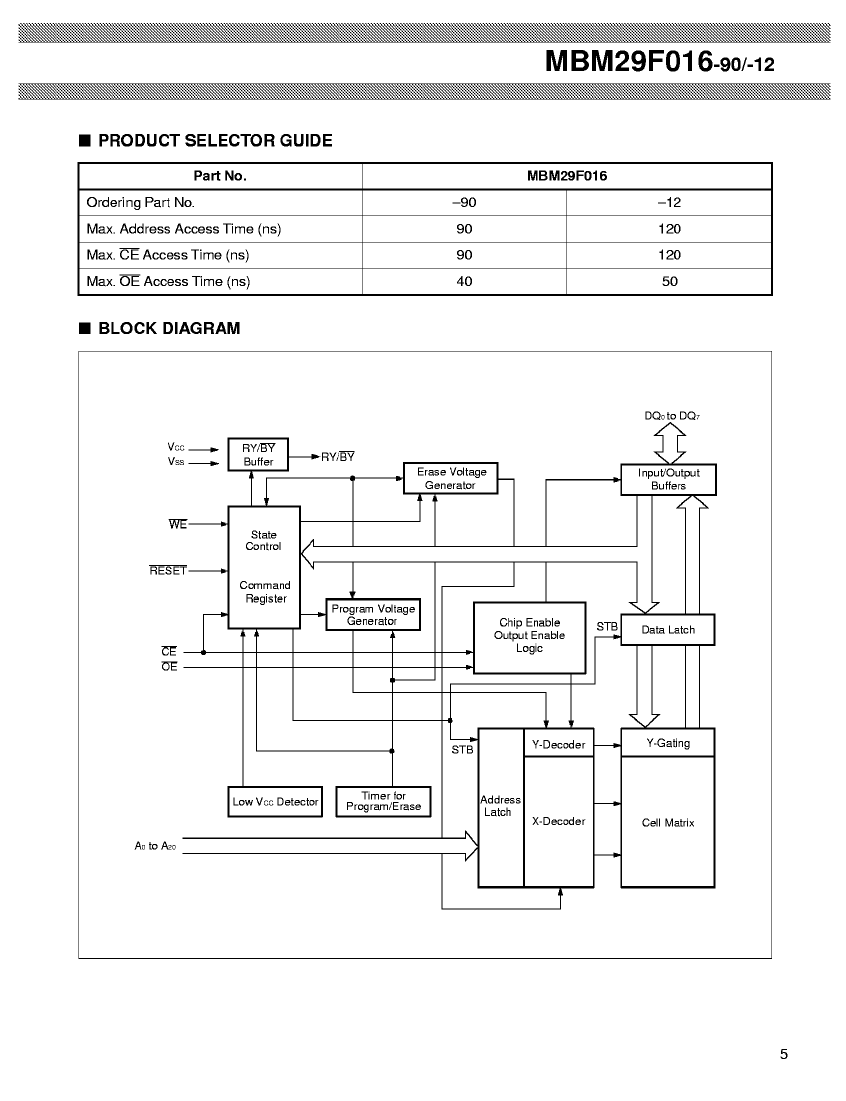

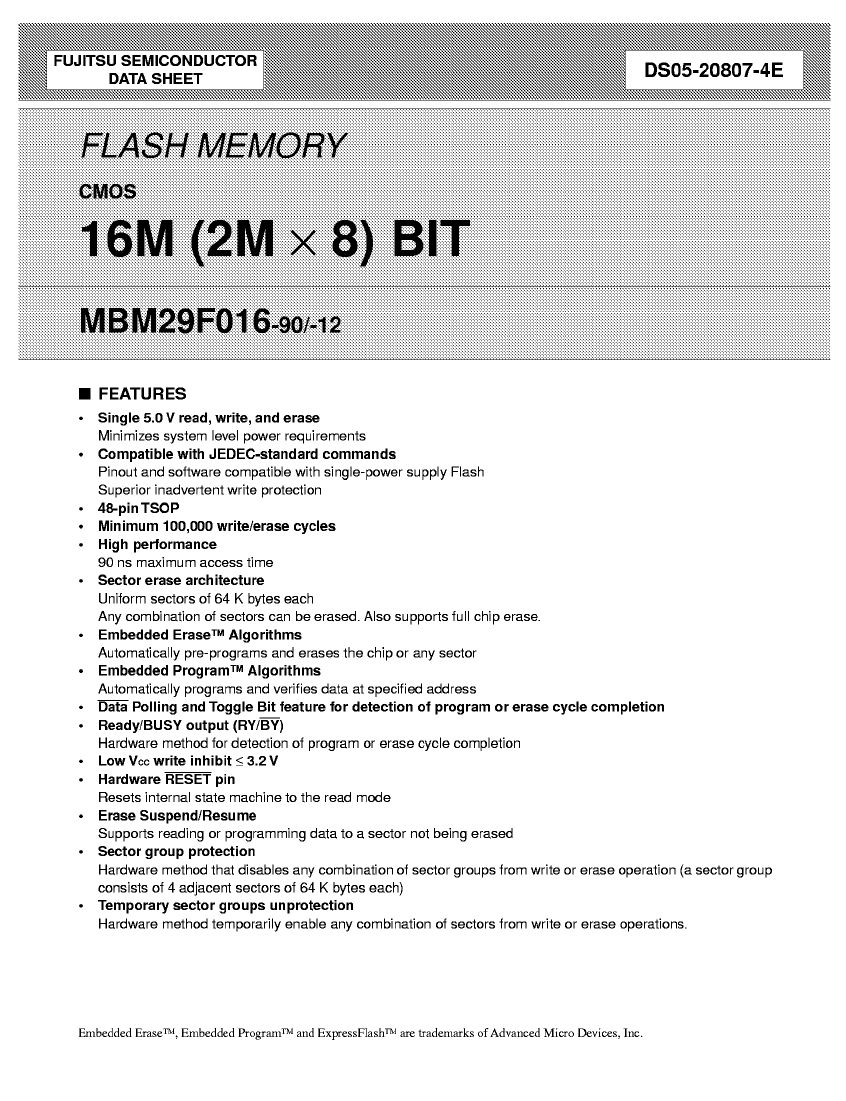

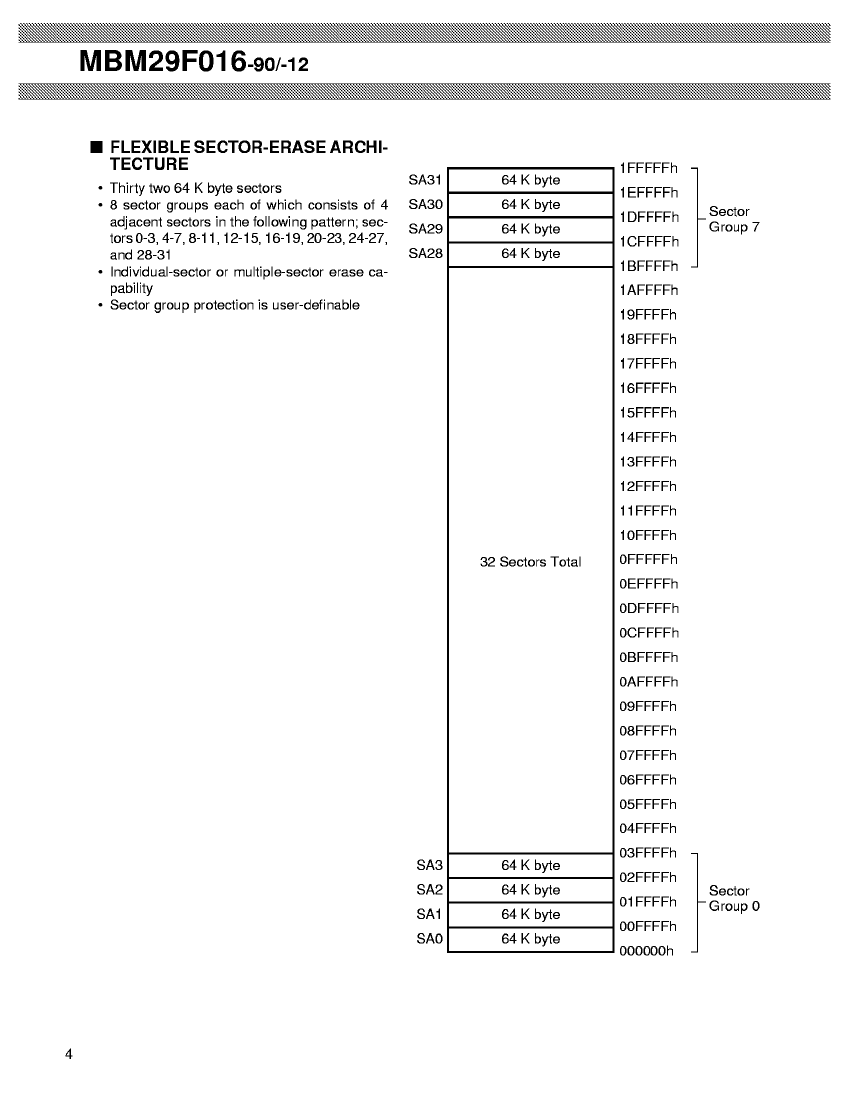

Preview

Download Datasheet

View All

MBM29F016-12PFTR Related Products

	MBM29F016-12PFTR	MBM29F016-90PFTR
Description	Flash, 2MX8, 120ns, PDSO48, PLASTIC, REVERSE, TSOP-48	Flash, 2MX8, 90ns, PDSO48, PLASTIC, REVERSE, TSOP-48
Is it Rohs certified?	incompatible	incompatible
package instruction	PLASTIC, REVERSE, TSOP-48	PLASTIC, REVERSE, TSOP-48
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Maximum access time	120 ns	90 ns
Other features	MINIMUM 100000 WRITE/ERASE CYCLES	MINIMUM 100000 WRITE/ERASE CYCLES
command user interface	YES	YES
Data polling	YES	YES
JESD-30 code	R-PDSO-G48	R-PDSO-G48
JESD-609 code	e0	e0
length	18.4 mm	18.4 mm
memory density	16777216 bi	16777216 bi
Memory IC Type	FLASH	FLASH
memory width	8	8
Number of functions	1	1
Number of departments/size	32	32
Number of terminals	48	48
word count	2097152 words	2097152 words
character code	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C
organize	2MX8	2MX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP1-R	TSOP1-R
Encapsulate equivalent code	TSSOP48,.8,20	TSSOP48,.8,20
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V
Programming voltage	5 V	5 V
Certification status	Not Qualified	Not Qualified
ready/busy	YES	YES
reverse pinout	YES	YES
Maximum seat height	1.2 mm	1.2 mm
Department size	64K	64K
Maximum standby current	0.000005 A	0.000005 A
Maximum slew rate	0.06 mA	0.06 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
switch bit	YES	YES
type	NOR TYPE	NOR TYPE
width	12 mm	12 mm
