PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
5KP5.0 THRU 5KP110CA
5KP5.0J THRU 5KP110CAJ
FEATURES
•
•
•
Stand-off Voltage
Peak Pulse Power
5.0 to 110 Volts
5000 Watts
R-6
•
•
•
•
•
Plastic package has Underwriters Laboratory
Flammability Classification 94V-O
Glass passivated junction or silastic guard junction
(open junction)
5000W peak pulse power
capability with a 10/1000μs Waveform,
repetition rate (duty cycle): 0.05%
Excellent clamping capability
Low incremental surge resistance
Fast response time: typically less
than 1.0ps from 0 Volts to V
(BR)
Devices with V
(BR)
＞10V,
I
D
are typically less than 1.0μA
High temperature soldering guaranteed:
265℃/10 seconds, 0.375” (9.5mm) lead length,
51bs.(2.3kg) tension
Cass: molded plastic body over passivated junction
Terminals: Solder plated axial leads, solderable per
MIL-STD-750, Method 2026
Polarity: The Color bands denotes the cathode, which is postitive
with respect to the anode under normal TVS operation
Mounting Position: any
Weight: 0.07 ounces, 2.1 grams
1.0(25.4)
MIN
.052(1.3)
.048(1.2)
DIA
.360(9.1)
.340(8.6)
.360(9.1)
.344(8.6)
DIA
1.0(25.4)
MIN
Dimensions in inches and (millimeters)
MECHANICAL DATA
•
•
•
•
•
DEVICES FOR BIDRECTIONAL APPLICATIONS
•
•
For bidirectional use C or CA suffix for types 5KP5.0 thru 5KP110 (e.g. 5KP7.5CA,
5KP110CA).Electrical Characteristics apply in both directions.
Suffix A denotes
±5%
tolerance device, No suffix A denotes
±10%
tolerance device
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
•
Ratings at 25℃ ambient temperature unless otherwise specified
Ratings
Peak Pulse power dissipation with a 10/1000μs waveform (NOTE1)
Peak Pulse current with a 10/1000μs waveform (NOTE1)
Steady Stage Power Dissipation at T
L
=75℃
Lead lengths 0.375”(9.5mm)(Note2)
Peak forward surge current, 8.3ms single half
sine-wave superimposed on rated load
(JEDEC Method)(Note 3)
Maximum forward voltage at 100.0A (NOTE 3)
Operating Junction and Storage Temperature Range
Symbols
P
PPM
I
PPM
P
M(AV)
I
FSM
V
F
T
J,
T
STG
Value
Minimum5000
See Table 1
8.0
400.0
3.5
50 to +150
Unit
Watts
Amps
Watts
Amps
Volts
℃
Notes:
1.
2.
3.
Non-repetitive current pulse, per Fig.3 and derated above T
A
=25℃ per Fig.2
Mounted on copper pads ares of 0.8×0.8”(20×20mm) per Fig 5.
Measured on 8.3ms single half sine-wave or equivalent wave, duty cycle=4 pulses per minute maximum
E-mail:
sales@cnmic.com
Web Site: www.cnmic.com
PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR
5KP5.0 THRU 5KP110CA
5KP5.0J THRU 5KP110CAJ
Stand-off Voltage
Peak Pulse Power
5.0 to 110 Volts
5000 Watts

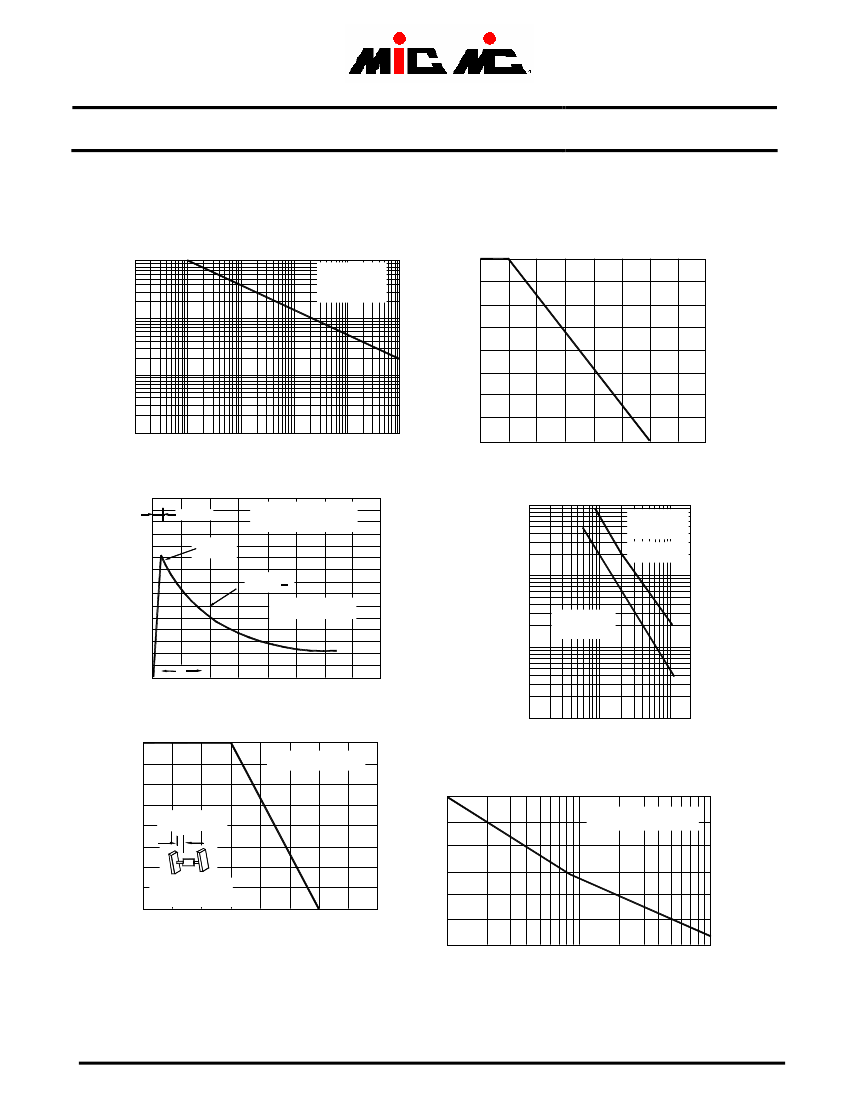

RATING AND CHARACTERISTIC CURVES 5KP5.0/J THRU 5KP110A/J
PEAK PULSE POWER
(
P
PP
)
OR CURRENT(
I
PP
)
DERATING IN PERCENTAGE %
FIG.1- PEAK PULSE POWER RATING CURVE
100
Non-Repetitive
Pulse Waveform
Shown in Figure 3
TA=25
℃
10
FIG.2- PULSE DERATING CURVE
100
P
PPM,
PEAK PULSE POWER, kW
75
50
1.0
25
0.1
0.1μs
1.0μs
10μs
100μs
1.0ms
10ms
0
t
d
,PULSE WIDTH, SEC
FIG.3- PULSE WAVEFORM
150
tf=10use
Peak Value
lppm
Half Value-lpp
2
50
10/1000usec Waveform
as Defined by R.E.A.
Pulse Width
(td)is
Defined
as the Point Where the Peak
Current Decays to 50% of lpp
0
25
50
75
100
125
150
175
200
T
A
, AMBIENT TEMPERATURE
(℃)
FIG.4- TYPICAL JUNCTION CAPACITANCE
100,000
TJ=25
℃
f = 1.0MHz
Vsig = 50mVp-p
MEASURED at
ZERO BIAS
10,000
I
PPM,
PEAK PULSE CURRENT ,%
100
CJ, JUNCTION CAPACITANCE, pF
MEASURED at
STAND-OFF
VOLTAGE,V
WM
1000
0
td
0
1.0
t, TIME, ms
2.0
3.0
4.0
PM
(
AV
),
STEADY STATE POWER DISSIPATION,
WATTS
FIG.5- STEADY STATE POWER DERATING CURVE
8
60 Hz
Resistive or induction load
100
1
10
100 200
V
(
BR
)
,BREALDOWN VOLTAGE,
VOLTS
FIG.6 - MAXMIUM NON-REPETITIVE FORWARD
SURGE CURRENT
400
350
300
250
200
150
100
8.3ms Single Half Since-Wave
JEDEC Method
4
L = 0.375"
(9.5mm)
LEAD LENGTHS
2
0.8×0.8×0.040"
(20×20mm)
COPPER HEAT SINKS
0
25
50
75
100
125
150
175
200
0
T
L
,LEAD TEMPERATURE
℃
I
FSM,
PEAK FORWARD SURGE CURRENT,
AMPERES
6
1
10
100
NUMBER OF CYCLES AT 60 Hz
E-mail:
sales@cnmic.com
Web Site: www.cnmic.com
