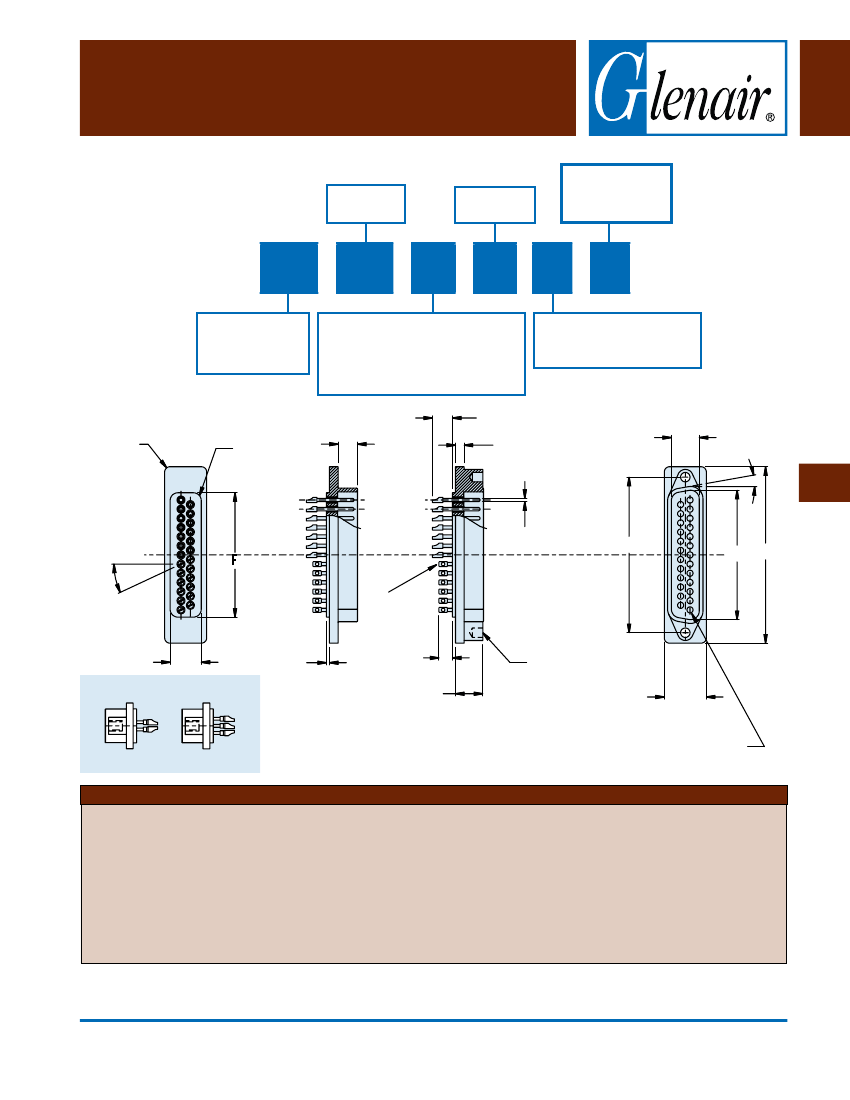

Glass-Sealed D-Subminiature Receptacle
Connector
Style
Shell Size
Contact Style
P
= Solder Cup
X
= Eyelet
280
-
104
MIL-DTL-24308/9
D-Subminiature
Hermetic
K
1
A
P
Class
FTR
= Standard Hermetic (RoHs)
H
= Standard Hermetic
K
= Space Grade Hermetic
Flange Type
A
= Solid
B
= Two #4-40 Lockposts
R.062
Typ
TERMINATION
VIEW
.238 Max
R.093
Typ
K
H
ENGAGEMENT
VIEW
D
10°
Typ
Ø.040±.001
F
25° Typ
Eyelets
G
.046
.032
See Note 2
C
B
A
.161 Max
.335
.316
SOLDER CUP ORIENTATION
#4-40 Unc-2b
X .125 Min
Full Thread
FLANGE
TYPE
B
Index
SIZES 1-4
1.
2.
3.
SIZE 5
FLANGE
TYPE
A
E
Insert Arrangement Shown
Are For Reference Only
APPLICATION NOTES
To be identified with manufacturer’s name, part number and
date code, space permitting.
Contact Style: Eyelet or Solder Cup (See Part Number
Development).
Material/Finish:
Shell: H = FT - Carbon steel/tin plate.
K = Z16 = Stainless steel/nickel plated, dull finish.
FTR = Carbon steel/tin fused (RoHs compliant)
Insulators: Glass bead/N.A.
Contacts: Pins, Alloy 52/gold plated
5.
6.
7.
4.
Performance:
DWV - 750 VAC Pin-to-Shell
I.R. - 5,000 MegOhms Min @ 500 VDC
Hermeticity <1 x 10
-7
cc He/sec @ 1
atmosphere differential
Glenair 280-104 will mate with any QPL MIL-DTL-24308/1, /2
and /23 receptacle of the same size and arrangement.
All dimensions are typical for flange types “A” and “B”. “C” dim
is not applicable to flange type “A”.
Metric dimensions (mm) are indicated in parentheses.
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
J-11
E-Mail: sales@glenair.com
MIL-DTL-24308
MIL-DTL-24308
Type
280-104
MIL-DTL-24308/9 Type Hermetic
A
B
C
D
E
F
G
H
J
K
L
M
N

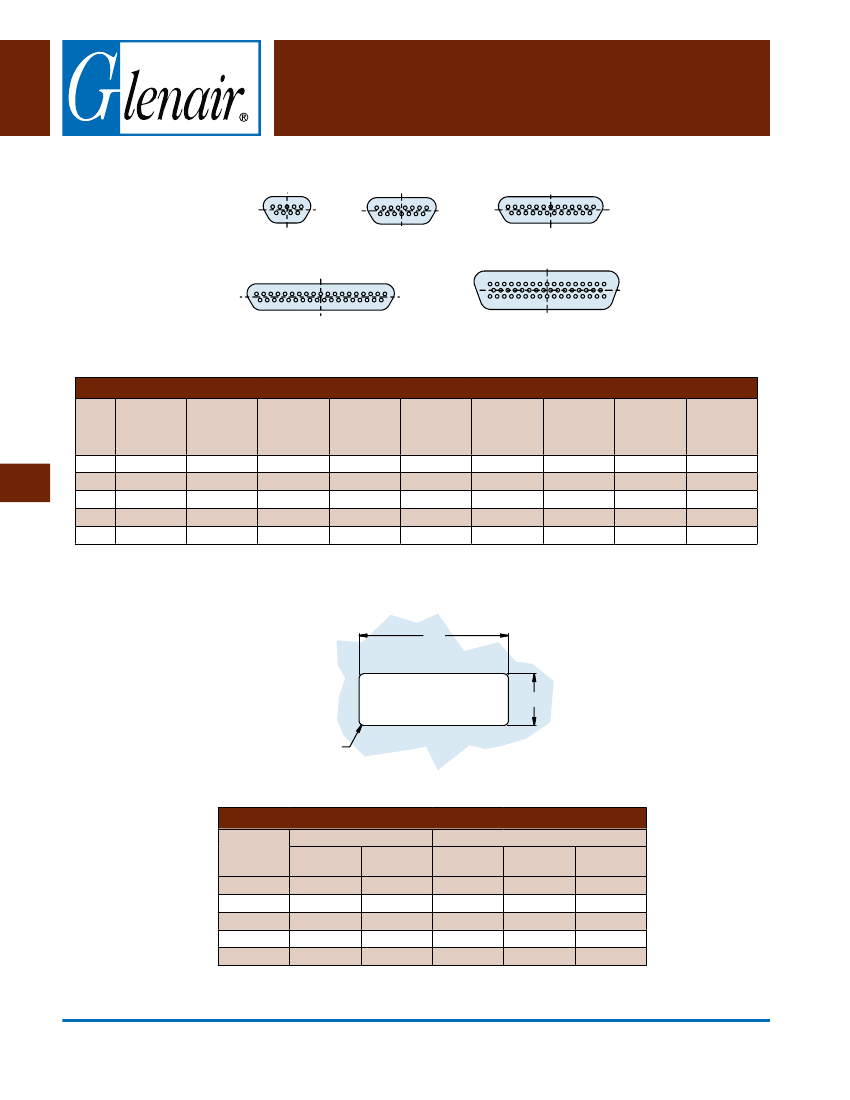

Glass-Sealed D-Subminiature Receptacle
280-104
MIL-DTL-24308/9 Type Hermetic
MIL-DTL-24308
Type
1
1 2 3 4 5
6 7 8 9
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15
2
1 2 3 4 5 6 7 8 9 10 11 12 13
14 15 16 17 18 19 20 21 22 23 24 25
3
9 CONTACTS
15 CONTACTS
25 CONTACTS
4
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37
5
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
18
33
34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
37 CONTACTS
50 CONTACTS
TABLE I: CONNECTOR DIMENSIONS
Shell
Size
Dim
A
± .015
(± 0.4)
1.213 (30.8)
1.541 (39.1)
2.088 (53.1)
2.729 (69.3)
2.635 (66.0)
Dim
B
± .004
(± 0.1)
.667 (16.9)
.993 (25.2)
1.535 (39.0)
2.183 (55.4)
2.079 (52.8)
Dim
C
± .005
(± 0.1)
.984 (25.0)
1.312 (33.3)
1.852 (47.0)
2.500 (63.5)
2.406 (61.1)
Dim
D
± .004
(± 0.1)
.330 (8.4)
.330 (8.4)
.330 (8.4)
.330 (8.4)
.441 (11.2)
Dim
E
± .010
(± 0.3)
.498 (12.6)
.498 (12.6)
.498 (12.6)
.498 (12.6)
.610 (15.5)
Dim
F
± .010
(± 0.3)
.725 (18.4)
.932 (23.7)
1.479 (37.6)
2.125 (54.0)
2.000 (50.8)
Dim
G
± .010
(± 0.3)
.369 (9.4)
.369 (9.4)
.369 (9.4)
.369 (9.4)
.500 (12.7)
Dim
H
± .010
(± 0.3)
.094 (2.4)
.094 (2.4)
.103 (2.6)
.103 (2.6)
.103 (2.6)
Dim
K
± .006
(± 0.2)
.235 (6.0)
.235 (6.0)
.230 (5.8)
.230 (5.8)
.230 (5.8)
J
1
2
3
4
5
RECOMMENDED PANEL CUTOUT
SEE TABLE 2
XA
Xa
Ya
YA
R.062 Max
Typ
FRONT MOUNT
TABLE II: PANEL CUT-OUT
Shell
Sizes
1
2
3
4
5
Style A
Dim
XA
.745 (18.9)
.950 (24.1)
1.495 (38.0)
2.145 (54.5)
2.015 (51.2)
Dim
YA
.385 (9.8)
.385 (9.8)
.385 (9.8)
.385 (9.8)
.520 (13.2)
Dim
XB
.799 (20.0)
1.125 (31.8)
1.690 (42.9)
2.335 (59.3)
2.231 (56.7)
Style B
Dim
YB
.462 (11.7)
.462 (11.7)
.482 (12.2)
.482 (12.2)
.588 (14.9)
Dim
C
.984 (25.0)
1.312 (33.3)
1.852 (47.0)
2.500 (63.5)
2.406 (61.1)
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
J-12
E-Mail: sales@glenair.com
