507-178
EMI/RFI Elliptical
Split Shell Banding Backshell

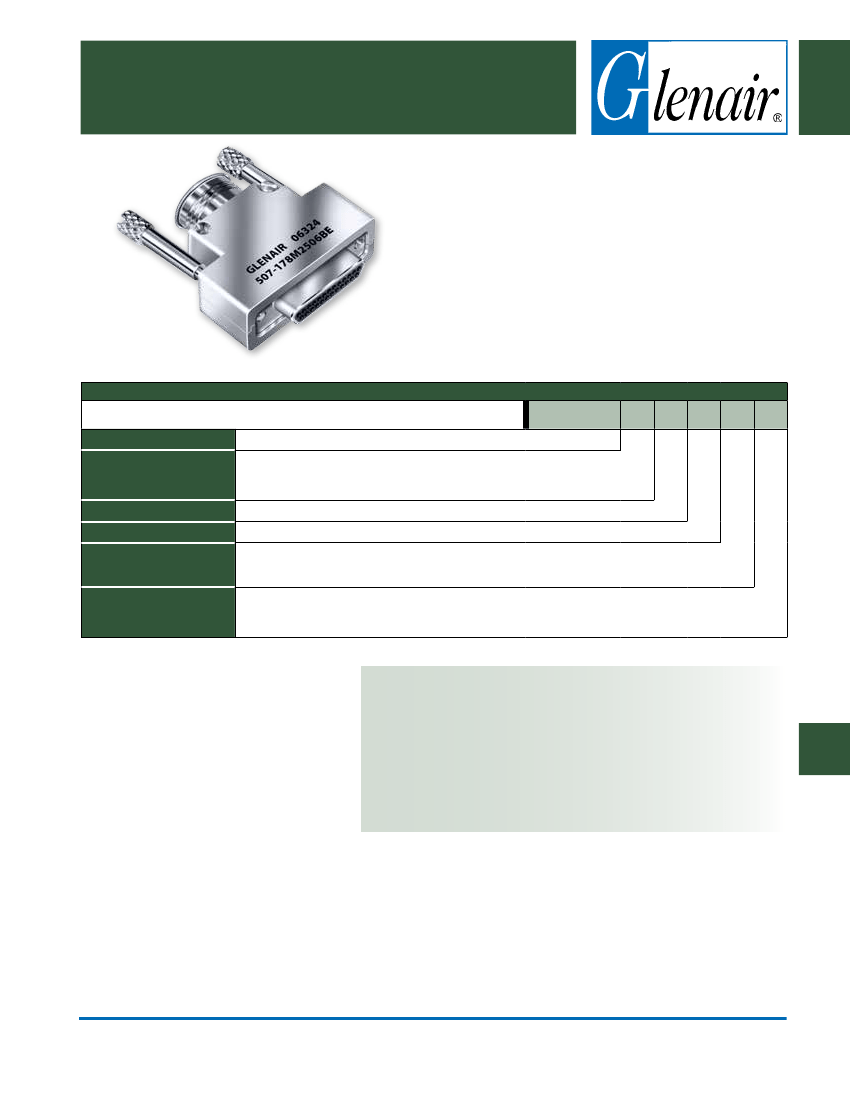

Split Backshell With Elliptical Cable Entry
provides added room
for larger wire bundles. Terminate cable shields with BandMaster™
ATS microbands. This backshell features floating male screwlocks
which allow full mating of the connector before the screws are
fastened.
Rugged Aluminum
housing with stainless steel hardware,
available in standard nickel plating, or choose optional finishes.

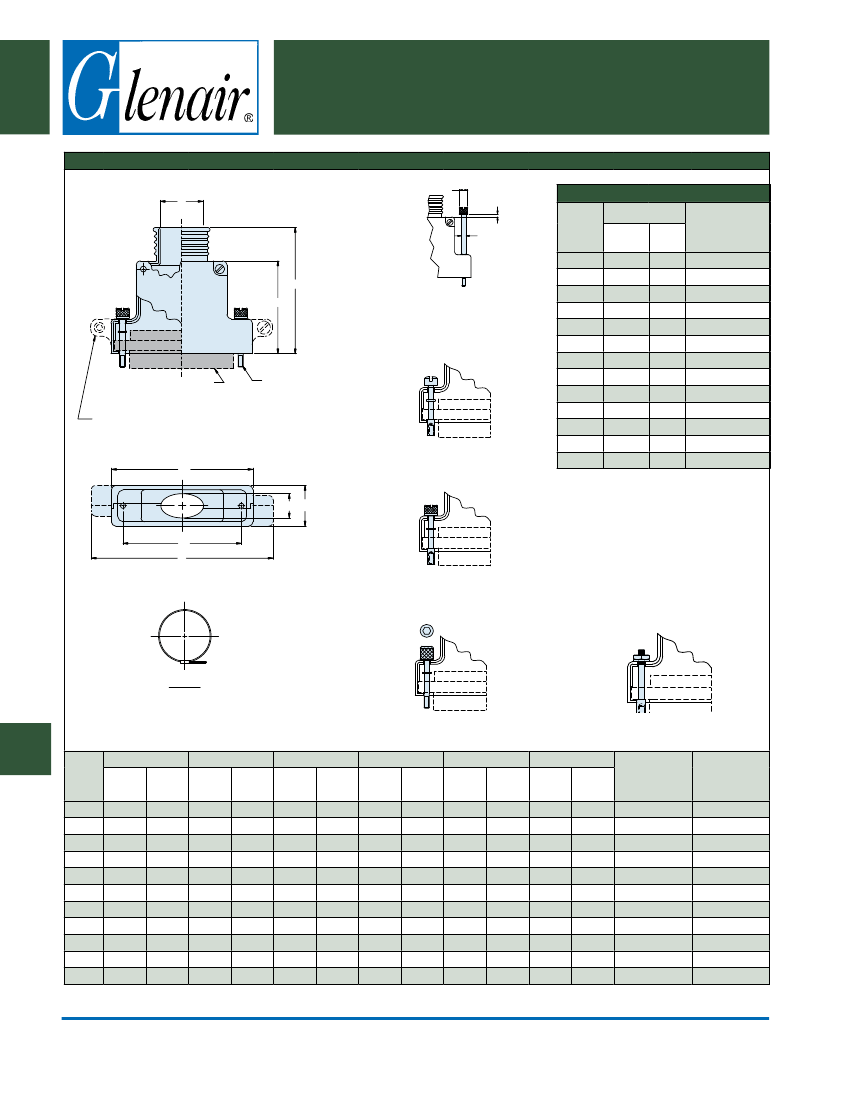

A
B
C
D
E
How To Order EMI/RFI Split Shell Backshells
Sample Part Number
Series
Shell Finish
Connector Size
Cable Entry Code
Hardware Option
507-178
E
– Chem Film (Alodyne)
M
– Electroless Nickel
Z2
– Gold
J
– Cadmium, Yellow Chromate
NF
– Cadmium, Olive Drab
507-178
M
25
06
F
k
F
G
H
J
K
L
M
N
P
Q
INDEX
09, 15, 21, 25, 31, 37, 51, 51-2, 67, 69, 100
(See Table I)
04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16
(See Table II)
B
- Fillister Head Screwlock
HJ
- Hex Head Jackscrew
F
- Jackpost, Female
BJ
- Fillister Head Jackscrew
E
- Extended Screwlock
(See Table I)
H
- Hex Head Screwlock
EJ
- Extended Jackscrew
EMI Band Strap Option
OMIT
(Leave Blank) - Band Strap Not Supplied
B
- Microband Supplied (600-057)
K
- Coiled Microband Supplied (600-057-1)
Notes
1. Assembly Identified with manufacturer's name and P/N space permitting.
2. Use Glenair 600-057 ban and 600-01 tool.
3. Screwlocks: screws float to allow connctor to engage completely before tightening.
Jackscrews: screws must be tightened simultaneous with connector engagement
4. Shell size 09 may be supplied with optional configuration J dimension of 1.140 max.
Materials/Finish
• Shell: Aluminum Alloy
• Jackscrews, Washers, Jackposts: 300 Series Stainless Steel, Passivated
• See Ordering Info For Finish Options
