970-001ZR32-6A-3 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 970-001ZR32-6A-3

970-001ZR32-6A-3: DescriptionCircular Connector; CategoryThe connector The connector; File Size287KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

970-001ZR32-6A-3 Overview

Circular Connector

970-001ZR32-6A-3 Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compli
ECCN code	EAR99
Connector type	CIRCULAR CONNECTOR
Manufacturer's serial number	970-001ZR

Preview

Download Datasheet

View All

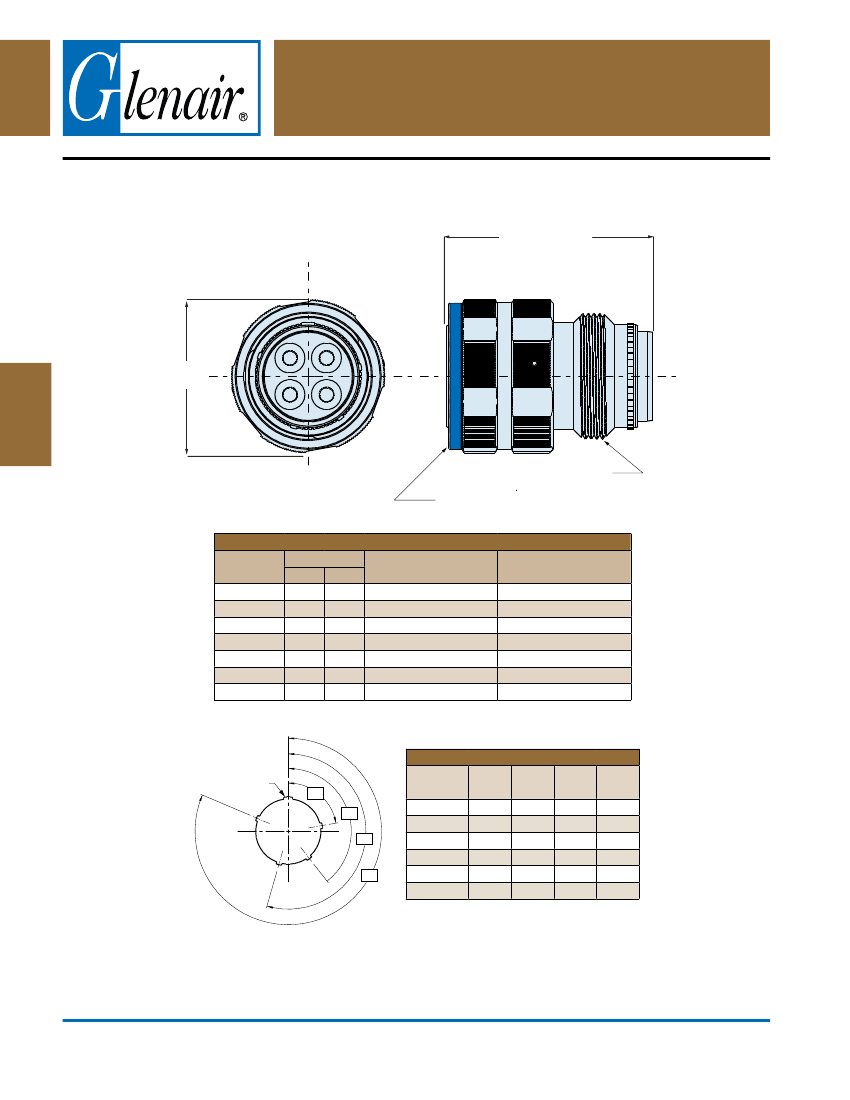

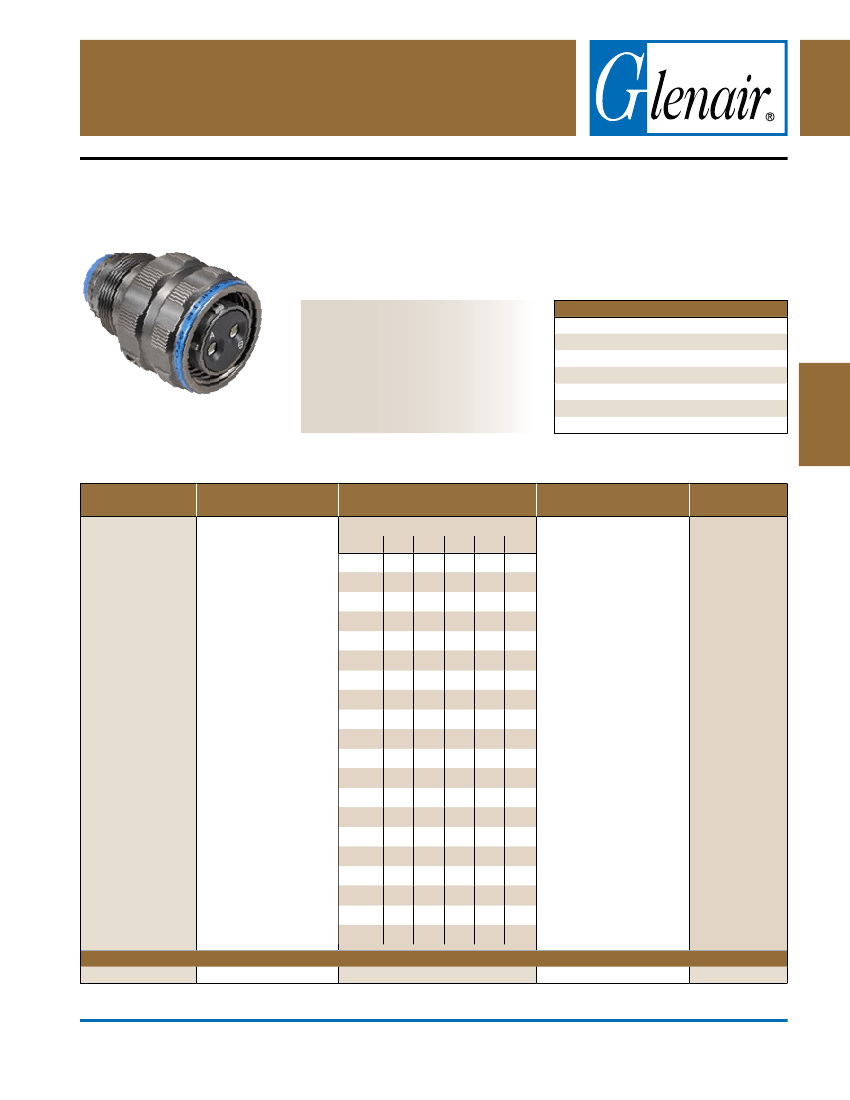

Series 970 PowerTrip™ Connectors and Accessories

Cable Connectors

970-001 Plugs

plug connectors

Series 970 PowerTrip™ plug connectors feature high ampacity LouverBand contacts and

rugged water resistant construction for the most demanding environments. Coupling

threads are triple-start ACME type. EMI protected with ground spring and splined

backshell interface. Anti-decoupling ratchet prevents de-mating under vibration.

Standard contacts are silver plated high conductivity copper alloy, or choose gold-

plated contacts for improved corrosion protection. Fluorosilicone rubber gaskets and

grommets provide watertight sealing. Contacts are packaged with connector.

• EMI Protected

• High Ampacity Contacts

• Splined Backshell Interface

• Ratchet Self-Locking

HoW To oRDER

SERIES

SHELL MATERIAL

AND FINISH

Aluminum, Electroless

Nickel Finish

2000 VAC Sea Level DWV Rating

-65°C to +200°C Operating Temperature

6 Feet Water Immersion, 48 Hours

65 dB min. Attenuation, up to 10GHz

2000 Cycles Mating Durability

MIL-S 901 Grade A High-Impact Shock

43 g Random Vibration

PRoDUCT FACTS

SHELL SIZE - INSERT

ARRANGEMENT

Contact Size and Qty

Contact

Arr.

#4 #1/0

#16 #12 #8

CoNTACT TYPE AND

PLATING

Pin Contacts, Silver

Plating*

Pin Contacts, Gold Plating

Socket Contacts, Silver

Plating*

Socket Contacts, Gold

Plating

Pin Connector, without

Contacts

Socket Connector, without

Contacts

* Size 12 and 16 contacts

are gold-plated. Size 8, 4

and 1/0 are silver plated.

KEY

PoSITIoN

Position 1

Position 2

Position 3

Position 4

Position 5

Position 6

Plug Connector

970-001

-1

18-2

18-4

20-3

Aluminum, Nickel-

20-4

PTFE Finish

20-5

20-7

Aluminum, Olive Drab

24-2

Cadmium

24-3

24-5

Aluminum, Black Zinc-

24-6

Nickel Finish

24-A6

28-4

Passivated Stainless

28-9

Steel

32-2

32-3

32-4

32-5

32-6

36-4

40-5

-2

-3

-4

-5

-6

970-001

Sample Part Number

18- 2

-1

Printed in U.S.A.

U.S. CAGE Code 06324

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com
