GXO-U108H50MHZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> GXO-U108H50MHZ

GXO-U108H50MHZ: DescriptionHCMOS/TTL Output Clock Oscillator, 50MHz Nom; CategoryPassive components oscillator; File Size68KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric View All

GXO-U108H50MHZ Overview

HCMOS/TTL Output Clock Oscillator, 50MHz Nom

GXO-U108H50MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Golledge Electronics
Reach Compliance Code	compli
Other features	TRISTATE ENABLE/DISABLE FUNCTION
maximum descent time	7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e4
Manufacturer's serial number	GXO-U108
Installation features	SURFACE MOUNT
Nominal operating frequency	50 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS/TTL
Output load	10 TTL, 50 pF
physical size	7.5mm x 5mm x 1.4mm
longest rise time	7 ns
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrie

Preview

Download Datasheet

View All

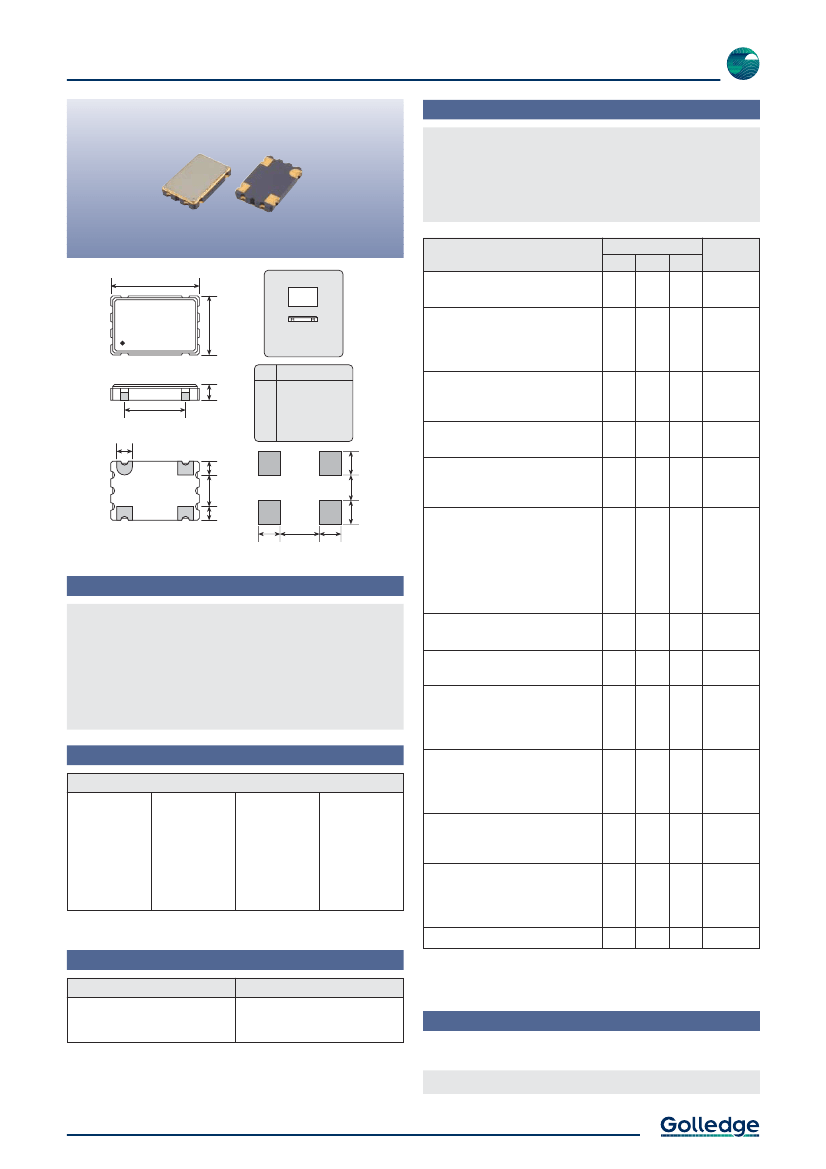

3.3V & 5V CMOS Oscillator

Specifications

GXO-U108

GXO-U108P: 5.0V supply, E/D with power saving

GXO-U108H: 5.0V supply, E/D high drive

GXO-U108L: 3.3V supply, E/D with power saving

Parameters

7.50

(max)

Variant

1.8 ~ 80.0MHz

1.8 ~ 170MHz

±100ppm

±50ppm

±25ppm

±20ppm

Option

Codes

Frequency range:

5.00

(max)

Frequency stability*:

ACTUAL SIZE

PAD

CONNECTION

Enable/Disable

Ground

Output

Supply

2.00

2.20

1.80

3.28

TOP VIEW

1.80

2.00

1.40

(max)

5.08

1.40

1.20

2.60

1.20

Operating temperature range:

-10 to +70°C

-40 to +85°C

Storage temperature range:

-55 to +125°C

Supply voltage (V

+5.0V (±0.5V)

+3.3V (±0.3V)

Supply current (mA max):

1.8 ~ 32.0MHz

>32.0 ~ 50.0MHz

>50.0 ~ 67.0MHz

>67.0 ~ 80.0MHz

>80.0 ~ 125MHz

>125 ~ 170MHz

Logic levels:

‘0’ level = 10%V

max

‘1’ level = 90%V

min

Start up time:

5ms max (<32MHz)

10ms max (>32MHz)

Waveform symmetry:

45:55 max

45:55 max (1.8 ~ 50.0MHz)

40:60 max (>50.0MHz)

40:60 max

Driving ability:

10 LSTTL

15pF HCMOS

10 TTL

50pF HCMOS

Scale 3:1

Features

Ceramic package with metal lid

High drive capability - up to 50pF

Enable / disable tristate function

Power saving function (P & L variants)

Standard Frequencies

Frequencies in MHz

1.84320

2.00000

3.68640

4.00000

5.00000

8.00000

10.00000

12.00000

14.31818

16.00000

18.43200

20.00000

24.00000

24.57600

25.00000

27.00000

29.48920

29.49120

30.00000

32.00000

33.86880

36.86400

40.00000

44.23680

44.73600

48.00000

49.15200

50.00000

64.00000

66.66600

70.00000

80.00000

100.00000 *

106.25000 *

125.00000 *

155.52000 *

Rise / fall time:

7ns max (<80MHz)

4ns max (80.0 ~ 125MHz)

3ns max (125 ~ 170MHz)

Enable / disable function:

Tristate (control via pad 1)

100ns / 100ns

10ms / 100ns

Stand-by current:

10µA

* P and L variants only. Other frequencies available. Please consult our sales office.

Enable / Disable Function

Input (pad 1)

Open

‘1’ level

‘0’ level

Output (pad 3)

Enabled

High Impedance

Standard.

Optional - Please specify required code(s) when ordering

* Frequency stability is inclusive of calibration @ 25°C, operating temperature range, supply

voltage change, load change, ageing, shock and vibration.

Ordering Information

Product name + variant + option codes (if any) + frequency

eg:

GXO-U108H/B 40.0MHz

5V, ±50ppm, -10+70°C

Available on T&R - 2k pcs per reel. See our website for details

Tel:

+44 1460 256 100

09 May 2002

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
