Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> MD82C84A

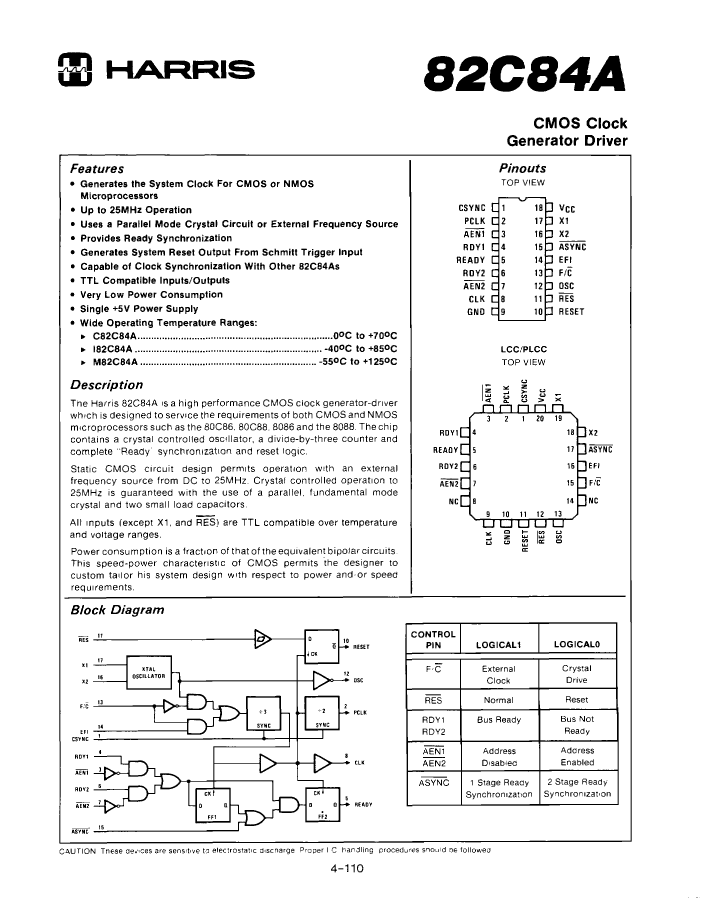

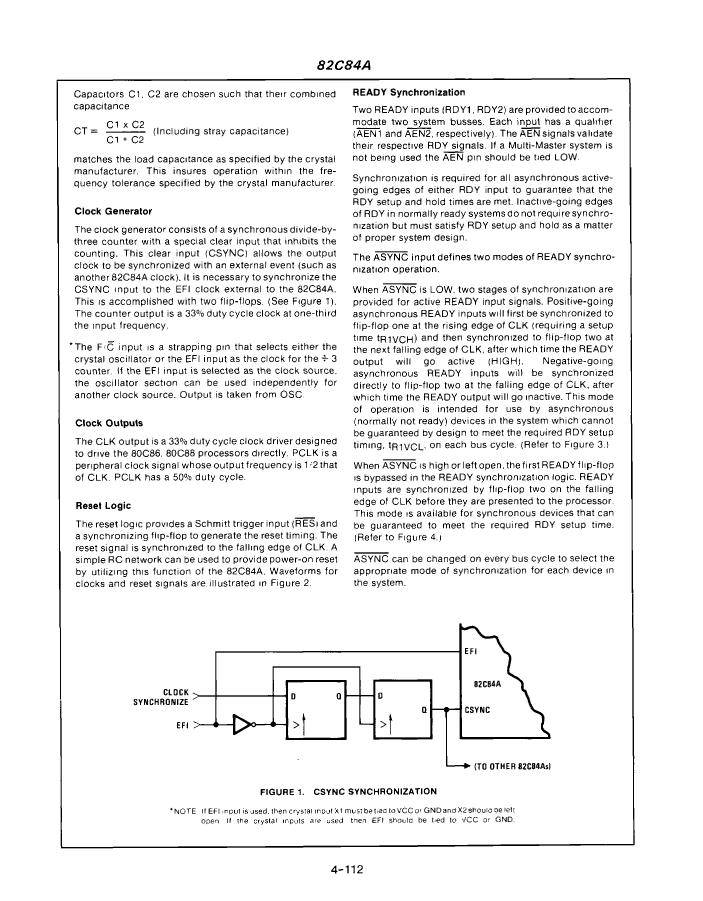

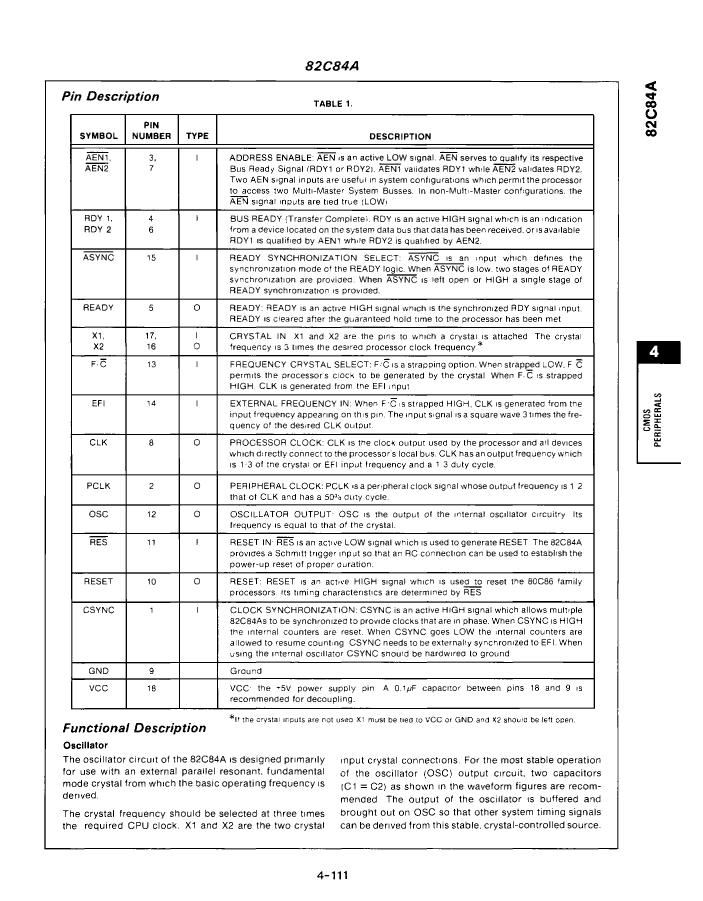

Preview

MD82C84A: DescriptionProcessor Specific Clock Generator, 25MHz, CMOS, CDIP18; CategoryThe embedded processor and controller Microcontrollers and processors; File Size243KB，7 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

MD82C84A Overview

Processor Specific Clock Generator, 25MHz, CMOS, CDIP18

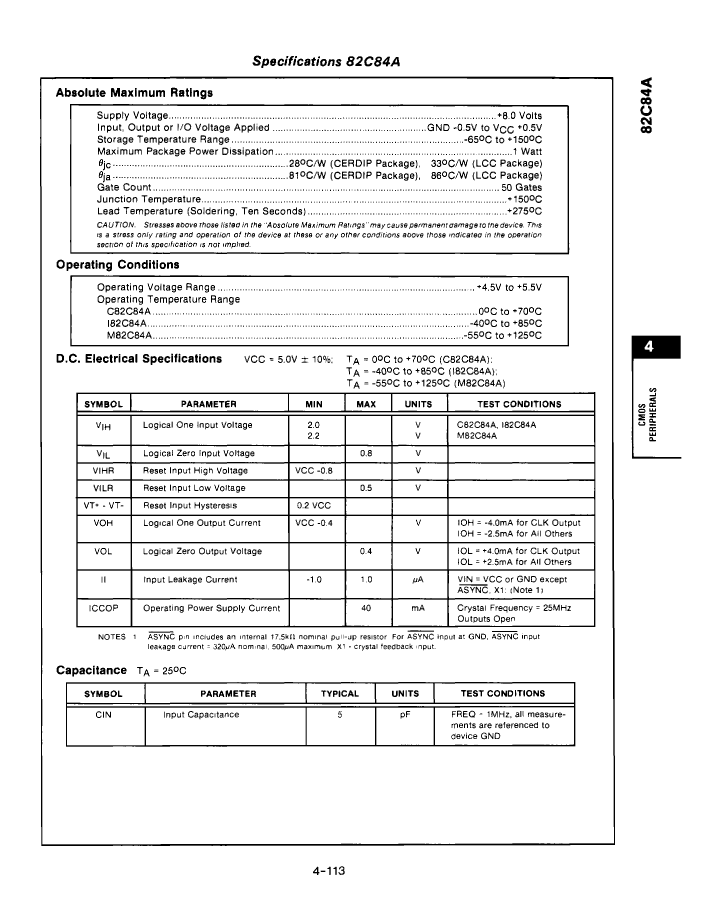

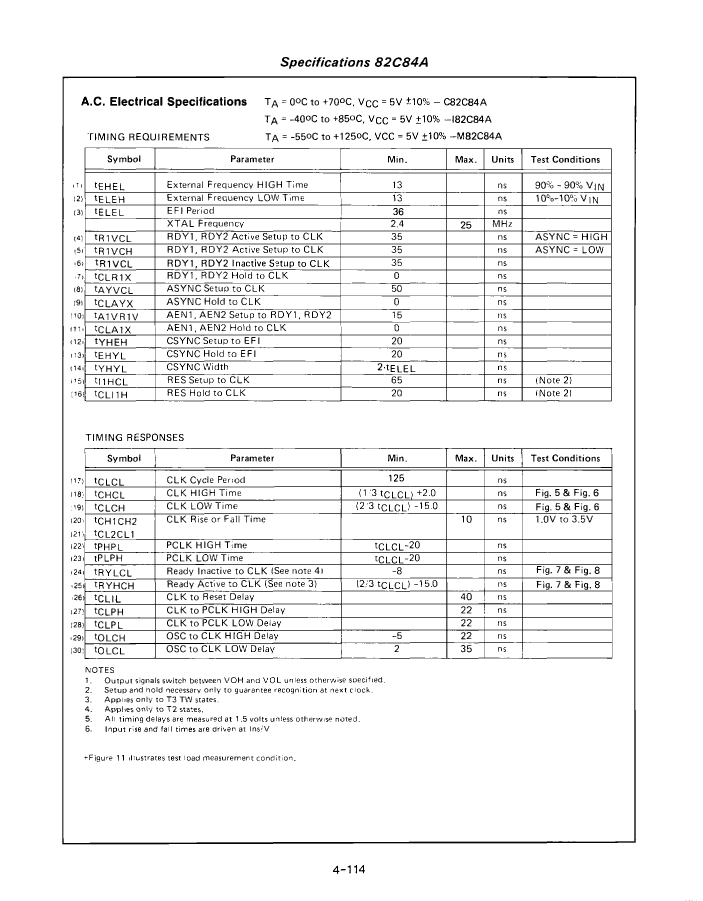

MD82C84A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	DIP, DIP18,.3
Reach Compliance Code	unknow
ECCN code	EAR99
JESD-30 code	R-GDIP-T18
JESD-609 code	e0
Number of terminals	18
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output clock frequency	25 MHz
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Master clock/crystal nominal frequency	25 MHz
Certification status	Not Qualified
Maximum slew rate	40 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, PROCESSOR SPECIFIC

Preview

Download Datasheet

View All

MD82C84A Related Products

	MD82C84A	84068012X	84068012C	CR82C84A	MR82C84A	IR82C84A
Description	Processor Specific Clock Generator, 25MHz, CMOS, CDIP18	Processor Specific Clock Generator, 25MHz, CMOS, CQCC20, CERAMIC, LCC-20	Processor Specific Clock Generator, 25MHz, CMOS, CQCC20	Processor Specific Clock Generator, 25MHz, CMOS, CQCC20	Processor Specific Clock Generator, 25MHz, CMOS, CQCC20	Processor Specific Clock Generator, 25MHz, CMOS, CQCC20
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-30 code	R-GDIP-T18	S-CQCC-N20	S-CQCC-N20	S-CQCC-N20	S-CQCC-N20	S-CQCC-N20
Number of terminals	18	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	70 °C	125 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C	-40 °C
Maximum output clock frequency	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	IN-LINE	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Master clock/crystal nominal frequency	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz	25 MHz
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	COMMERCIAL	MILITARY	INDUSTRIAL
Terminal form	THROUGH-HOLE	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	DUAL	QUAD	QUAD	QUAD	QUAD	QUAD
uPs/uCs/peripheral integrated circuit type	CLOCK GENERATOR, PROCESSOR SPECIFIC	CLOCK GENERATOR, PROCESSOR SPECIFIC	CLOCK GENERATOR, PROCESSOR SPECIFIC	CLOCK GENERATOR, PROCESSOR SPECIFIC	CLOCK GENERATOR, PROCESSOR SPECIFIC	CLOCK GENERATOR, PROCESSOR SPECIFIC
Maker	Harris	Harris	Harris	-	Harris	Harris
Maximum slew rate	40 mA	-	40 mA	40 mA	40 mA	40 mA
Base Number Matches	-	1	1	1	1	-
