0722219.015 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0722219.015

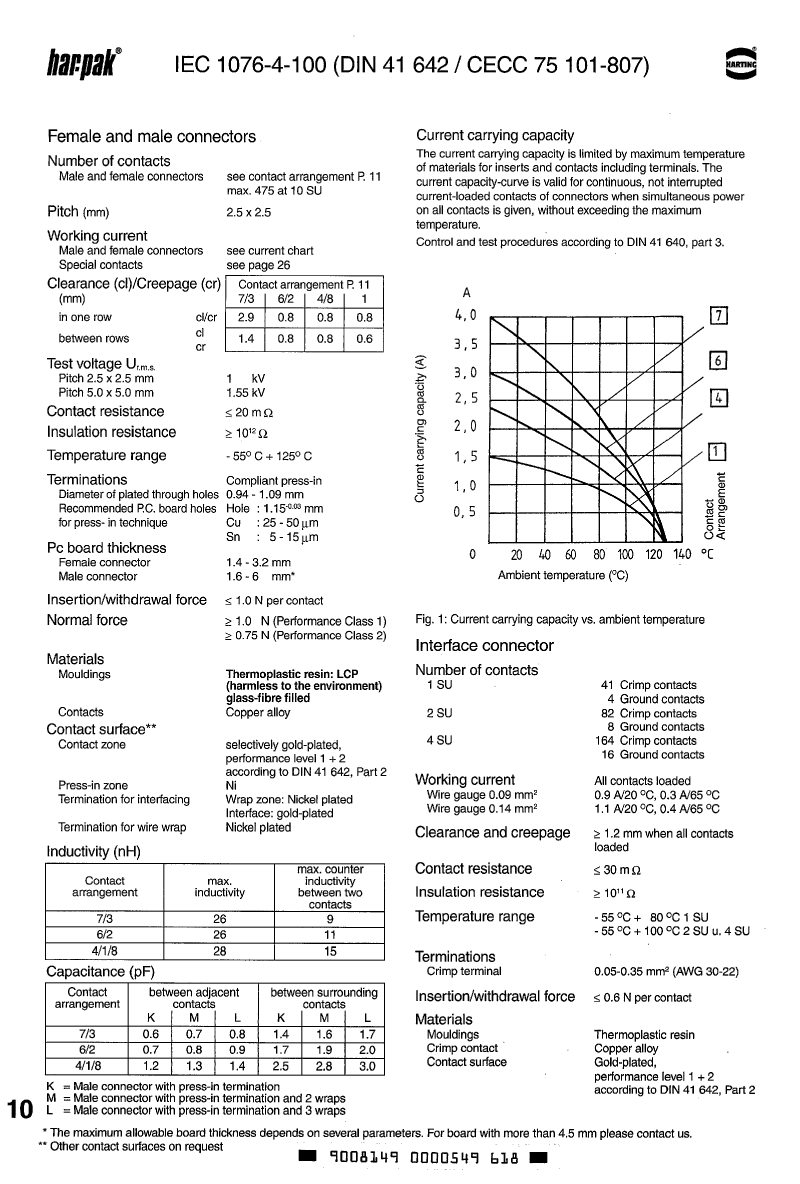

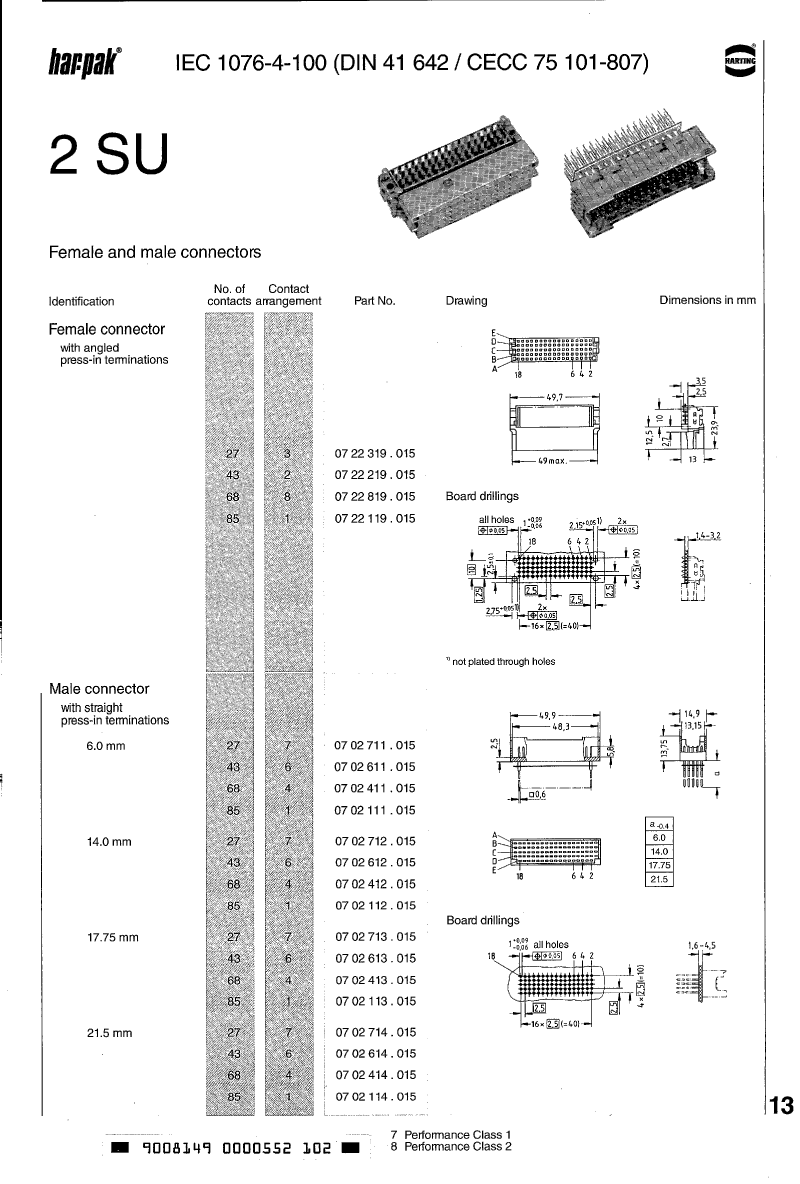

0722219.015: DescriptionBoard Connector, 43 Contact(s), 5 Row(s), Female, Right Angle, 0.098 inch Pitch, Press Fit Terminal, Plug; CategoryThe connector The connector; File Size293KB，2 Pages; ManufacturerHARTING

Download Datasheet Parametric Compare View All

0722219.015 Overview

Board Connector, 43 Contact(s), 5 Row(s), Female, Right Angle, 0.098 inch Pitch, Press Fit Terminal, Plug

0722219.015 Parametric

Parameter Name	Attribute value
Maker	HARTING
Reach Compliance Code	compli
Board mount options	LOCATING POSTS
body width	0.512 inch
subject depth	0.941 inch
body length	1.957 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	1.0008 N
Insulation resistance	1000000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	0722
Plug contact pitch	0.098 inch
Match contact row spacing	0.098 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.4892 mm
polarization key	ENDS
reliability	COMMERCIAL
Terminal pitch	2.4892 mm
Termination type	PRESS FIT
Total number of contacts	43
Evacuation force-minimum value	1.0008 N

Preview

Download Datasheet

View All

0722219.015 Related Products

	0722219.015	0722319.015	0722119.015
Description	Board Connector, 43 Contact(s), 5 Row(s), Female, Right Angle, 0.098 inch Pitch, Press Fit Terminal, Plug	Board Connector, 27 Contact(s), 5 Row(s), Female, Right Angle, 0.098 inch Pitch, Press Fit Terminal, Plug	Board Connector, 85 Contact(s), 5 Row(s), Female, Right Angle, 0.098 inch Pitch, Press Fit Terminal, Plug
Maker	HARTING	HARTING	HARTING
Reach Compliance Code	compli	compliant	compli
Board mount options	LOCATING POSTS	LOCATING POSTS	LOCATING POSTS
body width	0.512 inch	0.512 inch	0.512 inch
subject depth	0.941 inch	0.941 inch	0.941 inch
body length	1.957 inch	1.957 inch	1.957 inch
Body/casing type	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU
Contact completed and terminated	NICKEL	NICKEL	NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
maximum insertion force	1.0008 N	1.0008 N	1.0008 N
Insulation resistance	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	0722	0722	0722
Plug contact pitch	0.098 inch	0.098 inch	0.098 inch
Match contact row spacing	0.098 inch	0.098 inch	0.098 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	5	5	5
Number of rows loaded	5	5	5
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.4892 mm	2.4892 mm	2.4892 mm
polarization key	ENDS	ENDS	ENDS
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.4892 mm	2.4892 mm	2.4892 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	43	27	85
Evacuation force-minimum value	1.0008 N	1.0008 N	1.0008 N
