Product data sheet
09 45 281 2800 333

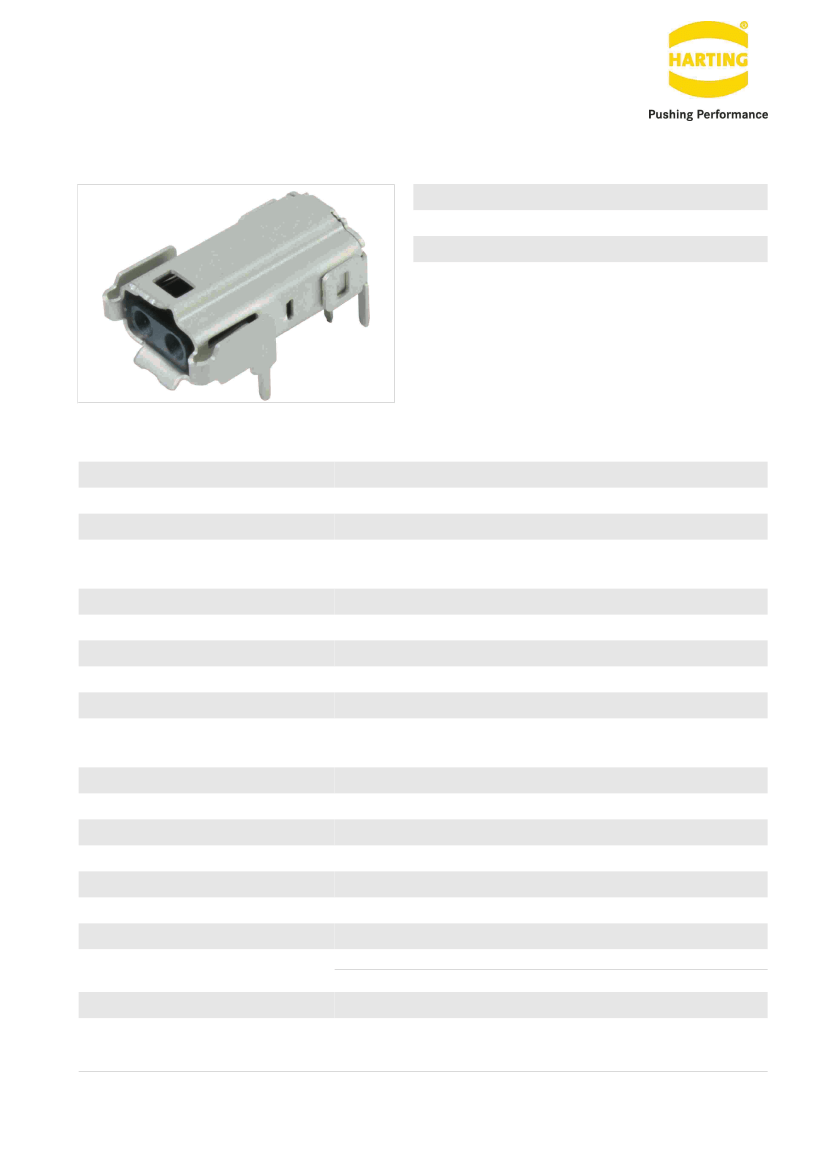

T1 Industrial jack AH IP20
This product is available upon request. Please contact your local HARTING subsidiary.
T1 Industrial jack AH IP20
Part number
Specification
HARTING eCatalogue
09 45 281 2800 333
T1 Industrial jack AH IP20
https://b2b.harting.com/09452812800333
Image is for illustration purposes only. Please refer to product description.
Identification
Category
Series
Element
Connectors
HARTING T1 Industrial
PCB connector
Version
Termination method
Shielding
Number of contacts
Additional contacts
Pack contents
THR connection
Fully shielded, 360° shielding contact
2
+ shielding
Sample
Technical characteristics
Rated current
Rated voltage
Contact resistance
Shielding resistance
Limiting temperature
Mating cycles
Degree of protection acc. to IEC 60529
Test voltage U
DC
Transmission characteristics
4 A
60 V DC
≤20 mΩ
≤100 mΩ
-40 ... +85 °C
≥1,000
IP20
1 kV (contact-contact)
2.25 kV (contact-ground)
600 MHz Bandwidth
Page 1 / 2 | Creation date 2020-02-21 | Please note that the data specified here were taken as extracts from the online catalogue. Please refer to
the user documentation for the complete and up-to-date information and data. Please also note that the user is responsible for validating functionality,
conformity with applicable laws and directives, as well as for the electrical safety in the particular application.
HARTING Stiftung & Co. KG | Marienwerderstr. 3 | 32339 Espelkamp | Germany
Product data sheet
09 45 281 2800 333
T1 Industrial jack AH IP20
This product is available upon request. Please contact your local HARTING subsidiary.
Technical characteristics
Data rate
Moisture Sensitivity Level (MSL)
Process Sensitivity Level (PSL)
10 Mbit/s
100 Mbit/s
1 Gbit/s
1 acc. to ECA/IPC/JEDEC J-STD-020D
R0 acc. to ECA/IPC/JEDEC J-STD-020D
Specifications and approvals
IEC 63171-6
IEEE 802.3bu (remote power supply over PoDL = Power over Data Line)
IEEE 802.3cg (10BASE-T1)
IEEE 802.3bw (100BASE-T1)
IEEE 802.3bp (1000BASE-T1)
Specifications
Commercial data
Packaging size
eCl@ss
1
27440402 PCB connector
