HW7D-B21F1001-GR datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> HW7D-B21F1001-GR

HW7D-B21F1001-GR: DescriptionPUSHBUTTON SWITCH,; CategoryMechanical and electronic products switch; File Size3MB，62 Pages; ManufacturerIDEC

Download Datasheet Parametric View All

HW7D-B21F1001-GR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HW7D-B21F1001-GR	-	-	View	Buy Now

HW7D-B21F1001-GR Overview

PUSHBUTTON SWITCH,

HW7D-B21F1001-GR Parametric

Parameter Name	Attribute value
Maker	IDEC
Reach Compliance Code	compli
Switch type	PUSHBUTTON SWITCH

Preview

Download Datasheet

View All

Switches & Pilot Devices

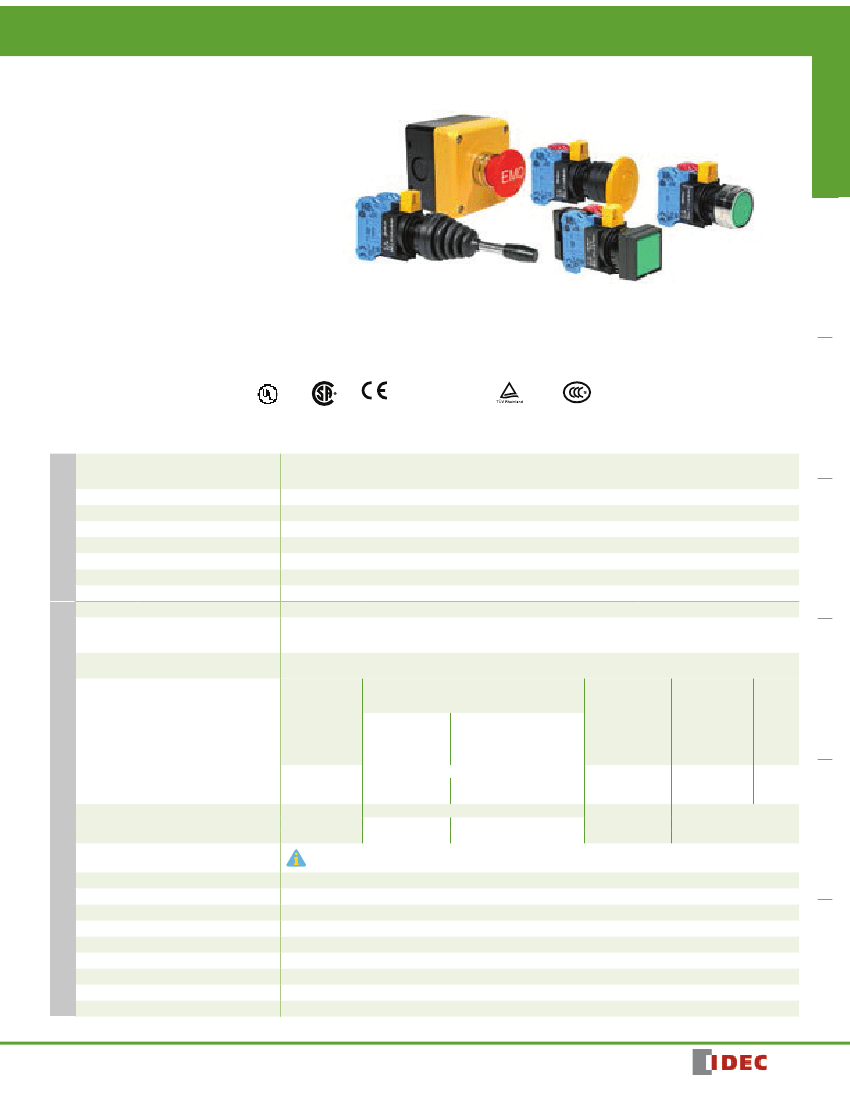

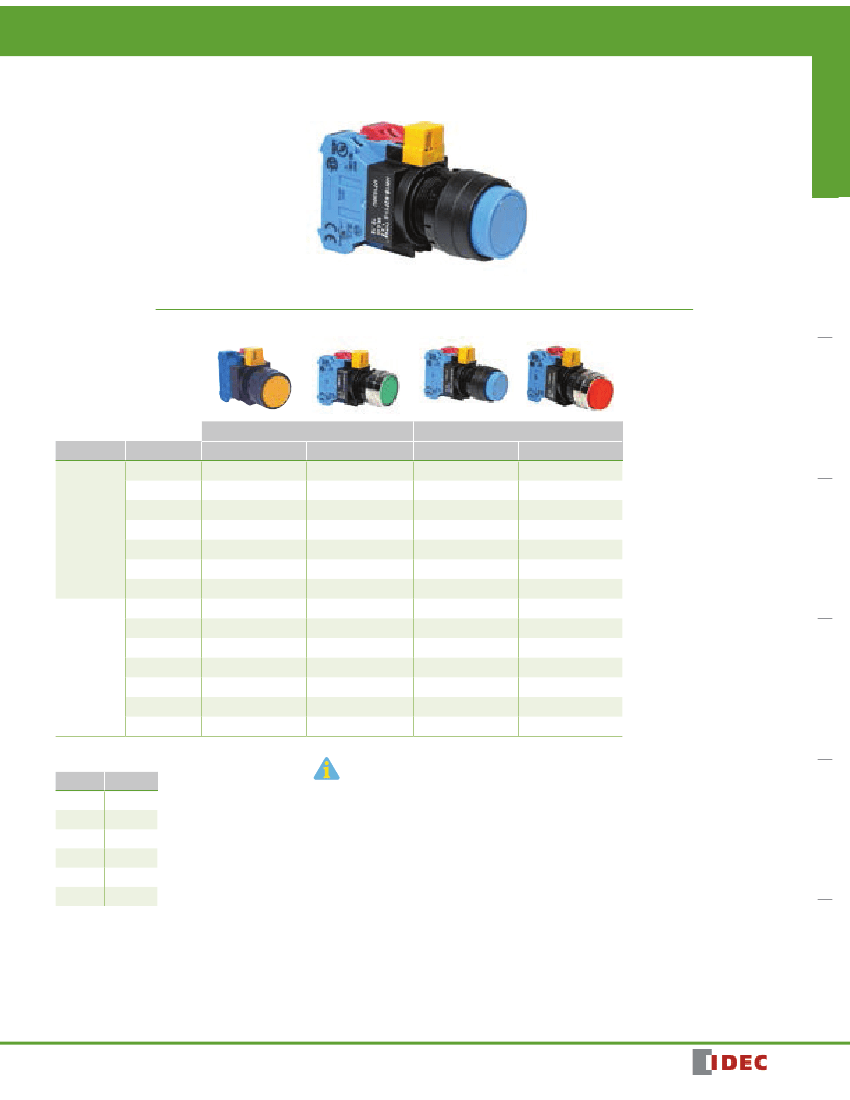

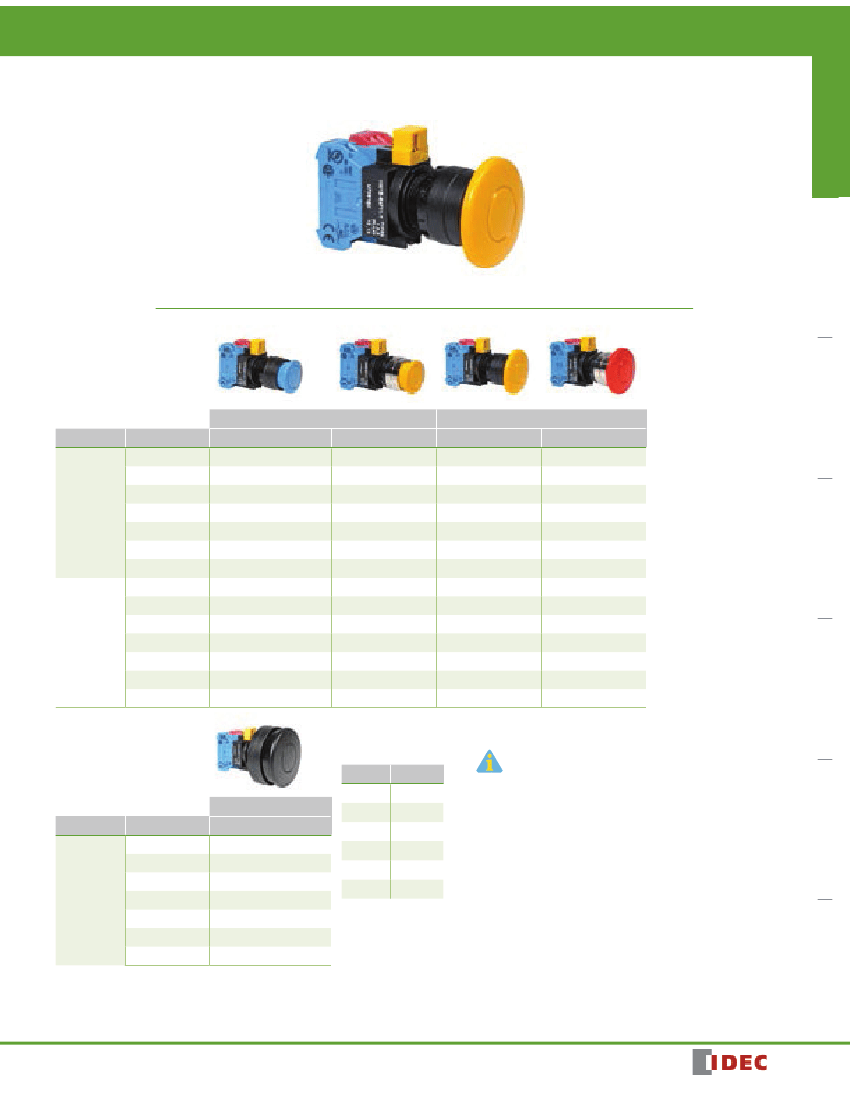

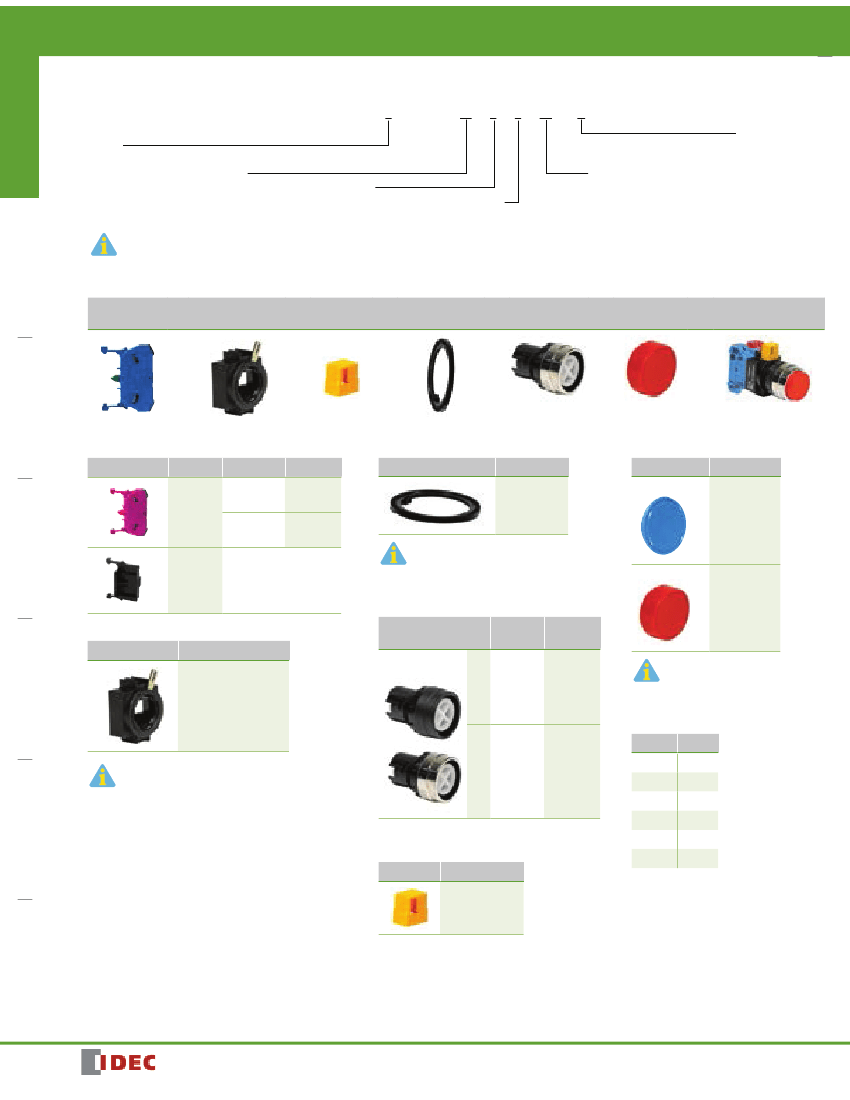

HW Series — 22mm IEC Style Global Pushbuttons

Key features:

•

Locking lever removable contact blocks

Finger-safe IP20 contacts

Tamperproof construction

All E-stops meet EN60947-5-5, and are compliant with

SEMI S2 standards

Worldwide approvals

Easy to assemble

Choice of black plastic or metallic front bezels

LED illumination

Transformer or full voltage

Slow make double break contacts

ø22mm - HW Series

Switches & Pilot Devices

Signaling Lights

HW: The Best Engineered Switch in the World

IDEC’s HW switches are “The best engineered switch in the world” for a reason. Carrying the CE

mark, UL, CSA, CCC (Chinese), and TUV approvals, these switches are designed for use in almost

any part of the world.

Complete with ﬁnger-safe contact blocks offering IP20 protection, these 7/8” (22mm) switches

include illuminated and non-illuminated pushbuttons, pilot lights, selector switches, and

emergency stop switches.

All switches also incorporate mechanically keyed safety locking levers, ensuring correct

installation and maintaining safety in high-vibration applications.

Relays & Sockets

File No. E68961

File No. LR21451

Certiﬁcate No.

R50086203_HW_e-stop 2017010305987846

R50391189_HW

Speciﬁcations

Rated Operational Characteristics

Rated Insulation Voltage

AC-15: A600 or Ue = 250V, le = 3A (NO, NC, NO-EM, NC-LB)

DC-13: P600 or Ue = 125V, le = 1.1A (NO, NC)

DC-13: Q600 or Ue = 125V, le = 0.9A (NO-EM, NC-LB)

600V

Less than 4kV, conforming to IEC60947-1

4kV for contact circuit, 2.5kV for lamp circuit

10 Amp

5 mA at 3V AC/DC

MTBF < 1 fault for 10 million operation cycles (3V DC, 5mA)

LEDs: 6V/17mA max, 12V & 24V/11mA max, 120 & 240V/10mA max

Slow break NC or NO

5.5mm to 10mm travel to latch, 45N minimum force to latch

10mm maximum travel, 1,800 operations per hour maximum for a Pushlock Turn Reset

900 operations per hour maximum for a Push-Pull

Flush and extended pushbuttons—with 1NO or 1NC contact: 6.2±2N (momentary), 7.0±2N (maintained)

Additional contacts—1NO or 1NC: +3.2N (momentary), + 3.3N (maintained)

Unit

Wire

Crimping Terminal

HW-U Contact Block

Solid Wire

Stranded Wire

ø0.5 to 1.6 mm (AWG14 to 22)

ø1.7 to 2.0 mm (AWG12)

0.3 to 2.0 mm (AWG14 to 22)

Electrical

Rated Switching Over-Voltage

Rated Impulse Withstanding Voltage

Rated Thermal Current

Minimum Switching Capacity

Electrical Reliability

Lamp Ratings

Contact Operation

Positive Action Operation

(Emergency Stops with NC contacts)

Operating Force

Timers

Contactors

Number of Wires

Recommended

Tightening Torque (Nm)

1.0 to 1.3

1.2 to 1.3

1.0 to 1.3

1.2 to 1.3

1.0 to 1.3

0.6 to 1.0 (M3.0)

Terminal

Screw

Recommended Terminal Torque

M3.5

2.1 to 3.5 mm

(AWG12)

Crimping Terminal

ø0.5 to 1.6 mm (AWG14 to 22)

0.3 to 2.0 mm (AWG14 to 22)

Crimping Terminal

ø0.5 to 1.6 mm (AWG14 to 22)

ø0.3 to 2.0 mm (AWG14 to 22)

Mechanical

Illuminated Unit (*1)

Solid Wire

Stranded Wire

M3.5

Terminal Blocks

Applicable Wire Size

Pilot Light

Solid Wire

Stranded Wire

1.0 to 1.3 (M3.5)

1. * refers to the lamp terminals of the illuminated push buttons and selector switches.

Applicable Wire Size

Contact Resistance

Contact Gap

Horsepower Rating

Contact Material

Operating Temperature

Vibration Resistance

Shock Resistance

Mechanical Life

Minimum 1 x 22 AWG, max. 2 x 14 AWG or 1 x 12 AWG

Initial contact resistance of 50m or less

4mm (NO and NC), 2mm (NO-EM and NC-LB)

Reference Value: 1/4 HP @ 120V (1ø non-reversing), 1HP @ 240V (3ø non-reversing)

Circuit Breakers

Silver (gold plated contacts available - contact IDEC)

Operation: –25 to +50°C (without freezing), Storage: –40 to +70°C (without freezing)

10 to 55Hz, 98m/sec

(10G) conforming to IEC6068-2-6

980m/sec

(100G) conforming to IEC6068-2-7

Momentary pushbuttons: 5,000,000 (900 operations per hour), All other switches: 500,000

1804091617

800-262-IDEC

(4332)

•

USA & Canada

609

Recommended Resources

Repeated ground protection circuit

Voltage comparator circuit diagram

High frequency amplitude modulation signal generator circuit

Bias circuit of complementary symmetrical OTL circuit

Circuit diagram of a half voltage divider circuit with an additional C-MOS inverter

Dual audio power amplifier circuit using LM1896 or LM2896
