I524-3R3-1.000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> I524-3R3-1.000

I524-3R3-1.000: DescriptionHCMOS Output Clock Oscillator,; CategoryPassive components oscillator; File Size53KB，1 Pages; ManufacturerILSI; Websitehttp://www.ilsiamerica.com; Environmental Compliance

Download Datasheet Parametric View All

I524-3R3-1.000 Overview

HCMOS Output Clock Oscillator,

I524-3R3-1.000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ILSI
Reach Compliance Code	compli
Oscillator type	HCMOS

Preview

Download Datasheet

View All

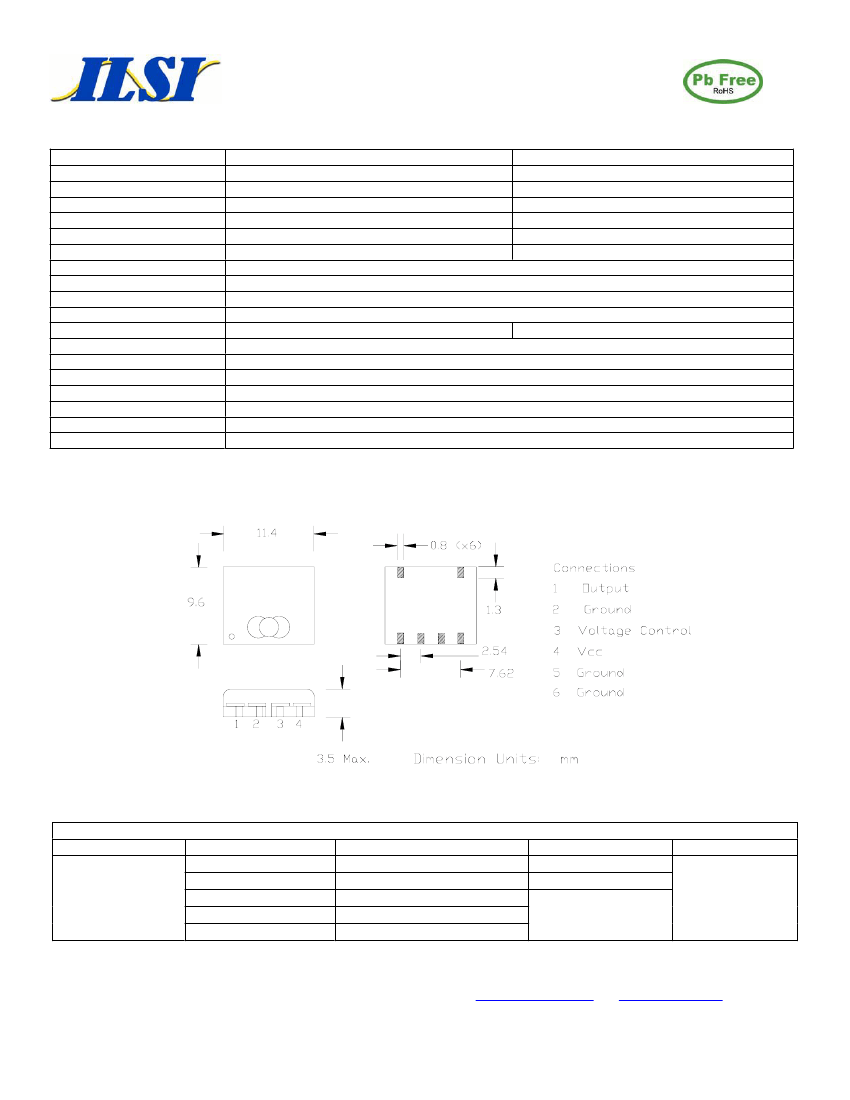

Surface Mount Oscillator, TCXO, TCVCXO

Metal Package, 9 mm x 11 mm

Frequency

Output Level

Level

Duty Cycle

Rise / Fall Time

Output Load

Frequency Stability

Frequency Stability at +25 C

Aging

Supply Voltage

Current

Control Voltage (I723 / I724)

Slope

Temperature

Operating

Storage

Environmental

Package Information

I523 / I524 / I723 / I724 Series*

I524 / I724

I523 / I723

1.000 MHz to 40.000 MHz

10.000 MHz to 40.000 MHz

HC-MOS / TTL

Clipped Sine

‘0’ = 0.1 Vcc Max., ‘1’ = 0.9 Vcc Min.

1.0 V p-p Min.

50% 10%

10 nS Max.

15 pF, Fo < 50 MHz = 10 TTL, Fo > 50 MHz = 5 LSTTL

20K Ohms / 10 pF

See Frequency Stability Table

1 ppm (I523 and I524)

1 ppm / Year Max.

See Supply Voltage Table, tolerance 5 %

40 mA Max. ***

3 mA Max.

1.65 VDC 1.5 VDC, 5 ppm Min. for Vcc = 3.3 VDC, 2.5 VDC 2.0 VDC, 5 ppm Min. for Vcc = 5.0 VDC

Positive

See Operating Temperature Table

-40 C to +85 C

See Appendix B for information

MSL = 2a, Termination = e1 or e4

* I524 = HC-MOS TCXO, I523 = Clipped Sine TCXO, I724 = HC-MOS TCVCXO, I723 = Clipped Sine TCVCXO

Part Number Guide

Package and Output

I523 -

I524 -

I723 -

I724 -

Sample Part Number:

Operating Temperature

7 = 0 C to +50 C

1 = 0 C to +70 C

3 = -20 C to +70 C

2 = -40 C to +85 C

I523 - 1Q3 - 20.000

Supply Voltage

5 = 5.0 VDC

3 = 3.3 VDC

- 20.000 MHz

Frequency

Frequency Stability vs. Temperature

**O = 1.5 ppm

**P = 2.0 ppm

Q = 2.5 ppm

R = 3.0 ppm

J = 5.0 ppm

NOTE: A 0.01 µF bypass capacitor is recommended between Vcc (pin 4) and Gnd (pin 2) to minimize power supply noise.

** Not available for all temperature ranges. *** Frequency, supply, and load related parameters.

12/06

e-mail@ilsiamerica.com

•

www.ilsiamerica.com

ILSI America

Phone: 775-851-8880 • Fax: 775-851-8882• e-mail: e-mail@ilsiamerica.com • www.ilsiamerica.com

Specifications subject to change without notice
