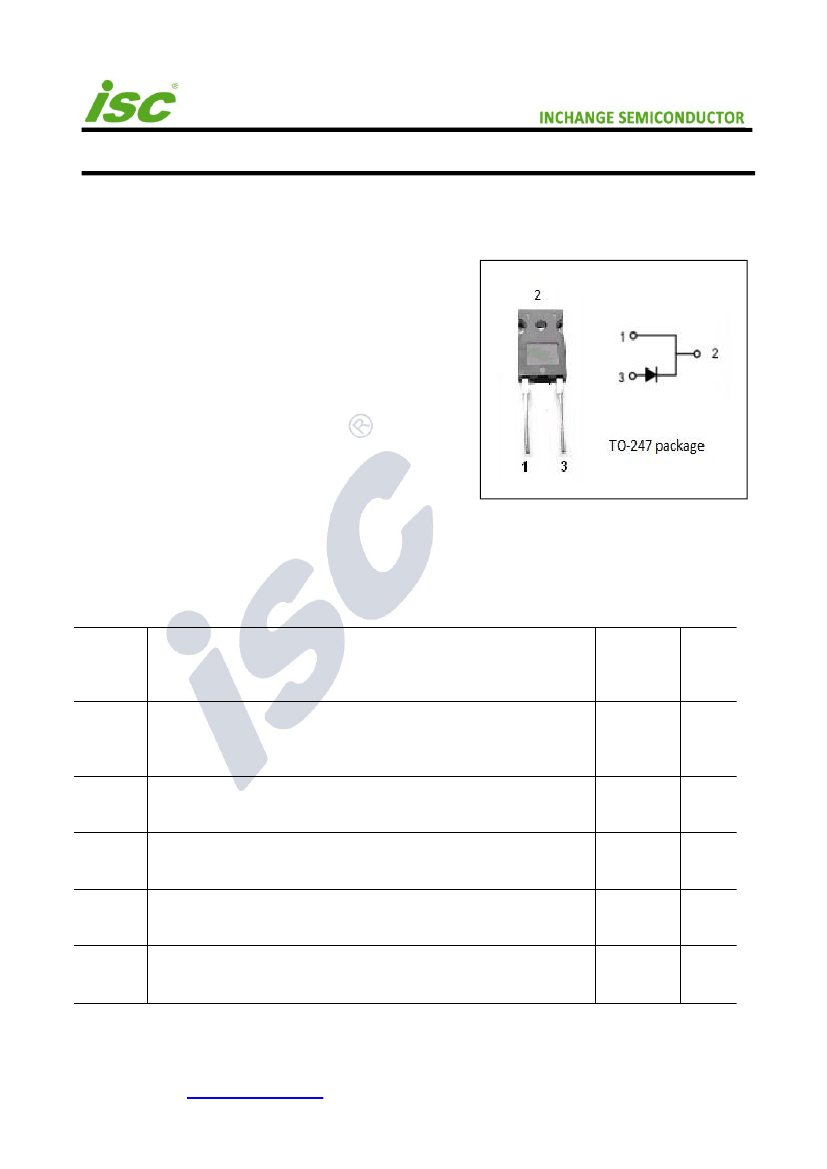

INCHANGE Semiconductor
Ultrafast Rectifier
BYR16W-1200
FEATURES
·Fast
switching
·Low
forward voltage drop
·Low
thermal resistance
·Soft
recovery characteristic
·Reduces
switching losses in associated MOSFET or IGBT
·Planar
passivated for voltage ruggedness and reliability
·Minimum
Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
·Switched-Mode
Power Supplies
·Power
factor correction diode
·Uninterrupted
Power Supply
·
Motor drive and SMPS freewheeling diode
ABSOLUTE MAXIMUM RATINGS(T
a
=25
℃)
SYMBOL
PARAMETER
VALUE
UNIT
V
RRM
V
RWM
V
R
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
1200
V
I
F(AV)
Average Rectified Forward Current;δ = 0.5; Tmb
≤
98
°C;
square-wave
16
A
I
FSM
Nonrepetitive Peak Surge Current
Sine-wave
t
p
=10ms
t
p
=8.3ms
150
165
A
T
J
Max.Junction Temperature
150
℃
T
stg
Storage Temperature Range
-55~150
℃
isc website
：
www.iscsemi.com
1
isc & iscsemi
is registered trademark
INCHANGE Semiconductor
Ultrafast Rectifier
BYR16W-1200
ELECTRICAL CHARACTERISTICS
(T
a
=25℃)
SYMBOL
PARAMETER
CONDITIONS
I
F
= 16A;
Tj=25℃
V
F
Maximum Instantaneous Forward Voltage
I
F
= 32A;
Tj=25℃
I
R
t
rr
Maximum Instantaneous Reverse Current
Maximum Reverse Recovery Time
I
F
= 16A;
Tj=125℃
V
R
=1200V;
Tj=25℃
MAX
3.0
2.7
3.9
100
2
40
UNIT
V
μA
mA
ns
V
R
=1200V;
Tj=125℃
IF =1A;V
R
=30V;dIF/dt=200A/μs；
NOTICE：
ISC reserves the rights to make changes of the content herein the datasheet at any time without
notification. The information contained herein is presented only as a guide for the applications of
our products.
ISC products are intended for usage in general electronic equipment. The products are not designed
for use in equipment which require specialized quality and/or reliability, or in equipment which
could have applications in hazardous environments, aerospace industry, or medical field. Please
contact us if you intend our products to be used in these special applications.
ISC makes no warranty or guarantee regarding the suitability of its products for any particular
purpose, nor does ISC assume any liability arising from the application or use of any products, and
specifically disclaims any and all liability, including without limitation special, consequential or
incidental damages.
