SB87C196NP: DescriptionMicrocontroller, 16-Bit, OTPROM, 25MHz, CMOS, PQFP100, SQFP-100; CategoryThe embedded processor and controller Microcontrollers and processors; File Size889KB，32 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

SB87C196NP Overview

Microcontroller, 16-Bit, OTPROM, 25MHz, CMOS, PQFP100, SQFP-100

SB87C196NP Parametric

Parameter Name	Attribute value
Maker	Intel
Parts packaging code	QFP
package instruction	SQFP-100
Contacts	100
Reach Compliance Code	unknow
Has ADC	NO
Other features	2.97 TO 4.5V AT 16MHZ; ON-CIRCUIT EMULATION; 1 MBYTE LINEAR ADDRESS SPACE
Address bus width	20
bit size	16
boundary scan	NO
maximum clock frequency	25 MHz
DAC channel	NO
DMA channel	NO
External data bus width	16
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQFP-G100
length	14 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	5
Number of I/O lines	32
Number of serial I/Os	1
Number of terminals	100
Number of timers	2
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	LFQFP
Package shape	SQUARE
Package form	FLATPACK, LOW PROFILE, FINE PITCH
Certification status	Not Qualified
RAM (number of words)	1000
rom(word)	4096
ROM programmability	OTPROM
Maximum seat height	1.7 mm
speed	25 MHz
Maximum slew rate	120 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

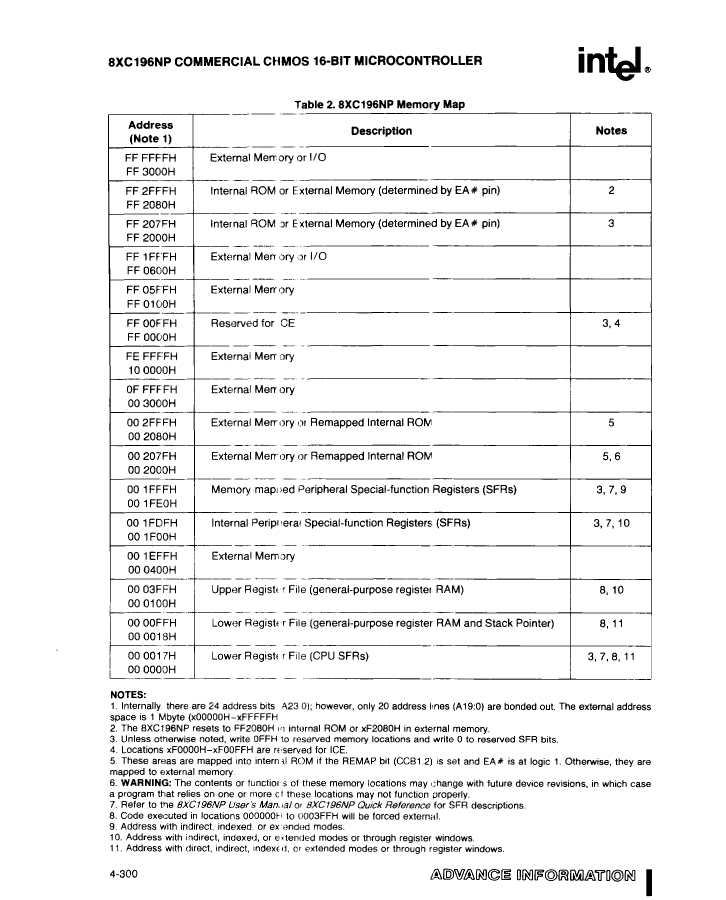

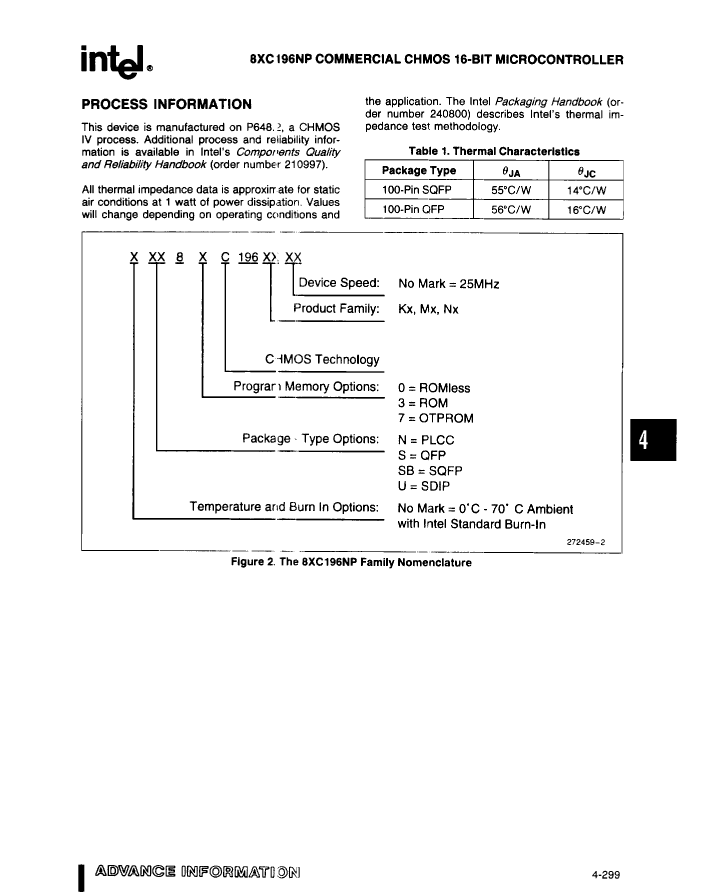

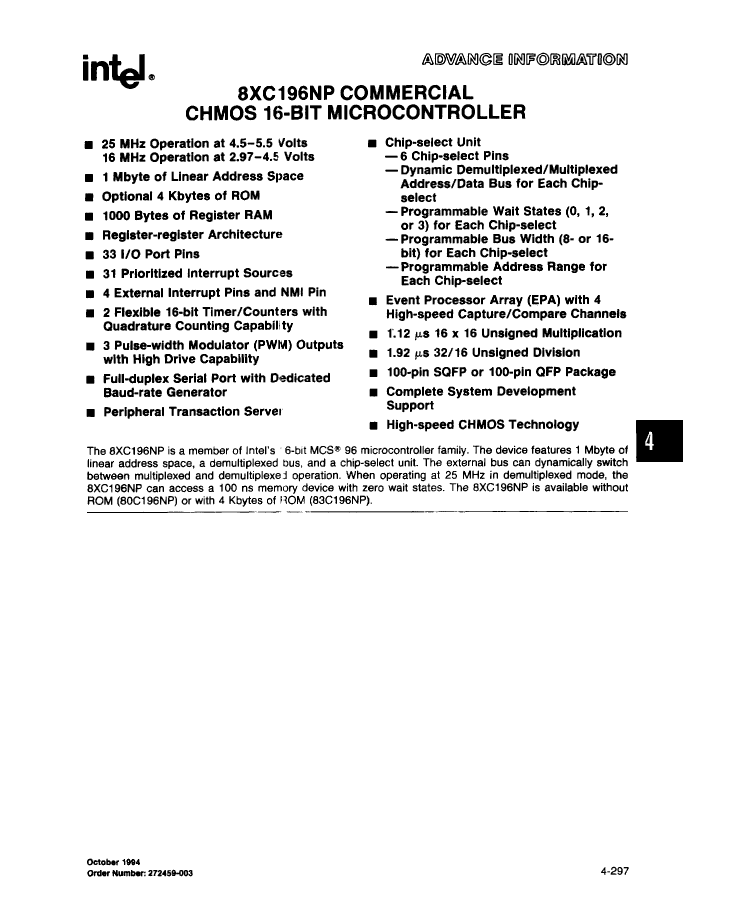

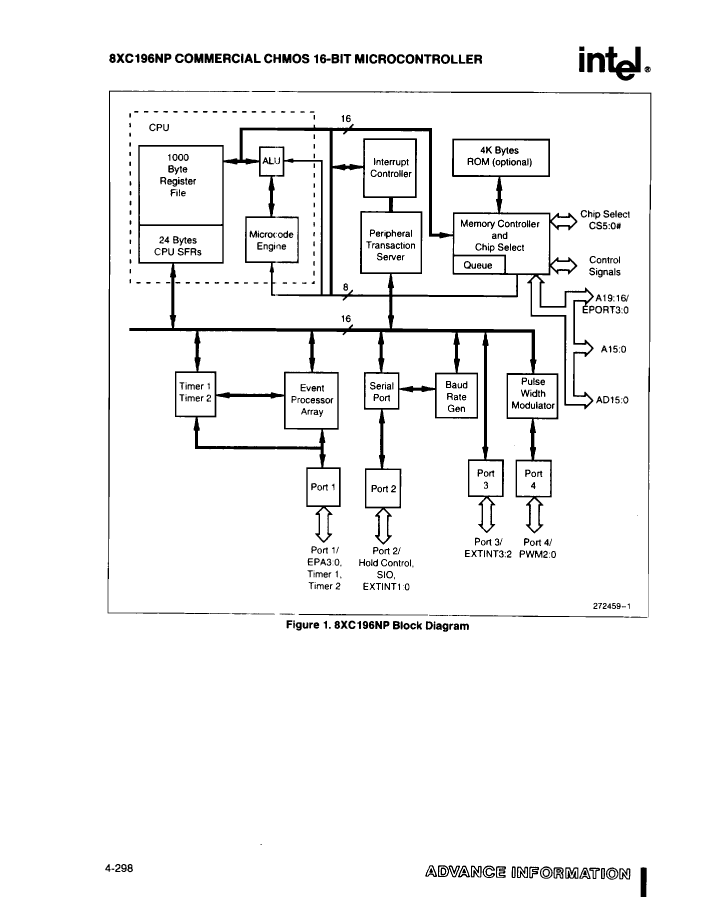

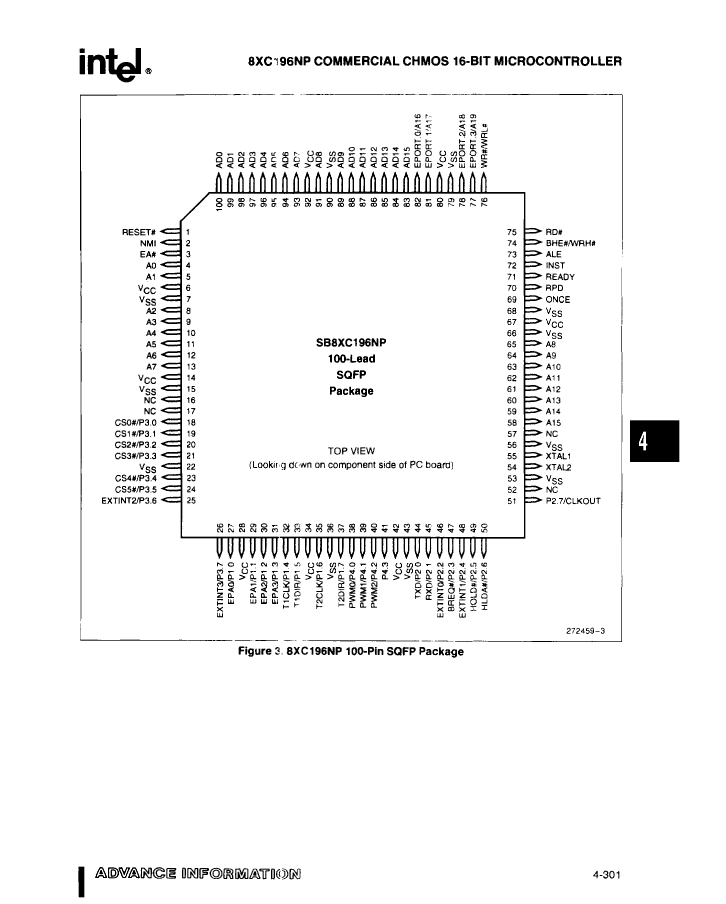

Preview

Download Datasheet

View All

SB87C196NP Related Products

	SB87C196NP	S87C196NP
Description	Microcontroller, 16-Bit, OTPROM, 25MHz, CMOS, PQFP100, SQFP-100	Microcontroller, 16-Bit, OTPROM, 25MHz, CMOS, PQFP100, QFP-100
Maker	Intel	Intel
Parts packaging code	QFP	QFP
package instruction	SQFP-100	QFP-100
Contacts	100	100
Reach Compliance Code	unknow	unknow
Has ADC	NO	NO
Other features	2.97 TO 4.5V AT 16MHZ; ON-CIRCUIT EMULATION; 1 MBYTE LINEAR ADDRESS SPACE	2.97 TO 4.5V AT 16MHZ; ON-CIRCUIT EMULATION; 1 MBYTE LINEAR ADDRESS SPACE
Address bus width	20	20
bit size	16	16
boundary scan	NO	NO
maximum clock frequency	25 MHz	25 MHz
DAC channel	NO	NO
DMA channel	NO	NO
External data bus width	16	16
Format	FIXED POINT	FIXED POINT
Integrated cache	NO	NO
JESD-30 code	S-PQFP-G100	R-PQFP-G100
length	14 mm	20 mm
low power mode	YES	YES
Number of external interrupt devices	5	5
Number of I/O lines	32	32
Number of serial I/Os	1	1
Number of terminals	100	100
Number of timers	2	2
On-chip data RAM width	8	8
On-chip program ROM width	8	8
Maximum operating temperature	70 °C	70 °C
PWM channel	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LFQFP	QFP
Package shape	SQUARE	RECTANGULAR
Package form	FLATPACK, LOW PROFILE, FINE PITCH	FLATPACK
Certification status	Not Qualified	Not Qualified
RAM (number of words)	1000	1000
rom(word)	4096	4096
ROM programmability	OTPROM	OTPROM
Maximum seat height	1.7 mm	3.15 mm
speed	25 MHz	25 MHz
Maximum slew rate	120 mA	120 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.65 mm
Terminal location	QUAD	QUAD
width	14 mm	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
