BDT60C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BDT60C

BDT60C: Description4A, 120V, PNP, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size204KB，6 Pages; ManufacturerJ.W. Miller ( Bourns )

Download Datasheet Parametric Compare View All

BDT60C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BDT60C	-	-	View	Buy Now

BDT60C Overview

4A, 120V, PNP, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN

BDT60C Parametric

Parameter Name	Attribute value
Maker	J.W. Miller ( Bourns )
Parts packaging code	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	4 A
Collector-emitter maximum voltage	120 V
Configuration	DARLINGTON
Minimum DC current gain (hFE)	750
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON

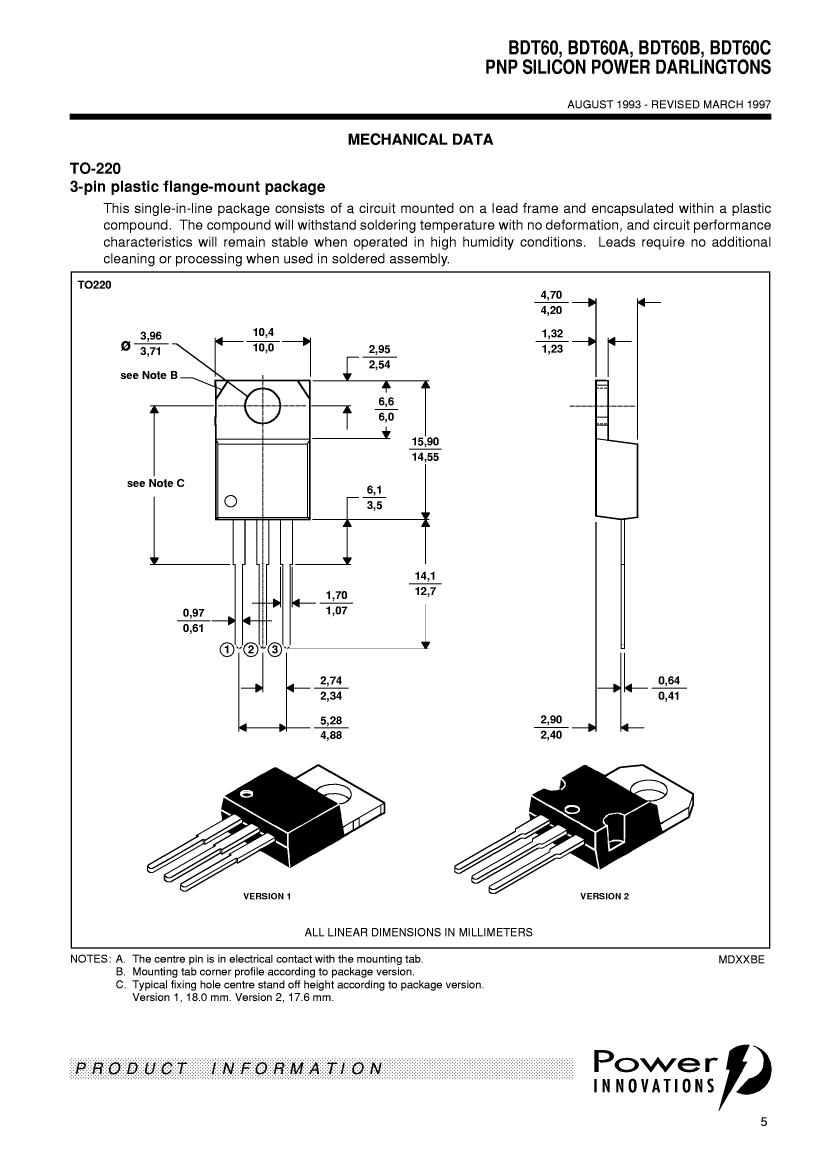

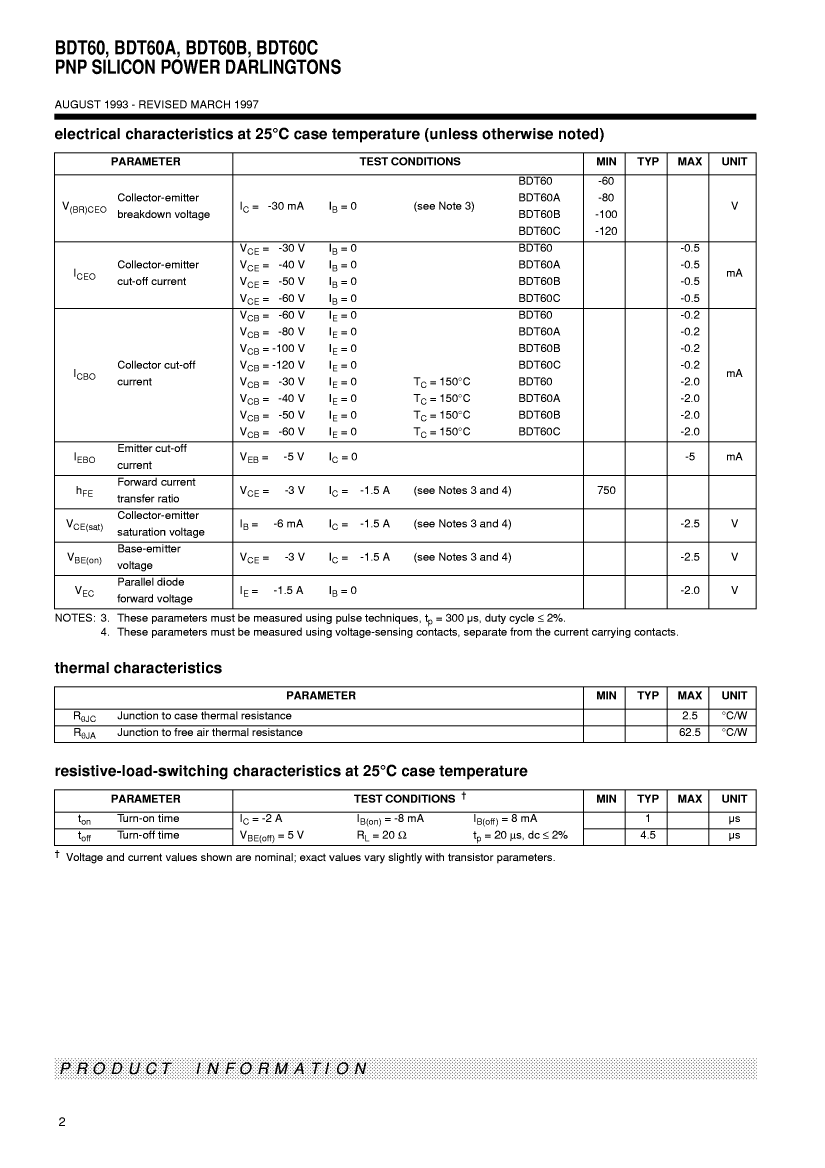

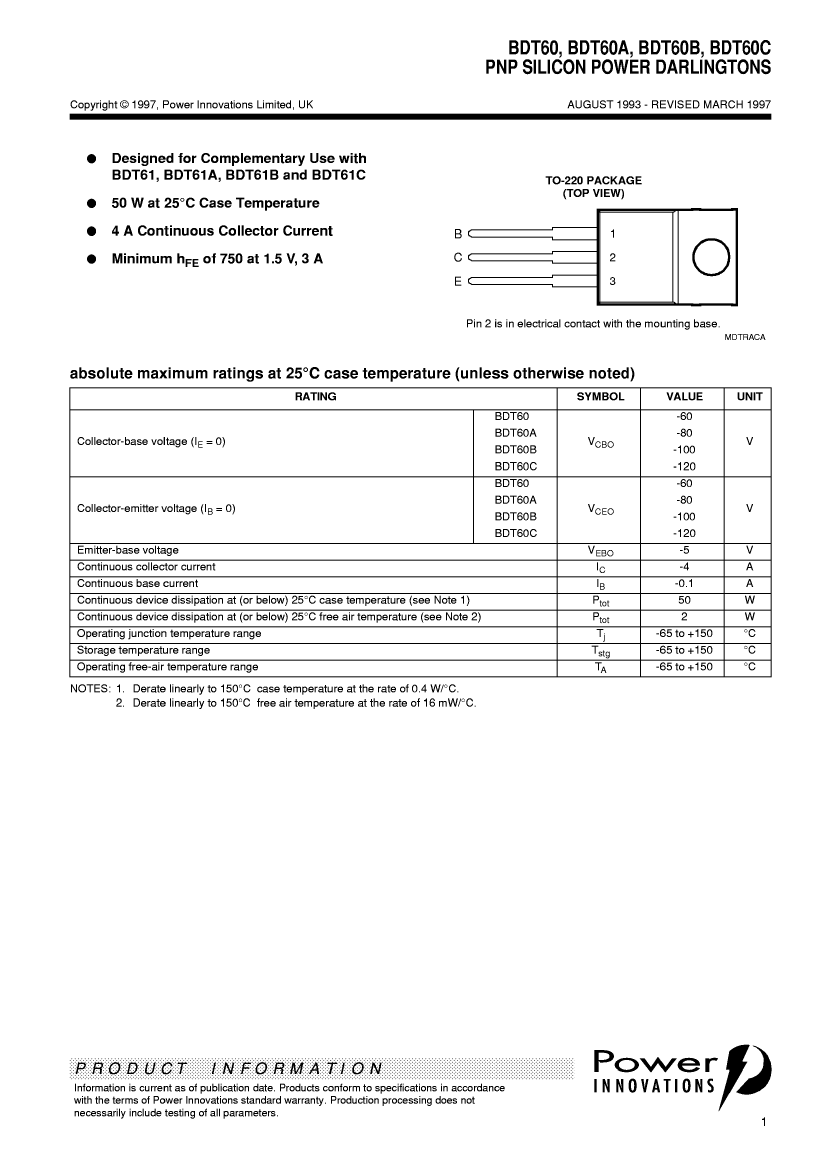

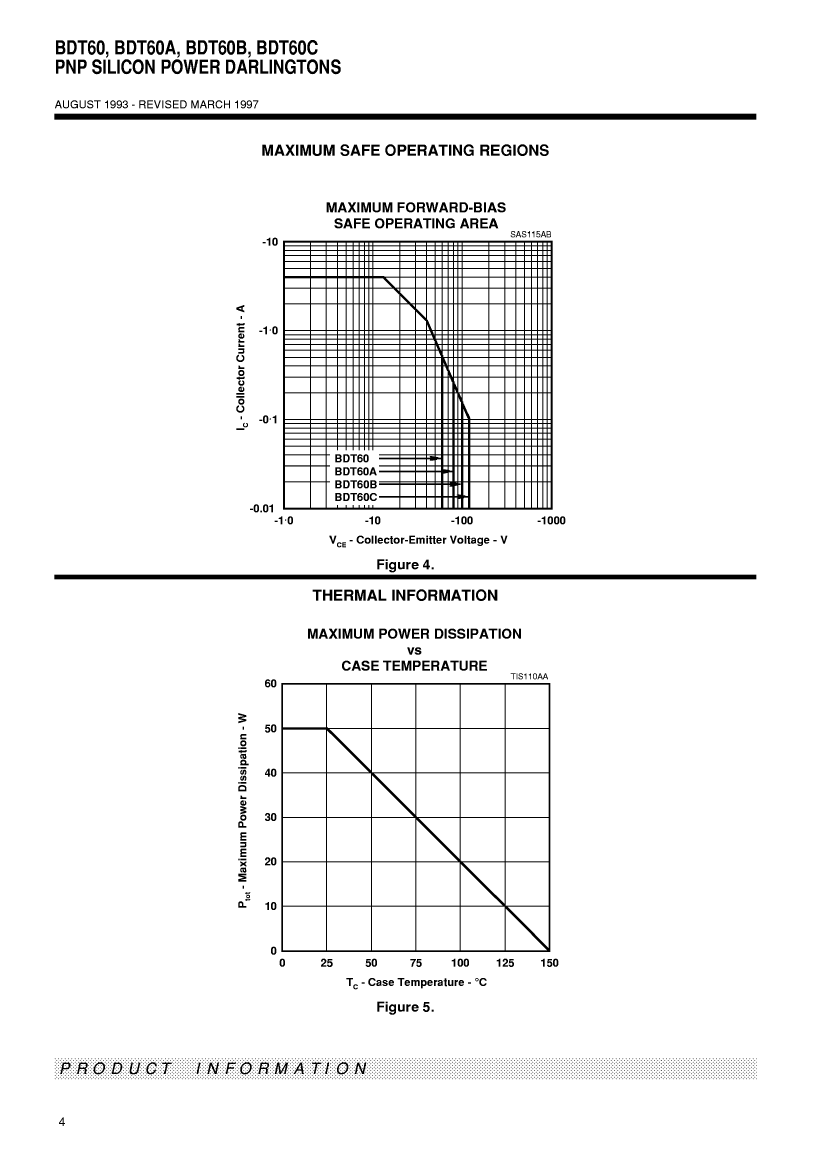

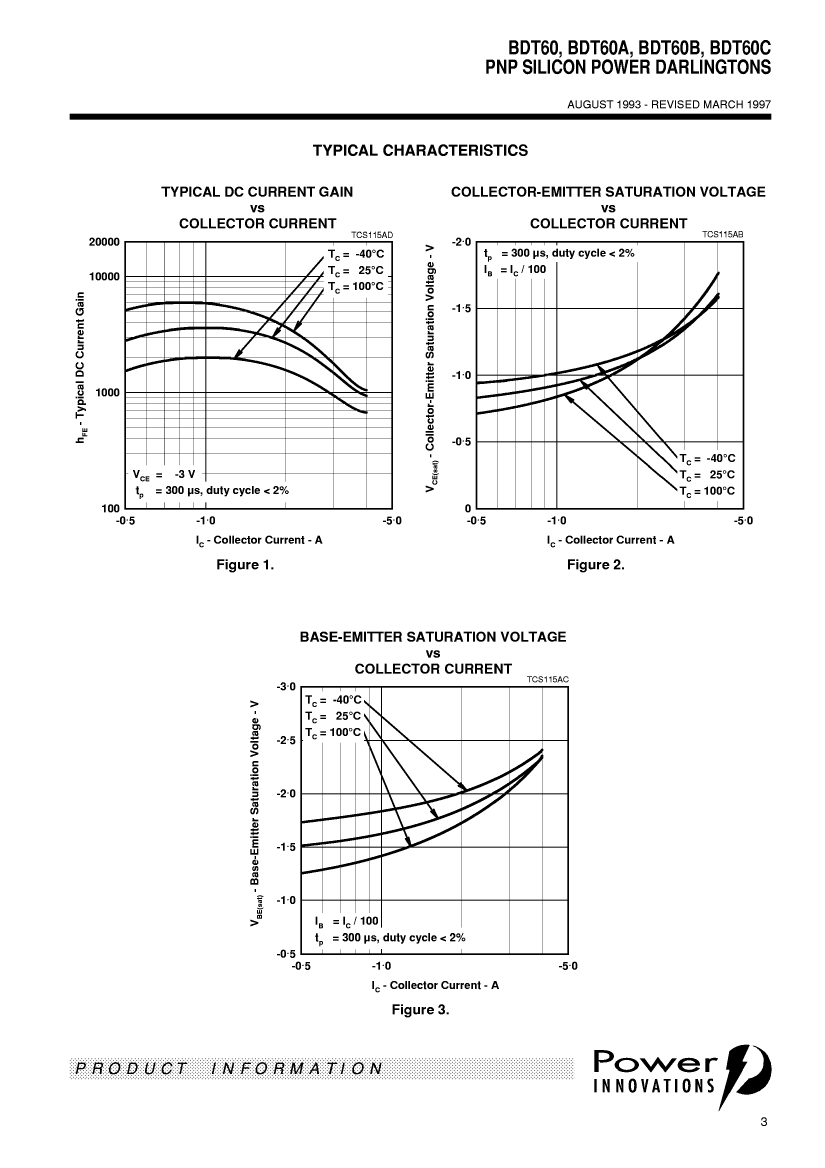

Preview

Download Datasheet

View All

BDT60C Related Products

	BDT60C	BDT60A	BDT60B	BDT60
Description	4A, 120V, PNP, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN	4A, 80V, PNP, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN	4A, 100V, PNP, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN	4A, 60V, PNP, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN
Maker	J.W. Miller ( Bourns )	J.W. Miller ( Bourns )	J.W. Miller ( Bourns )	J.W. Miller ( Bourns )
Parts packaging code	SFM	SFM	SFM	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Contacts	3	3	3	3
Reach Compliance Code	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR
Maximum collector current (IC)	4 A	4 A	4 A	4 A
Collector-emitter maximum voltage	120 V	80 V	100 V	60 V
Configuration	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON
Minimum DC current gain (hFE)	750	750	750	750
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	PNP	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON
