BDW54 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BDW54

BDW54: Description4A, 45V, PNP, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size216KB，6 Pages; ManufacturerJ.W. Miller ( Bourns )

Download Datasheet Parametric Compare View All

BDW54 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BDW54	-	-	View	Buy Now

BDW54 Overview

4A, 45V, PNP, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN

BDW54 Parametric

Parameter Name	Attribute value
Maker	J.W. Miller ( Bourns )
Parts packaging code	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	4 A
Collector-emitter maximum voltage	45 V
Configuration	DARLINGTON
Minimum DC current gain (hFE)	100
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON

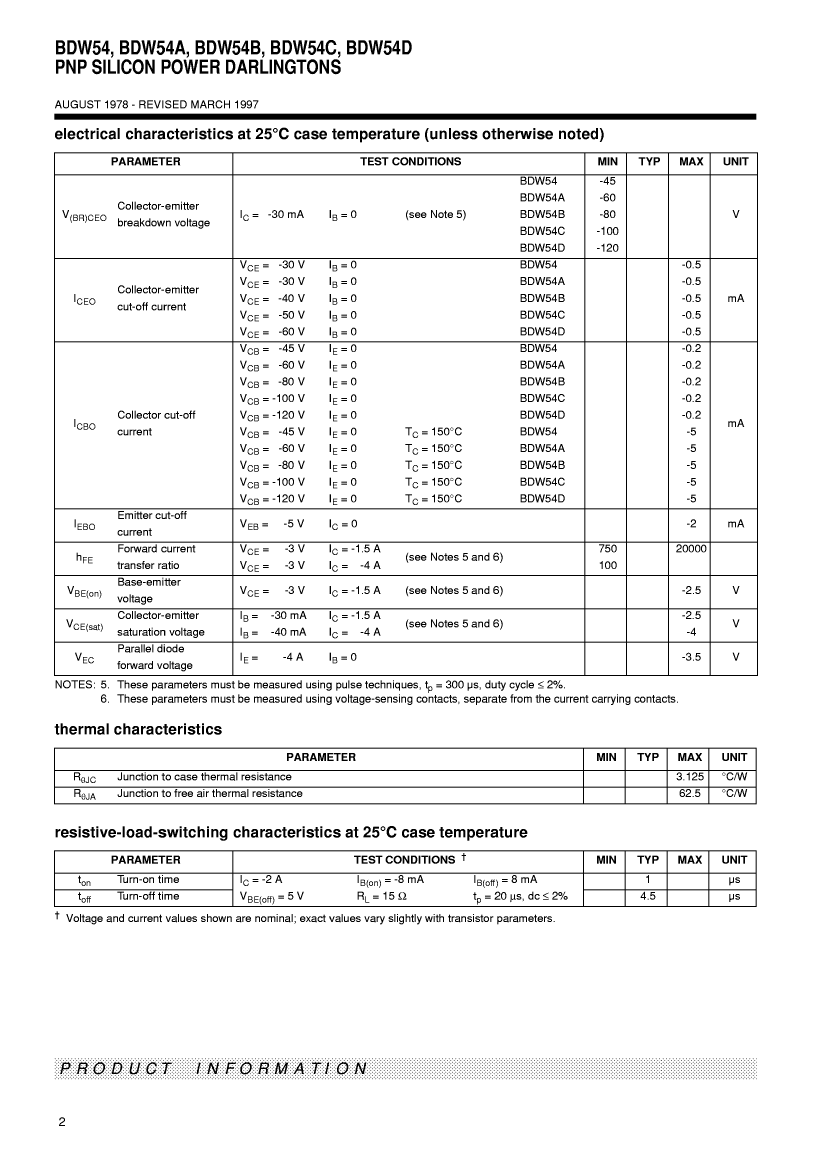

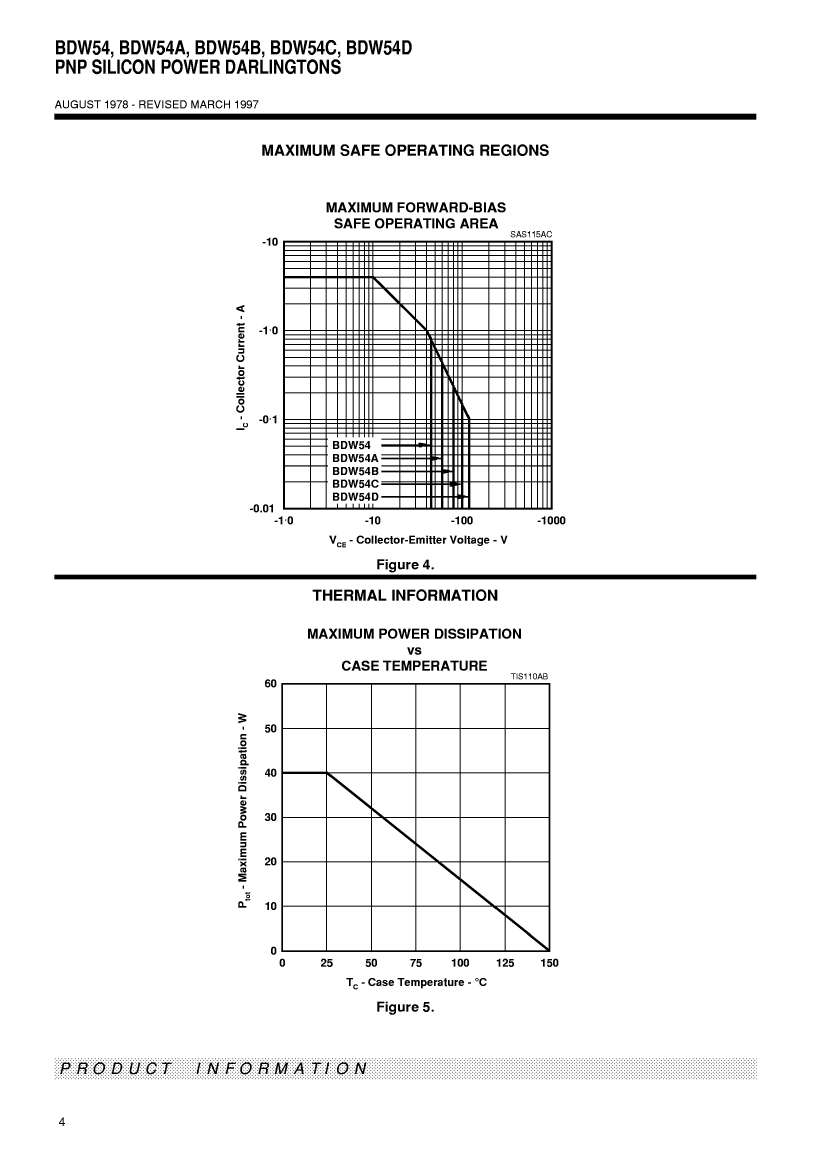

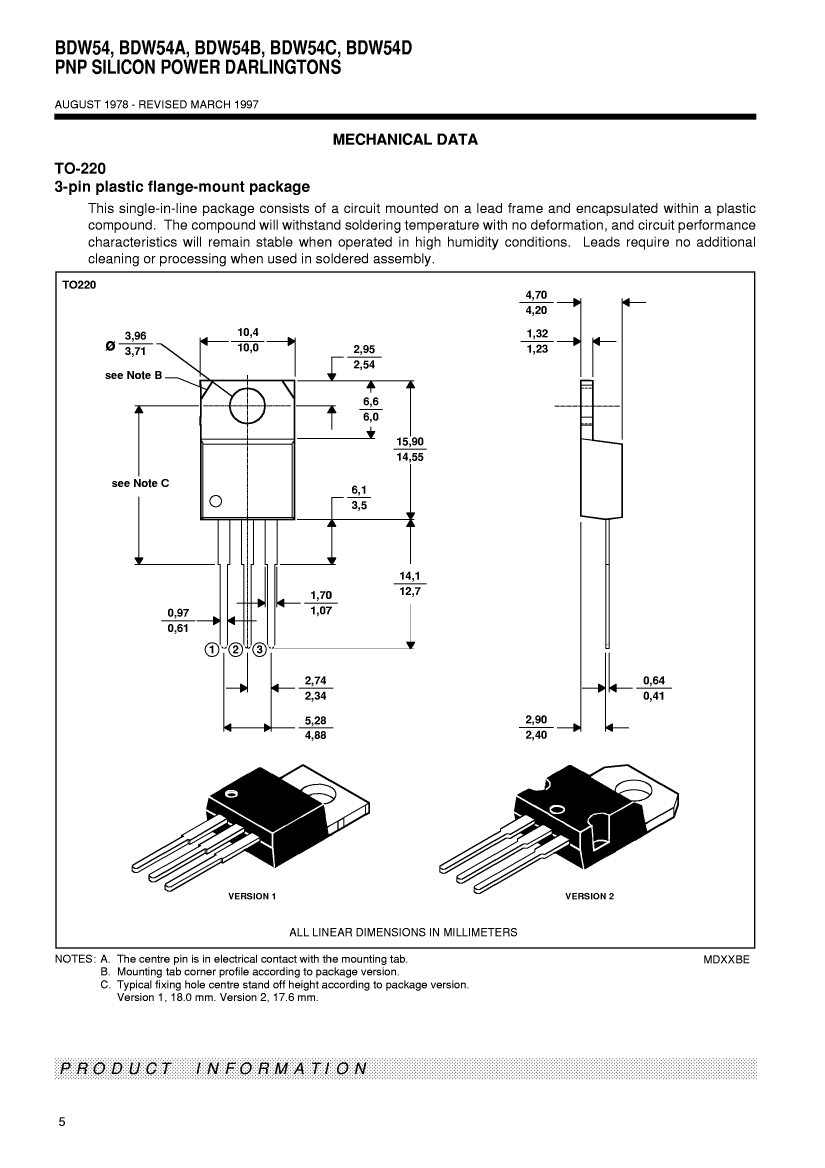

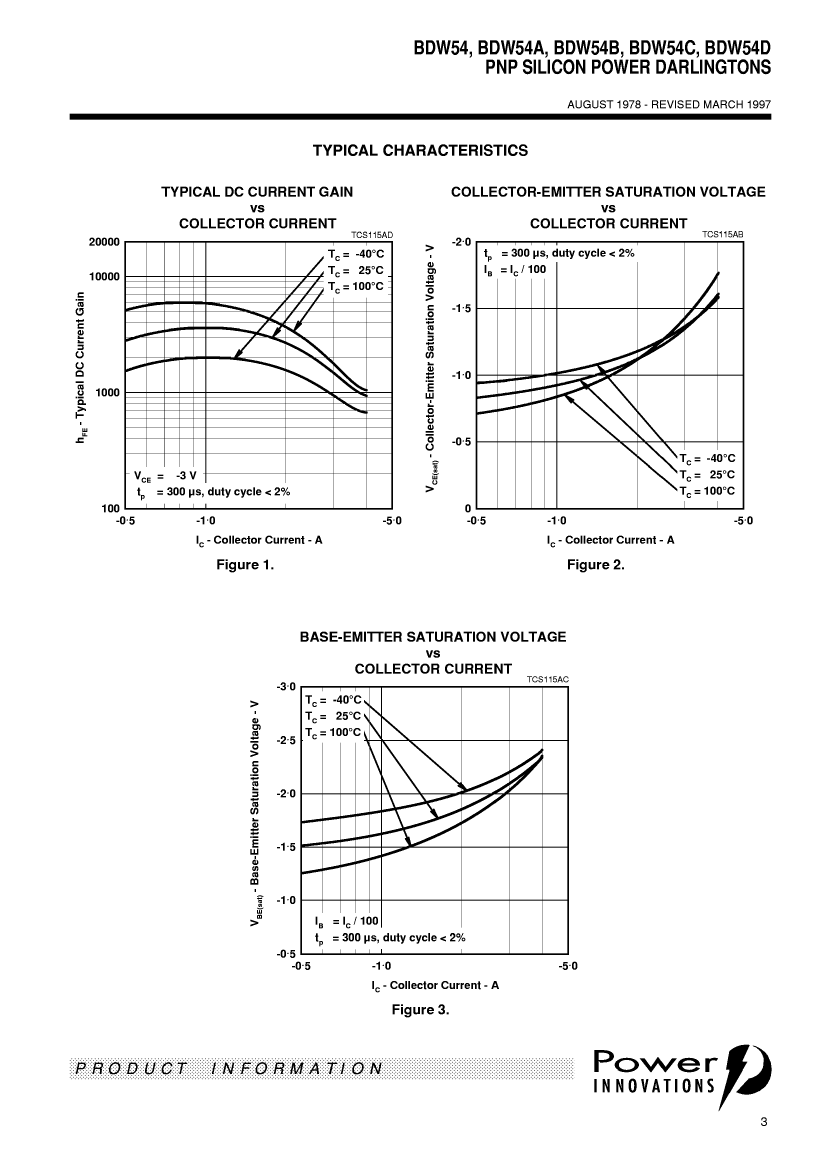

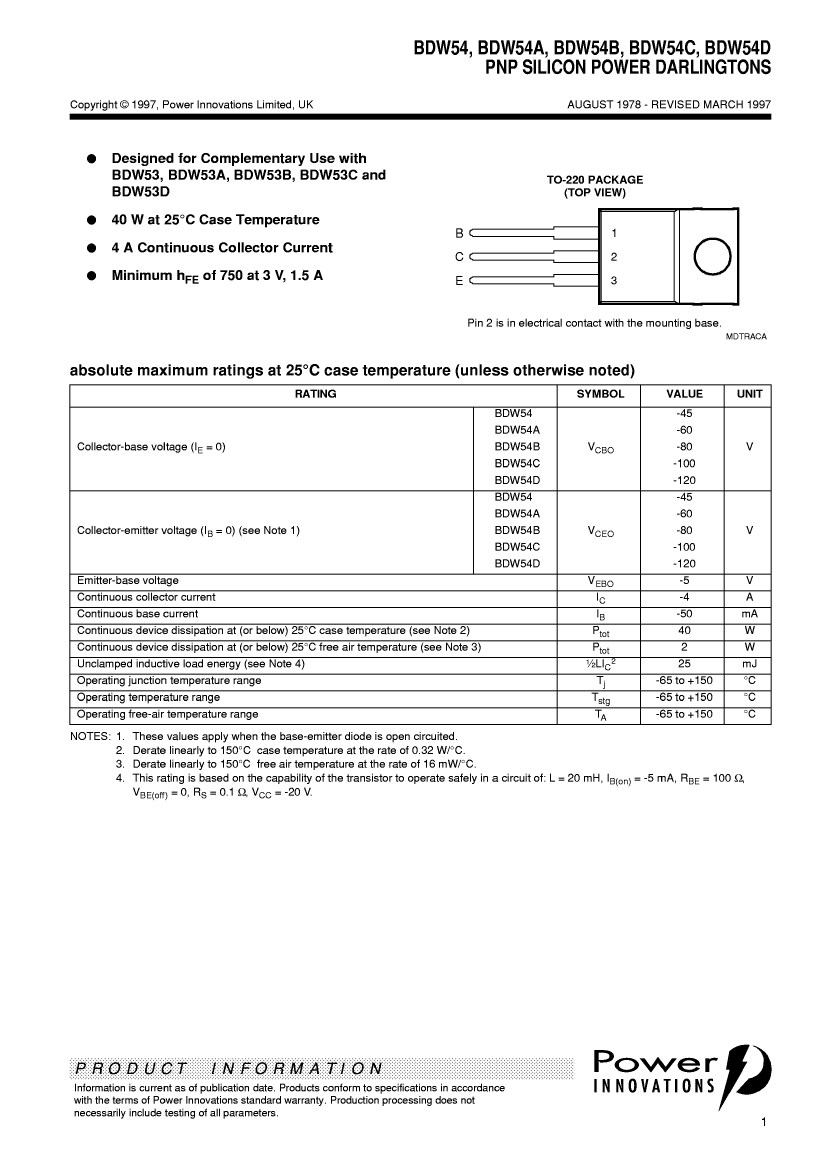

Preview

Download Datasheet

View All

BDW54 Related Products

	BDW54	BDW54B	BDW54A	BDW54D	BDW54C
Description	4A, 45V, PNP, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN	4A, 80V, PNP, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN	4A, 60V, PNP, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN	4A, 120V, PNP, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN	4A, 100V, PNP, Si, POWER TRANSISTOR, TO-220, TO-220, 3 PIN
Maker	J.W. Miller ( Bourns )	J.W. Miller ( Bourns )	J.W. Miller ( Bourns )	J.W. Miller ( Bourns )	J.W. Miller ( Bourns )
Parts packaging code	SFM	SFM	SFM	SFM	SFM
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3
Contacts	3	3	3	3	3
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR
Maximum collector current (IC)	4 A	4 A	4 A	4 A	4 A
Collector-emitter maximum voltage	45 V	80 V	60 V	120 V	100 V
Configuration	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON
Minimum DC current gain (hFE)	100	100	100	100	100
JEDEC-95 code	TO-220AB	TO-220AB	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Number of components	1	1	1	1	1
Number of terminals	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	PNP	PNP	PNP	PNP	PNP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON
