DSM6356-000

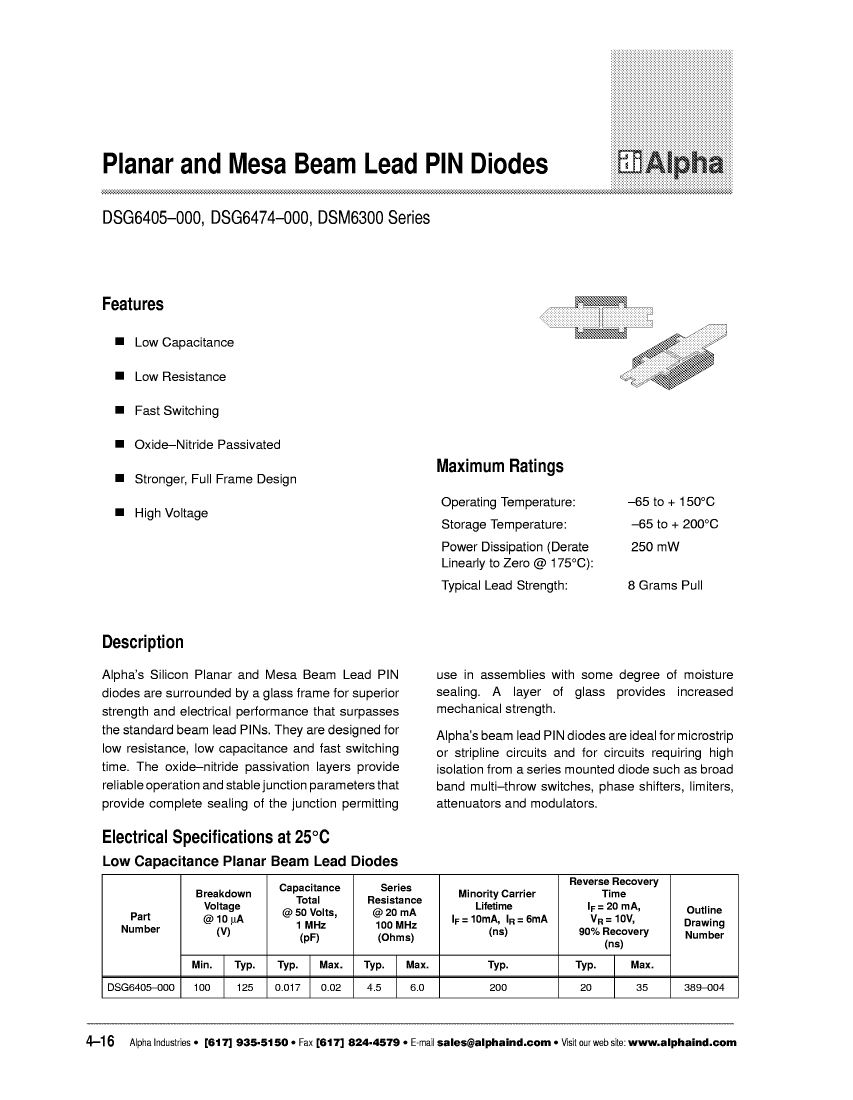

Description
Pin Diode, 30V V(BR), Silicon, GLASS, 389-003, 2 PIN
CategoryDiscrete semiconductor    diode
File Size460KB,10 Pages
ManufacturerAlpha Industries
Websitehttp://www.alphaind.com
Download Datasheet Parametric Compare View All

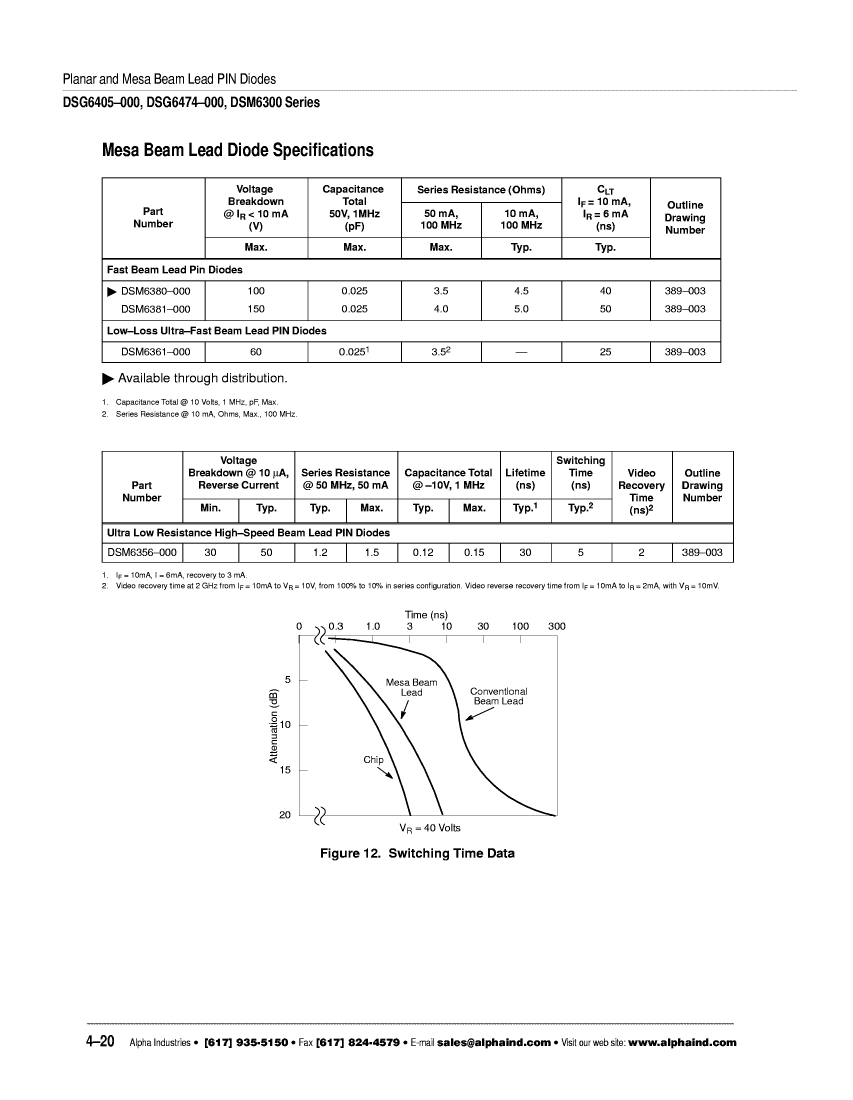

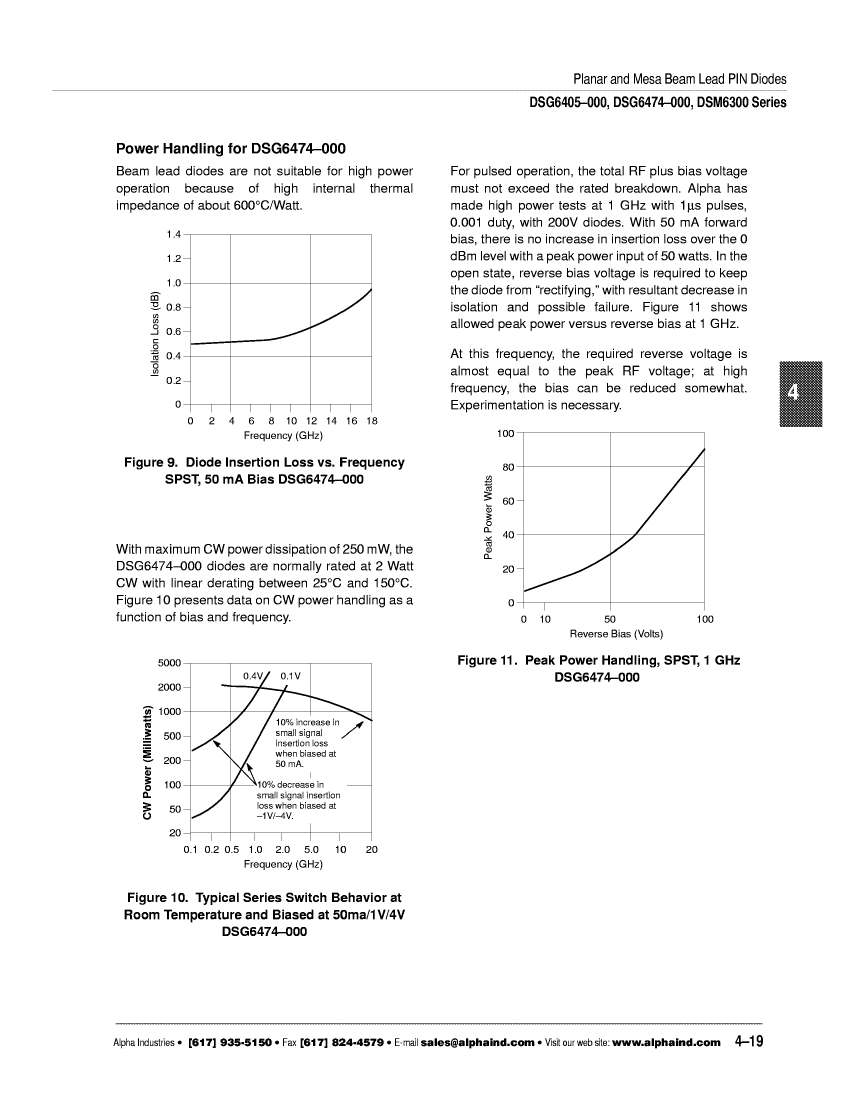

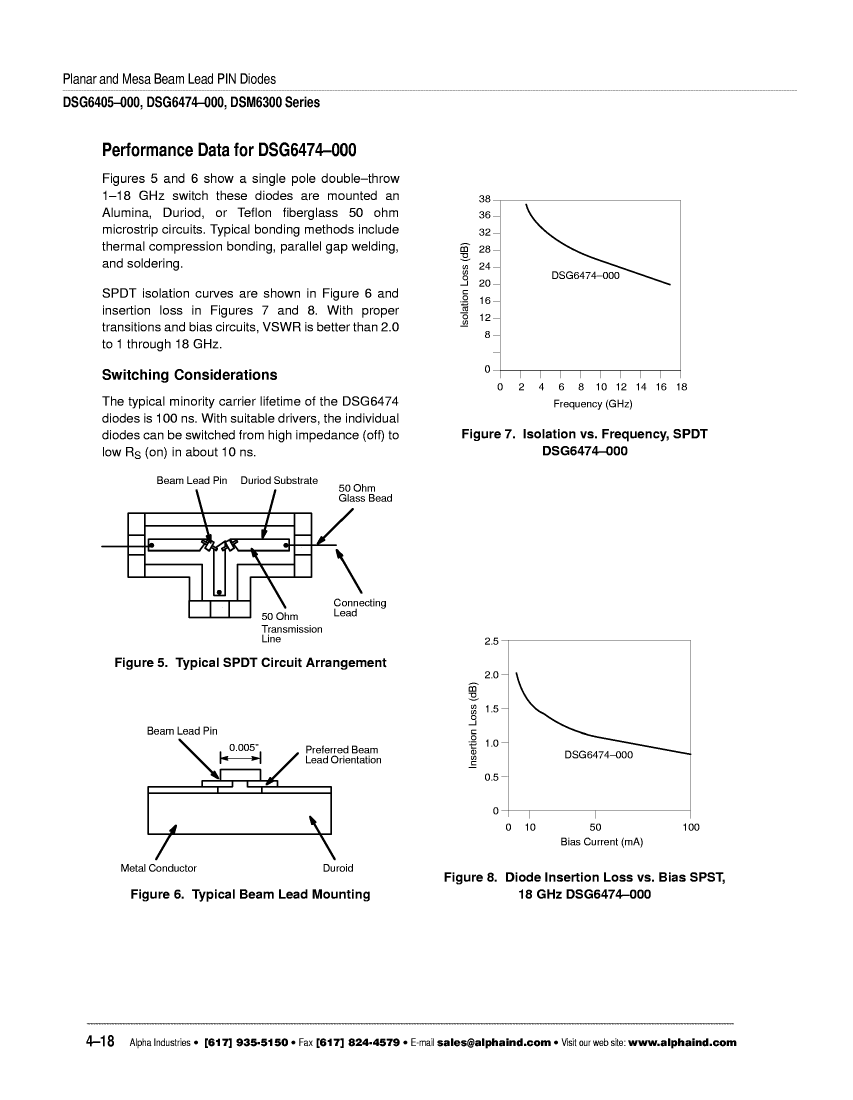

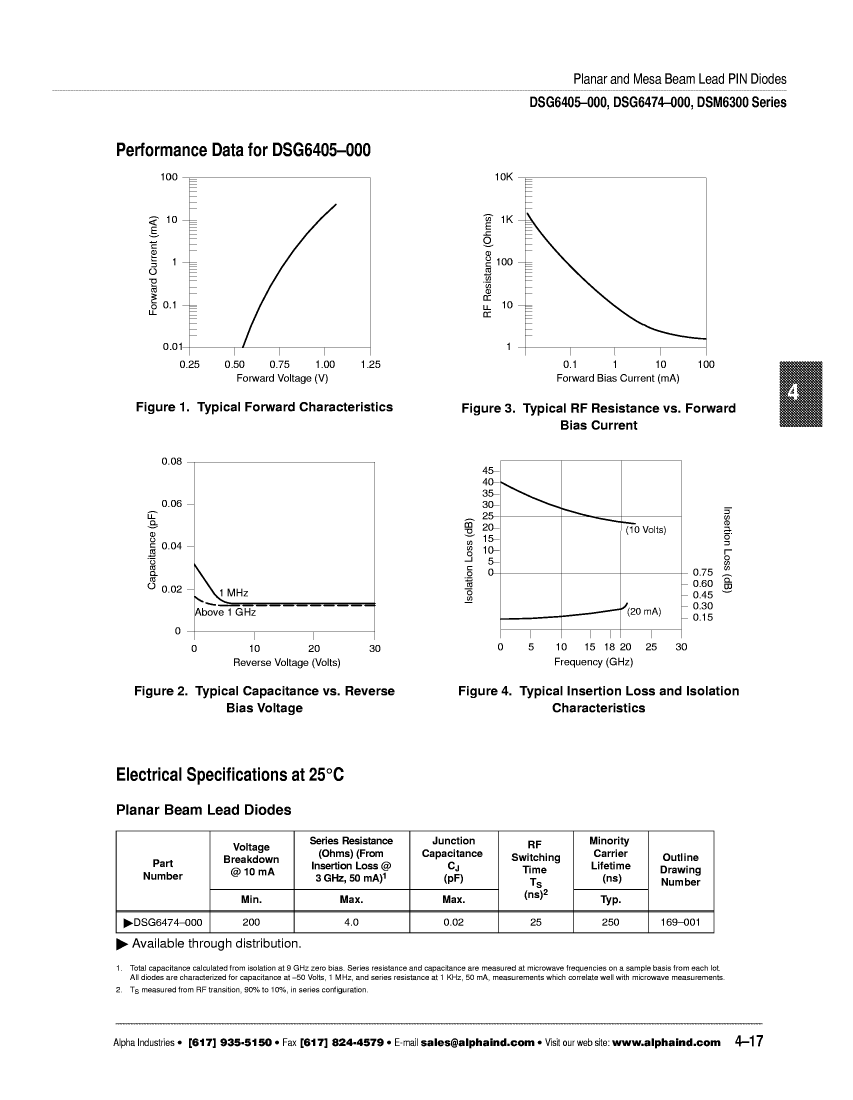

DSM6356-000 Overview

Pin Diode, 30V V(BR), Silicon, GLASS, 389-003, 2 PIN

DSM6356-000 Parametric

Parameter NameAttribute value
MakerAlpha Industries
package instructionR-LDMW-F2
Contacts2
Manufacturer packaging code389-003
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresHIGH VOLTAGE
applicationATTENUATOR; LIMITER; SWITCHING
Minimum breakdown voltage30 V
ConfigurationSINGLE
Maximum diode capacitance0.15 pF
Diode component materialsSILICON
Maximum diode forward resistance1.5 Ω
Diode typePIN DIODE
JESD-30 codeR-LDMW-F2
Minority carrier nominal lifetime0.03 µs
Number of components1
Number of terminals2
Package body materialGLASS
Package shapeRECTANGULAR
Package formMICROWAVE
Maximum power dissipation0.25 W
Certification statusNot Qualified
surface mountYES
technologyPOSITIVE-INTRINSIC-NEGATIVE
Terminal formFLAT
Terminal locationDUAL

DSM6356-000 Related Products

DSM6356-000 DSM6380-000
Description Pin Diode, 30V V(BR), Silicon, GLASS, 389-003, 2 PIN Pin Diode, 100V V(BR), Silicon, GLASS, 389-003, 2 PIN
Maker Alpha Industries Alpha Industries
package instruction R-LDMW-F2 R-LDMW-F2
Contacts 2 2
Manufacturer packaging code 389-003 389-003
Reach Compliance Code unknow unknow
ECCN code EAR99 EAR99
Other features HIGH VOLTAGE HIGH VOLTAGE
application ATTENUATOR; LIMITER; SWITCHING ATTENUATOR; LIMITER; SWITCHING
Minimum breakdown voltage 30 V 100 V
Configuration SINGLE SINGLE
Maximum diode capacitance 0.15 pF 0.025 pF
Diode component materials SILICON SILICON
Maximum diode forward resistance 1.5 Ω 3.5 Ω
Diode type PIN DIODE PIN DIODE
JESD-30 code R-LDMW-F2 R-LDMW-F2
Minority carrier nominal lifetime 0.03 µs 0.04 µs
Number of components 1 1
Number of terminals 2 2
Package body material GLASS GLASS
Package shape RECTANGULAR RECTANGULAR
Package form MICROWAVE MICROWAVE
Maximum power dissipation 0.25 W 0.25 W
Certification status Not Qualified Not Qualified
surface mount YES YES
technology POSITIVE-INTRINSIC-NEGATIVE POSITIVE-INTRINSIC-NEGATIVE
Terminal form FLAT FLAT
Terminal location DUAL DUAL
