9372: DescriptionVariable Capacitor, Ceramic, 250V, 3pF Min, 10pF Max, Vertical Adjuster, Through Hole Mount; CategoryPassive components capacitor; File Size101KB，1 Pages; ManufacturerJohanson Manufacturing Corporation ( JMC )

Download Datasheet Parametric View All

9372 Overview

Variable Capacitor, Ceramic, 250V, 3pF Min, 10pF Max, Vertical Adjuster, Through Hole Mount

9372 Parametric

Parameter Name	Attribute value
Maker	Johanson Manufacturing Corporation ( JMC )
package instruction	, 2220
Reach Compliance Code	unknow
ECCN code	EAR99
Regulator direction	VERTICAL
Maximum capacitance	10 pF
Minimum capacitance	3 pF
Capacitor type	VARIABLE CAPACITOR
dielectric materials	CERAMIC
high	6.1 mm
length	5.6 mm
Manufacturer's serial number	9300
Installation features	THROUGH HOLE MOUNT
multiple turns
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package form	PCB Mou
Rated (DC) voltage (URdc)	250 V
series	9372
size code	2220
surface mount	NO
Terminal pitch	5 mm
Terminal shape	FLAT
width	5.1 mm

Preview

Download Datasheet

View All

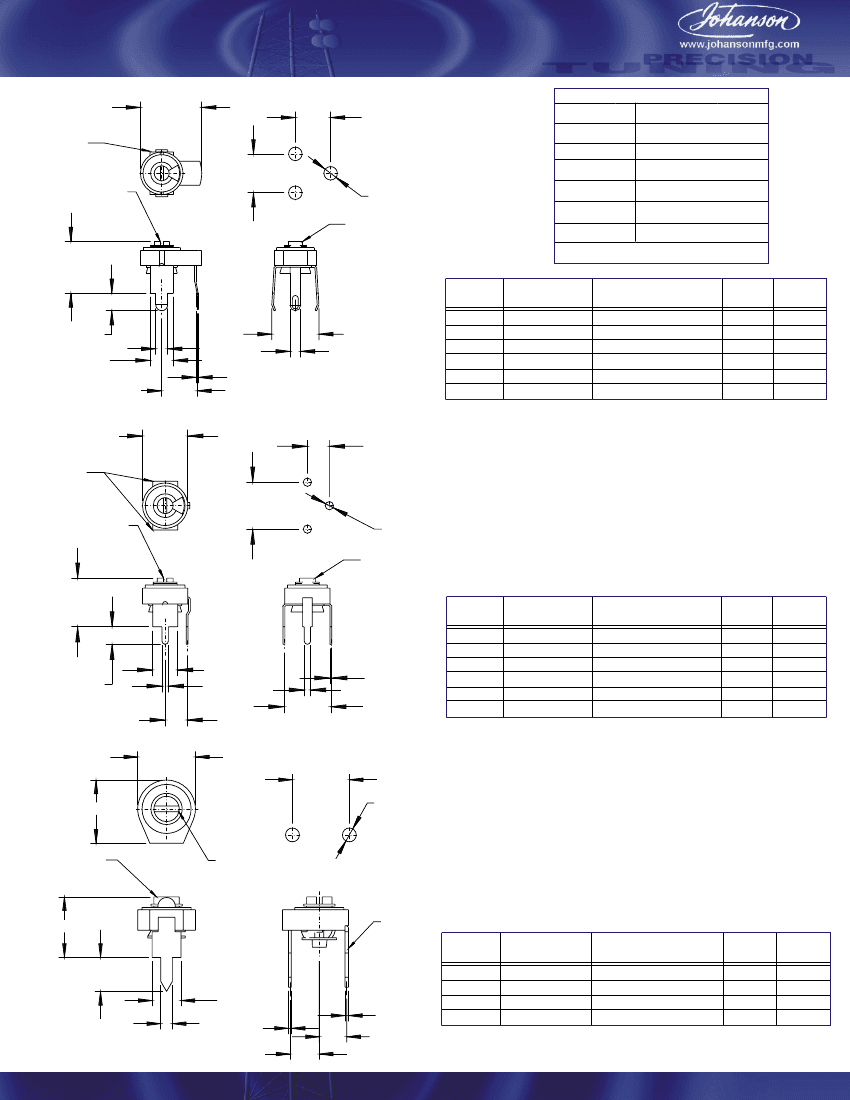

9300 Series Ceramic Trimmer

SUGGESTED HOLE LAYOUT

ø .410 ± .020

(10.41±.508)

ROTOR

TUNING SLOT

.020(.508) WIDE

BY .025(.635) DEEP

SPECIFICATIONS

.236

(5.99)

CAPACITY

RANGE

WORKING

VOLTAGE

Q @ 10 MHz

INSULATION

RESISTANCE

TEMPERATURE

COEFFICIENT

TEMPERATURE

RANGE

TORQUE

SEE TABLE

250 VDC

(TEST VOLTAGE 500 VDC)

SEE TABLE

4

> 10 MEGOHMS

SEE TABLE

-55°C TO +85°C

0.56 TO 5.6 OZ. IN.

.260(5.99)

COMMON

+.005(.127)

ø .089 -.000

(2.26)

(3X)

COLOR CODE

.354(8.99)

MAX.

CERAMIC DIELECTRIC STRUCTURE

JMC P/N

.118 ± .010

(3.00±.254)

.157(4.00)

.236 ± .020

(6.00±.508)

.315 ± .020

(8.00±.508)

CAPACITANCE

2.0 TO 8.0

2.0 TO 12

2.5 TO 23

4.0 TO 34

5.5 TO 45

6.0 TO 55

TEMPERATURE

COEFFICIENT (PPM/°C)

NPO

-450

-550

-1400

±

200

800

COLOR

CODE

RED

NONE

BLUE

ORANGE

BROWN

GREEN

MIN Q

@ 10 MHz

>300

>200

.080

(2.03)

.070

(1.78)

.016

9300

9301

9302

9303

9304

9305

ø .285 ± .020

(7.25±.381)

ROTOR

TUNING SLOT

.020(.508) WIDE

BY .025(.635) DEEP

SUGGESTED HOLE LAYOUT

.138

(3.51)

.295(7.49)

COMMON

ø.052(1.32)

(3X)

COLOR CODE

.315(8.00)

MAX.

JMC P/N

9306

9307

9308

9309

9310

9311

CAPACITANCE

2.0 TO 8.0

2.0 TO 12

2.5 TO 23

4.0 TO 34

5.5 TO 45

6.0 TO 55

TEMPERATURE

COEFFICIENT (PPM/°C)

NPO

-450

-550

-1400

±

200

800

COLOR

CODE

RED

NONE

BLUE

ORANGE

BROWN

GREEN

MIN Q

@ 10 MHz

>300

>200

.157(4.00)

.110 ± .010

(2.79±.254)

.138 ± .010

(3.51±.254)

.200 ± .015

(5.08±.381)

.040

(1.02)

.040

(1.02)

.012(.305)

.295 ± .020

(7.49±.508)

SUGGESTED HOLE LAYOUT

.197(5.00)

.22(5.56)

.047 +.002(.051)

(1.19)-.000

(2X)

COLOR CODE

TUNING SLOT

.020(.508) WIDE

X .025(.635) MIN. DEEP

.240(6.1) MAX.

ROTOR

JMC P/N

.118 ± .010

(3.00±.254)

.100(2.54)

.040

(1.02)

.012(.305)

.010(.254)

.102 ± .010

(2.59±.254)

.095 ± .010

(2.41±.254)

CAPACITANCE

1.8 TO 5.0

3.0 TO 10

3.5 TO 18

5.0 TO 25

TEMPERATURE

COEFFICIENT (PPM/°C)

NPO

-600

-800

-1500

±

250

300

500

COLOR

CODE

BLACK

NONE

BLUE

PURPLE

MIN Q

@ 10 MHz

>300

>200

9371

9372

9373

9374

Dimensions: inches (mm)

Specifications subject to change without notice

Johanson Manufacturing Corp., 301 Rockaway Valley Road, Boonton, NJ 07005, Tel: 973-334-2676 Fax: 973-334-2954
