A72QQ2220260K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> A72QQ2220260K

A72QQ2220260K: DescriptionFilm Capacitor, Polypropylene, 1000V, 10% +Tol, 10% -Tol, 0.022uF, Through Hole Mount, AXIAL LEADED; CategoryPassive components capacitor; File Size292KB，5 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

A72QQ2220260K Overview

Film Capacitor, Polypropylene, 1000V, 10% +Tol, 10% -Tol, 0.022uF, Through Hole Mount, AXIAL LEADED

A72QQ2220260K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	KEMET
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
Other features	RATED AC VOLTAGE (V): 400
capacitance	0.022 µF
Capacitor type	FILM CAPACITOR
diameter	11 mm
dielectric materials	POLYPROPYLENE
JESD-609 code	e3
length	28 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
Package form	Axial
method of packing	TR
positive tolerance	10%
Rated (AC) voltage (URac)	400 V
Rated (DC) voltage (URdc)	1000 V
Guideline	AEC-Q200
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	WIRE

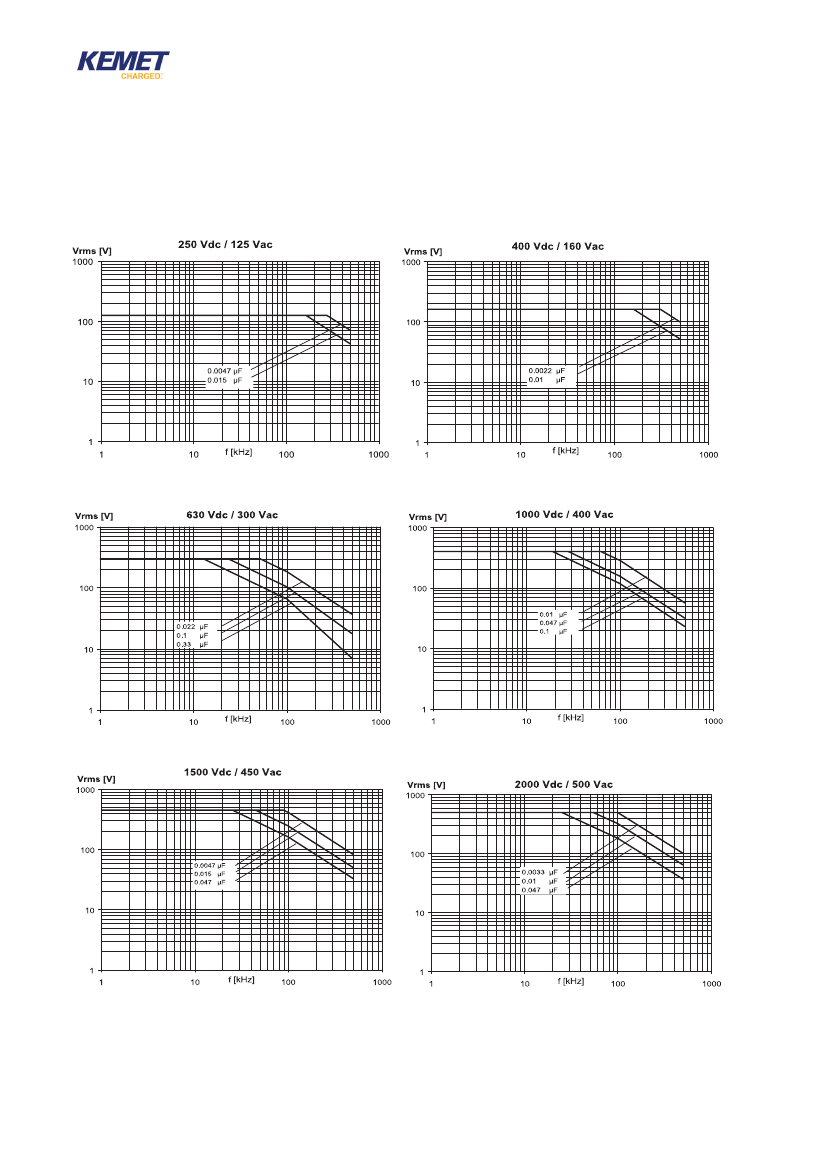

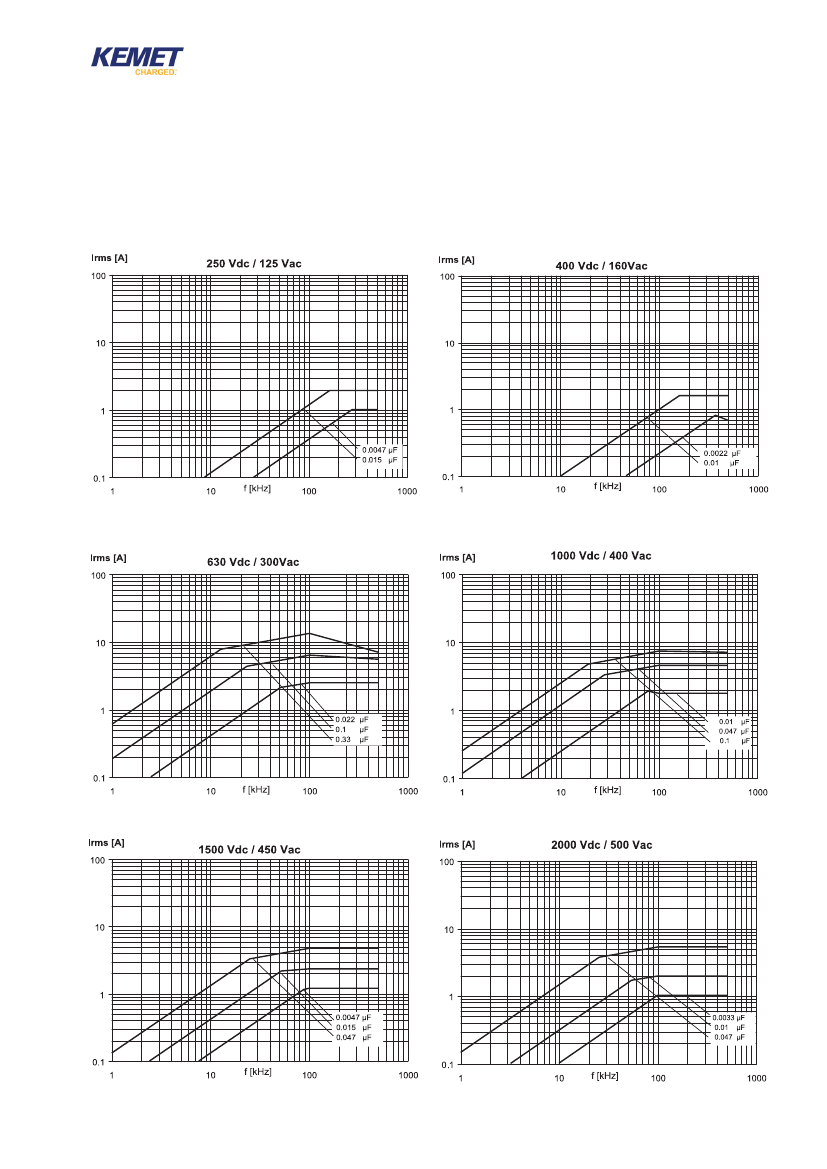

Preview

Download Datasheet

View All

Loose

Taped

A72

FIlM-FOIl POlyPROPylene CAPACITOR

HIgH CURRenT APPlICATIOnS

Typical applications:

switching spikes suppression and

resonant capacitor in SMPS, deflection circuits in TV-sets (S-

correction and fly-back tuning), applications with high voltage

and high current.

PRoDUCT CoDe:

A72

KP series

D max

Ød ±0.05

0.5

>5 ≤ 7

0.6

>7<16

0.8

≥16

All dimensions are in mm.

PRODUCT CODe SySTeM

The part number, comprising 14 digits, is formed as follows:

10 11

geneRAl TeCHnICAl DATA

Dielectric:

polypropylene film.

Plates:

Winding:

leads:

metal foil for 1 section;

metal foil + metallized film for 2 sections.

non-inductive type.

tinned wire.

A 7 2

Digit 1 to 3

Digit 4

series code.

d.c. rated voltage:

e =100V I = 250V M= 400V

P =630V Q =1000V s =1500V U = 2000V

Digit 5

Length (mm):

F=11; H=14; K=20.5; Q=28; T=33

Digit 6 to 9

Digits 7 - 8 - 9 indicate the first three digits of

Capacitance value and the 6th digit indicates

the number of zeros that must be added to

obtain the Rated Capacitance in pF.

Digit 10 to 11 Mechanical version and/or packaging (table1)

Digit 12

Identifies the dimensions and electrical

characteristics.

Internal use

Digit 13

Digit 14

Capacitance tolerance:

J=5%; K=10%; M=20%.

Table 1 (for more detailed information, please refer to page 14).

Standard

packaging style

Reel Ø 355 mm

Loose

Ordering code

(Digit 10 to 11)

Protection:polyester

tape wrapping and thermosetting resin

end fill.

Marking:

manufacturer’s logo, series (1.72), dielectric

code (KP), capacitance, tolerance, D.C. rated

voltage.

55/105/56 IeC 68-1

Climatic category:

Operating temperature range:

-55 to +105°C
