R745I2220DQ6-J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> R745I2220DQ6-J

R745I2220DQ6-J: DescriptionCAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1600V, 0.022uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size610KB，11 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

R745I2220DQ6-J Overview

CAPACITOR, METALLIZED FILM, POLYPROPYLENE, 1600V, 0.022uF, THROUGH HOLE MOUNT, RADIAL LEADED

R745I2220DQ6-J Parametric

Parameter Name	Attribute value
Maker	KEMET
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.022 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYPROPYLENE
JESD-609 code	e3
Installation features	THROUGH HOLE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	AMMO PACK
positive tolerance	5%
Rated (AC) voltage (URac)	500 V
Rated (DC) voltage (URdc)	1600 V
surface mount	NO
Terminal surface	TIN
Terminal shape	WIRE

Preview

Download Datasheet

View All

Not for new design. Use new F461-F464 Series.

Loose

Fig.1

Taped

Fig.2

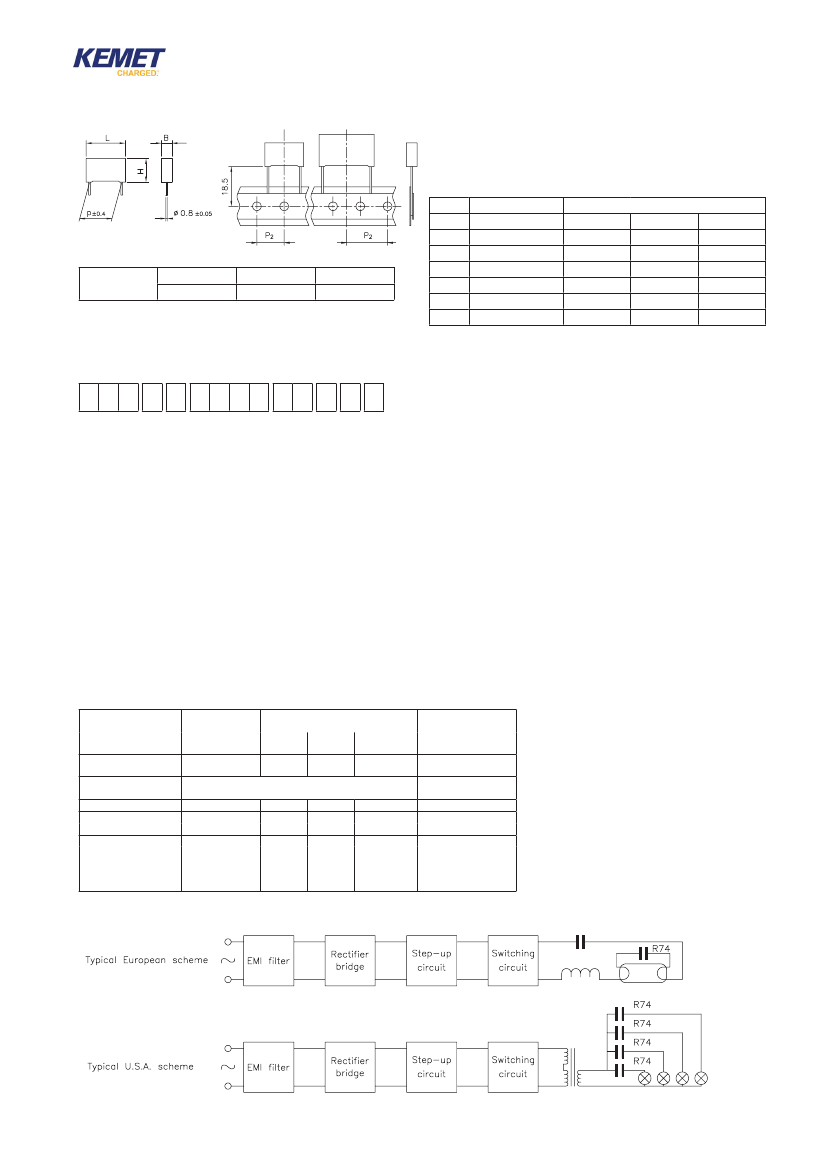

MeTAllIZeD POlyPROPylene FIlM CAPACITOR

A.C. APPlICATIOnS

MKP series

R74

Typical applications:

electronic lighting (i.e. car headlamp

and ballast), pulse applications with high A.C. voltage and

high current.

PRoDUCT CoDe:

R74

Pitch Box thickness (B)

(mm)

10.0

All

15.0

<7.5

15.0

≥7.5

22.5

All

27.5

All

37.5

All

Maximum dimensions (mm)

B max

H max

L max

B +0.2

H +0.1

L +0.2

B +0.2

H +0.1

L +0.3

B +0.2

H +0.1

L +0.5

B +0.2

H +0.1

L +0.3

B +0.2

H +0.1

L +0.3

B +0.3

H +0.1

L +0.3

Ød ±0.05

p = 10

0.6

≤

27.5

0.8

p = 37.5

1.0

All dimensions are in mm.

PRODUCT CODe SySTeM

The part number, comprising 14 digits, is formed as follows:

10 11

R 7 4

Digit 1 to 3

Digit 4

series code.

a.c. rated voltage:

L = 250V

N = 400V

9 = 900V

7 = 700V

5 = 500V

Digit 5

Digit 6 to 9

Pitch: F=10.0mm; I =15.0mm; N=22.5mm;

R=27.5mm W=37.5mm

Digits 7 - 8 - 9 indicate the first three digits of

Capacitance value and the 6th digit indicates

the number of zeros that must be added to

obtain the Rated Capacitance in pF.

Identifies the dimensions and electrical

characteristics.

Internal use.

Capacitance tolerance:

J=5%; K=10%

lead length

(mm)

12.70

19.05

12.70

19.05

Taping style

Fig.

(No.)

Pitch

(mm)

10.0/15.0

22.5

10.0/15.0

22.5/27.5

geneRAl TeCHnICAl DATA

Dielectric:

polypropylene film.

Plates:

aluminium layer deposited by evaporation under

vacuum.

Winding:

non-inductive type.

leads:

tinned wire.

Protection:

plastic case, thermosetting resin filled.

Box material is solvent resistant and flame

retardant according to UL94 V0.

Marking:

manufacturer’s logo, series (R74), dielectric

code (MKP), capacitance, tolerance, A.C. rated

voltage, manufacturing date code.

Climatic category:

55/105/56 IeC 60068-1

Operating temperature range:

-55 to +105°C
