PRODUCT INFORMATION
GOF DUPLEX Patchcord

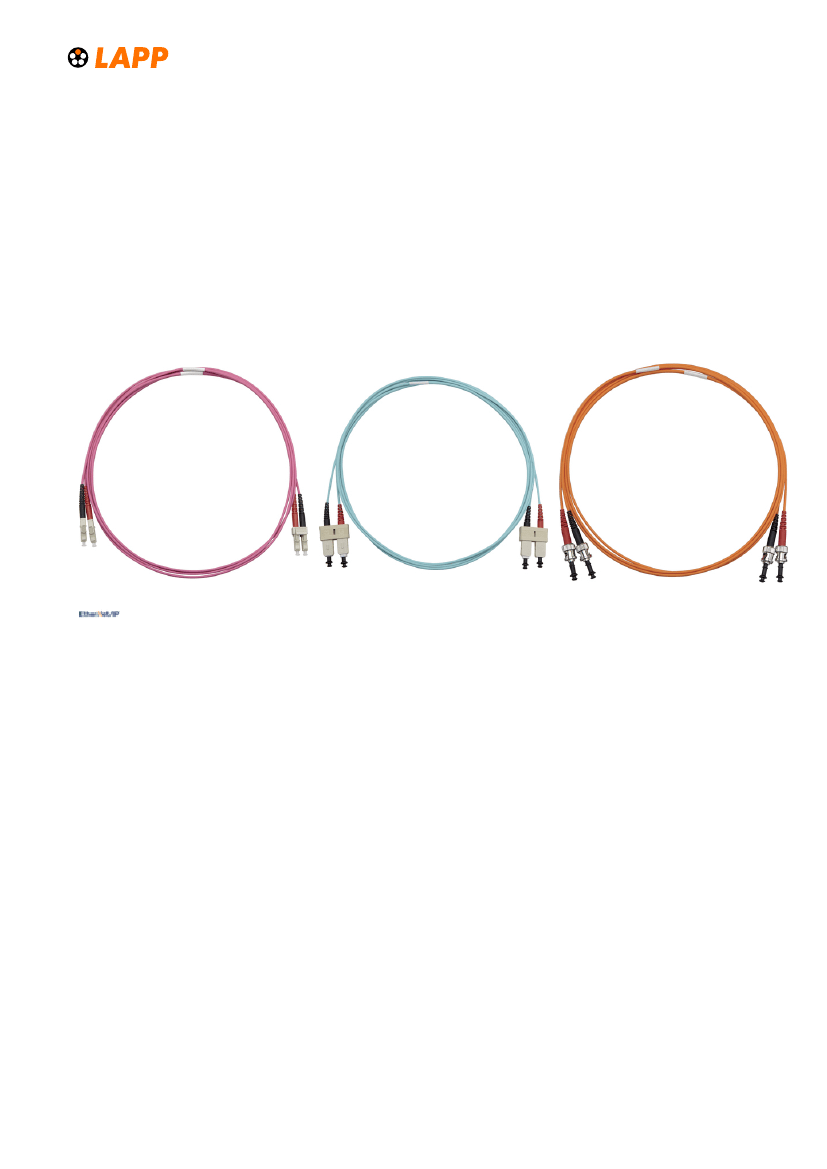

Optical patch cords with various types of connectors available in single-mode or multi-mode fibre version
Optical Duplex patch cords with various types of connectors (ST, LC, SC) available in single-mode or multi-mode fibre version
Info
Pre-assembled duplex tight-buffered optical fibre
cables with durable ceramic ferrule connectors
Other types are available at
www.lappgroup.com/assemblyfinder
or on request
Benefits
To connect optical transmitter, receiver and terminal box
"Plug & Play" connection between optical devices
Non-permanent connections allow for easy change of equipment
For direct connection between two active optical components
Application range
For indoor use
LAN connections
Data Centers
Distributor cabinet
Product features
Outer sheath flame-retardant and halogen-free
High flexibility
Cable termination with durable
ceramic ferrules
Pre-assembled connectors:
-Low insertion loss
-High return loss
Norm references / Approvals
LC comply with IEC standard 61754-20
SC comply with IEC standard 61754-4
Last Update (24.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
PRODUCT INFORMATION
GOF DUPLEX Patchcord
ST comply with IEC standard 61754-2
FC complies with IEC61754-13
Product Make-up
Tight-buffered duplex cable with LSZH outer sheath
Connector: LC, SC or ST

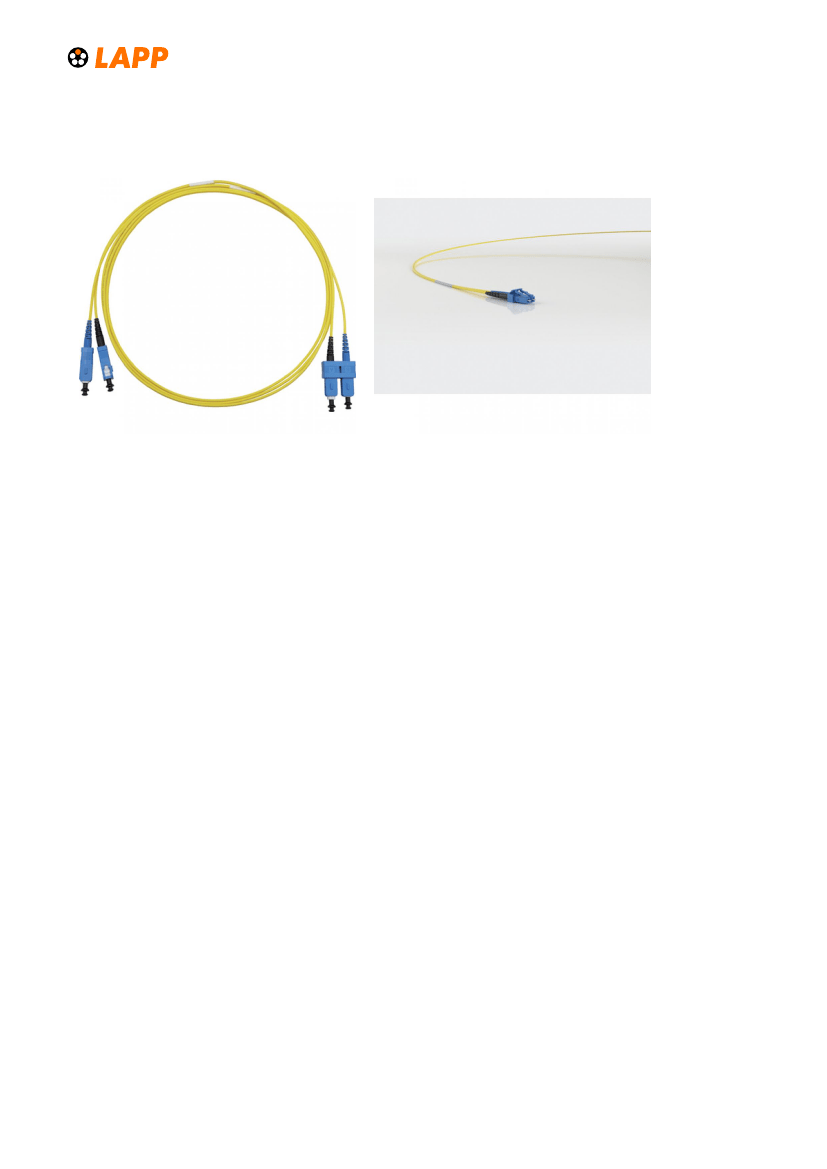

Cable colour:
violet for multimode OM4,
aqua for multimode OM3,
orange for multimode OM2 and OM1,
yellow for single-mode OS2
Standard length: 2 m
On request: 1 m, 3 m, 5 m and 10 m
Technical Data
Classification ETIM 5:
Classification ETIM 6:
Dimensions:
ETIM 5.0 Class-ID: EC001263
ETIM 5.0 Class-Description: Fibre optic patch cord
ETIM 6.0 Class-ID: EC001263
ETIM 6.0 Class-Description: Fibre optic patch cord
Primary coated fibre: 250µm
tight-buffer (secondary coated fibre): 900µm
sub-cable: 1.9mm
GOF - Glass Optical Fibre
J-VH 2x1G/E...
Core material: glass
Cladding material: glass
Static: ≥ 30 mm
Dynamic: ≥ 40 mm
Fixed installation: 100 N
Fixed installation: -20°C to +60°C
Occasional flexing: -5°C to +50°C
Fibre type:
Standard designation:
Optical fibre type:
Permissible bending radius:
Permissible tensile force:
Temperature range:
Note
Other lengths and types of connectors are available upon request.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Prices are net prices without VAT and surcharges. Sale to business customers only.
Last Update (24.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
Powered by TCPDF (www.tcpdf.org)
GOF DUPLEX Patchcord
Article number
Multimode G 50 OM4
29011402
29021402
29022402
29031402
29032402
29033402
29044402
Multimode G 50 OM3
29011302
29021302
29022302
29031302
29032302
29033302
29044302
Multimode G 50 OM2
29011202
29021202
29022202
29031202
29032202
29033202
29044202
Multimode G 62.5 OM1
29011102
29021102
29022102
29031102
29032102
29033102
29044102
Single-mode E 9 OS2
29011902
29021902
Article designation
GOF Duplex Patchcord SC/SC G50 OM4, 2m
GOF Duplex Patchcord ST/SC G50 OM4, 2m
GOF Duplex Patchcord ST/ST G50 OM4, 2m
GOF Duplex Patchcord LC/SC G50 OM4, 2m
GOF Duplex Patchcord LC/ST G50 OM4, 2m
GOF Duplex Patchcord LC/LC G50 OM4, 2m
GOF Duplex Patchcord FC/FC G50 OM4, 2m
GOF Duplex Patchcord SC/SC G50 OM3, 2m
GOF Duplex Patchcord ST/SC G50 OM3, 2m
GOF Duplex Patchcord ST/ST G50 OM3, 2m
GOF Duplex Patchcord LC/SC G50 OM3, 2m
GOF Duplex Patchcord LC/ST G50 OM3, 2m
GOF Duplex Patchcord LC/LC G50 OM3, 2m
GOF Duplex Patchcord FC/FC G50 OM3, 2m
GOF Duplex Patchcord SC/SC G50 OM2, 2m
GOF Duplex Patchcord ST/SC G50 OM2, 2m
GOF Duplex Patchcord ST/ST G50 OM2, 2m
GOF Duplex Patchcord LC/SC G50 OM2, 2m
GOF Duplex Patchcord LC/ST G50 OM2, 2m
Last Update (24.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
PRODUCT INFORMATION
GOF Duplex Patchcord LC/LC G50 OM2, 2m
GOF Duplex Patchcord FC/FC G50 OM2, 2m
GOF Duplex Patchcord SC/SC G62.5, 2m
GOF Duplex Patchcord ST/SC G62.5, 2m
GOF Duplex Patchcord ST/ST G62.5, 2m
GOF Duplex Patchcord LC/SC G62.5, 2m
GOF Duplex Patchcord LC/ST G62.5, 2m
GOF Duplex Patchcord LC/LC G62.5, 2m
GOF Duplex Patchcord FC/FC G62.5, 2m
GOF Duplex Patchcord SC/SC E9 OS2, 2m
GOF Duplex Patchcord ST/SC E9 OS2, 2m
Powered by TCPDF (www.tcpdf.org)
GOF DUPLEX Patchcord
Article number
29022902
29031902
29032902
29033902
29033802
29039902
Article designation
GOF Duplex Patchcord ST/ST E9 OS2, 2m
GOF Duplex Patchcord LC/SC E9 OS2, 2m
GOF Duplex Patchcord LC/ST E9 OS2, 2m
GOF Duplex Patchcord LC/LC E9 OS2, 2m
GOF DUPLEX Patchcord LC/LC 9/125 APC, 2m
GOF DUPLEX Patchcord LC/SC-APC E9 OS2, 2m
Last Update (24.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
PRODUCT INFORMATION
PRODUCT INFORMATION
GOF DUPLEX Patchcord
Last Update (24.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
Powered by TCPDF (www.tcpdf.org)
