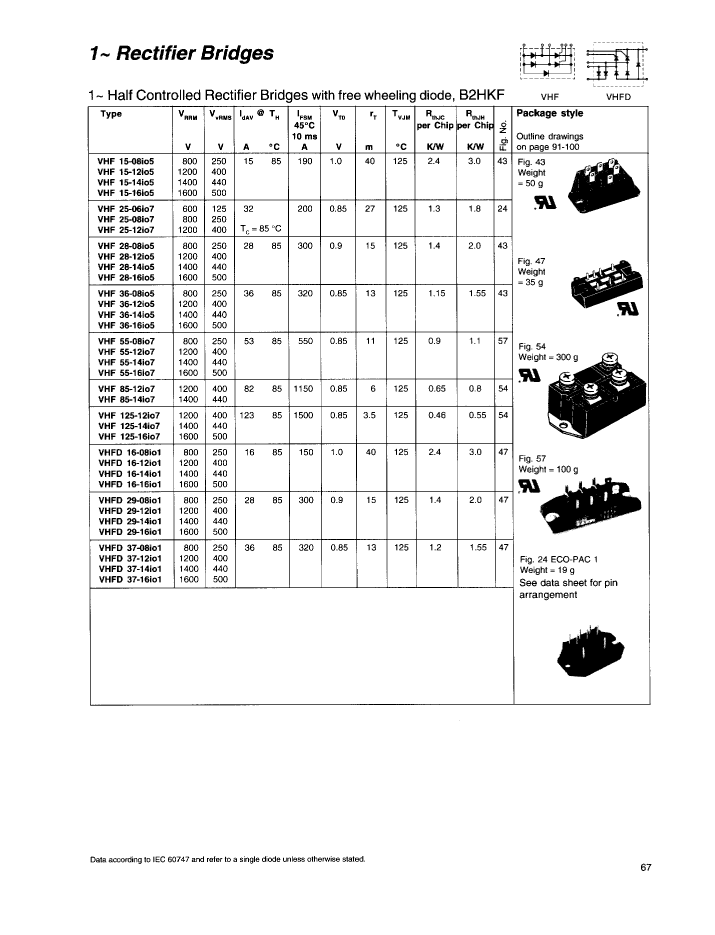

VHF28-14IO5: DescriptionSilicon Controlled Rectifier, 23A I(T)RMS, 28000mA I(T), 1400V V(DRM), 1400V V(RRM), 2 Element,; CategoryAnalog mixed-signal IC Trigger device; File Size37KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

VHF28-14IO5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	VHF28-14IO5	-	-	View	Buy Now

VHF28-14IO5 Overview

Silicon Controlled Rectifier, 23A I(T)RMS, 28000mA I(T), 1400V V(DRM), 1400V V(RRM), 2 Element,

VHF28-14IO5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Littelfuse
package instruction	FLANGE MOUNT, R-XUFM-D6
Reach Compliance Code	compli
Shell connection	ISOLATED
Configuration	BRIDGE, HALF-CONTROLLED, COMMON CATHODE WITH BUILT-IN FREE-WHEELING DIODE
Maximum DC gate trigger current	65 mA
Maximum DC gate trigger voltage	1 V
Quick connection description	2G-2AK-CA-CK
Description of screw terminals	0
Maximum holding current	100 mA
JESD-30 code	R-XUFM-D6
Maximum leakage current	0.3 mA
On-state non-repetitive peak current	330 A
Number of components	2
Number of terminals	6
Maximum on-state current	28000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	23 A
Off-state repetitive peak voltage	1400 V
Repeated peak reverse voltage	1400 V
surface mount	NO
Terminal surface	Nickel (Ni)
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR

Preview

Download Datasheet

View All

VHF28-14IO5 Related Products

	VHF28-14IO5	VHFD29-14IO1	VHF15-14IO5	VHF15-16IO5	VHF28-12IO5	VHF28-16IO5
Description	Silicon Controlled Rectifier, 23A I(T)RMS, 28000mA I(T), 1400V V(DRM), 1400V V(RRM), 2 Element,	Silicon Controlled Rectifier, 25A I(T)RMS, 28000mA I(T), 1400V V(DRM), 1400V V(RRM), 2 Element, V1-PACK-7	Silicon Controlled Rectifier, 15A I(T)RMS, 15000mA I(T), 1400V V(DRM), 1400V V(RRM), 2 Element,	Silicon Controlled Rectifier, 15A I(T)RMS, 15000mA I(T), 1600V V(DRM), 1600V V(RRM), 2 Element,	Silicon Controlled Rectifier, 23A I(T)RMS, 28000mA I(T), 1200V V(DRM), 1200V V(RRM), 2 Element,	Silicon Controlled Rectifier, 23A I(T)RMS, 28000mA I(T), 1600V V(DRM), 1600V V(RRM), 2 Element,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Littelfuse	Littelfuse	Littelfuse	Littelfuse	Littelfuse	Littelfuse
package instruction	FLANGE MOUNT, R-XUFM-D6	FLANGE MOUNT, R-XUFM-X7	FLANGE MOUNT, R-XUFM-D6	FLANGE MOUNT, R-XUFM-D6	FLANGE MOUNT, R-XUFM-D6	FLANGE MOUNT, R-XUFM-D6
Reach Compliance Code	compli	compliant	compliant	compli	compli	compli
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	BRIDGE, HALF-CONTROLLED, COMMON CATHODE WITH BUILT-IN FREE-WHEELING DIODE	BRIDGE, HALF-CONTROLLED WITH BUILT-IN FREE-WHEELING AND FIELD DIODE	BRIDGE, HALF-CONTROLLED, COMMON CATHODE WITH BUILT-IN FREE-WHEELING DIODE	BRIDGE, HALF-CONTROLLED, COMMON CATHODE WITH BUILT-IN FREE-WHEELING DIODE	BRIDGE, HALF-CONTROLLED, COMMON CATHODE WITH BUILT-IN FREE-WHEELING DIODE	BRIDGE, HALF-CONTROLLED, COMMON CATHODE WITH BUILT-IN FREE-WHEELING DIODE
Maximum DC gate trigger current	65 mA	65 mA	65 mA	65 mA	65 mA	65 mA
Maximum DC gate trigger voltage	1 V	1 V	1 V	1 V	1 V	1 V
Quick connection description	2G-2AK-CA-CK	G-GR2AC+-F	2G-2AK-CA-CK	2G-2AK-CA-CK	2G-2AK-CA-CK	2G-2AK-CA-CK
Maximum holding current	100 mA	100 mA	100 mA	100 mA	100 mA	100 mA
JESD-30 code	R-XUFM-D6	R-XUFM-X7	R-XUFM-D6	R-XUFM-D6	R-XUFM-D6	R-XUFM-D6
Maximum leakage current	0.3 mA	0.3 mA	0.3 mA	0.3 mA	0.3 mA	0.3 mA
On-state non-repetitive peak current	330 A	330 A	210 A	210 A	330 A	330 A
Number of components	2	2	2	2	2	2
Number of terminals	6	7	6	6	6	6
Maximum on-state current	28000 A	28000 A	15000 A	15000 A	28000 A	28000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	23 A	25 A	15 A	15 A	23 A	23 A
Off-state repetitive peak voltage	1400 V	1400 V	1400 V	1600 V	1200 V	1600 V
Repeated peak reverse voltage	1400 V	1400 V	1400 V	1600 V	1200 V	1600 V
surface mount	NO	NO	NO	NO	NO	NO
Terminal surface	Nickel (Ni)	Tin/Silver/Copper (Sn/Ag/Cu)	Nickel (Ni)	Nickel (Ni)	Nickel (Ni)	Nickel (Ni)
Terminal form	SOLDER LUG	UNSPECIFIED	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR
